KZJ90L-GJMNX (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000
Engine 1KZT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604-9906)KZJ9# ; (9906-0008)KZJ9#..GEN

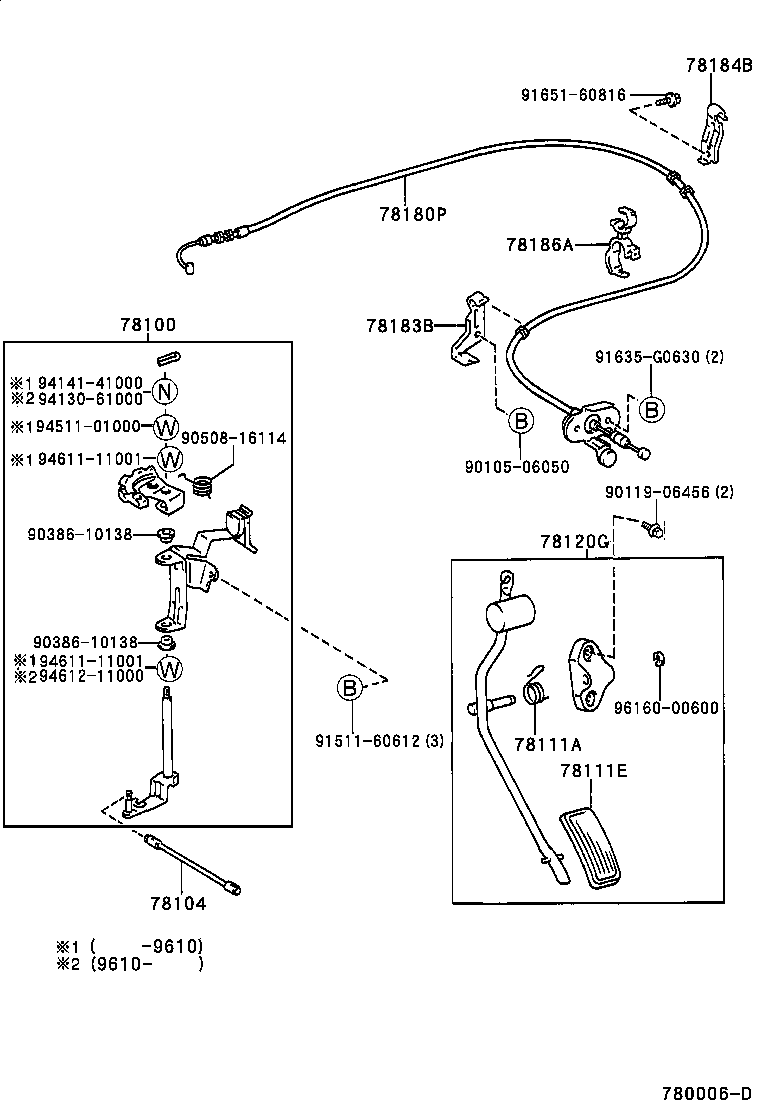

Click highlighted areas on diagram

diagram 78100 78104 78111A 78111E 78120G 78180P 78183B 78184B 78186A 9010506050 9011906456 9038610138 9038610138 9050816114 9151160612 91635G0630 9165160816 9413061000 9414141000 9451101000 9461111001 9461111001 9461211000 9616000600
Part # Description Qty Price
78100 - LINK ASSY, ACCELERATOR
78100-60090

KZJ9#

 1
78100-60050

KZJ9#

 1
78100-60090

KZJ9#..GEN

 1
78100-60050

KZJ9#..GEN

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-60030

KZJ9#..GEN

 1
78104-60030

KZJ9#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90959-03095

RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD..MTM

 1
90959-03095

VZJ95..MTM..VX;KZJ9#,LJ9#,RZJ9#,VZJ90..LHD..(DSL,EFI,TD)

 1
78111E - PAD, ACCELERATOR PEDAL
78111-60030

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
78111-60030

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-60130

RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD..MTM

 1
78120-60130

VZJ95..MTM..VX;KZJ9#,LJ9#,RZJ9#,VZJ90..LHD..(DSL,EFI,TD)

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-35200

KZJ9#

 1
78180-35200

KZJ9#..GEN

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-35040

KZJ9#

 1
78183-35040

KZJ9#..GEN

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-35100

KZJ9#..GEN

 1
78184-35100

KZJ9#

 1
78186A - CLAMP, ACCELERATOR CONTROL CABLE, NO.3
78186-35070

KZJ9#,RZJ9#..LHD

 1
78186-35070

RZJ95..ATM..GCC;KZJ9#,RZJ9#..LHD..(EFI,TD)..(CO,GEN)

 1
78186-35070

RZJ90..GX;KZJ9#,RZJ9#..LHD..(CBR,TD)

 1
78186-35080

KZJ9#

 1
Common parts
90105-06050
90119-06456
90386-10138
90508-16114
91511-60612
91635-G0630
91651-60816
94130-61000
94141-41000
94511-01000
94611-11001
94612-11000
96160-00600
