KZJ90L-GJMNX (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000
Engine 1KZT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )

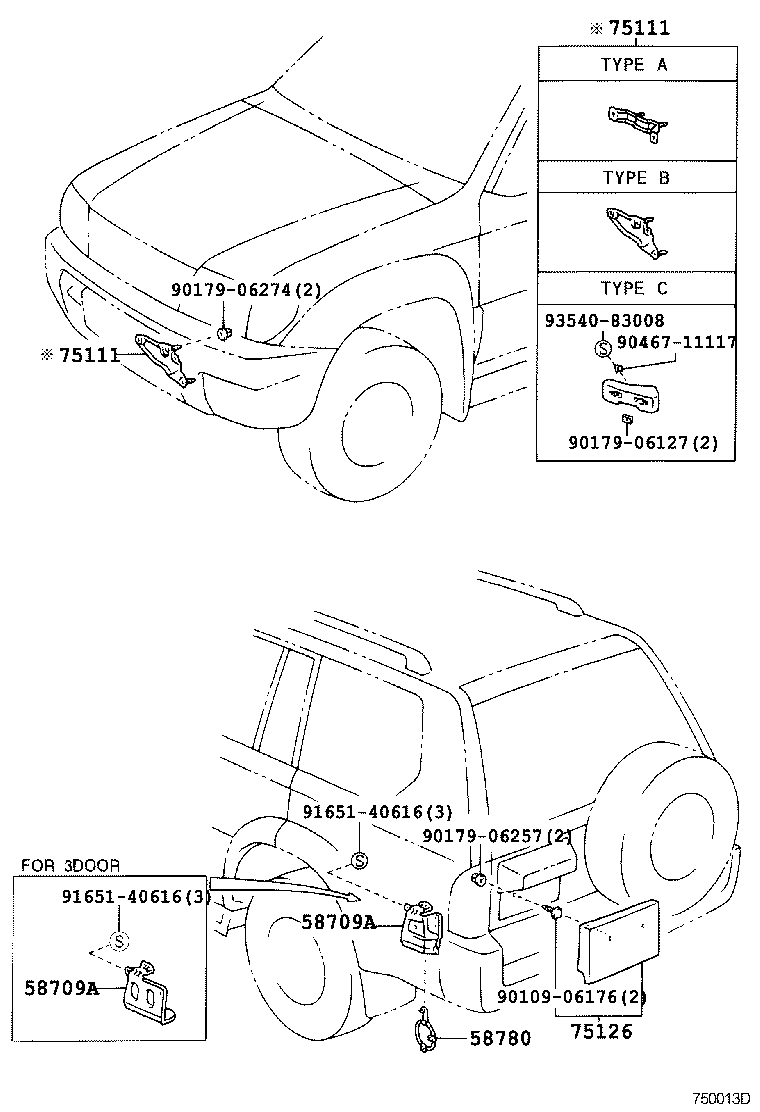

Click highlighted areas on diagram

diagram 58709A 58709A 58780 75111 75111 75126 9010906176 9017906127 9017906257 9017906274 9046711117 9165140616 9165140616 9354083008
Part # Description Qty Price
58709A - CARRIER SUB-ASSY, JACK
58709-60031

KZJ90,LJ90,RZJ90,VZJ90

 1
58709-60031

RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90

 1
58709-60030

KZJ90,LJ90,RZJ90,VZJ90

 1
58709A - CARRIER SUB-ASSY, JACK
58709-60031

KZJ90,LJ90,RZJ90,VZJ90

 1
58709-60031

RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90

 1
58709-60030

KZJ90,LJ90,RZJ90,VZJ90

 1
58780 - BAND ASSY, TOOL BOX
58780-60010

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
58780-44010

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
75111 - BRACKET, FRONT LICENSE PLATE
75111-60120

KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN

TYPE A:REFER TO ILLUSTRATION

 1
75111-60130

KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN

TYPE B:REFER TO ILLUSTRATION

 1
75111-60120

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN

TYPE A:REFER TO ILLUSTRATION

 1
75111-60130

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN

TYPE B:REFER TO ILLUSTRATION

 1
75111 - BRACKET, FRONT LICENSE PLATE
75111-60120

KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN

TYPE A:REFER TO ILLUSTRATION

 1
75111-60130

KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN

TYPE B:REFER TO ILLUSTRATION

 1
75111-60120

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN

TYPE A:REFER TO ILLUSTRATION

 1
75111-60130

RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN

TYPE B:REFER TO ILLUSTRATION

 1
Common parts
90109-06176
90179-06127
90179-06257
90179-06274
90467-11117
91651-40616
93540-83008
