KZJ90L-GJMNX (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000
Engine 1KZT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )

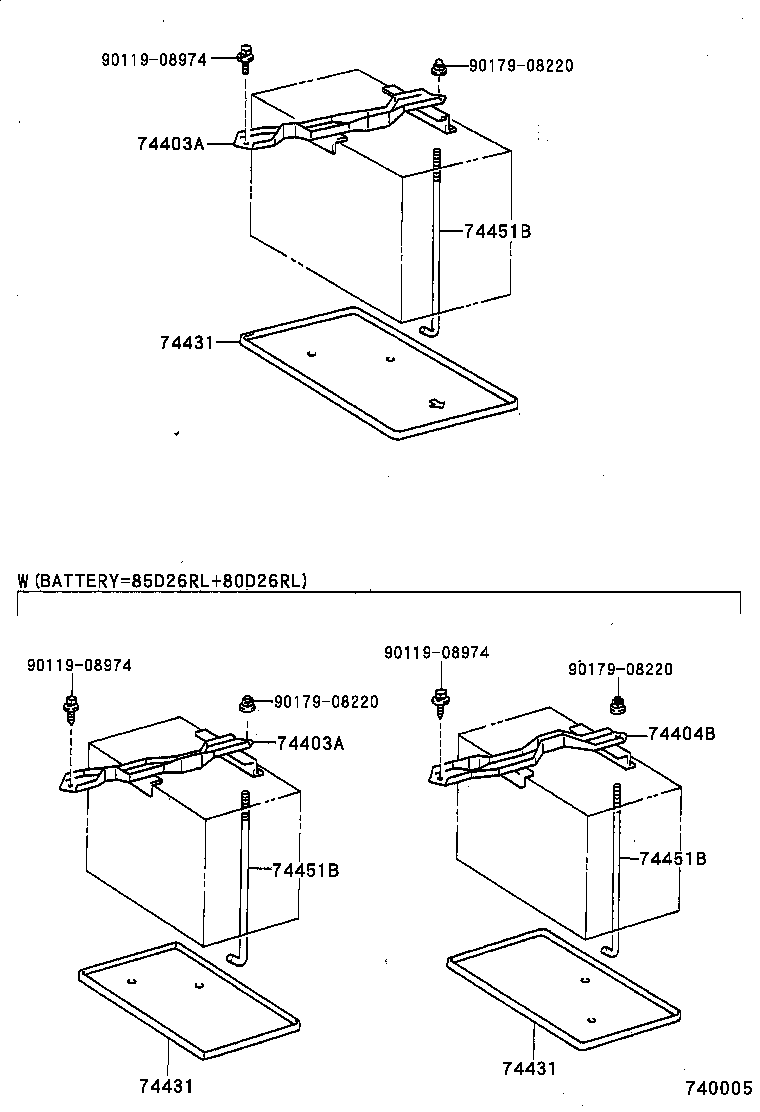

Click highlighted areas on diagram

diagram 74403A 74403A 74404B 74431 74431 74431 74451B 74451B 74451B 9011908974 9011908974 9011908974 9017908220 9017908220 9017908220
Part # Description Qty Price
74404B - CLAMP SUB-ASSY, BATTERY
74404-60120

RZJ9#..CBR;RZJ90,VZJ95..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ90..LHD..(DSL,EFI,TD)

 1
74404-60120

RZJ95,VZJ95;KZJ9#,LJ9#,RZJ90,VZJ90..LHD

 1
74431 - TRAY, BATTERY
74431-35040

KZJ9#

 1
74431 - TRAY, BATTERY
74431-35040

KZJ9#

 1
74431 - TRAY, BATTERY
74431-35040

KZJ9#

 1
74451B - BOLT, BATTERY CLAMP
74451-35060

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
74451-35060

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
74451B - BOLT, BATTERY CLAMP
74451-35060

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
74451-35060

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
74451B - BOLT, BATTERY CLAMP
74451-35060

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
74451-35060

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
Common parts
90119-08974
90179-08220
