Toyota Land cruiser 90 KZJ90 SEAT & SEAT TRACK

KZJ90L-GJMNX (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000

Engine 1KZT

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9604- )ARL,CO,GCC,GEN

Click highlighted areas on diagram

FRONT SEAT - BENCH(PASSENGER)

Part #	Description	Period	Qty
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-60740B1	KZJ9#,LJ95,RZJ9#,VZJ95..GX GRAY,TRIM1#	04/1996 - 06/1999	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-60740B1	KZJ9#,LJ95,RZJ9#,VZJ95..GX GRAY,TRIM1#	04/1996 - 06/1999	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-60740B1	KZJ9#,LJ95,RZJ9#,VZJ95..GX GRAY,TRIM1#	04/1996 - 06/1999	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-60740B1	KZJ9#,LJ95,RZJ9#,VZJ95..GX GRAY,TRIM1#	04/1996 - 06/1999	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-6A420B0	KZJ9#,LJ95,RZJ9#,VZJ95..GX MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71410-6A420B0	KZJ9#,LJ95,RZJ9#,VZJ95..GX MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-6A170B0	KZJ9#,LJ95,RZJ9#,VZJ95..GX MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71430-6A170B0	KZJ9#,LJ95,RZJ9#,VZJ95..GX MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-60110	LJ95,RZJ95..RHD;LJ95,RZJ95..LHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#	04/1996 - 06/1999	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-60110	LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#	04/1996 - 06/1999	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-60180	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 06/1999	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-60180	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 06/1999	1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-35060	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 06/1999	1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71610-35060	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 06/1999	1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-60120	LJ95,RZJ95..LHD..GX;LJ95,RZJ95,VZJ95..RHD..(GX,STD);KZJ9#,LJ90,RZJ90,VZJ9#..CO,GCC,GEN	04/1996 - 06/1999	1
71630-60120	RZJ95,VZJ95..CO,GCC;KZJ90,LJ90,RZJ90,VZJ90..GCC,GEN;KZJ95,LJ95,RZJ95,VZJ95..RHD..(GX,STD)	06/1999 - 12/2999	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71630-60120	LJ95,RZJ90..GX;RZJ95..LHD..CBR;RZJ95..RHD..GX..(ARL,GEN);LJ95,RZJ90..LHD..STD..(CBR,DSL);KZJ9#,LJ90,VZJ95..(DSL,EFI,TD)..(ARL,GEN)	04/1996 - 01/2000	1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-60050	VZJ95..GX;VZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90	04/1996 - 01/1998	1
71811-60051B0	VZJ9#..MTM..VX;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ95..(GX,STD)..(ARL,GCC,GEN,MA) MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-60050B0	VZJ95..ARL;KZJ9#,LJ9#,RZJ9# MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
71812-60051B0	VZJ95..ARL;KZJ9#,LJ9#,RZJ9#..ARL,GCC,GEN,MA MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-60040B0	VZJ95;RZJ95..GCC;KZJ95,LJ95,RZJ95..RHD;KZJ90,LJ90,RZJ90,VZJ90..GCC,GEN MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
71861-60040B0	RZJ90..CBR;LJ95,RZJ90..LHD..GX;RZJ95..LHD..GX..CBR;LJ95,RZJ95..RHD..(CBR,DSL);KZJ9#,LJ90,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1#	04/1996 - 09/2002	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-60040B0	LJ95,RZJ90..GX;RZJ95..LHD..CBR;RZJ95..RHD..GX..(ARL,GEN);KZJ9#,LJ90,VZJ9#..DSL,EFI,TD;LJ95,RZJ90..LHD..STD..(CBR,DSL) MD.MOON MIST,TRIM1#	04/1996 - 09/2002	1
71862-60040B0	LJ95,RZJ95..LHD..STD;LJ95,RZJ95,VZJ95..GX,VX;KZJ9#,LJ90,RZJ90,VZJ90..ARL,GCC,GEN,MA MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-60050B0	LJ95,RZJ95..RHD;LJ95,RZJ95..LHD..GX;KZJ9#,LJ90,RZJ90,VZJ9# MD.MOON MIST,TRIM1#,INNER	04/1996 - 06/1999	1
71875-60040B0	RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90..LHD MD.MOON MIST,TRIM1#,OUTER	04/1996 - 10/1999	1
71875-60050B0	VZJ95..ARL,CO;RZJ95..ATM..GCC;KZJ95,LJ95,RZJ95..RHD..(GX,VX);KZJ90,LJ90,RZJ90,VZJ9#..MTM..(GCC,GEN) MD.MOON MIST,TRIM1#,INNER	06/1999 - 12/2999	1
71875-60040B0	KZJ90,LJ90,RZJ90,VZJ90..LHD..(GCC,GEN) MD.MOON MIST,TRIM1#,OUTER	06/1999 - 12/2999	1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-60050B0	LJ95,RZJ95..RHD;LJ95,RZJ95..LHD..GX;KZJ9#,LJ90,RZJ90,VZJ9# MD.MOON MIST,TRIM1#,INNER	04/1996 - 06/1999	1
71875-60040B0	RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90..LHD MD.MOON MIST,TRIM1#,OUTER	04/1996 - 10/1999	1
71875-60050B0	VZJ95..ARL,CO;RZJ95..ATM..GCC;KZJ95,LJ95,RZJ95..RHD..(GX,VX);KZJ90,LJ90,RZJ90,VZJ9#..MTM..(GCC,GEN) MD.MOON MIST,TRIM1#,INNER	06/1999 - 12/2999	1
71875-60040B0	KZJ90,LJ90,RZJ90,VZJ90..LHD..(GCC,GEN) MD.MOON MIST,TRIM1#,OUTER	06/1999 - 12/2999	1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-60030B0	LJ95,RZJ95,VZJ95;KZJ9#,LJ90,RZJ90,VZJ90..LHD MD.MOON MIST,TRIM1#,OUTER	04/1996 - 06/1999	1
71876-60050B0	LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ90,VZJ9# MD.MOON MIST,TRIM1#,INNER	04/1996 - 06/1999	1
71876-60030B0	RZJ95..ATM..GCC;KZJ9#,RZJ90,VZJ90..ARL,GCC,GEN,MA;LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);LJ9#,RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) OUTER,MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
71876-60050B0	RZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90,VZJ90..ARL,GCC,GEN,MA;LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);LJ95,RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) INNER,MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-60030B0	LJ95,RZJ95,VZJ95;KZJ9#,LJ90,RZJ90,VZJ90..LHD MD.MOON MIST,TRIM1#,OUTER	04/1996 - 06/1999	1
71876-60050B0	LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ90,VZJ9# MD.MOON MIST,TRIM1#,INNER	04/1996 - 06/1999	1
71876-60030B0	RZJ95..ATM..GCC;KZJ9#,RZJ90,VZJ90..ARL,GCC,GEN,MA;LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);LJ9#,RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) OUTER,MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
71876-60050B0	RZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90,VZJ90..ARL,GCC,GEN,MA;LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);LJ95,RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) INNER,MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-60390B0	KZJ9#,LJ9#,RZJ9#,VZJ95..GX,STD MD.MOON MIST,TRIM1#	04/1996 - 06/1999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-12040P6	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	04/1996 - 09/2002	2
71930-44010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	02/1997 - 08/1998	2
71930-32020B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	04/1996 - 02/1997	2
71930-13030B2	VZJ95;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN,MA W(LOCK),BLUE GRAY,TRIM1#	06/1999 - 12/2999	2
71931-12040P6	VZJ95;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN,MA W/O(LOCK),BLUE GRAY,TRIM1#	06/1999 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-12040P6	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	04/1996 - 09/2002	2
71930-44010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	02/1997 - 08/1998	2
71930-32020B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	04/1996 - 02/1997	2
71930-13030B2	VZJ95;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN,MA W(LOCK),BLUE GRAY,TRIM1#	06/1999 - 12/2999	2
71931-12040P6	VZJ95;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN,MA W/O(LOCK),BLUE GRAY,TRIM1#	06/1999 - 12/2999	2
72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72011-60030	KZJ90,LJ90,RZJ90..LHD W(WALK-IN SEAT)	04/1996 - 01/1998	1
72011-60031	KZJ90,LJ90,RZJ90,VZJ90..LHD..(GCC,GEN) W(WALK-IN SEAT)	01/1998 - 06/1999	1
72011-60032	KZJ90,LJ90,RZJ90,VZJ90..LHD	06/1999 - 12/2999	1
72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
72012-60011	LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ9#..LHD;LJ95,VZJ95..(GX,VX)..(ARL,GEN)	01/1998 - 06/1999	1
72012-60010	LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ9#..LHD;LJ95,VZJ95..(GX,VX)..(ARL,GEN)	04/1996 - 01/1998	1
72012-60012	KZJ9#,LJ9#,RZJ9#..LHD	06/1999 - 12/2999	1
72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH
72123-60050B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	04/1996 - 09/1996	1
72123-60050B0	KZJ90,LJ90,RZJ90,VZJ90..LHD W(BENCH SEAT),MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
72123-60050B0	RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90..LHD W(BENCH SEAT),MD.MOON MIST,TRIM1#	09/1996 - 10/1999	1
72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72124-60030B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	04/1996 - 09/1996	1
72124-60040B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
72124-60040B0	LJ95,RZJ95,VZJ95;KZJ9#,LJ90,RZJ90,VZJ90..LHD MD.MOON MIST,TRIM1#	09/1996 - 03/1999	1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-60070	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) W(POWER SEAT)	04/1996 - 09/2002	2
72125-60070	KZJ9#,LJ9#,RZJ9#,VZJ9# W(POWER SEAT)	06/1999 - 12/2999	2
72125A - COVER, SEAT TRACK, UPPER REAR
72125-60070	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) W(POWER SEAT)	04/1996 - 09/2002	2
72125-60070	KZJ9#,LJ9#,RZJ9#,VZJ9# W(POWER SEAT)	06/1999 - 12/2999	2
72125A - COVER, SEAT TRACK, UPPER REAR
72125-60070	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) W(POWER SEAT)	04/1996 - 09/2002	2
72125-60070	KZJ9#,LJ9#,RZJ9#,VZJ9# W(POWER SEAT)	06/1999 - 12/2999	2
72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72127-60010B0	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1#	04/1996 - 09/2002	1
72127-60010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72127-60010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
72127-60010B0	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1#	04/1996 - 09/2002	1
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-60030	KZJ9#,LJ9#,RZJ9#,VZJ9# W(POWER SEAT)	04/1996 - 01/1998	4
72129-60040	KZJ9#..GEN	06/1999 - 08/2000	4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-60030	KZJ9#,LJ9#,RZJ9#,VZJ9# W(POWER SEAT)	04/1996 - 01/1998	4
72129-60040	KZJ9#..GEN	06/1999 - 08/2000	4
72137 - COVER, SEAT TRACK, OUTER RH
72137-60030B0	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1#	04/1996 - 09/2002	1
72137-60030B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
72138 - COVER, SEAT TRACK, OUTER LH
72137-60030B0	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1#	04/1996 - 09/2002	1
72137-60030B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-60050B0	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1#	04/1996 - 09/2002	1
72157-60050B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-60020B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
72158-60020B0	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1#	04/1996 - 09/2002	1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-60110	RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ95..(GX,STD)..(DSL,EFI,TD)	04/1996 - 09/2002	2
72211-60110	VZJ95..GX;KZJ9#,LJ9#,RZJ9#..ARL,GCC,GEN,MA	06/1999 - 12/2999	2
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-16010B7	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1#	04/1996 - 09/2002	1
72525-16010B7	VZJ95..ARL,CO;VZJ95..MTM..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN,MA MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-16010B7	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1#	04/1996 - 09/2002	1
72526-16010B7	VZJ95..ARL,CO;VZJ95..MTM..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN,MA MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
72553 - COVER, RECLINING PEDAL
72553-12040	KZJ90,LJ90,RZJ90,VZJ90..LHD	01/1998 - 06/1999	1
Common parts
71587-60080
71588-60030
90119-10415
90119-10825
90167-40044
90168-40043
90468-16019
90468-18071
91512-61018
91615-60825
93568-54516

ILLUST NO. 2 OF 2(9604- )KZJ90,LJ90,RZJ90,VZJ90

Click highlighted areas on diagram

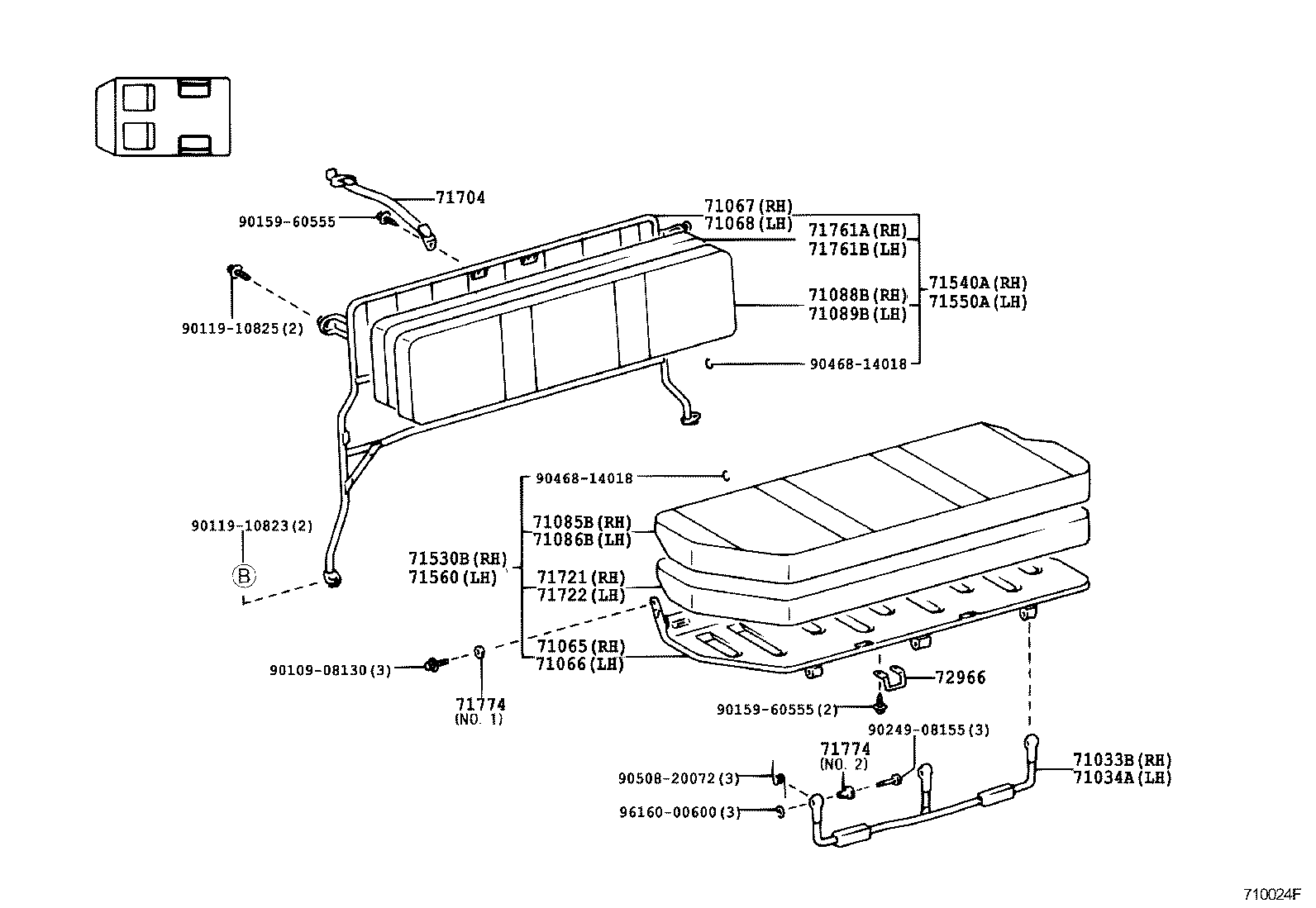

REAR SEAT - OPPOSING TYPE

Part #	Description	Period	Qty	Price
Common parts
90109-08130
90119-10823
90119-10825
90159-60555
90249-08155
90468-14018
90508-20072
96160-00600

ILLUST NO. 2 OF 2(9604-9906)KZJ90,LJ90,RZJ90,VZJ90 ; (9906- )RZJ90..CO

Click highlighted areas on diagram

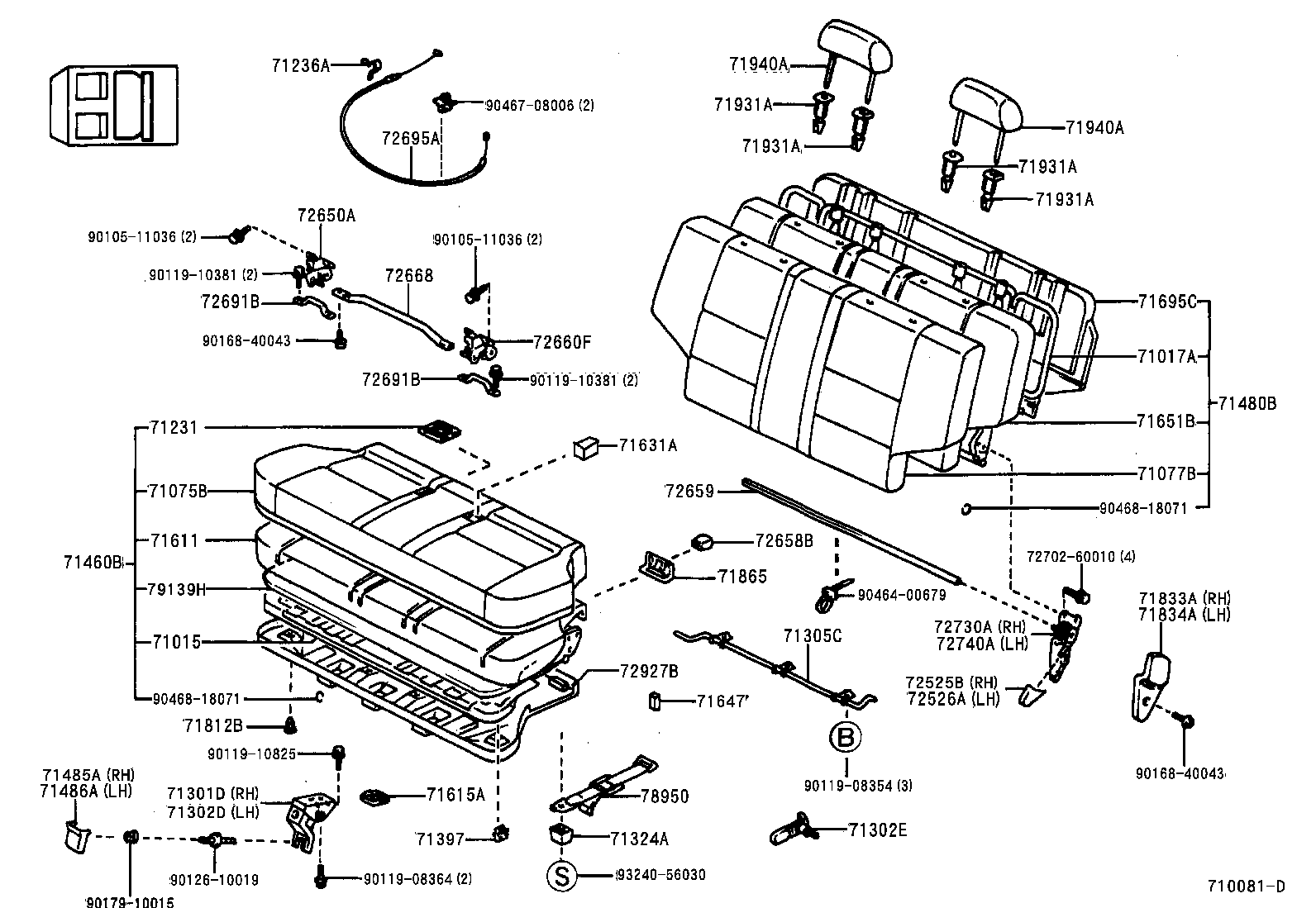

REAR SEAT - BENCH SEAT

Part #	Description	Period	Qty
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-60120	KZJ90,LJ90,RZJ90	04/1996 - 06/1999	1
71017A - FRAME SUB-ASSY, REAR SEAT BACK
71017-60250	KZJ90,LJ90,RZJ90	04/1996 - 06/1999	1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-60820B1	KZJ90,RZJ90..GX..GEN W(SEAT BELT),GRAY,TRIM1#	04/1996 - 06/1999	1
71065-60040B1	KZJ90,RZJ90..GX..GEN GRAY,TRIM1#	04/1996 - 06/1999	1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-60770B1	KZJ90,RZJ90..GX GRAY,TRIM1#	04/1996 - 06/1999	1
71231 - PLATE, REAR SEAT SPRING SET, NO.1
71231-60010B0	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1#	04/1996 - 09/2002	2
71231-60010B0	RZJ95..ATM..GCC;VZJ95..MTM..GCC;RZJ95,VZJ95..ARL,CO,GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN MD.MOON MIST,TRIM1#	06/1999 - 12/2999	2
71236A - CLAMP, REAR SEAT CUSHION SPRING
71236-60010	KZJ90,LJ90,RZJ90	04/1996 - 06/1999	1
71301D - HINGE SUB-ASSY, REAR SEAT, RH
71302-60010	KZJ90,LJ90,RZJ90,VZJ90	04/1996 - 06/1999	1
71302D - HINGE SUB-ASSY, REAR SEAT, LH
71302-60010	KZJ90,LJ90,RZJ90,VZJ90	04/1996 - 06/1999	1
71302E - STOPPER SUB-ASSY, REAR SEAT LEG
71302-60020B0	KZJ90,LJ90,RZJ90,VZJ90..GCC,GEN MD.MOON MIST,TRIM1#	06/1999 - 10/1999	2
71302-60020B0	RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 MD.MOON MIST,TRIM1#	04/1996 - 10/1999	2
71302-60020B0	KZJ90,LJ90,RZJ90,VZJ90 MD.MOON MIST,TRIM1#	10/1999 - 12/2999	2
71305C - STAY SUB-ASSY, REAR SEAT
71305-60020	KZJ90,LJ90,RZJ90,VZJ90	04/1996 - 06/1999	1
71324A - CUSHION, REAR SEAT
71324-60110	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 01/1998	2
71324-60110	RZJ95..ATM..GCC;VZJ95..MTM..GCC;RZJ95,VZJ95..ARL,GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN	06/1999 - 12/2999	2
71324-60110	RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)	01/1998 - 06/1999	2
71397 - STOPPER, REAR SEAT
71397-60010	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 01/1998	2
71397-60010	RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#	01/1998 - 06/1999	2
71397-60010	RZJ95..ATM..GCC;VZJ95..MTM..GCC;RZJ95,VZJ95..ARL,CO,GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN	06/1999 - 12/2999	6

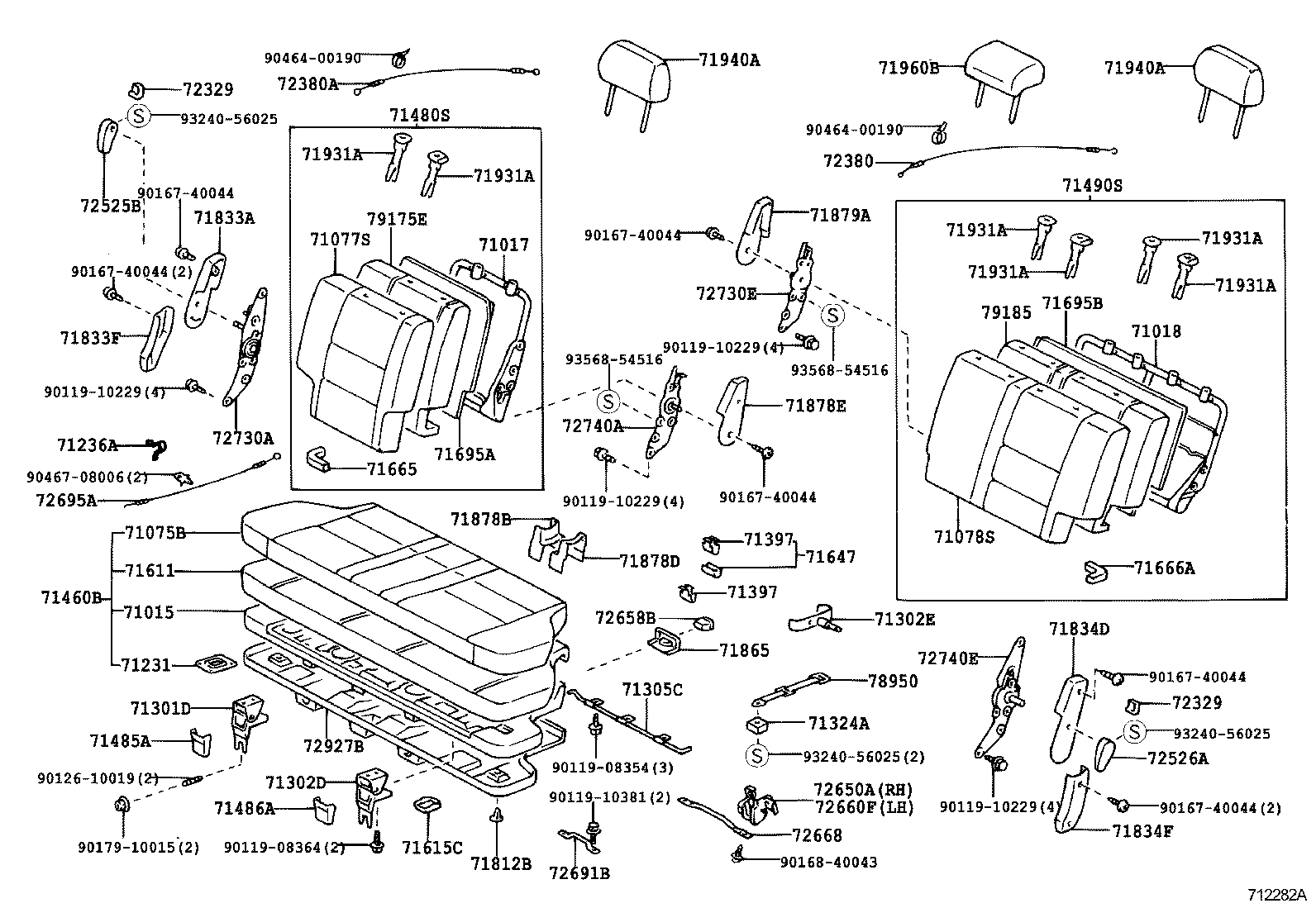

71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-60050B0	KZJ90,RZJ90..GX..GEN W(SEAT BELT),MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
71560-60070B0	KZJ90,RZJ90..GX..GEN MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-6A350B0	KZJ90,RZJ90..GX MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
71485A - COVER, REAR SEAT HINGE, NO.2 RH
71485-60020B0	KZJ90,LJ90,RZJ90,VZJ90 MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
71485-60020B0	RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 MD.MOON MIST,TRIM1#	04/1996 - 10/1999	1
71486A - COVER, REAR SEAT HINGE, NO.2 LH
71485-60020B0	KZJ90,LJ90,RZJ90,VZJ90 MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
71485-60020B0	RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 MD.MOON MIST,TRIM1#	04/1996 - 10/1999	1
71611 - PAD, REAR SEAT CUSHION
71611-60160	KZJ90,LJ90,RZJ90	04/1996 - 06/1999	1
71615A - COVER, NO.2 SEAT LOCK STRIKER
72615-60020B0	RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC) MD.MOON MIST,TRIM1#	01/1998 - 06/1999	2
72615-60020B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	04/1996 - 01/1998	2
71631A - PAD, REAR SEAT CUSHION CORNER
71631-60020	KZJ9#,LJ9#,RZJ9#..GEN	04/1996 - 01/1998	2
71631-60020	RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90..GEN	01/1998 - 06/1999	2
71647 - PROTECTOR, REAR SEAT CUSHION EDGE
71647-60130B0	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1#	04/1996 - 09/2002	4
71647-60130B0	RZJ95..ATM..GCC;VZJ95..MTM..GCC;RZJ95,VZJ95..ARL,CO,GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN MD.MOON MIST,TRIM1#	06/1999 - 12/2999	4
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-60140	KZJ90,LJ90,RZJ90	04/1996 - 06/1999	1
71695C - PROTECTOR, REAR SEAT, NO.1
71695-60070	KZJ90,LJ90,RZJ90	04/1996 - 06/1999	1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
71769-60010B0	KZJ90,LJ90,RZJ90,VZJ90 MD.MOON MIST,TRIM1#	06/1999 - 12/2999	11
71769-60010B0	RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 MD.MOON MIST,TRIM1#	04/1996 - 10/1999	11
71833A - COVER, REAR SEAT RECLINING, NO.1 RH
71833-60110B0	KZJ9#..GEN MD.MOON MIST,TRIM1#	06/1999 - 08/2000	1
71833-60030B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
71833-60030B0	RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC) MD.MOON MIST,TRIM1#	01/1998 - 06/1999	1
71833-60110E0	KZJ9#..GEN OAK,TRIM4#	06/1999 - 08/2000	1
71834A - COVER, REAR SEAT RECLINING, NO.1 LH
71834-60030B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
71834-60030B0	RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC) MD.MOON MIST,TRIM1#	01/1998 - 06/1999	1
71865 - BEZEL, REAR SEAT COVER, NO.1
71865-60020B0	RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 MD.MOON MIST,TRIM1#	04/1996 - 10/1999	1
71865-60020B0	KZJ90,LJ90,RZJ90,VZJ90 MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	04/1996 - 02/1997	2
71930-44010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	02/1997 - 08/1998	2
71931-12040P6	RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	04/1996 - 09/2002	2
71930-13030B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	08/1998 - 06/1999	2
71931-12040P6	RZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	06/1999 - 12/2999	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	04/1996 - 02/1997	2
71930-44010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	02/1997 - 08/1998	2
71931-12040P6	RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	04/1996 - 09/2002	2
71930-13030B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	08/1998 - 06/1999	2
71931-12040P6	RZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	06/1999 - 12/2999	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	04/1996 - 02/1997	2
71930-44010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	02/1997 - 08/1998	2
71931-12040P6	RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	04/1996 - 09/2002	2
71930-13030B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	08/1998 - 06/1999	2
71931-12040P6	RZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	06/1999 - 12/2999	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	04/1996 - 02/1997	2
71930-44010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	02/1997 - 08/1998	2
71931-12040P6	RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	04/1996 - 09/2002	2
71930-13030B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	08/1998 - 06/1999	2
71931-12040P6	RZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	06/1999 - 12/2999	2
71940A - HEADREST ASSY, REAR SEAT
71910-60390B0	KZJ9#,LJ9#,RZJ9#,VZJ95..GX,STD MD.MOON MIST,TRIM1#	04/1996 - 06/1999	2
71940A - HEADREST ASSY, REAR SEAT
71910-60390B0	KZJ9#,LJ9#,RZJ9#,VZJ95..GX,STD MD.MOON MIST,TRIM1#	04/1996 - 06/1999	2
72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-60040B0	RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC) MD.MOON MIST,TRIM1#	01/1998 - 06/1999	1
72525-60040B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
72525-60080E0	KZJ9#..GEN OAK,TRIM4#	06/1999 - 08/2000	1
72525-60080B0	KZJ9#..GEN MD.MOON MIST,TRIM1#	06/1999 - 08/2000	1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-60010B0	RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC) MD.MOON MIST,TRIM1#	01/1998 - 06/1999	1
72526-60050E0	KZJ9#..GEN OAK,TRIM4#	06/1999 - 08/2000	1
72526-60010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
72526-60050B0	KZJ9#..GEN MD.MOON MIST,TRIM1#	06/1999 - 08/2000	1
72650A - LOCK ASSY, REAR SEAT, RH
72650-60070	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 01/1998	1
72650-60071	RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)	01/1998 - 06/1999	1
72658B - KNOB, REAR SEAT LOCK HANDLE
72658-60020B0	RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 MD.MOON MIST,TRIM1#	04/1996 - 10/1999	1
72659 - ROD, REAR SEAT BACK LOCK CONNECTING
72659-60070	KZJ90,LJ90,RZJ90	04/1996 - 06/1999	1
72660F - LOCK ASSY, REAR SEAT, LH
72660-60020	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 01/1998	1
72660-60021	RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)	01/1998 - 06/1999	1
72668 - BAR, REAR SEAT CUSHION LOCK STRIKER
72698-60010	RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)	01/1998 - 06/1999	1
72698-60010	RZJ95..ATM..GCC;VZJ95..MTM..GCC;RZJ95,VZJ95..ARL,GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN	06/1999 - 12/2999	1
72698-60010	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 01/1998	1
72691B - STRIKER, REAR SEAT CUSHION LOCK
72691-60020	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 01/1998	2
72691-60020	RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#	01/1998 - 06/1999	2
72691-60020	RZJ95..ATM..GCC;VZJ95..MTM..GCC;RZJ95,VZJ95..ARL,CO,GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN	06/1999 - 12/2999	2
72691B - STRIKER, REAR SEAT CUSHION LOCK
72691-60020	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 01/1998	2
72691-60020	RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#	01/1998 - 06/1999	2
72691-60020	RZJ95..ATM..GCC;VZJ95..MTM..GCC;RZJ95,VZJ95..ARL,CO,GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN	06/1999 - 12/2999	2
72695A - CABLE, REAR SEAT LOCK CONTROL
72695-60060	KZJ90,LJ90,RZJ90,VZJ90	04/1996 - 06/1999	1
72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH
72730-60090	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 11/1996	1
72730-60090	KZJ9#,LJ9#,RZJ9#,VZJ95..GCC,GEN	11/1996 - 01/1998	1
72730-60200	KZJ9#..GEN	06/1999 - 08/2000	1
72730-60090	RZJ95..CBR;VZJ95..GCC;KZJ9#,LJ9#,RZJ90	01/1998 - 06/1999	1
72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH
72740-60090	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 11/1996	1
72740-60090	KZJ9#,LJ9#,RZJ9#,VZJ95..GCC,GEN	11/1996 - 01/1998	1
72710-60100	KZJ9#..GEN	06/1999 - 08/2000	1
72740-60090	RZJ95..CBR;VZJ95..GCC;KZJ9#,LJ9#,RZJ90	01/1998 - 06/1999	1
72927B - COVER, REAR SEAT CUSHION UNDER
72907-60030B0	KZJ90,LJ90,RZJ90,VZJ90 MOON MIST,TRIM1#	06/1999 - 12/2999	1
72907-60030B0	RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 MOON MIST,TRIM1#	04/1996 - 10/1999	1
78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1
78950-60090B0	KZJ90,LJ90,RZJ90,VZJ90 MD.MOON MIST,TRIM1#	06/1999 - 12/2999	2
78950-60090B0	RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 MD.MOON MIST,TRIM1#	04/1996 - 10/1999	2
79139H - CLOTH, NO.3 SEAT CUSHION
79139-60020	KZJ90,LJ90,RZJ90,VZJ90	04/1996 - 06/1999	1
Common parts
72702-60010
90105-11036
90119-08354
90119-08364
90119-10381
90119-10825
90126-10019
90168-40043
90464-00679
90467-08006
90468-18071
93240-56030

ILLUST NO. 1 OF 3(9604- )

Click highlighted areas on diagram

FRONT SEAT - SEPARATE/BENCH(DRIVER)

Part #	Description	Period	Qty
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-60740B1	KZJ9#,LJ95,RZJ9#,VZJ95..GX GRAY,TRIM1#	04/1996 - 06/1999	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-60740B1	KZJ9#,LJ95,RZJ9#,VZJ95..GX GRAY,TRIM1#	04/1996 - 06/1999	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-60740B1	KZJ9#,LJ95,RZJ9#,VZJ95..GX GRAY,TRIM1#	04/1996 - 06/1999	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-60740B1	KZJ9#,LJ95,RZJ9#,VZJ95..GX GRAY,TRIM1#	04/1996 - 06/1999	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-6A420B0	KZJ9#,LJ95,RZJ9#,VZJ95..GX MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71410-6A420B0	KZJ9#,LJ95,RZJ9#,VZJ95..GX MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-6A170B0	KZJ9#,LJ95,RZJ9#,VZJ95..GX MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71430-6A170B0	KZJ9#,LJ95,RZJ9#,VZJ95..GX MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-60110	LJ95,RZJ95..RHD;LJ95,RZJ95..LHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#	04/1996 - 06/1999	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-60110	LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#	04/1996 - 06/1999	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-60180	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 06/1999	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-60180	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 06/1999	1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-35060	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 06/1999	1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71610-35060	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 06/1999	1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-60120	LJ95,RZJ95..LHD..GX;LJ95,RZJ95,VZJ95..RHD..(GX,STD);KZJ9#,LJ90,RZJ90,VZJ9#..CO,GCC,GEN	04/1996 - 06/1999	1
71630-60120	RZJ95,VZJ95..CO,GCC;KZJ90,LJ90,RZJ90,VZJ90..GCC,GEN;KZJ95,LJ95,RZJ95,VZJ95..RHD..(GX,STD)	06/1999 - 12/2999	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71630-60120	LJ95,RZJ90..GX;RZJ95..LHD..CBR;RZJ95..RHD..GX..(ARL,GEN);LJ95,RZJ90..LHD..STD..(CBR,DSL);KZJ9#,LJ90,VZJ95..(DSL,EFI,TD)..(ARL,GEN)	04/1996 - 01/2000	1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-60050	VZJ95..GX;VZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90	04/1996 - 01/1998	1
71811-60051B0	VZJ9#..MTM..VX;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ95..(GX,STD)..(ARL,GCC,GEN,MA) MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-60050B0	VZJ95..ARL;KZJ9#,LJ9#,RZJ9# MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
71812-60051B0	VZJ95..ARL;KZJ9#,LJ9#,RZJ9#..ARL,GCC,GEN,MA MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
71831D - COVER, FRONT SEAT HINGE, RH
71831-35050	LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#	04/1996 - 06/1999	2
71831-35050	VZJ95..CO;RZJ95..RHD..GX..GEN;KZJ95,LJ95..RHD..GX;RZJ95..GX..(ARL,GCC,MA);KZJ90,LJ90,RZJ90,VZJ95..(GX,STD)..(ARL,GEN)	06/1999 - 12/2999	2
71832D - COVER, FRONT SEAT HINGE, LH
71832-35050	LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#	04/1996 - 06/1999	2
71832-35050	VZJ95..CO;RZJ95..RHD..GX..GEN;KZJ95,LJ95..RHD..GX;RZJ95..GX..(ARL,GCC,MA);KZJ90,LJ90,RZJ90,VZJ95..(GX,STD)..(ARL,GEN)	06/1999 - 12/2999	2
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-60040B0	VZJ95;RZJ95..GCC;KZJ95,LJ95,RZJ95..RHD;KZJ90,LJ90,RZJ90,VZJ90..GCC,GEN MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
71861-60040B0	RZJ90..CBR;LJ95,RZJ90..LHD..GX;RZJ95..LHD..GX..CBR;LJ95,RZJ95..RHD..(CBR,DSL);KZJ9#,LJ90,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1#	04/1996 - 09/2002	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-60040B0	LJ95,RZJ90..GX;RZJ95..LHD..CBR;RZJ95..RHD..GX..(ARL,GEN);KZJ9#,LJ90,VZJ9#..DSL,EFI,TD;LJ95,RZJ90..LHD..STD..(CBR,DSL) MD.MOON MIST,TRIM1#	04/1996 - 09/2002	1
71862-60040B0	LJ95,RZJ95..LHD..STD;LJ95,RZJ95,VZJ95..GX,VX;KZJ9#,LJ90,RZJ90,VZJ90..ARL,GCC,GEN,MA MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-60050B0	LJ95,RZJ95..RHD;LJ95,RZJ95..LHD..GX;KZJ9#,LJ90,RZJ90,VZJ9# MD.MOON MIST,TRIM1#,INNER	04/1996 - 06/1999	1
71875-60040B0	RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90..LHD MD.MOON MIST,TRIM1#,OUTER	04/1996 - 10/1999	1
71875-60050B0	VZJ95..ARL,CO;RZJ95..ATM..GCC;KZJ95,LJ95,RZJ95..RHD..(GX,VX);KZJ90,LJ90,RZJ90,VZJ9#..MTM..(GCC,GEN) MD.MOON MIST,TRIM1#,INNER	06/1999 - 12/2999	1
71875-60040B0	KZJ90,LJ90,RZJ90,VZJ90..LHD..(GCC,GEN) MD.MOON MIST,TRIM1#,OUTER	06/1999 - 12/2999	1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-60050B0	LJ95,RZJ95..RHD;LJ95,RZJ95..LHD..GX;KZJ9#,LJ90,RZJ90,VZJ9# MD.MOON MIST,TRIM1#,INNER	04/1996 - 06/1999	1
71875-60040B0	RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90..LHD MD.MOON MIST,TRIM1#,OUTER	04/1996 - 10/1999	1
71875-60050B0	VZJ95..ARL,CO;RZJ95..ATM..GCC;KZJ95,LJ95,RZJ95..RHD..(GX,VX);KZJ90,LJ90,RZJ90,VZJ9#..MTM..(GCC,GEN) MD.MOON MIST,TRIM1#,INNER	06/1999 - 12/2999	1
71875-60040B0	KZJ90,LJ90,RZJ90,VZJ90..LHD..(GCC,GEN) MD.MOON MIST,TRIM1#,OUTER	06/1999 - 12/2999	1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-60030B0	LJ95,RZJ95,VZJ95;KZJ9#,LJ90,RZJ90,VZJ90..LHD MD.MOON MIST,TRIM1#,OUTER	04/1996 - 06/1999	1
71876-60050B0	LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ90,VZJ9# MD.MOON MIST,TRIM1#,INNER	04/1996 - 06/1999	1
71876-60030B0	RZJ95..ATM..GCC;KZJ9#,RZJ90,VZJ90..ARL,GCC,GEN,MA;LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);LJ9#,RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) OUTER,MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
71876-60050B0	RZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90,VZJ90..ARL,GCC,GEN,MA;LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);LJ95,RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) INNER,MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-60030B0	LJ95,RZJ95,VZJ95;KZJ9#,LJ90,RZJ90,VZJ90..LHD MD.MOON MIST,TRIM1#,OUTER	04/1996 - 06/1999	1
71876-60050B0	LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ90,VZJ9# MD.MOON MIST,TRIM1#,INNER	04/1996 - 06/1999	1
71876-60030B0	RZJ95..ATM..GCC;KZJ9#,RZJ90,VZJ90..ARL,GCC,GEN,MA;LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);LJ9#,RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) OUTER,MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
71876-60050B0	RZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90,VZJ90..ARL,GCC,GEN,MA;LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);LJ95,RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) INNER,MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-60390B0	KZJ9#,LJ9#,RZJ9#,VZJ95..GX,STD MD.MOON MIST,TRIM1#	04/1996 - 06/1999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-12040P6	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	04/1996 - 09/2002	2
71930-44010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	02/1997 - 08/1998	2
71930-32020B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	04/1996 - 02/1997	2
71930-13030B2	VZJ95;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN,MA W(LOCK),BLUE GRAY,TRIM1#	06/1999 - 12/2999	2
71931-12040P6	VZJ95;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN,MA W/O(LOCK),BLUE GRAY,TRIM1#	06/1999 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-12040P6	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	04/1996 - 09/2002	2
71930-44010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	02/1997 - 08/1998	2
71930-32020B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	04/1996 - 02/1997	2
71930-13030B2	VZJ95;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN,MA W(LOCK),BLUE GRAY,TRIM1#	06/1999 - 12/2999	2
71931-12040P6	VZJ95;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN,MA W/O(LOCK),BLUE GRAY,TRIM1#	06/1999 - 12/2999	2
72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72011-60030	KZJ90,LJ90,RZJ90..LHD W(WALK-IN SEAT)	04/1996 - 01/1998	1
72011-60031	KZJ90,LJ90,RZJ90,VZJ90..LHD..(GCC,GEN) W(WALK-IN SEAT)	01/1998 - 06/1999	1
72011-60032	KZJ90,LJ90,RZJ90,VZJ90..LHD	06/1999 - 12/2999	1
72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
72012-60011	LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ9#..LHD;LJ95,VZJ95..(GX,VX)..(ARL,GEN)	01/1998 - 06/1999	1
72012-60010	LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ9#..LHD;LJ95,VZJ95..(GX,VX)..(ARL,GEN)	04/1996 - 01/1998	1
72012-60012	KZJ9#,LJ9#,RZJ9#..LHD	06/1999 - 12/2999	1
72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
72021-60031	KZJ90,LJ90,RZJ90,VZJ90..LHD	01/1998 - 06/1999	1
72021-60030	KZJ90,LJ90,RZJ90,VZJ90..LHD	04/1996 - 01/1998	1
72021-60032	KZJ90,LJ90,RZJ90,VZJ90..LHD	06/1999 - 12/2999	1
72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH
72022-60011	LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ9#..LHD;LJ95,VZJ95..(GX,VX)..(ARL,GEN)	01/1998 - 06/1999	1
72022-60010	LJ95..LHD..STD;RZJ95..RHD..GX;KZJ9#,LJ90,RZJ9#..LHD;LJ95,VZJ95..(GX,VX)..(ARL,GEN)	04/1996 - 01/1998	1
72022-60012	KZJ9#,LJ9#,RZJ9#..LHD	06/1999 - 12/2999	1
72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH
72123-60050B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	04/1996 - 09/1996	1
72123-60050B0	KZJ90,LJ90,RZJ90,VZJ90..LHD W(BENCH SEAT),MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
72123-60050B0	RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90..LHD W(BENCH SEAT),MD.MOON MIST,TRIM1#	09/1996 - 10/1999	1
72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72124-60030B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	04/1996 - 09/1996	1
72124-60040B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
72124-60040B0	LJ95,RZJ95,VZJ95;KZJ9#,LJ90,RZJ90,VZJ90..LHD MD.MOON MIST,TRIM1#	09/1996 - 03/1999	1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-60070	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) W(POWER SEAT)	04/1996 - 09/2002	2
72125-60070	KZJ9#,LJ9#,RZJ9#,VZJ9# W(POWER SEAT)	06/1999 - 12/2999	2
72125A - COVER, SEAT TRACK, UPPER REAR
72125-60070	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) W(POWER SEAT)	04/1996 - 09/2002	2
72125-60070	KZJ9#,LJ9#,RZJ9#,VZJ9# W(POWER SEAT)	06/1999 - 12/2999	2
72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72127-60010B0	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1#	04/1996 - 09/2002	1
72127-60010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72127-60010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
72127-60010B0	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1#	04/1996 - 09/2002	1
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-60030	KZJ9#,LJ9#,RZJ9#,VZJ9# W(POWER SEAT)	04/1996 - 01/1998	4
72129-60040	KZJ9#..GEN	06/1999 - 08/2000	4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-60030	KZJ9#,LJ9#,RZJ9#,VZJ9# W(POWER SEAT)	04/1996 - 01/1998	4
72129-60040	KZJ9#..GEN	06/1999 - 08/2000	4
72137 - COVER, SEAT TRACK, OUTER RH
72137-60030B0	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1#	04/1996 - 09/2002	1
72137-60030B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
72138 - COVER, SEAT TRACK, OUTER LH
72137-60030B0	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1#	04/1996 - 09/2002	1
72137-60030B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-60050B0	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1#	04/1996 - 09/2002	1
72157-60050B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-60020B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
72158-60020B0	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1#	04/1996 - 09/2002	1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-60110	RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ95..(GX,STD)..(DSL,EFI,TD)	04/1996 - 09/2002	2
72211-60110	VZJ95..GX;KZJ9#,LJ9#,RZJ9#..ARL,GCC,GEN,MA	06/1999 - 12/2999	2
72263 - REINFORCEMENT, INNER SEAT TRACK, RH
72263-60030	RZJ90..CBR;LJ95,RZJ90..LHD..GX;RZJ95..LHD..GX..CBR;LJ95,RZJ95..RHD..(CBR,DSL);KZJ9#,LJ90,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
72264 - REINFORCEMENT, INNER SEAT TRACK, LH
72263-60030	LJ95,RZJ90..GX;RZJ95..LHD..CBR;RZJ95..RHD..GX..(ARL,GEN);KZJ9#,LJ90,VZJ9#..DSL,EFI,TD;LJ95,RZJ90..LHD..STD..(CBR,DSL)	04/1996 - 09/2002	1
72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH
72501-60040	KZJ9#..GEN	06/1999 - 08/2000	1
72501-60040	RZJ90..CBR;LJ95,RZJ90..LHD..GX;RZJ95..LHD..GX..CBR;LJ95,RZJ95..RHD..(CBR,DSL);KZJ9#,LJ90,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH
72501-60040	KZJ9#..GEN	06/1999 - 08/2000	1
72501-60040	LJ95,RZJ90..GX;RZJ95..LHD..CBR;RZJ95..RHD..GX..(ARL,GEN);KZJ9#,LJ90,VZJ9#..DSL,EFI,TD;LJ95,RZJ90..LHD..STD..(CBR,DSL)	04/1996 - 09/2002	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-16010B7	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1#	04/1996 - 09/2002	1
72525-16010B7	VZJ95..ARL,CO;VZJ95..MTM..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN,MA MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-16010B7	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1#	04/1996 - 09/2002	1
72526-16010B7	VZJ95..ARL,CO;VZJ95..MTM..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN,MA MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
72553 - COVER, RECLINING PEDAL
72553-12040	KZJ90,LJ90,RZJ90,VZJ90..LHD	01/1998 - 06/1999	1
Common parts
71587-60080
71588-60030
90119-10825
90167-40044
90168-40043
90468-16019
90468-18071
90520-01006
91512-61018
91611-B0816
91615-60825
91651-60614
93540-54012
93568-55016
96160-00600
96160-00800
96160-01200

ILLUST NO. 2 OF 3(9906- )LHD

Click highlighted areas on diagram

RR NO.1-SEAT BACK & CUSHION 6:4 LH

Part #	Description	Period	Qty
71231 - PLATE, REAR SEAT SPRING SET, NO.1
71231-60010B0	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1#	04/1996 - 09/2002	2
71231-60010B0	RZJ95..ATM..GCC;VZJ95..MTM..GCC;RZJ95,VZJ95..ARL,CO,GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN MD.MOON MIST,TRIM1#	06/1999 - 12/2999	2
71631A - PAD, REAR SEAT CUSHION CORNER
71631-60020	KZJ9#,LJ9#,RZJ9#..GEN	04/1996 - 01/1998	2
71631-60020	RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90..GEN	01/1998 - 06/1999	2
71834A - COVER, REAR SEAT RECLINING, NO.1 LH
71834-60030B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
71834-60030B0	RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC) MD.MOON MIST,TRIM1#	01/1998 - 06/1999	1
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	04/1996 - 02/1997	2
71930-44010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	02/1997 - 08/1998	2
71931-12040P6	RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	04/1996 - 09/2002	2
71930-13030B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	08/1998 - 06/1999	2
71931-12040P6	RZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	06/1999 - 12/2999	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	04/1996 - 02/1997	2
71930-44010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	02/1997 - 08/1998	2
71931-12040P6	RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	04/1996 - 09/2002	2
71930-13030B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	08/1998 - 06/1999	2
71931-12040P6	RZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	06/1999 - 12/2999	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	04/1996 - 02/1997	2
71930-44010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	02/1997 - 08/1998	2
71931-12040P6	RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	04/1996 - 09/2002	2
71930-13030B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	08/1998 - 06/1999	2
71931-12040P6	RZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	06/1999 - 12/2999	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	04/1996 - 02/1997	2
71930-44010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	02/1997 - 08/1998	2
71931-12040P6	RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	04/1996 - 09/2002	2
71930-13030B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	08/1998 - 06/1999	2
71931-12040P6	RZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	06/1999 - 12/2999	2
71940A - HEADREST ASSY, REAR SEAT
71910-60390B0	KZJ9#,LJ9#,RZJ9#,VZJ95..GX,STD MD.MOON MIST,TRIM1#	04/1996 - 06/1999	2
72329 - COVER, SEAT ADJUSTER BOLT
72329-60020B1	KZJ90 MD.MOON MIST,TRIM1#	06/1999 - 08/2000	1
72329-60020E1	KZJ90 OAK,TRIM4#	06/1999 - 08/2000	1
72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2
72380-60060	KZJ90	06/1999 - 08/2000	1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-60010B0	RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC) MD.MOON MIST,TRIM1#	01/1998 - 06/1999	1
72526-60050E0	KZJ9#..GEN OAK,TRIM4#	06/1999 - 08/2000	1
72526-60010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
72526-60050B0	KZJ9#..GEN MD.MOON MIST,TRIM1#	06/1999 - 08/2000	1
72658B - KNOB, REAR SEAT LOCK HANDLE
72658-60020B0	RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 MD.MOON MIST,TRIM1#	04/1996 - 10/1999	1
72658B - KNOB, REAR SEAT LOCK HANDLE
72658-60020B0	RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 MD.MOON MIST,TRIM1#	04/1996 - 10/1999	1
Common parts
90105-11049
90109-06208
90119-08364
90119-10229
90119-10825
90126-10019
90167-40044
90179-10015
90464-00190
91651-60614
93240-56014
93240-56025
93240-56030
93560-54016
94150-80800

ILLUST NO. 2 OF 2(9906- )KZJ90,LJ90,RZJ90,VZJ90

Click highlighted areas on diagram

REAR SEAT - SEAT BACK 6:4 SPLIT

Part #	Description	Period	Qty
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-60120	KZJ90,LJ90,RZJ90	04/1996 - 06/1999	1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-60820B1	KZJ90,RZJ90..GX..GEN W(SEAT BELT),GRAY,TRIM1#	04/1996 - 06/1999	1
71065-60040B1	KZJ90,RZJ90..GX..GEN GRAY,TRIM1#	04/1996 - 06/1999	1
71231 - PLATE, REAR SEAT SPRING SET, NO.1
71231-60010B0	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1#	04/1996 - 09/2002	2
71231-60010B0	RZJ95..ATM..GCC;VZJ95..MTM..GCC;RZJ95,VZJ95..ARL,CO,GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN MD.MOON MIST,TRIM1#	06/1999 - 12/2999	2
71236A - CLAMP, REAR SEAT CUSHION SPRING
71236-60010	KZJ90,LJ90,RZJ90	04/1996 - 06/1999	1
71301D - HINGE SUB-ASSY, REAR SEAT, RH
71302-60010	KZJ90,LJ90,RZJ90,VZJ90	04/1996 - 06/1999	1
71302D - HINGE SUB-ASSY, REAR SEAT, LH
71302-60010	KZJ90,LJ90,RZJ90,VZJ90	04/1996 - 06/1999	1
71302E - STOPPER SUB-ASSY, REAR SEAT LEG
71302-60020B0	KZJ90,LJ90,RZJ90,VZJ90..GCC,GEN MD.MOON MIST,TRIM1#	06/1999 - 10/1999	2
71302-60020B0	RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 MD.MOON MIST,TRIM1#	04/1996 - 10/1999	2
71302-60020B0	KZJ90,LJ90,RZJ90,VZJ90 MD.MOON MIST,TRIM1#	10/1999 - 12/2999	2
71305C - STAY SUB-ASSY, REAR SEAT
71305-60020	KZJ90,LJ90,RZJ90,VZJ90	04/1996 - 06/1999	1
71324A - CUSHION, REAR SEAT
71324-60110	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 01/1998	2
71324-60110	RZJ95..ATM..GCC;VZJ95..MTM..GCC;RZJ95,VZJ95..ARL,GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN	06/1999 - 12/2999	2
71324-60110	RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)	01/1998 - 06/1999	2
71397 - STOPPER, REAR SEAT
71397-60010	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 01/1998	2
71397-60010	RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#	01/1998 - 06/1999	2
71397-60010	RZJ95..ATM..GCC;VZJ95..MTM..GCC;RZJ95,VZJ95..ARL,CO,GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN	06/1999 - 12/2999	6
71397 - STOPPER, REAR SEAT
71397-60010	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 01/1998	2
71397-60010	RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#	01/1998 - 06/1999	2
71397-60010	RZJ95..ATM..GCC;VZJ95..MTM..GCC;RZJ95,VZJ95..ARL,CO,GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN	06/1999 - 12/2999	6
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-60050B0	KZJ90,RZJ90..GX..GEN W(SEAT BELT),MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
71560-60070B0	KZJ90,RZJ90..GX..GEN MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
71485A - COVER, REAR SEAT HINGE, NO.2 RH
71485-60020B0	KZJ90,LJ90,RZJ90,VZJ90 MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
71485-60020B0	RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 MD.MOON MIST,TRIM1#	04/1996 - 10/1999	1
71486A - COVER, REAR SEAT HINGE, NO.2 LH
71485-60020B0	KZJ90,LJ90,RZJ90,VZJ90 MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
71485-60020B0	RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 MD.MOON MIST,TRIM1#	04/1996 - 10/1999	1
71611 - PAD, REAR SEAT CUSHION
71611-60160	KZJ90,LJ90,RZJ90	04/1996 - 06/1999	1
71647 - PROTECTOR, REAR SEAT CUSHION EDGE
71647-60130B0	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1#	04/1996 - 09/2002	4
71647-60130B0	RZJ95..ATM..GCC;VZJ95..MTM..GCC;RZJ95,VZJ95..ARL,CO,GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN MD.MOON MIST,TRIM1#	06/1999 - 12/2999	4
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
71769-60010B0	KZJ90,LJ90,RZJ90,VZJ90 MD.MOON MIST,TRIM1#	06/1999 - 12/2999	11
71769-60010B0	RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 MD.MOON MIST,TRIM1#	04/1996 - 10/1999	11
71833A - COVER, REAR SEAT RECLINING, NO.1 RH
71833-60110B0	KZJ9#..GEN MD.MOON MIST,TRIM1#	06/1999 - 08/2000	1
71833-60030B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
71833-60030B0	RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC) MD.MOON MIST,TRIM1#	01/1998 - 06/1999	1
71833-60110E0	KZJ9#..GEN OAK,TRIM4#	06/1999 - 08/2000	1
71833F - COVER, REAR NO.2 SEAT RECLINING, OUTER RH
71833-60120B0	KZJ9#..GEN MD.MOON MIST,TRIM1#	06/1999 - 08/2000	1
71833-60120E0	KZJ9#..GEN OAK,TRIM4#	06/1999 - 08/2000	1
71834D - COVER, REAR SEAT RECLINING, LH
71834-60110B0	KZJ9#..GEN MD.MOON MIST,TRIM1#	06/1999 - 08/2000	1
71834-60110E0	KZJ9#..GEN OAK,TRIM4#	06/1999 - 08/2000	1
71834F - COVER, REAR NO.2 SEAT RECLINING, OUTER LH
71834-60120B0	KZJ9#..GEN MD.MOON MIST,TRIM1#	06/1999 - 08/2000	1
71834-60120E0	KZJ9#..GEN OAK,TRIM4#	06/1999 - 08/2000	1
71865 - BEZEL, REAR SEAT COVER, NO.1
71865-60020B0	RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 MD.MOON MIST,TRIM1#	04/1996 - 10/1999	1
71865-60020B0	KZJ90,LJ90,RZJ90,VZJ90 MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
71878B - COVER, REAR SEAT RECLINING, INNER RH
71878-60080B0	KZJ9#..GEN MD.MOON MIST,TRIM1#	06/1999 - 08/2000	1
71878-60080E0	KZJ9#..GEN OAK,TRIM4#	06/1999 - 08/2000	1
71878D - COVER, REAR SEAT RECLINING, INNER RH
71879-60070B0	KZJ9#..GEN MD.MOON MIST,TRIM1#	06/1999 - 08/2000	1
71879-60070E0	KZJ9#..GEN OAK,TRIM4#	06/1999 - 08/2000	1
71878E - COVER, REAR SEAT RECLINING, INNER RH
71878-60050E0	KZJ9#..GEN OAK,TRIM4#	06/1999 - 08/2000	1
71878-60050B0	KZJ9#..GEN MD.MOON MIST,TRIM1#	06/1999 - 08/2000	1
71879A - COVER, REAR SEAT RECLINING, INNER LH
71879-60040E0	KZJ9#..GEN OAK,TRIM4#	06/1999 - 08/2000	1
71879-60040B0	KZJ9#..GEN MD.MOON MIST,TRIM1#	06/1999 - 08/2000	1
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	04/1996 - 02/1997	2
71930-44010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	02/1997 - 08/1998	2
71931-12040P6	RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	04/1996 - 09/2002	2
71930-13030B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	08/1998 - 06/1999	2
71931-12040P6	RZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	06/1999 - 12/2999	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	04/1996 - 02/1997	2
71930-44010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	02/1997 - 08/1998	2
71931-12040P6	RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	04/1996 - 09/2002	2
71930-13030B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	08/1998 - 06/1999	2
71931-12040P6	RZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	06/1999 - 12/2999	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	04/1996 - 02/1997	2
71930-44010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	02/1997 - 08/1998	2
71931-12040P6	RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	04/1996 - 09/2002	2
71930-13030B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	08/1998 - 06/1999	2
71931-12040P6	RZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	06/1999 - 12/2999	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	04/1996 - 02/1997	2
71930-44010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	02/1997 - 08/1998	2
71931-12040P6	RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	04/1996 - 09/2002	2
71930-13030B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	08/1998 - 06/1999	2
71931-12040P6	RZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	06/1999 - 12/2999	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	04/1996 - 02/1997	2
71930-44010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	02/1997 - 08/1998	2
71931-12040P6	RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	04/1996 - 09/2002	2
71930-13030B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	08/1998 - 06/1999	2
71931-12040P6	RZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	06/1999 - 12/2999	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	04/1996 - 02/1997	2
71930-44010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	02/1997 - 08/1998	2
71931-12040P6	RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	04/1996 - 09/2002	2
71930-13030B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	08/1998 - 06/1999	2
71931-12040P6	RZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	06/1999 - 12/2999	2
71940A - HEADREST ASSY, REAR SEAT
71910-60390B0	KZJ9#,LJ9#,RZJ9#,VZJ95..GX,STD MD.MOON MIST,TRIM1#	04/1996 - 06/1999	2
71940A - HEADREST ASSY, REAR SEAT
71910-60390B0	KZJ9#,LJ9#,RZJ9#,VZJ95..GX,STD MD.MOON MIST,TRIM1#	04/1996 - 06/1999	2
72329 - COVER, SEAT ADJUSTER BOLT
72329-60020B1	KZJ90 MD.MOON MIST,TRIM1#	06/1999 - 08/2000	1
72329-60020E1	KZJ90 OAK,TRIM4#	06/1999 - 08/2000	1
72329 - COVER, SEAT ADJUSTER BOLT
72329-60020B1	KZJ90 MD.MOON MIST,TRIM1#	06/1999 - 08/2000	1
72329-60020E1	KZJ90 OAK,TRIM4#	06/1999 - 08/2000	1
72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2
72380-60060	KZJ90	06/1999 - 08/2000	1
72380A - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2
72380-60040	KZJ9#..GEN	06/1999 - 08/2000	1
72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-60040B0	RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC) MD.MOON MIST,TRIM1#	01/1998 - 06/1999	1
72525-60040B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
72525-60080E0	KZJ9#..GEN OAK,TRIM4#	06/1999 - 08/2000	1
72525-60080B0	KZJ9#..GEN MD.MOON MIST,TRIM1#	06/1999 - 08/2000	1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-60010B0	RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC) MD.MOON MIST,TRIM1#	01/1998 - 06/1999	1
72526-60050E0	KZJ9#..GEN OAK,TRIM4#	06/1999 - 08/2000	1
72526-60010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
72526-60050B0	KZJ9#..GEN MD.MOON MIST,TRIM1#	06/1999 - 08/2000	1
72650A - LOCK ASSY, REAR SEAT, RH
72650-60070	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 01/1998	1
72650-60071	RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)	01/1998 - 06/1999	1
72658B - KNOB, REAR SEAT LOCK HANDLE
72658-60020B0	RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 MD.MOON MIST,TRIM1#	04/1996 - 10/1999	1
72660F - LOCK ASSY, REAR SEAT, LH
72660-60020	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 01/1998	1
72660-60021	RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)	01/1998 - 06/1999	1
72668 - BAR, REAR SEAT CUSHION LOCK STRIKER
72698-60010	RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC)	01/1998 - 06/1999	1
72698-60010	RZJ95..ATM..GCC;VZJ95..MTM..GCC;RZJ95,VZJ95..ARL,GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN	06/1999 - 12/2999	1
72698-60010	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 01/1998	1
72691B - STRIKER, REAR SEAT CUSHION LOCK
72691-60020	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 01/1998	2
72691-60020	RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#	01/1998 - 06/1999	2
72691-60020	RZJ95..ATM..GCC;VZJ95..MTM..GCC;RZJ95,VZJ95..ARL,CO,GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN	06/1999 - 12/2999	2
72695A - CABLE, REAR SEAT LOCK CONTROL
72695-60060	KZJ90,LJ90,RZJ90,VZJ90	04/1996 - 06/1999	1
72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH
72730-60090	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 11/1996	1
72730-60090	KZJ9#,LJ9#,RZJ9#,VZJ95..GCC,GEN	11/1996 - 01/1998	1
72730-60200	KZJ9#..GEN	06/1999 - 08/2000	1
72730-60090	RZJ95..CBR;VZJ95..GCC;KZJ9#,LJ9#,RZJ90	01/1998 - 06/1999	1
72730E - ADJUSTER ASSY, REAR SEAT BACK, OUTER RH
72720-60090	KZJ9#..GEN	06/1999 - 08/2000	1
72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH
72740-60090	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 11/1996	1
72740-60090	KZJ9#,LJ9#,RZJ9#,VZJ95..GCC,GEN	11/1996 - 01/1998	1
72710-60100	KZJ9#..GEN	06/1999 - 08/2000	1
72740-60090	RZJ95..CBR;VZJ95..GCC;KZJ9#,LJ9#,RZJ90	01/1998 - 06/1999	1
72740E - ADJUSTER ASSY, REAR SEAT BACK, OUTER LH
72740-60190	KZJ9#..GEN	06/1999 - 08/2000	1
72927B - COVER, REAR SEAT CUSHION UNDER
72907-60030B0	KZJ90,LJ90,RZJ90,VZJ90 MOON MIST,TRIM1#	06/1999 - 12/2999	1
72907-60030B0	RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 MOON MIST,TRIM1#	04/1996 - 10/1999	1
78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1
78950-60090B0	KZJ90,LJ90,RZJ90,VZJ90 MD.MOON MIST,TRIM1#	06/1999 - 12/2999	2
78950-60090B0	RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 MD.MOON MIST,TRIM1#	04/1996 - 10/1999	2
Common parts
90119-08354
90119-08364
90119-10229
90119-10381
90126-10019
90167-40044
90168-40043
90179-10015
90464-00190
90467-08006
93240-56025
93568-54516

ILLUST NO. 2 OF 3(9906- )LHD

Click highlighted areas on diagram

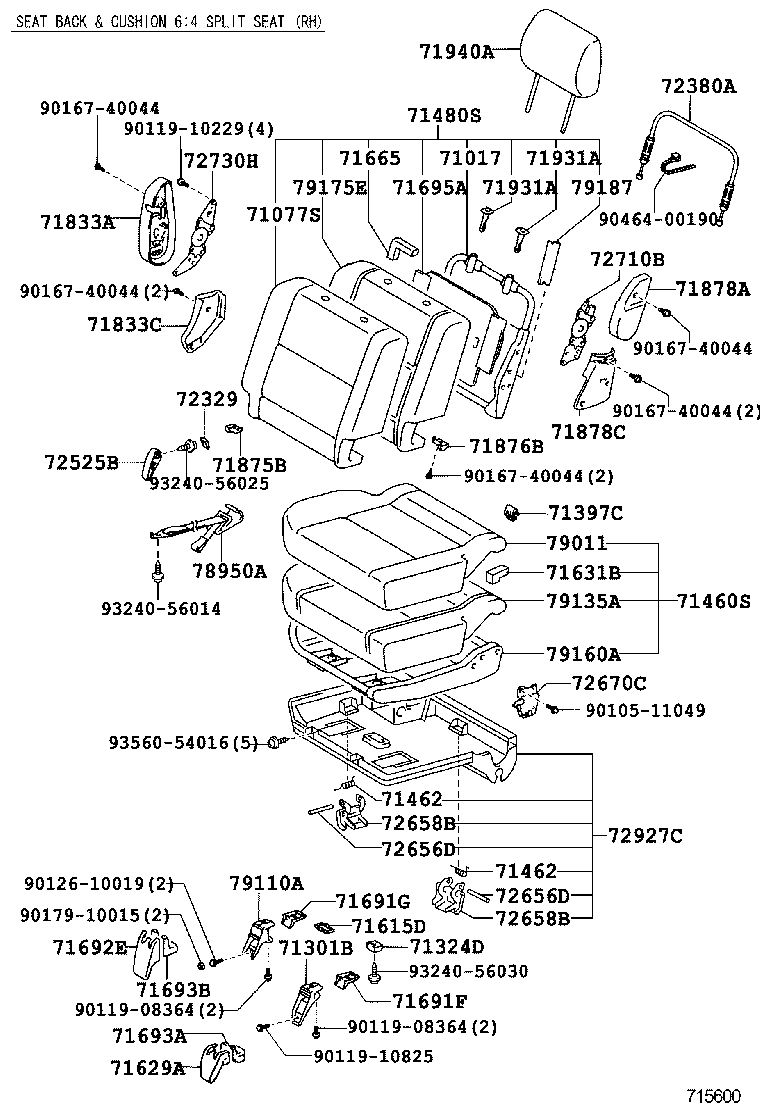

RR NO.1-SEAT BACK & CUSHION 6:4 RH

Part #	Description	Period	Qty
71833A - COVER, REAR SEAT RECLINING, NO.1 RH
71833-60110B0	KZJ9#..GEN MD.MOON MIST,TRIM1#	06/1999 - 08/2000	1
71833-60030B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
71833-60030B0	RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC) MD.MOON MIST,TRIM1#	01/1998 - 06/1999	1
71833-60110E0	KZJ9#..GEN OAK,TRIM4#	06/1999 - 08/2000	1
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	04/1996 - 02/1997	2
71930-44010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	02/1997 - 08/1998	2
71931-12040P6	RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	04/1996 - 09/2002	2
71930-13030B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	08/1998 - 06/1999	2
71931-12040P6	RZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	06/1999 - 12/2999	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-32020B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	04/1996 - 02/1997	2
71930-44010B0	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	02/1997 - 08/1998	2
71931-12040P6	RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	04/1996 - 09/2002	2
71930-13030B2	KZJ9#,LJ9#,RZJ9#,VZJ9# W(LOCK),BLUE GRAY,TRIM1#	08/1998 - 06/1999	2
71931-12040P6	RZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) W/O(LOCK),BLUE GRAY,TRIM1#	06/1999 - 12/2999	2
71940A - HEADREST ASSY, REAR SEAT
71910-60390B0	KZJ9#,LJ9#,RZJ9#,VZJ95..GX,STD MD.MOON MIST,TRIM1#	04/1996 - 06/1999	2
72329 - COVER, SEAT ADJUSTER BOLT
72329-60020B1	KZJ90 MD.MOON MIST,TRIM1#	06/1999 - 08/2000	1
72329-60020E1	KZJ90 OAK,TRIM4#	06/1999 - 08/2000	1
72380A - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2
72380-60040	KZJ9#..GEN	06/1999 - 08/2000	1
72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-60040B0	RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC) MD.MOON MIST,TRIM1#	01/1998 - 06/1999	1
72525-60040B0	KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
72525-60080E0	KZJ9#..GEN OAK,TRIM4#	06/1999 - 08/2000	1
72525-60080B0	KZJ9#..GEN MD.MOON MIST,TRIM1#	06/1999 - 08/2000	1
72658B - KNOB, REAR SEAT LOCK HANDLE
72658-60020B0	RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 MD.MOON MIST,TRIM1#	04/1996 - 10/1999	1
72658B - KNOB, REAR SEAT LOCK HANDLE
72658-60020B0	RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 MD.MOON MIST,TRIM1#	04/1996 - 10/1999	1
Common parts
90105-11049
90119-08364
90119-10229
90119-10825
90126-10019
90167-40044
90179-10015
90464-00190
93240-56014
93240-56025
93240-56030
93560-54016

KZJ90L-GJMNX (1996)

ILLUST NO. 1 OF 3(9604- )ARL,CO,GCC,GEN

ILLUST NO. 2 OF 2(9604- )KZJ90,LJ90,RZJ90,VZJ90

ILLUST NO. 2 OF 2(9604-9906)KZJ90,LJ90,RZJ90,VZJ90 ; (9906- )RZJ90..CO

ILLUST NO. 1 OF 3(9604- )

ILLUST NO. 2 OF 3(9906- )LHD

ILLUST NO. 2 OF 2(9906- )KZJ90,LJ90,RZJ90,VZJ90

ILLUST NO. 2 OF 3(9906- )LHD

Part Price Details
