KZJ90L-GJMNX (1996)
Toyota Land Cruiser 90

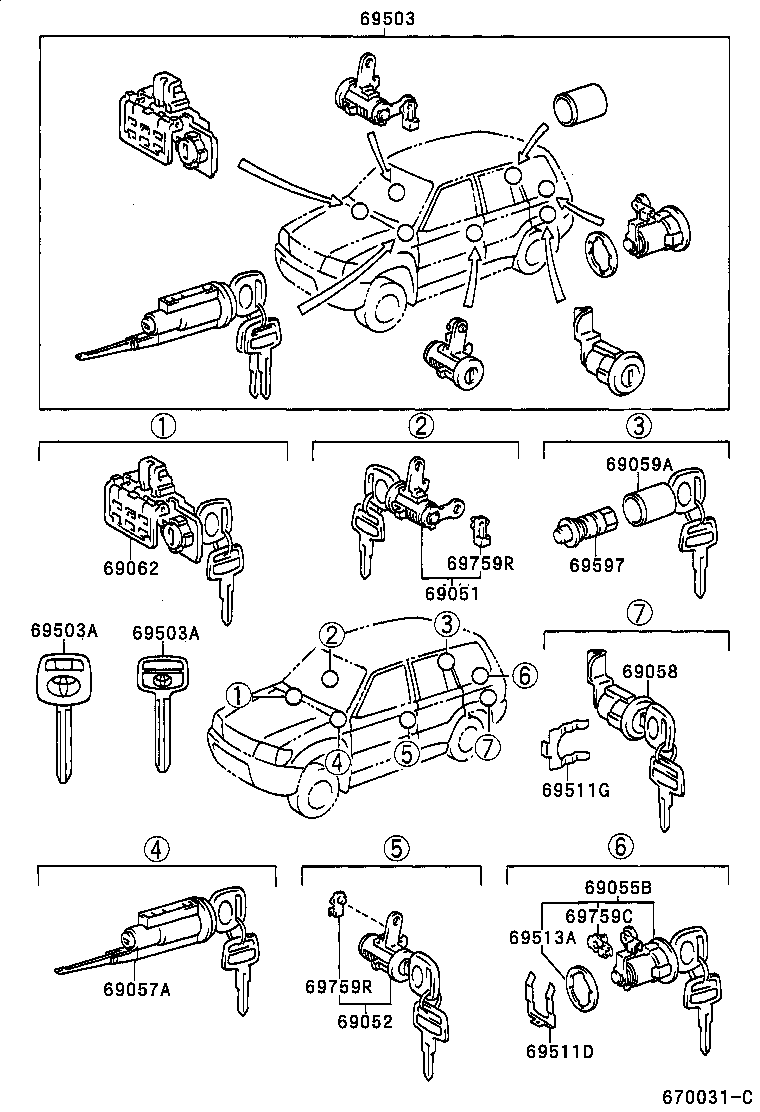

ILLUST NO. 2 OF 2(9604- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-60130 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN,MA |
1 | ||
| 69051-60130 |
RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,VZJ9#..CO,GCC,GEN |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-60130 |
RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,VZJ9#..CO,GCC,GEN |
1 | ||
| 69052-60130 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN,MA |
1 | ||
| 69055B - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-60121 |
RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,VZJ9#..CO,GCC,GEN W(WHITE SNAP) |
1 | ||
| 69055-60121 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN,MA W(WHITE SNAP) |
1 | ||
| 69055-60120 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN W(YELLOW GREEN SNAP) |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-60170 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN,MA |
1 | ||
| 69057-60170 |
RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,VZJ9#..CO,GCC,GEN |
1 | ||
| 69059A - CYLINDER & KEY SET, SPARE WHEEL LOCK | ||||
| 69059-35020 |
RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,VZJ9#..CO,GCC,GEN |
1 | ||
| 69059-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN,MA |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-34010 |
RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,VZJ9#..CO,GCC,GEN |
1 | ||
| 69056-34010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN,MA |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-6A311 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(GCC,GEN) W(GLOVE BOX W/KEY & SPARE WHEEL CARRIER W/KEY LOCK) |
1 | ||
| 69005-6A481 |
KZJ9#,LJ95,RZJ9#..GX..(GCC,GEN) W(SPARE WHEEL CARRIER W/KEY LOCK) |
1 | ||
| 69005-6A310 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(GCC,GEN) W(GLOVE BOX W/KEY & SPARE WHEEL CARRIER W/KEY LOCK) |
1 | ||
| 69005-6A481 |
KZJ9#,LJ95,RZJ9#..GX..GEN W(SPARE WHEEL CARRIER W/KEY LOCK) |
1 | ||
| 69005-6A330 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(GCC,GEN) W(GLOVE BOX W/KEY) |
1 | ||
| 69005-6A331 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(GCC,GEN) W(GLOVE BOX W/KEY) |
1 | ||
| 69005-6A471 |
KZJ9#,LJ95,RZJ9#..GX..(GCC,GEN) |
1 | ||
| 69005-6A480 |
KZJ9#,LJ95,RZJ9#..GX..(GCC,GEN) W(SPARE WHEEL CARRIER W/KEY LOCK) |
1 | ||
| 69005-6A470 |
KZJ9#,LJ95,RZJ9#..GX..(GCC,GEN) |
1 | ||
| 69005-6A331 |
KZJ9#,LJ95,RZJ9#..GX..GEN W(GLOVE BOX W/KEY) |
1 | ||
| 69005-6A311 |
KZJ9#,LJ95,RZJ9#,VZJ95..(GX,VX)..(CO,GEN) W(GLOVE BOX W/KEY & SPARE WHEEL CARRIER W/KEY LOCK) |
1 | ||
| 69005-6A471 |
KZJ9#,LJ95,RZJ9#..GX..GEN |
1 | ||
| 69005-6A471 |
RZJ95..GX..CBR..GEN;KZJ9#,LJ95,RZJ90..GX..GEN |
1 | ||
| 69005-6A311 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(CO,GCC,GEN,MA) W(GLOVE BOX W/KEY & SPARE WHEEL CARRIER W/KEY LOCK) |
1 | ||
| 69005-6A331 |
KZJ9#,LJ95,RZJ9#..GX..GEN W(GLOVE BOX W/KEY) |
1 | ||
| 69005-6A331 |
RZJ95..GX..CBR..GEN;KZJ9#,LJ95,RZJ90..GX..GEN W(GLOVE BOX W/KEY) |
1 | ||
| 69005-6A481 |
RZJ95..GX..CBR..GEN;KZJ9#,LJ95,RZJ90..GX..GEN W(SPARE WHEEL CARRIER W/KEY LOCK) |
1 | ||
| 69005-6A471 |
KZJ9#,LJ95,RZJ9#..GX..GEN |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00188 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN,MA SUB KEY |
1 | ||
| 90999-00186 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN MASTER KEY |
1 | ||
| 90999-00188 |
RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,VZJ9#..CO,GCC,GEN SUB KEY |
1 | ||
| 90999-00185 |
RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,VZJ9#..CO,GCC,GEN MASTER KEY,W(*68) |
1 | ||
| 90999-00185 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN,MA MASTER KEY,W(*68) |
1 | ||
| 90999-00186 |
RZJ95..LHD..STD;RZJ95..ATM..GCC;RZJ95..(GX,VX)..(GEN,MA);KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN,MA MASTER KEY |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00188 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN,MA SUB KEY |
1 | ||
| 90999-00186 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN MASTER KEY |
1 | ||
| 90999-00188 |
RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,VZJ9#..CO,GCC,GEN SUB KEY |
1 | ||
| 90999-00185 |
RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,VZJ9#..CO,GCC,GEN MASTER KEY,W(*68) |
1 | ||
| 90999-00185 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN,MA MASTER KEY,W(*68) |
1 | ||
| 90999-00186 |
RZJ95..LHD..STD;RZJ95..ATM..GCC;RZJ95..(GX,VX)..(GEN,MA);KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN,MA MASTER KEY |
1 | ||
| 69511D - RETAINER, BACK DOOR LOCK CYLINDER | ||||
| 69561-10040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 69561-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN,MA |
1 | ||
| 69561-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 69513A - PAD, DOOR CYLINDER | ||||
| 69513-32010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 69513-32010 |
KZJ9#,LJ95,RZJ9#..GX..GEN |
1 | ||
| 69597 - NUT, SPARE WHEEL LOCK | ||||
| 69597-35020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 69597-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 69759C - SNAP, BACK DOOR LOCK CYLINDER | ||||
| 69759-30050 |
KZJ9#,LJ95,RZJ9#..GX..GEN |
1 | ||
| 69759-30050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 69759-30050 |
KZJ9#,LJ9#,RZJ9#,VZJ95..ARL,CO,GEN |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-22080 |
KZJ9#,LJ9#,RZJ9#,VZJ9# RH |
1 | ||
| 69759-22090 |
KZJ9#,LJ95,RZJ9#..GX..GEN LH |
1 | ||
| 69759-22090 |
KZJ9#,LJ9#,RZJ9#,VZJ95..ARL,CO,GEN LH |
1 | ||
| 69759-22090 |
KZJ9#,LJ9#,RZJ9#,VZJ9# LH |
1 | ||
| 69759-22080 |
KZJ9#,LJ95,RZJ9#..GX..GEN RH |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-22080 |
KZJ9#,LJ9#,RZJ9#,VZJ9# RH |
1 | ||
| 69759-22090 |
KZJ9#,LJ95,RZJ9#..GX..GEN LH |
1 | ||
| 69759-22090 |
KZJ9#,LJ9#,RZJ9#,VZJ95..ARL,CO,GEN LH |
1 | ||
| 69759-22090 |
KZJ9#,LJ9#,RZJ9#,VZJ9# LH |
1 | ||
| 69759-22080 |
KZJ9#,LJ95,RZJ9#..GX..GEN RH |
1 | ||

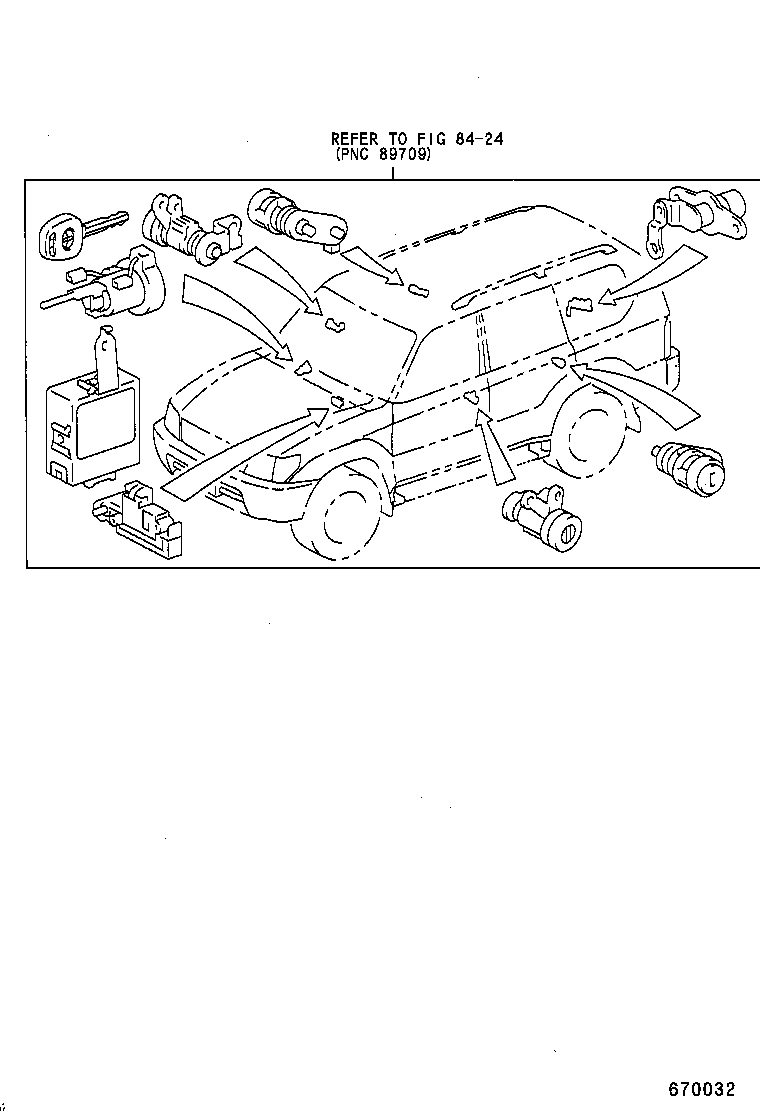

ILLUST NO. 1 OF 2(9604- )
W(ENGINE IMMOBILIZER SISTEM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8424 | ||||
