KZJ90L-GJMNX (1996)
Toyota Land Cruiser 90

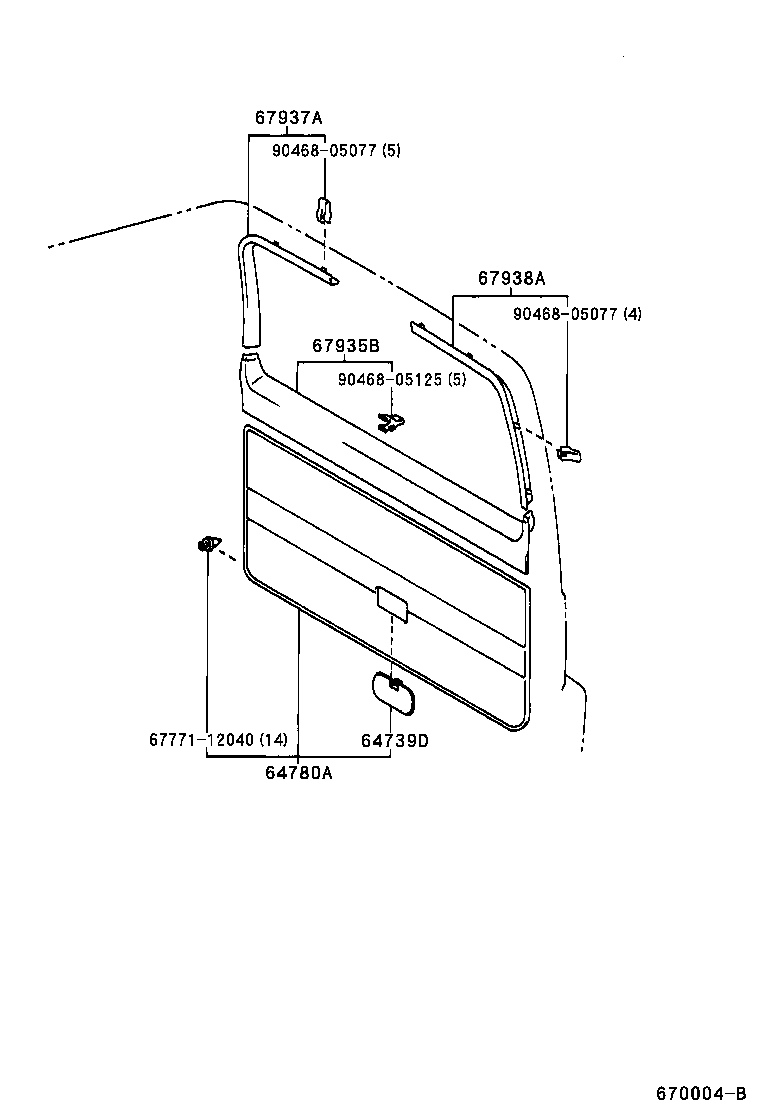

ILLUST NO. 1 OF 2(9604- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64739D - COVER, BACK DOOR TRIM REAR WASHER | ||||
| 64739-60010B0 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1# |
1 | ||
| 64739-60010B0 |
RZJ95..GX,VX;VZJ95..ARL,CO;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) MD.MOON MIST,TRIM1# |
1 | ||
| 64780A - PANEL ASSY, BACK DOOR TRIM | ||||
| 64780-60120B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN MD.MOON MIST,TRIM1# |
1 | ||
| 64780-60140B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W(REAR WINDOW WIPER),MD.MOON MIST,TRIM1# |
1 | ||
| 64780-60120B0 |
RZJ95..CBR;VZJ95..GCC;KZJ9#,LJ9#,RZJ90,VZJ90 MD.MOON MIST,TRIM1# |
1 | ||
| 64780-60140B0 |
RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,VZJ9#..CO,GCC,GEN W(REAR WINDOW WIPER),MD.MOON MIST,TRIM1# |
1 | ||
| 64780-60140B0 |
VZJ95..ATM..CO;RZJ95..(GX,VX)..(GCC,GEN,MA);RZJ95,VZJ95..LHD..MTM..(STD,VX);KZJ9#,LJ9#,RZJ90,VZJ90..CO,GCC,GEN,MA W(REAR WINDOW WIPER),MD.MOON MIST,TRIM1# |
1 | ||
| 67935B - GARNISH, BACK DOOR | ||||
| 67935-60050B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 67930-60010B0 |
RZJ90..GX;RZJ9#..CBR..GEN;KZJ9#,LJ9#,VZJ95..CO,GEN;RZJ95..RHD..GX..EFI..GEN MD.MOON MIST,TRIM1# |
1 | ||
| 67930-60010B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 67930-60010B0 |
KZJ9#,LJ9#,RZJ9#,VZJ95..CO,GEN,MA MD.MOON MIST,TRIM1# |
1 | ||
| 67937A - GARNISH, BACK DOOR SIDE | ||||
| 67937-60040B1 |
KZJ9#,LJ9#,RZJ9#..GEN MD. MOON MIST,TRIM1# |
1 | ||
| 67937-60040B1 |
RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90 MD. MOON MIST,TRIM1# |
1 | ||
| 67937-60030B1 |
RZJ95..LHD..STD;RZJ95..GX..(ARL,GCC,GEN);KZJ9#,LJ9#,RZJ90,VZJ9#..ARL,CO,GCC,GEN W(HIGH MOUNT STOP LAMP),MD. MOON MIST,TRIM1# |
1 | ||
| 67937-60030B1 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) W(HIGH MOUNT STOP LAMP),MD. MOON MIST,TRIM1# |
1 | ||
| 67937-60040B1 |
KZJ9#,LJ9#,RZJ9#..CO,GEN MD. MOON MIST,TRIM1# |
1 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-60030B1 |
KZJ9#,LJ9#,RZJ9#..GEN MD. MOON MIST,TRIM1# |
1 | ||
| 67938-60030B1 |
RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90 MD. MOON MIST,TRIM1# |
1 | ||
| 67938-60020B1 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) W(HIGH MOUNT STOP LAMP),MD. MOON MIST,TRIM1# |
1 | ||
| 67938-60030B1 |
KZJ9#,LJ9#,RZJ9#..CO,GEN MD. MOON MIST,TRIM1# |
1 | ||
| 67938-60020B1 |
RZJ95..LHD..STD;RZJ95..GX..(ARL,GCC,GEN);KZJ9#,LJ9#,RZJ90,VZJ9#..ARL,CO,GCC,GEN W(HIGH MOUNT STOP LAMP),MD. MOON MIST,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-12040 | ||||
| 90468-05077 | ||||
| 90468-05125 | ||||

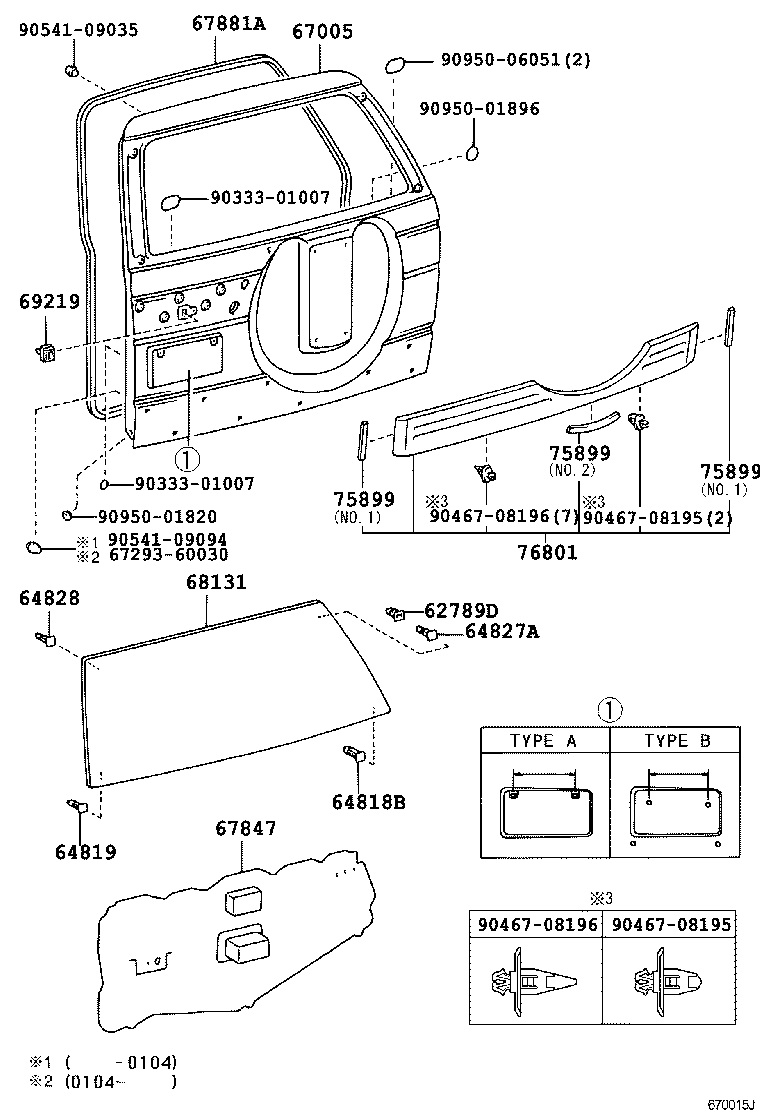

ILLUST NO. 2 OF 2(9604- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62789D - CLIP, BACK DOOR WINDOW WEATHERSTRIP | ||||
| 62789-35010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 62789-35010 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
2 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-60010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 64818-60010 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-60010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 64819-60010 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 64827A - CLIP, BACK WINDOW GLASS, RH | ||||
| 64827-60010 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 64827-60010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 64828 - CLIP, BACK WINDOW GLASS, LH | ||||
| 64828-60010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 64828-60010 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-6A280 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN W(REAR WINDOW WIPER & HIGH MOUNT STOP LAMP),TYPE A |
1 | ||
| 67005-6A250 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN W(HIGH MOUNT STOP LAMP),TYPE A |
1 | ||
| 67005-6A290 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(GCC,GEN) W(BACKDOOR OUTSIDE GARNISH & HIGH MOUNT STOP LAMP),TYPE A |
1 | ||
| 67005-6A260 |
RZJ95..CBR;VZJ95..GCC;KZJ9#,LJ9#,RZJ90,VZJ90 TYPE A |
1 | ||
| 67005-6A260 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN TYPE A |
1 | ||
| 67005-6A280 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN W(REAR WINDOW WIPER & HIGH MOUNT STOP LAMP),TYPE A |
1 | ||
| 67005-6A280 |
RZJ95..LHD..GEN;RZJ95..ATM..GCC;VZJ95..MTM..GCC;RZJ95..RHD..GX..GEN;KZJ9#,LJ9#,RZJ90,VZJ90..CO,GCC,GEN W(REAR WINDOW WIPER & HIGH MOUNT STOP LAMP),TYPE A |
1 | ||
| 67005-6A260 |
KZJ9#,LJ9#,RZJ9#..CO,GEN TYPE A |
1 | ||
| 67847 - COVER, BACK DOOR SERVICE HOLE, RH | ||||
| 67847-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 67847-60030 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) W(REAR WINDOW WIPER) |
1 | ||
| 67847-60020 |
RZJ95..CBR;VZJ95..GCC;KZJ9#,LJ9#,RZJ90,VZJ90 |
1 | ||
| 67847-60030 |
RZJ95..LHD..STD;RZJ95..GX..(ARL,GCC,GEN);KZJ9#,LJ9#,RZJ90,VZJ9#..ARL,CO,GCC,GEN W(REAR WINDOW WIPER) |
1 | ||
| 67847-60020 |
KZJ9#,LJ9#,RZJ9#..CO,GEN |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-60070 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 67881-60070 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68131-60161 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# *EHT,T=3.5,GREEN |
1 | ||
| 68131-60240 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN *TEM,T=3.1,GREEN |
1 | ||
| 68131-60241 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN *TEM,T=3.5,GREEN |
1 | ||
| 68131-60161 |
RZJ95..LHD..STD;RZJ95..GX..(ARL,GCC,GEN);KZJ9#,LJ9#,RZJ90,VZJ9#..ARL,CO,GCC,GEN *EHT,T=3.5,GREEN |
1 | ||
| 68131-60160 |
KZJ9#,LJ9#,RZJ9#,VZJ9# *EHT,T=3.1,GREEN |
1 | ||
| 69219 - SEAL, BACK DOOR OUTSIDE HANDLE | ||||
| 69219-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 69219-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 69219-60010 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 75899 - TAPE, MOULDING, NO.5 | ||||
| 75899-60010 |
RZJ90..GX..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX NO.1:REFER ILLUST. |
2 | ||
| 75899-60030 |
RZJ90..GX..GEN;RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,VZJ9#..(GX,VX)..(DSL,EFI,TD) NO.2:REFER ILLUST. |
1 | ||
| 75899-60010 |
RZJ90..GX..GEN;RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,VZJ9#..(GX,VX)..(DSL,EFI,TD) NO.1:REFER ILLUST. |
2 | ||
| 75899-60030 |
RZJ90..GX..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX NO.2:REFER ILLUST. |
1 | ||
| 75899 - TAPE, MOULDING, NO.5 | ||||
| 75899-60010 |
RZJ90..GX..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX NO.1:REFER ILLUST. |
2 | ||
| 75899-60030 |
RZJ90..GX..GEN;RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,VZJ9#..(GX,VX)..(DSL,EFI,TD) NO.2:REFER ILLUST. |
1 | ||
| 75899-60010 |
RZJ90..GX..GEN;RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,VZJ9#..(GX,VX)..(DSL,EFI,TD) NO.1:REFER ILLUST. |
2 | ||
| 75899-60030 |
RZJ90..GX..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX NO.2:REFER ILLUST. |
1 | ||
| 75899 - TAPE, MOULDING, NO.5 | ||||
| 75899-60010 |
RZJ90..GX..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX NO.1:REFER ILLUST. |
2 | ||
| 75899-60030 |
RZJ90..GX..GEN;RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,VZJ9#..(GX,VX)..(DSL,EFI,TD) NO.2:REFER ILLUST. |
1 | ||
| 75899-60010 |
RZJ90..GX..GEN;RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,VZJ9#..(GX,VX)..(DSL,EFI,TD) NO.1:REFER ILLUST. |
2 | ||
| 75899-60030 |
RZJ90..GX..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX NO.2:REFER ILLUST. |
1 | ||
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-60030B1 |
RZJ90..EFI..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX SILVER ME.,K72 ,K73 ,K81 |
1 | ||
| 76801-60030E0 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX LT. GRAYISH BEIGE ME,K75 |
1 | ||
| 76801-60030E0 |
RZJ90..GX..GEN;RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,VZJ9#..(GX,VX)..(DSL,EFI,TD) LT. GRAYISH BEIGE ME,K75 ,K78 |
1 | ||
| 76801-60030B0 |
RZJ90..EFI..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX GRAY ME.,K04 ,K08 ,K14 ,K74 ,K76 ,K80 |
1 | ||
| 76801-60030A0 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX SILVER ME.,K01 ,K05 ,K10 ,K11 ,K13 |
1 | ||
| 76801-60030B0 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX GRAY ME.,K02 ,K03 ,K04 ,K08 ,K09 |
1 | ||
| 76801-60030B2 |
RZJ90..GX..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX GRAY ME.,K04 ,K08 ,K74 ,K80 ,KC7 ,KC8 ,KC9 |
1 | ||
| 76801-60030B0 |
RZJ90..GX..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX GRAY ME.,K04 ,K08 ,K74 ,K80 ,KC7 ,KC8 ,KC9 |
1 | ||
| 76801-60030G0 |
RZJ90..GX..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX DK. GREEN MC.,K79 |
1 | ||
| 76801-60030E0 |
RZJ90..GX..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX LT. GRAYISH BEIGE ME,K75 ,K78 |
1 | ||
| 76801-60030B1 |
RZJ90..GX..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX SILVER ME.,K72 ,K73 |
1 | ||
| 76801-60030E1 |
KZJ95..ATM;RZJ95..ATM..GCC;RZJ95..(GX,VX)..(ARL,GEN,MA);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) LT.GRAYISH BEIGE ME.,K75 ,K78 |
1 | ||
| Common parts | ||||
| 67293-60030 | ||||
| 90333-01007 | ||||
| 90467-08195 | ||||
| 90467-08196 | ||||
| 90541-09035 | ||||
| 90541-09094 | ||||
| 90950-01820 | ||||
| 90950-01896 | ||||
| 90950-06051 | ||||
