KZJ90L-GJMNX (1996)
Toyota Land Cruiser 90

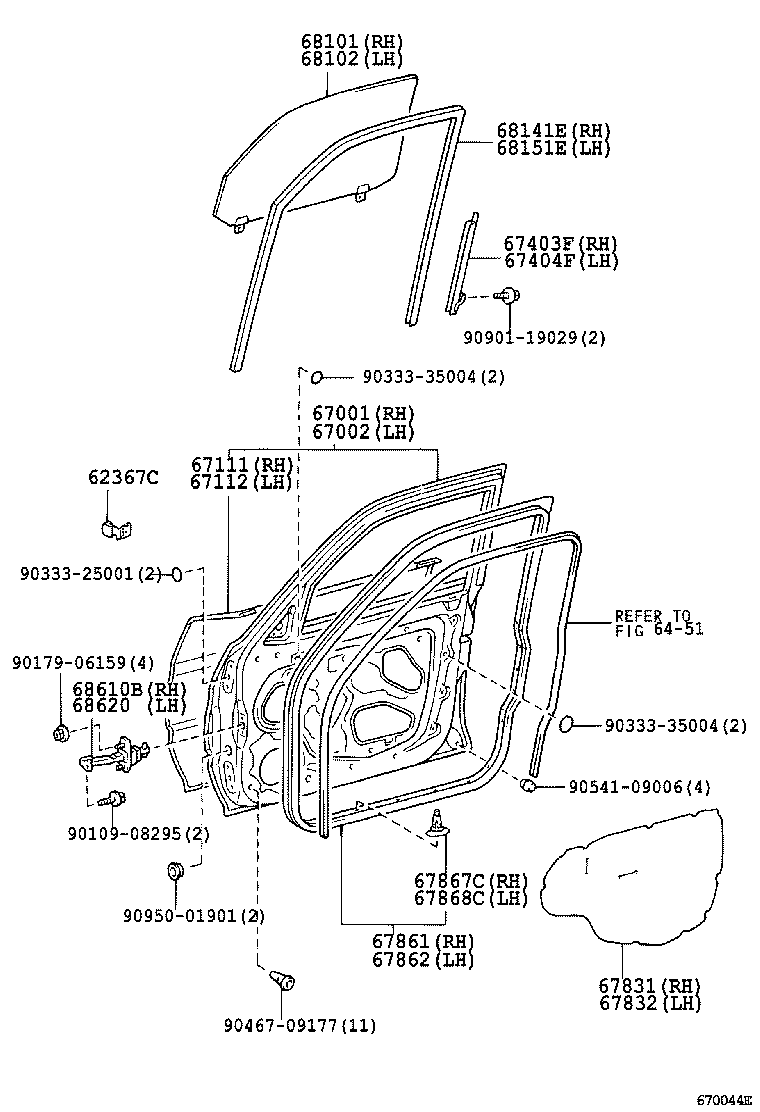

ILLUST NO. 1 OF 3(9604- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62367C - CLIP, DOOR WINDOW GLASS | ||||
| 62367-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 62367-60020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-60400 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX W(FRONT FENDER MOULDING) |
1 | ||
| 67001-60390 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 67001-60401 |
RZJ90..EFI..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX W(FRONT FENDER MOULDING) |
1 | ||
| 67001-60431 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..GX,VX |
1 | ||
| 67001-60432 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..GX,VX |
1 | ||
| 67001-60402 |
RZJ90..GX..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..(GX,VX)..(ARL,CO,GCC,GEN) W(FRONT FENDER MOULDING) |
1 | ||
| 67001-60432 |
VZJ95..ARL;VZJ95..MTM..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,CO,GCC,GEN |
1 | ||
| 67001-60430 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-60400 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX W(FRONT FENDER MOULDING) |
1 | ||
| 67002-60390 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 67002-60401 |
RZJ90..EFI..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX W(FRONT FENDER MOULDING) |
1 | ||
| 67002-60402 |
RZJ90..GX..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..(GX,VX)..(ARL,CO,GCC,GEN) W(FRONT FENDER MOULDING) |
1 | ||
| 67002-60430 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 67002-60432 |
VZJ95..ARL;VZJ95..MTM..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,CO,GCC,GEN |
1 | ||
| 67002-60432 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..GX,VX |
1 | ||
| 67002-60431 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..GX,VX |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-60260 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 67111-60270 |
RZJ90..GX..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..(GX,VX)..(ARL,CO,GCC,GEN) W(FRONT FENDER MOULDING) |
1 | ||
| 67111-60260 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 67111-60270 |
RZJ90..GX..GEN;RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,VZJ9#..(GX,VX)..(DSL,EFI,TD) W(FRONT FENDER MOULDING) |
1 | ||
| 67111-60260 |
VZJ95..ARL;VZJ95..MTM..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,CO,GCC,GEN |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-60270 |
RZJ90..GX..GEN;RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,VZJ9#..(GX,VX)..(DSL,EFI,TD) W(FRONT FENDER MOULDING) |
1 | ||
| 67112-60260 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 67112-60270 |
RZJ90..GX..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..(GX,VX)..(ARL,CO,GCC,GEN) W(FRONT FENDER MOULDING) |
1 | ||
| 67112-60260 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 67112-60260 |
VZJ95..ARL;VZJ95..MTM..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,CO,GCC,GEN |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-60070 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 67403-60070 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-60080 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 67404-60080 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-60130 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 67831-60130 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-60040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 67832-60040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-60090 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 67861-60090 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-60090 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 67862-60090 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
17 | ||
| 67867-12150 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
17 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
17 | ||
| 67867-12150 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
17 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-60070 |
KZJ9#,LJ9#,RZJ9#,VZJ9# *TT,T=3.5,GREEN |
1 | ||
| 68101-60071 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,CO,GCC,GEN *TT,T=4.0,GREEN |
1 | ||
| 68101-60070 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# *TT,T=3.5,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-60070 |
KZJ9#,LJ9#,RZJ9#,VZJ9# *TT,T=3.5,GREEN |
1 | ||
| 68102-60070 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# *TT,T=3.5,GREEN |
1 | ||
| 68102-60071 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,CO,GCC,GEN *TT,T=4.0,GREEN |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-60030 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 68141-60031 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 68151E - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 68151-60021 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-60060 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 68610-60060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-60040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 68620-60040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90179-06159 | ||||
| 90333-25001 | ||||
| 90333-35004 | ||||
| 90467-09177 | ||||
| 90541-09006 | ||||
| 90901-19029 | ||||
| 90950-01901 | ||||
| Linked diagrams | ||||
| 6451 | ||||

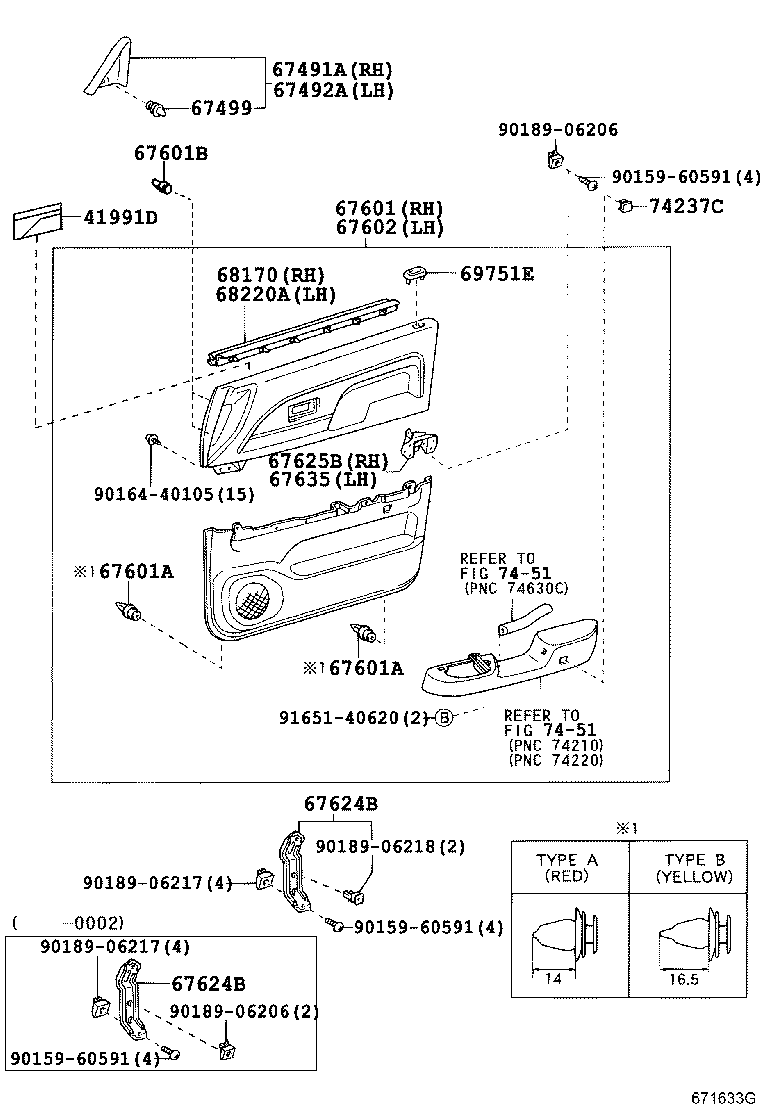

ILLUST NO. 2 OF 3(9906- )GX,VX..ARL,GCC,GEN,MA
DOOR TRIM,W(POWER WINDOW)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41991D - LABEL, REAR DIFFERENTIAL LOCK CAUTION | ||||
| 41991-60081 |
KZJ9#,RZJ9#..(CBR,TD)..GEN |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-60050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 67491-60050 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-60050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 67492-60050 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-30070 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 67771-30070 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
4 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-60780B0 |
KZJ9#,LJ95,RZJ9#,VZJ95..GX MD.MOON MIST,TRIM1# |
1 | ||
| 67610-60790B0 |
KZJ9#,LJ95,RZJ9#,VZJ95..GX W(POWER WINDOW),MD.MOON MIST,TRIM1# |
1 | ||
| 67610-60780B0 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ95..GX MD.MOON MIST,TRIM1# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-30090 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX TYPE B |
2 | ||
| 67771-20110 |
KZJ9#,LJ95,RZJ9#,VZJ95..GX,VX TYPE A |
10 | ||
| 67771-28020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX TYPE A |
10 | ||
| 67771-30090 |
RZJ90..GX;KZJ9#,LJ95,RZJ95,VZJ9# TYPE B |
2 | ||
| 67771-28020 |
RZJ90..GX;KZJ9#,LJ95,RZJ95,VZJ9# TYPE A |
10 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-30090 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX TYPE B |
2 | ||
| 67771-20110 |
KZJ9#,LJ95,RZJ9#,VZJ95..GX,VX TYPE A |
10 | ||
| 67771-28020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX TYPE A |
10 | ||
| 67771-30090 |
RZJ90..GX;KZJ9#,LJ95,RZJ95,VZJ9# TYPE B |
2 | ||
| 67771-28020 |
RZJ90..GX;KZJ9#,LJ95,RZJ95,VZJ9# TYPE A |
10 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-08192B0 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX MD.MOON MIST,TRIM1# |
4 | ||
| 90467-08192B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
4 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-60790B0 |
KZJ9#,LJ95,RZJ9#,VZJ95..GX MD.MOON MIST,TRIM1# |
1 | ||
| 67620-60800B0 |
KZJ9#,LJ95,RZJ9#,VZJ95..GX W(POWER WINDOW),MD.MOON MIST,TRIM1# |
1 | ||
| 67620-60790B0 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ95..GX MD.MOON MIST,TRIM1# |
1 | ||
| 67624B - BRACKET, FRONT DOOR TRIM BOARD | ||||
| 67634-60030 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN,MA) LH |
1 | ||
| 67624-60030 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN,MA) RH |
1 | ||
| 67624B - BRACKET, FRONT DOOR TRIM BOARD | ||||
| 67634-60030 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN,MA) LH |
1 | ||
| 67624-60030 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN,MA) RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-60081 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 68170-60081 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 68170-60080 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 68220A - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH | ||||
| 68170-60081 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 68170-60081 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 68220-60040 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-12050B1 |
VZJ95..MTM..GCC;KZJ9#,LJ95,RZJ95,VZJ90;RZJ90,VZJ95..(GX,VX)..(ARL,CO,GEN) MD.MOON MIST,TRIM1# |
2 | ||
| 69751-12050B1 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX MD.MOON MIST,TRIM1# |
2 | ||
| Common parts | ||||
| 90159-60591 | ||||
| 90164-40105 | ||||
| 90189-06206 | ||||
| 90189-06217 | ||||
| 90189-06218 | ||||
| 91651-40620 | ||||
| Linked diagrams | ||||
| 7451 | ||||

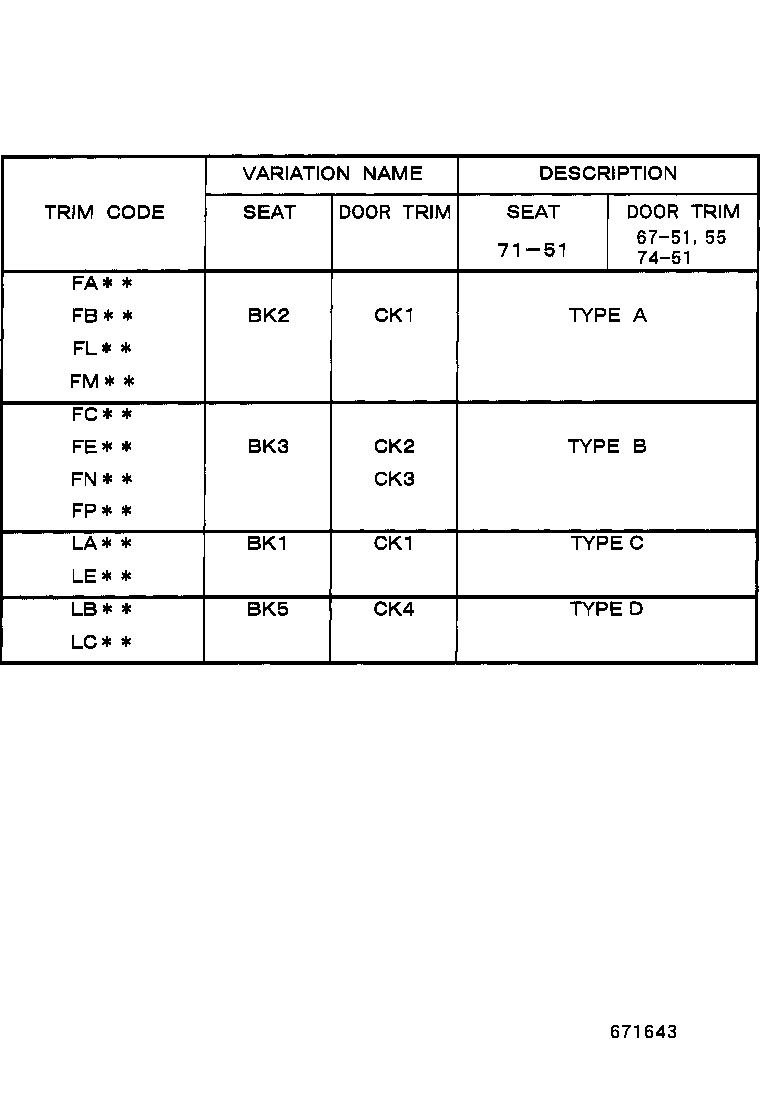

ILLUST NO. 3 OF 3(9906- )
TRIM CODE
| Part # | Description | Qty | Price |
|---|

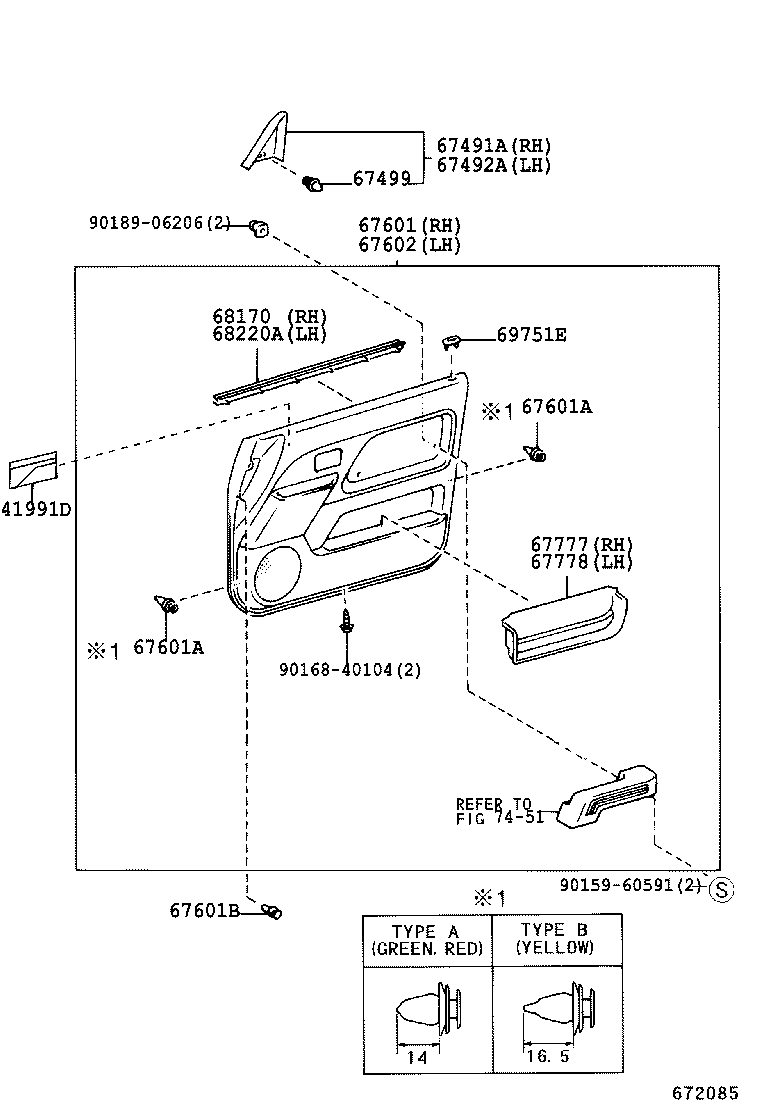

ILLUST NO. 2 OF 3(9604-9906)GX,VX ; (9906- )VZJ95..CO ; (9906-)RZJ95..GCC,GEN ; (9906- )KZ
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41991D - LABEL, REAR DIFFERENTIAL LOCK CAUTION | ||||
| 41991-60081 |
KZJ9#,RZJ9#..(CBR,TD)..GEN |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-60050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 67491-60050 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-60050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 67492-60050 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-30070 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 67771-30070 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
4 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-60780B0 |
KZJ9#,LJ95,RZJ9#,VZJ95..GX MD.MOON MIST,TRIM1# |
1 | ||
| 67610-60790B0 |
KZJ9#,LJ95,RZJ9#,VZJ95..GX W(POWER WINDOW),MD.MOON MIST,TRIM1# |
1 | ||
| 67610-60780B0 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ95..GX MD.MOON MIST,TRIM1# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-30090 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX TYPE B |
2 | ||
| 67771-20110 |
KZJ9#,LJ95,RZJ9#,VZJ95..GX,VX TYPE A |
10 | ||
| 67771-28020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX TYPE A |
10 | ||
| 67771-30090 |
RZJ90..GX;KZJ9#,LJ95,RZJ95,VZJ9# TYPE B |
2 | ||
| 67771-28020 |
RZJ90..GX;KZJ9#,LJ95,RZJ95,VZJ9# TYPE A |
10 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-30090 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX TYPE B |
2 | ||
| 67771-20110 |
KZJ9#,LJ95,RZJ9#,VZJ95..GX,VX TYPE A |
10 | ||
| 67771-28020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX TYPE A |
10 | ||
| 67771-30090 |
RZJ90..GX;KZJ9#,LJ95,RZJ95,VZJ9# TYPE B |
2 | ||
| 67771-28020 |
RZJ90..GX;KZJ9#,LJ95,RZJ95,VZJ9# TYPE A |
10 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-08192B0 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX MD.MOON MIST,TRIM1# |
4 | ||
| 90467-08192B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
4 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-60790B0 |
KZJ9#,LJ95,RZJ9#,VZJ95..GX MD.MOON MIST,TRIM1# |
1 | ||
| 67620-60800B0 |
KZJ9#,LJ95,RZJ9#,VZJ95..GX W(POWER WINDOW),MD.MOON MIST,TRIM1# |
1 | ||
| 67620-60790B0 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ95..GX MD.MOON MIST,TRIM1# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-60030B0 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX MD.MOON MIST,TRIM1# |
1 | ||
| 67777-60030B0 |
KZJ90,LJ90,RZJ90..GEN MD.MOON MIST,TRIM1# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-60030B0 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX MD. MOON MIST,TRIM1# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-60081 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 68170-60081 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 68170-60080 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 68220A - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH | ||||
| 68170-60081 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 68170-60081 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 68220-60040 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-12050B1 |
VZJ95..MTM..GCC;KZJ9#,LJ95,RZJ95,VZJ90;RZJ90,VZJ95..(GX,VX)..(ARL,CO,GEN) MD.MOON MIST,TRIM1# |
2 | ||
| 69751-12050B1 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX MD.MOON MIST,TRIM1# |
2 | ||
| Common parts | ||||
| 90159-60591 | ||||
| 90168-40104 | ||||
| 90189-06206 | ||||
| Linked diagrams | ||||
| 7451 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
