KZJ90L-GJMNX (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000
Engine 1KZT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )KZJ90,LJ90,RZJ90,VZJ90

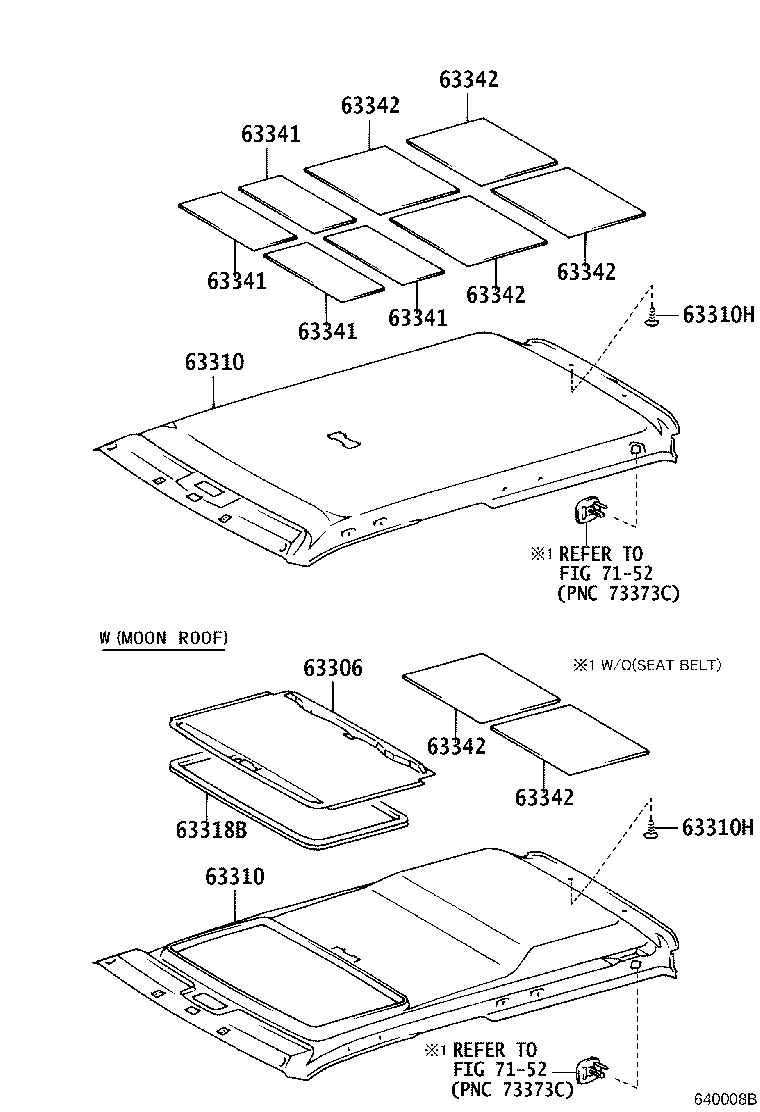

Click highlighted areas on diagram

diagram 63306 63310 63310 63310H 63310H 63318B 63341 63341 63341 63341 63342 63342 63342 63342 63342 63342 7152 7152
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-60080B0

KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX

MOONMIST,TRIM1#

 1
63306-60080B0

RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(ARL,GCC,GEN)

MOONMIST,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-60470B0

KZJ90,RZJ90,VZJ90..(EFI,TD)..(GCC,GEN)

W(MOON ROOF),MOONMIST,TRIM1#

 1
63310-60490B0

RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90

MOONMIST,TRIM1#

 1
63310-60490B0

KZJ90,LJ90,RZJ90,VZJ90

MOONMIST,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-60470B0

KZJ90,RZJ90,VZJ90..(EFI,TD)..(GCC,GEN)

W(MOON ROOF),MOONMIST,TRIM1#

 1
63310-60490B0

RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90

MOONMIST,TRIM1#

 1
63310-60490B0

KZJ90,LJ90,RZJ90,VZJ90

MOONMIST,TRIM1#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05021B1

KZJ90,LJ90,RZJ90,VZJ90

LT.BLUISH GRAY,TRIM1#

 2
63310H - CLIP(FOR ROOF HEADLINING)
90467-05021B1

KZJ90,LJ90,RZJ90,VZJ90

LT.BLUISH GRAY,TRIM1#

 2
63318B - MOULDING, ROOF HEADLINING SET, NO.1
63318-60050B0

KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX

MOON MIST,TRIM1#

 1
63318-60051B0

KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX

MOON MIST,TRIM1#

 1
63318-60051B0

RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(ARL,GCC,GEN)

MOON MIST,TRIM1#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-60040

RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90

 4
63341 - PAD, ROOF SILENCER, NO.1
63341-60040

RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90

 4
63341 - PAD, ROOF SILENCER, NO.1
63341-60040

RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90

 4
63341 - PAD, ROOF SILENCER, NO.1
63341-60040

RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90

 4
63342 - PAD, ROOF SILENCER, NO.2
63342-60030

RZJ90..CBR;LJ95,RZJ90..GX;RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ90,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)

 4
63342-60030

RZJ95;KZJ9#,LJ95,RZJ90,VZJ9#..DSL,EFI,TD

W(MOON ROOF)

 2
63342-60030

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ95,RZJ90,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)

W(MOON ROOF)

 2
63342 - PAD, ROOF SILENCER, NO.2
63342-60030

RZJ90..CBR;LJ95,RZJ90..GX;RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ90,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)

 4
63342-60030

RZJ95;KZJ9#,LJ95,RZJ90,VZJ9#..DSL,EFI,TD

W(MOON ROOF)

 2
63342-60030

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ95,RZJ90,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)

W(MOON ROOF)

 2
63342 - PAD, ROOF SILENCER, NO.2
63342-60030

RZJ90..CBR;LJ95,RZJ90..GX;RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ90,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)

 4
63342-60030

RZJ95;KZJ9#,LJ95,RZJ90,VZJ9#..DSL,EFI,TD

W(MOON ROOF)

 2
63342-60030

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ95,RZJ90,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)

W(MOON ROOF)

 2
63342 - PAD, ROOF SILENCER, NO.2
63342-60030

RZJ90..CBR;LJ95,RZJ90..GX;RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ90,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)

 4
63342-60030

RZJ95;KZJ9#,LJ95,RZJ90,VZJ9#..DSL,EFI,TD

W(MOON ROOF)

 2
63342-60030

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ95,RZJ90,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)

W(MOON ROOF)

 2
63342 - PAD, ROOF SILENCER, NO.2
63342-60030

RZJ90..CBR;LJ95,RZJ90..GX;RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ90,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)

 4
63342-60030

RZJ95;KZJ9#,LJ95,RZJ90,VZJ9#..DSL,EFI,TD

W(MOON ROOF)

 2
63342-60030

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ95,RZJ90,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)

W(MOON ROOF)

 2
63342 - PAD, ROOF SILENCER, NO.2
63342-60030

RZJ90..CBR;LJ95,RZJ90..GX;RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ90,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)

 4
63342-60030

RZJ95;KZJ9#,LJ95,RZJ90,VZJ9#..DSL,EFI,TD

W(MOON ROOF)

 2
63342-60030

RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ95,RZJ90,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)

W(MOON ROOF)

 2
Linked diagrams
7152
