KZJ90L-GJMNX (1996)
Toyota Land Cruiser 90
ILLUST NO. 3 OF 3(9604- )RZJ95..VX ; (9604- )RZJ95..ARL,GCC,GEN ; (9604- )KZJ9#,LJ9#,RZJ90,
W(ROOF RAIL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63407C - CARRIER SUB-ASSY, ROOF, RH | ||||
| 63407-60050 |
KZJ90,RZJ90,VZJ90..(EFI,TD)..(GCC,GEN) |
1 | ||
| 63408C - CARRIER SUB-ASSY, ROOF, LH | ||||
| 63408-60040 |
KZJ90,RZJ90,VZJ90..(EFI,TD)..(GCC,GEN) |
1 | ||
| 63484A - CUSHION, ROOF RACK LEG, CENTER RH | ||||
| 63484-60030 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63485A - CUSHION, ROOF RACK LEG, CENTER LH | ||||
| 63485-60030 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-60030 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63495A - COVER, ROOF RACK LEG, CENTER | ||||
| 63495-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63496 - COVER, ROOF RACK LEG, CENTER LH | ||||
| 63496-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| Common parts | ||||
| 90110-06026 | ||||
| 90119-06820 | ||||
| 90152-50030 | ||||
| 90467-11094 | ||||
ILLUST NO. 2 OF 3(9604- )ARL,CO,GCC,GEN
W(SUN ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-60050 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX *TEM,T=4.0,GRAY |
1 | ||
| 63202H - RAIL SUB-ASSY, SLIDE ROOF | ||||
| 63202-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-60030 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-60030 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-60030 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63233C - PANEL, SLIDING ROOF HOUSING | ||||
| 63233-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-35010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
2 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-60070 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX L=1580 |
2 | ||
| 63249-60070 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(ARL,GCC,GEN) L=1580 |
2 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-60100 |
KZJ90,RZJ90,VZJ90..(EFI,TD)..(GCC,GEN) L=1680 |
1 | ||
| 63249G - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-60100 |
KZJ90,RZJ90,VZJ90..(EFI,TD)..(GCC,GEN) L=1680 |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-60050 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-12040 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63267A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, RH | ||||
| 63267-32020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63268A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH | ||||
| 63268-32020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63279D - STOPPER, SLIDING ROOF GUIDE RAIL | ||||
| 63279-12030 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
2 | ||
| 63625 - BLOCK, SLIDING ROOF GUIDE, RH | ||||
| 63625-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63626 - BLOCK, SLIDING ROOF GUIDE, LH | ||||
| 63626-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63669A - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
2 | ||
| Common parts | ||||
| 90119-06357 | ||||
| 90119-06390 | ||||
| 90149-40031 | ||||
| 90154-40011 | ||||
| 90154-40029 | ||||
| 90168-40046 | ||||
| 90179-06069 | ||||
| 90179-06083 | ||||
| 90179-06274 | ||||
| 90179-06276 | ||||
| 90467-16038 | ||||
| 90959-01250 | ||||
| 91511-G0614 | ||||
| 91621-J0614 | ||||
| 91626-60618 | ||||
| 93219-13014 | ||||
| 96160-00400 | ||||

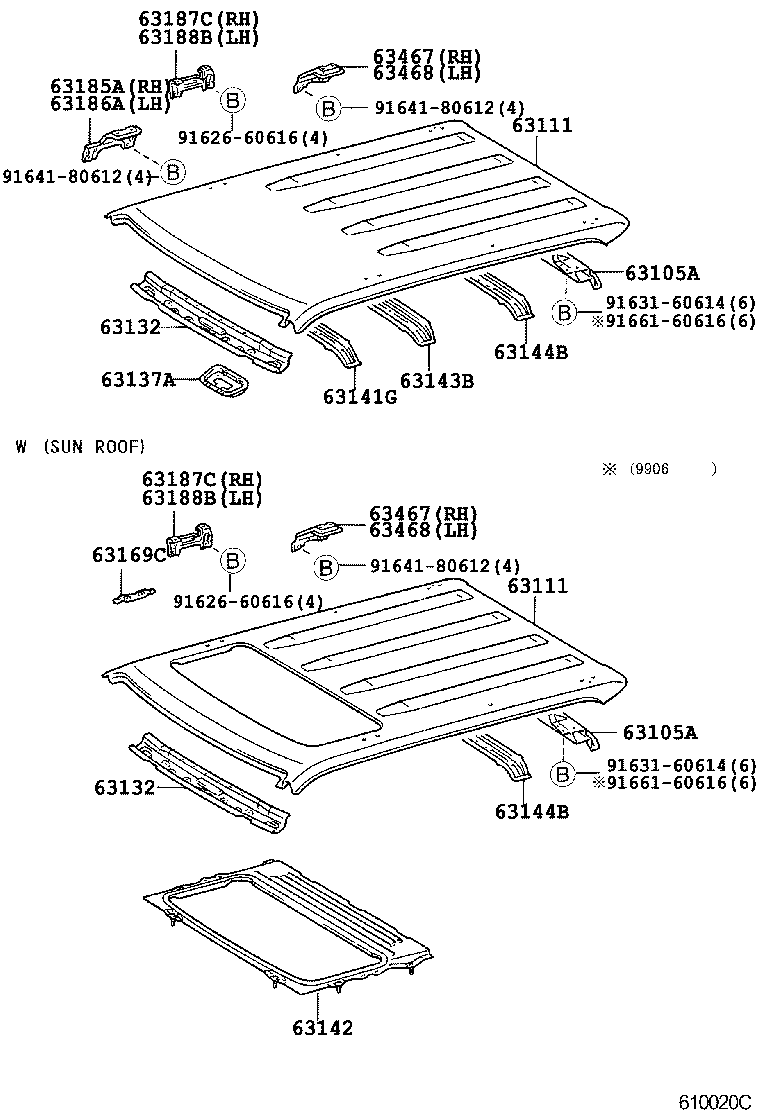

ILLUST NO. 1 OF 3(9604- )KZJ90,LJ90,RZJ90,VZJ90
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-60150 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 63105-60150 |
RZJ90..GX;KZJ9#,LJ95,RZJ95,VZJ9# |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-60150 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 63105-60150 |
RZJ90..GX;KZJ9#,LJ95,RZJ95,VZJ9# |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-60901 |
KZJ90,RZJ90..GX..GEN W(SUN ROOF & ROOF RAIL) |
1 | ||
| 63111-60370 |
RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 |
1 | ||
| 63111-60380 |
KZJ90,RZJ90,VZJ90..(EFI,TD)..(GCC,GEN) W(SUN ROOF) |
1 | ||
| 63111-60370 |
KZJ90,RZJ90,VZJ90..GX,VX |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-60901 |
KZJ90,RZJ90..GX..GEN W(SUN ROOF & ROOF RAIL) |
1 | ||
| 63111-60370 |
RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 |
1 | ||
| 63111-60380 |
KZJ90,RZJ90,VZJ90..(EFI,TD)..(GCC,GEN) W(SUN ROOF) |
1 | ||
| 63111-60370 |
KZJ90,RZJ90,VZJ90..GX,VX |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-60020 |
RZJ90..GX;KZJ9#,LJ95,RZJ95,VZJ9# |
1 | ||
| 63132-60020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-60020 |
RZJ90..GX;KZJ9#,LJ95,RZJ95,VZJ9# |
1 | ||
| 63132-60020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-60010 |
VZJ95..MTM..GCC;KZJ9#,LJ95,RZJ95,VZJ90;RZJ90,VZJ95..(GX,VX)..(ARL,CO,GEN) |
1 | ||
| 63137-60010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-60050 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 63141-60050 |
VZJ95..MTM..GCC;KZJ9#,LJ95,RZJ95,VZJ90;RZJ90,VZJ95..(GX,VX)..(ARL,CO,GEN) |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-60030 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-60020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 63143-60020 |
VZJ95..MTM..GCC;KZJ9#,LJ95,RZJ95,VZJ90;RZJ90,VZJ95..(GX,VX)..(ARL,CO,GEN) |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-60040 |
KZJ90,RZJ90,VZJ90..GX,VX |
1 | ||
| 63144-60040 |
RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-60040 |
KZJ90,RZJ90,VZJ90..GX,VX |
1 | ||
| 63144-60040 |
RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 |
1 | ||
| 63169C - RETAINER, ROOF REINFORCEMENT, NO.2 | ||||
| 63169-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
2 | ||
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63186-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63187C - BRACKET, ROOF RACK, NO.1 REAR RH | ||||
| 63187-60010 |
KZJ90,RZJ90,VZJ90..(EFI,TD)..(GCC,GEN) |
1 | ||
| 63187C - BRACKET, ROOF RACK, NO.1 REAR RH | ||||
| 63187-60010 |
KZJ90,RZJ90,VZJ90..(EFI,TD)..(GCC,GEN) |
1 | ||
| 63188B - BRACKET, ROOF RACK, NO.1 REAR LH | ||||
| 63188-60010 |
KZJ90,RZJ90,VZJ90..(EFI,TD)..(GCC,GEN) |
1 | ||
| 63188B - BRACKET, ROOF RACK, NO.1 REAR LH | ||||
| 63188-60010 |
KZJ90,RZJ90,VZJ90..(EFI,TD)..(GCC,GEN) |
1 | ||
| 63467 - BRACKET, ROOF RACK, REAR RH | ||||
| 63467-60030 |
KZJ90,RZJ90,VZJ90..(EFI,TD)..(GCC,GEN) |
1 | ||
| 63467 - BRACKET, ROOF RACK, REAR RH | ||||
| 63467-60030 |
KZJ90,RZJ90,VZJ90..(EFI,TD)..(GCC,GEN) |
1 | ||
| 63468 - BRACKET, ROOF RACK, REAR LH | ||||
| 63468-60030 |
KZJ90,RZJ90,VZJ90..(EFI,TD)..(GCC,GEN) |
1 | ||
| 63468 - BRACKET, ROOF RACK, REAR LH | ||||
| 63468-60030 |
KZJ90,RZJ90,VZJ90..(EFI,TD)..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 91626-60616 | ||||
| 91631-60614 | ||||
| 91641-80612 | ||||
| 91661-60616 | ||||
ILLUST NO. 3 OF 3(9604- )RZJ95..VX ; (9604- )RZJ95..ARL,GCC,GEN ; (9604- )KZJ9#,LJ9#,RZJ90,
W(ROOF RACK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63041 - LEG SUB-ASSY, ROOF RACK, FRONT RH | ||||
| 63041-60020 |
KZJ90,LJ90,RZJ90,VZJ90..GCC,GEN |
1 | ||
| 63042 - LEG SUB-ASSY, ROOF RACK, FRONT LH | ||||
| 63042-60020 |
KZJ90,LJ90,RZJ90,VZJ90..GCC,GEN |
1 | ||
| 63049 - FRAME SUB-ASSY, ROOF RACK, UPPER END | ||||
| 63049-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
2 | ||
| 63049-60020 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
2 | ||
| 63049 - FRAME SUB-ASSY, ROOF RACK, UPPER END | ||||
| 63049-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
2 | ||
| 63049-60020 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
2 | ||
| 63066 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT RH | ||||
| 63066-60020 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
1 | ||
| 63066-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 63066A - FRAME SUB-ASSY, ROOF RACK, FRONT LH | ||||
| 63067-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 63067-60020 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
1 | ||
| 63067 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT LH | ||||
| 63067-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 63067-60020 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
1 | ||
| 63067C - FRAME SUB-ASSY, ROOF RACK, FRONT RH | ||||
| 63066-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 63066-60020 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
1 | ||
| 63405 - LEG SUB-ASSY, ROOF RACK, REAR RH | ||||
| 63041-60010 |
KZJ90,LJ90,RZJ90,VZJ90..GCC,GEN |
1 | ||
| 63406 - LEG SUB-ASSY, ROOF RACK, REAR LH | ||||
| 63041-60010 |
KZJ90,LJ90,RZJ90,VZJ90..GCC,GEN |
1 | ||
| 63407 - SUPPORT SUB-ASSY, ROOF RACK LEG, FRONT | ||||
| 63491-60011 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
6 | ||
| 63491-60011 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
6 | ||
| 63407 - SUPPORT SUB-ASSY, ROOF RACK LEG, FRONT | ||||
| 63491-60011 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
6 | ||
| 63491-60011 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
6 | ||
| 63407 - SUPPORT SUB-ASSY, ROOF RACK LEG, FRONT | ||||
| 63491-60011 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
6 | ||
| 63491-60011 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
6 | ||
| 63409 - LEG SUB-ASSY, ROOF RACK, CENTER | ||||
| 63409-60030 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
2 | ||
| 63409-60030 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
2 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
2 | ||
| 63438-60010 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
2 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
2 | ||
| 63438-60010 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
2 | ||
| 63439 - COVER, ROOF RACK END, NO.2 | ||||
| 63439-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
2 | ||
| 63439-60010 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
2 | ||
| 63439 - COVER, ROOF RACK END, NO.2 | ||||
| 63439-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
2 | ||
| 63439-60010 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
2 | ||
| 63453C - STAY, ROOF RACK, FRONT RH | ||||
| 63453-60040 |
KZJ90,LJ90,RZJ90,VZJ90..GCC,GEN |
1 | ||
| 63453E - STAY, ROOF RACK, CENTER RH | ||||
| 63453-60050 |
KZJ90,LJ90,RZJ90,VZJ90..GCC,GEN |
1 | ||
| 63454C - STAY, ROOF RACK, FRONT LH | ||||
| 63454-60040 |
KZJ90,LJ90,RZJ90,VZJ90..GCC,GEN |
1 | ||
| 63454E - STAY, ROOF RACK, CENTER LH | ||||
| 63454-60050 |
KZJ90,LJ90,RZJ90,VZJ90..GCC,GEN |
1 | ||
| 63469 - GUSSET, ROOF RACK LOWER FRAME | ||||
| 63469-90K01 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
4 | ||
| 63469-90K01 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
4 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
10 | ||
| 63481-60020 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
10 | ||
| 63481-60020 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
10 | ||
| 63484A - CUSHION, ROOF RACK LEG, CENTER RH | ||||
| 63484-60030 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63485A - CUSHION, ROOF RACK LEG, CENTER LH | ||||
| 63485-60030 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63493A - COVER, ROOF RACK LEG, FRONT | ||||
| 63494-60020 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
2 | ||
| 63494-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
2 | ||
| 63493A - COVER, ROOF RACK LEG, FRONT | ||||
| 63494-60020 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
2 | ||
| 63494-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
2 | ||
| 63494A - COVER, ROOF RACK LEG, REAR | ||||
| 63493-60030 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
2 | ||
| 63493-60030 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
2 | ||
| 63494A - COVER, ROOF RACK LEG, REAR | ||||
| 63493-60030 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
2 | ||
| 63493-60030 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
2 | ||
| 63498A - STAY, ROOF RACK, REAR RH | ||||
| 63498-60040 |
KZJ90,LJ90,RZJ90,VZJ90..GCC,GEN |
1 | ||
| 63499A - STAY, ROOF RACK, REAR LH | ||||
| 63499-60040 |
KZJ90,LJ90,RZJ90,VZJ90..GCC,GEN |
1 | ||
| 63707 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.1 | ||||
| 63463-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
2 | ||
| 63463-60020 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
2 | ||
| 63707 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.1 | ||||
| 63463-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
2 | ||
| 63463-60020 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
2 | ||
| 63708 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.2 | ||||
| 63708-60020 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
2 | ||
| 63708-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
2 | ||
| 63708 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.2 | ||||
| 63708-60020 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
2 | ||
| 63708-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
2 | ||
| 63709 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.3 | ||||
| 63795-60020 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
1 | ||
| 63795-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 63765 - RETAINER, ROOF RACK, UPPER | ||||
| 63765-90K00 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
2 | ||
| 63765-90K00 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
2 | ||
| 63766 - RETAINER, ROOF RACK, LOWER | ||||
| 63766-90K04 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
6 | ||
| 63766-90K04 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
6 | ||
| 63773 - GUSSET, ROOF RACK CENTER FRAME, RH | ||||
| 63773-90K01 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
2 | ||
| 63773-90K01 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
2 | ||
| 66301A - HOOK SUB-ASSY, ROPE | ||||
| 66301-90K01 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
8 | ||
| 66301-90K01 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
8 | ||
| 66319A - PLATE, ROPE HOOK | ||||
| 66319-90K00 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
8 | ||
| 66319-90K00 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
8 | ||
| Common parts | ||||
| 90119-08601 | ||||
| 90179-06143 | ||||
| 91651-B0616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
