KZJ90L-GJMNX (1996)
Toyota Land Cruiser 90

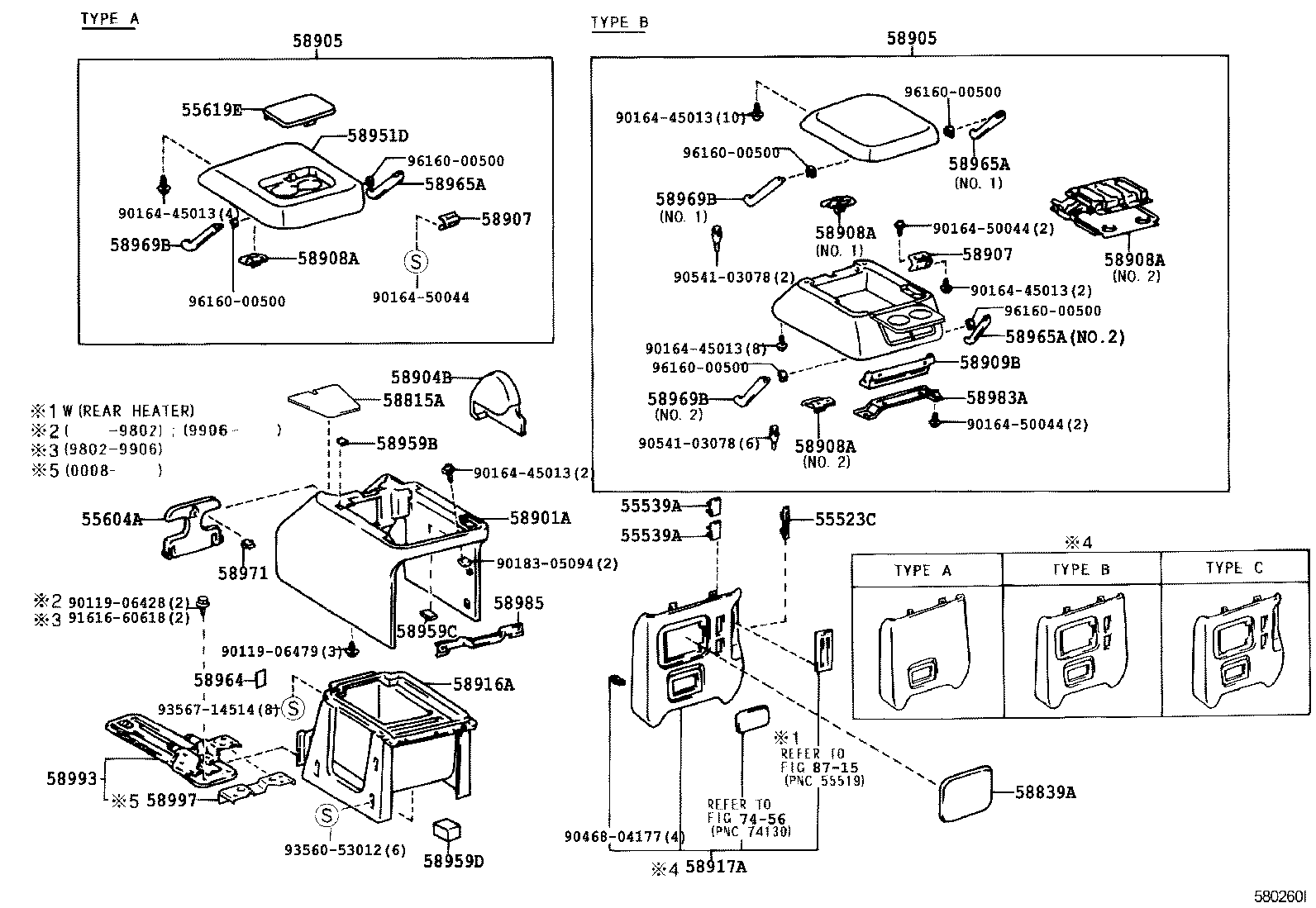

ILLUST NO. 2 OF 2(9604- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55604-60010B0 |
LJ95,RZJ95..LHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 55604-60010B0 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55604-60010E0 |
KZJ9#,LJ95,RZJ9#,VZJ9#..LHD..(GX,VX)..(GCC,GEN) OAK,TRIM4# |
1 | ||
| 55619E - COVER, CUP HOLDER HOLE | ||||
| 55619-60020B0 |
VZJ95..ARL;LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90 MD.MOON MIST,TRIM1# |
1 | ||
| 55619-60020B0 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-60010 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58815-60011 |
LJ95,RZJ95..LHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#..LHD |
1 | ||
| 58815-60010B0 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 55549-60020B0 |
LJ95..GX;RZJ95..LHD;LJ95..LHD..STD;VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;RZJ95..RHD..GX..GEN MD.MOON MIST,TRIM1# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58911-60070B0 |
RZJ90..CBR;LJ95,RZJ90..LHD..GX;RZJ95..LHD..GX..CBR;KZJ9#,LJ90,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 58911-60070E0 |
KZJ9#,LJ95,RZJ9#,VZJ9#..LHD..(GX,VX)..(GCC,GEN) OAK,TRIM4# |
1 | ||
| 58911-60070B0 |
LJ95,RZJ95..LHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 58904B - COVER SUB-ASSY, PARKING BRAKE HOLE | ||||
| 58904-60020 |
RZJ90..CBR;LJ95,RZJ90..LHD..GX;RZJ95..LHD..GX..CBR;KZJ9#,LJ90,VZJ9#..LHD |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-60040B0 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 58905-60040B0 |
VZJ95..ARL;LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90 MD.MOON MIST,TRIM1# |
1 | ||
| 58905-60040B0 |
LJ95,RZJ95..LHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 58905-60040E0 |
KZJ9#,LJ95,RZJ9#,VZJ9#..LHD..(GX,VX)..(GCC,GEN) OAK,TRIM4# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-60040B0 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 58905-60040B0 |
VZJ95..ARL;LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90 MD.MOON MIST,TRIM1# |
1 | ||
| 58905-60040B0 |
LJ95,RZJ95..LHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 58905-60040E0 |
KZJ9#,LJ95,RZJ9#,VZJ9#..LHD..(GX,VX)..(GCC,GEN) OAK,TRIM4# |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58907-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..ARL,GEN |
1 | ||
| 58907-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ90,RZJ90;LJ95,VZJ95..(GX,VX)..(ARL,GEN) |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58907-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..ARL,GEN |
1 | ||
| 58907-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ90,RZJ90;LJ95,VZJ95..(GX,VX)..(ARL,GEN) |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-32050 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..ARL,GEN |
1 | ||
| 58908-32040 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-32050 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..ARL,GEN |
1 | ||
| 58908-32040 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-32050 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..ARL,GEN |
1 | ||
| 58908-32040 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-32050 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..ARL,GEN |
1 | ||
| 58908-32040 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58916A - INSERT, CONSOLE BOX, REAR | ||||
| 58916-60050B0 |
RZJ90..CBR;RZJ95..GX..CBR;LJ95,RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ90,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) W(DUAL AIR CONDITIONER),MD.MOON MIST,TRIM1# |
1 | ||
| 58916-60040B0 |
RZJ95..ARL;KZJ9#,LJ90,RZJ90,VZJ9#;LJ95,RZJ95..GX..(CBR,DSL) MD.MOON MIST,TRIM1# |
1 | ||
| 58916-60040B0 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 58917A - COVER, CONSOLE BOX, REAR | ||||
| 58917-60020B0 |
RZJ95..ARL;KZJ9#,LJ90,RZJ90,VZJ9#;LJ95,RZJ95..GX..(CBR,DSL) TYPE A:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1# |
1 | ||
| 58917-60020B0 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# TYPE A:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1# |
1 | ||
| 58917-60040B0 |
VZJ95..ATM..GCC;KZJ9#,LJ90,RZJ90;LJ95,RZJ95..GX..(GCC,GEN) TYPE C:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1# |
1 | ||
| 58917-60020B0 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ9#,LJ90,RZJ90,VZJ90..ARL,CO,GCC,GEN;LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN) TYPE A:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1# |
1 | ||
| 58951D - DOOR, CONSOLE COMPARTMENT, OUTER | ||||
| 58951-60040B0 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 58951-60040B0 |
VZJ95..ARL;LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90 MD.MOON MIST,TRIM1# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
2 | ||
| 58959-60030 |
RZJ95..ARL;KZJ9#,LJ90,RZJ90,VZJ9#;LJ95,RZJ95..GX..(CBR,DSL) |
2 | ||
| 58959D - CUSHION, REAR CONSOLE BOX | ||||
| 58959-60010 |
RZJ95..ARL;KZJ9#,LJ90,RZJ90,VZJ9#;LJ95,RZJ95..GX..(CBR,DSL) |
4 | ||
| 58959-60010 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
4 | ||
| 58959-60010 |
KZJ95..RHD;LJ95,RZJ95..GX,VX;KZJ9#,LJ90,RZJ90,VZJ9#..DSL,EFI,TD |
4 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-60010 |
RZJ95..ARL;KZJ9#,LJ90,RZJ90,VZJ9#;LJ95,RZJ95..GX..(CBR,DSL) |
1 | ||
| 58964-60010 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58965-60010 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95 |
1 | ||
| 58965-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58965-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ90,RZJ90;LJ95,VZJ95..(GX,VX)..(ARL,GEN) |
1 | ||
| 58965-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..ARL,GEN |
1 | ||
| 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58965-60010 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95 |
1 | ||
| 58965-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58965-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ90,RZJ90;LJ95,VZJ95..(GX,VX)..(ARL,GEN) |
1 | ||
| 58965-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..ARL,GEN |
1 | ||
| 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58965-60010 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95 |
1 | ||
| 58965-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58965-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ90,RZJ90;LJ95,VZJ95..(GX,VX)..(ARL,GEN) |
1 | ||
| 58965-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..ARL,GEN |
1 | ||
| 58969B - STOPPER, CONSOLE COMPARTMENT DOOR, NO.3 | ||||
| 58969-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58969-60010 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95 |
1 | ||
| 58969-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..ARL,GEN |
1 | ||
| 58969-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ90,RZJ90;LJ95,VZJ95..(GX,VX)..(ARL,GEN) |
1 | ||
| 58969B - STOPPER, CONSOLE COMPARTMENT DOOR, NO.3 | ||||
| 58969-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58969-60010 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95 |
1 | ||
| 58969-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..ARL,GEN |
1 | ||
| 58969-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ90,RZJ90;LJ95,VZJ95..(GX,VX)..(ARL,GEN) |
1 | ||
| 58969B - STOPPER, CONSOLE COMPARTMENT DOOR, NO.3 | ||||
| 58969-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58969-60010 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95 |
1 | ||
| 58969-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..ARL,GEN |
1 | ||
| 58969-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ90,RZJ90;LJ95,VZJ95..(GX,VX)..(ARL,GEN) |
1 | ||
| 58971 - LOCK, CONSOLE COMPARTMENT DOOR | ||||
| 58971-26010 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95 |
1 | ||
| 58971-60010 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58971-60010 |
RZJ95..ARL;KZJ9#,LJ90,RZJ90,VZJ9#;LJ95,RZJ95..GX..(CBR,DSL) |
1 | ||
| 58985 - RETAINER, CONSOLE BOX | ||||
| 58985-60050 |
RZJ95..ARL;KZJ9#,LJ90,RZJ90,VZJ9#;LJ95,RZJ95..GX..(CBR,DSL) |
1 | ||
| 58985-60050 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58993 - BRACKET, CONSOLE BOX MOUNTING, REAR | ||||
| 58902-60010 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58902-60010 |
RZJ95..ARL;KZJ9#,LJ90,RZJ90,VZJ9#;LJ95,RZJ95..GX..(CBR,DSL) |
1 | ||
| 58902-60010 |
LJ95,RZJ95..LHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#..LHD |
1 | ||
| Common parts | ||||
| 90119-06428 | ||||
| 90119-06479 | ||||
| 90164-45013 | ||||
| 90164-50044 | ||||
| 90183-05094 | ||||
| 90468-04177 | ||||
| 90541-03078 | ||||
| 91616-60618 | ||||
| 93560-53012 | ||||
| 93567-14514 | ||||
| 96160-00500 | ||||
| Linked diagrams | ||||
| 7456 | ||||
| 8715 | ||||

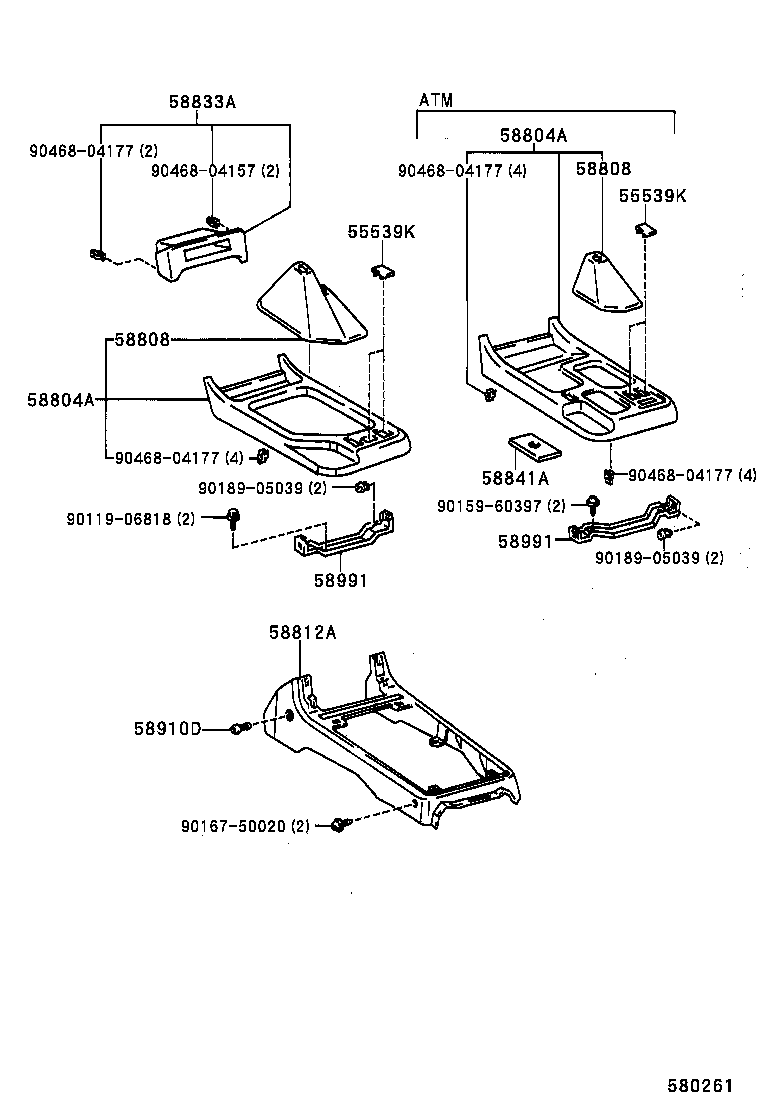

ILLUST NO. 1 OF 2(9604- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539K - COVER, SPARE SWITCH HOLE | ||||
| 55539-20020C0 |
RZJ90..EFI..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX BLACK,TRIM1# |
2 | ||
| 55539K - COVER, SPARE SWITCH HOLE | ||||
| 55539-20020C0 |
RZJ90..EFI..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX BLACK,TRIM1# |
2 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-60070C0 |
VZJ95..MTM..VX;KZJ9#,LJ95,RZJ9#,VZJ90..LHD..(GX,VX)..(GCC,GEN) BLACK,TRIM1# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-60070C0 |
VZJ95..MTM..VX;KZJ9#,LJ95,RZJ9#,VZJ90..LHD..(GX,VX)..(GCC,GEN) BLACK,TRIM1# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-60110C0 |
VZJ95..MTM..VX;KZJ9#,LJ95,RZJ9#,VZJ90..LHD..(GX,VX)..(GCC,GEN) BLACK,TRIM1# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-60110C0 |
VZJ95..MTM..VX;KZJ9#,LJ95,RZJ9#,VZJ90..LHD..(GX,VX)..(GCC,GEN) BLACK,TRIM1# |
1 | ||
| 58812A - BOX, CONSOLE, LOWER | ||||
| 58812-60020B0 |
RZJ90..GX..GEN;RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,VZJ9#..(GX,VX)..(DSL,EFI,TD) MD.MOON MIST,TRIM1# |
1 | ||
| 58812-60020B0 |
RZJ90..GX..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX MD.MOON MIST,TRIM1# |
1 | ||
| 58833A - COVER, CONSOLE, UPPER | ||||
| 58833-60010C0 |
RZJ90..EFI..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX BLACK,TRIM1# |
1 | ||
| 58910D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-07041B5 |
RZJ90..EFI..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX MD.MOON MIST,TRIM1# |
2 | ||
| 90467-07041B5 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
2 | ||
| 58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER | ||||
| 58991-60040 |
RZJ90..GX..GEN;RZJ95..GX..CBR;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN);KZJ9#,LJ95,VZJ9#..MTM..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 58991-60040 |
RZJ90..GX..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..MTM..(GX,VX) |
1 | ||
| 58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER | ||||
| 58991-60040 |
RZJ90..GX..GEN;RZJ95..GX..CBR;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN);KZJ9#,LJ95,VZJ9#..MTM..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 58991-60040 |
RZJ90..GX..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..MTM..(GX,VX) |
1 | ||
| Common parts | ||||
| 90119-06818 | ||||
| 90159-60397 | ||||
| 90167-50020 | ||||
| 90189-05039 | ||||
| 90468-04157 | ||||
| 90468-04177 | ||||
