KZJ90L-GJMNX (1996)
Toyota Land Cruiser 90

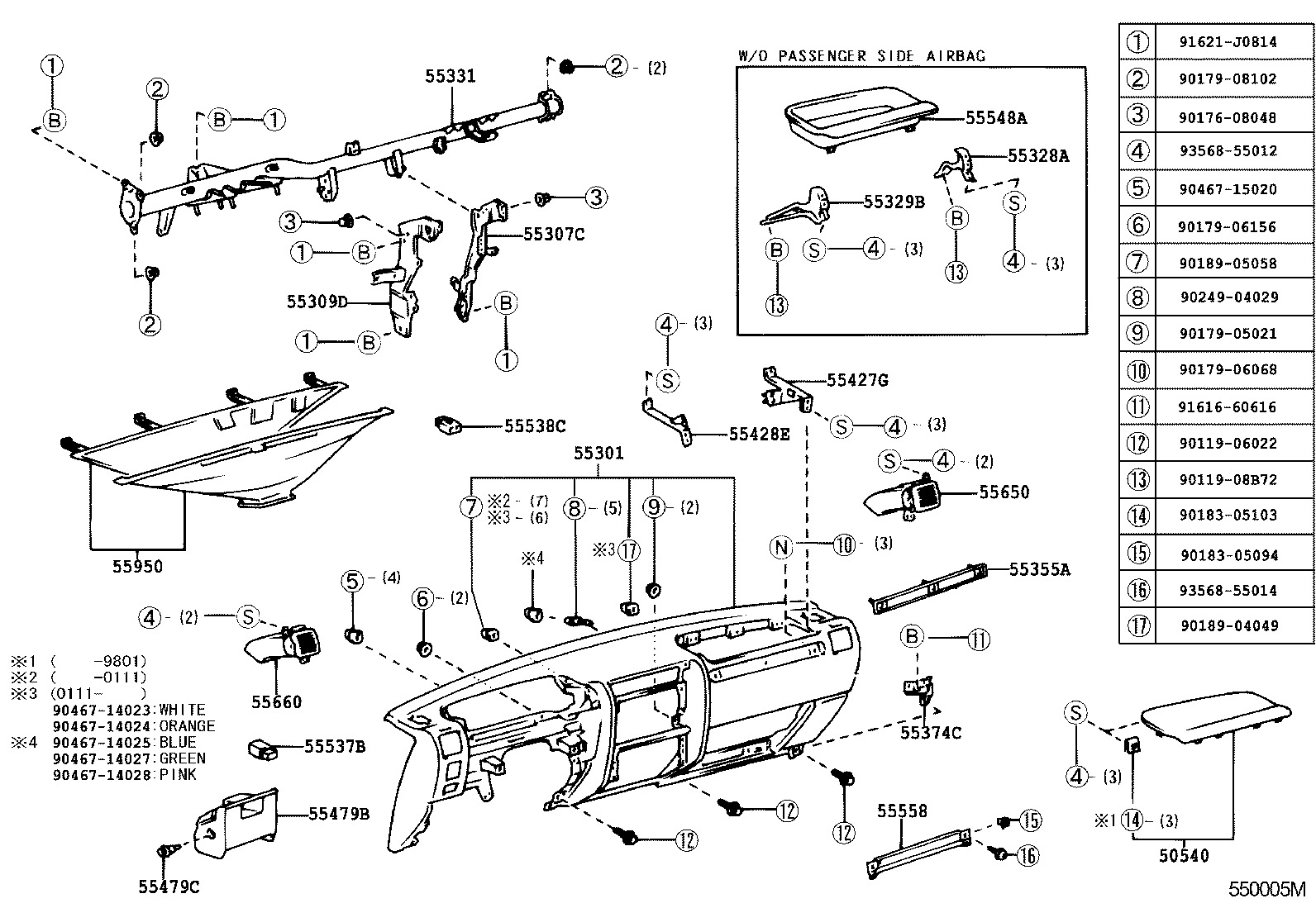

ILLUST NO. 1 OF 2(9604- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55311-60500B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 55311-60520B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..(GCC,GEN) W(ACCESSORY METER),MD.MOON MIST,TRIM1# |
1 | ||
| 55311-60501B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 55311-60521B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..(GCC,GEN) W(ACCESSORY METER),MD.MOON MIST,TRIM1# |
1 | ||
| 55311-60501B0 |
KZJ9#,LJ9#,RZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-60060 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 55307-60100 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 55309D - BRACE SUB-ASSY, INSTRUMENT PANEL TO FLOOR | ||||
| 55309-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 55309-60080 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-60030 |
VZJ95..MTM..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..LHD |
1 | ||
| 55328-60030 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD |
1 | ||
| 55329B - STAY, INSTRUMENT PANEL, NO.4 | ||||
| 55329-60040 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD |
1 | ||
| 55329-60040 |
VZJ95..MTM..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..LHD |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-60080 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD |
1 | ||
| 55330-60080 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-60040 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD |
1 | ||
| 55374-60040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 55479B - COVER, INSTRUMENT, LOWER CENTER | ||||
| 55479-60050B0 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN MD.MOON MIST,TRIM1# |
1 | ||
| 55479-60050B0 |
KZJ9#..GEN MD.MOON MIST,TRIM1# |
1 | ||
| 55479-60050E0 |
KZJ9#..GEN OAK,TRIM4# |
1 | ||
| 55479-60050B0 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90 MD.MOON MIST,TRIM1# |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-07041B5 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN MD.MOON MIST,TRIM1# |
2 | ||
| 90467-07041B5 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90 MD.MOON MIST,TRIM1# |
2 | ||
| 55537B - COVER, REAR DEFOGGER SWITCH HOLE | ||||
| 55537-60010 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
1 | ||
| 55537-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 55538C - COVER, COOLER SWITCH HOLE | ||||
| 55538-33010 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..EFI..(ARL,GCC) |
1 | ||
| 55538-33010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 55538-33010 |
KZJ9#..GEN |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-60030B0 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 55548-60030B0 |
VZJ95..MTM..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR | ||||
| 55558-60070 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OAK |
1 | ||
| 55558-60050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 55558-60050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# GRAY |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-60070C0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# BLACK,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-60110C0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# BLACK,TRIM1# |
1 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-60070 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD |
1 | ||
| 55950-60070 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| Common parts | ||||
| 90119-06022 | ||||
| 90119-08B72 | ||||
| 90176-08048 | ||||
| 90179-05021 | ||||
| 90179-06068 | ||||
| 90179-06156 | ||||
| 90179-08102 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90189-04049 | ||||
| 90189-05058 | ||||
| 90249-04029 | ||||
| 90467-14023 | ||||
| 90467-14024 | ||||
| 90467-14025 | ||||
| 90467-14027 | ||||
| 90467-14028 | ||||
| 90467-15020 | ||||
| 91616-60616 | ||||
| 91621-J0814 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||

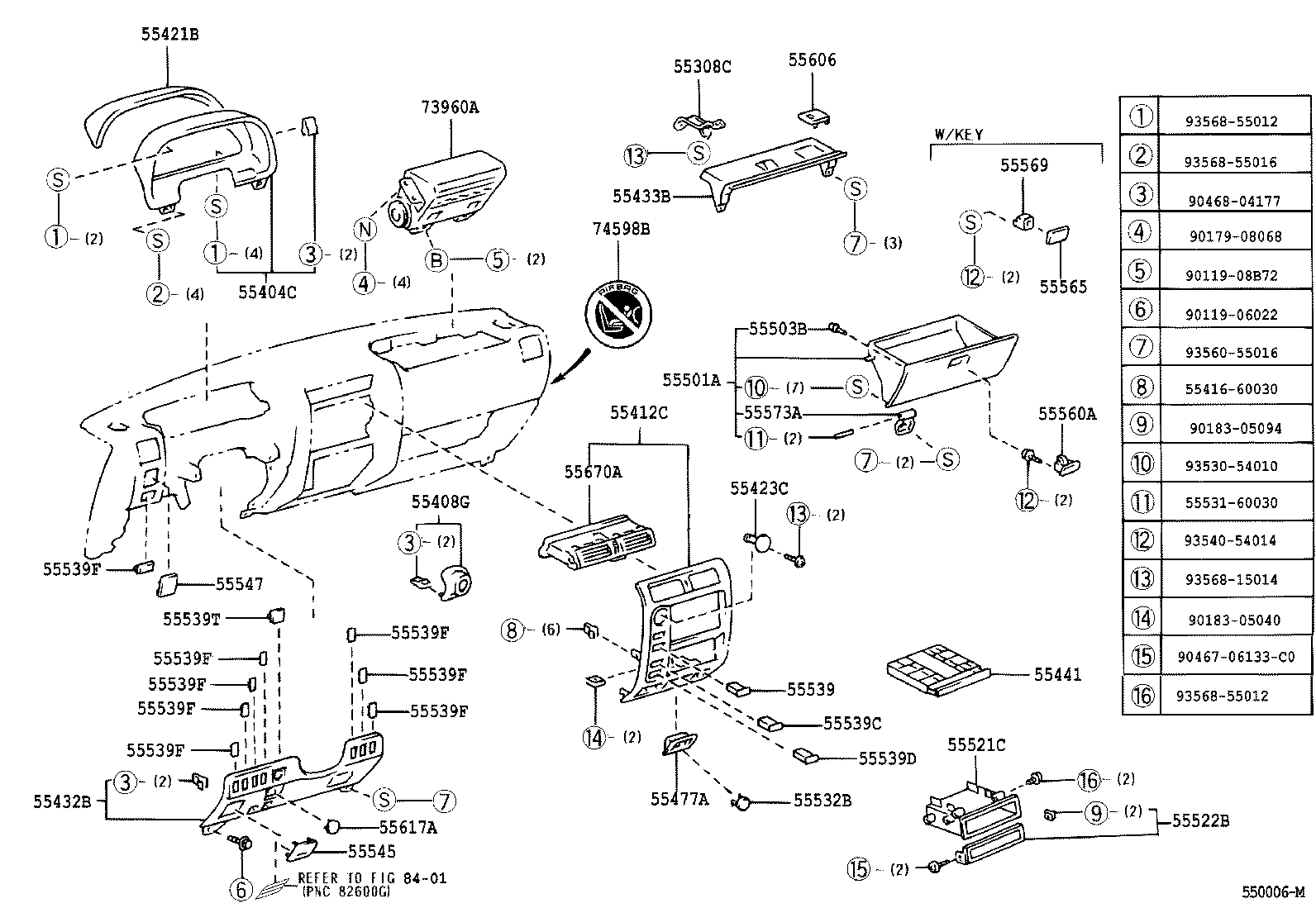

ILLUST NO. 2 OF 2(9604- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 55308-60020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-60080B0 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 55404-60080B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 55408G - BEZEL SUB-ASSY, STARTER SWITCH | ||||
| 55408-60050B0 |
VZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 55408-60050B0 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55405-60130C0 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD BLACK,TRIM1# |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 55421-60020B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-60360B0 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 55432-60360B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-60020C0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# BLACK,TRIM1# |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-35010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 55477-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-60130B0 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1# |
1 | ||
| 55501-60130B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 90541-05080 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 90541-05080 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-35010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 55521-35010 |
KZJ9#..GEN |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ95..ARL,GEN |
1 | ||
| 55522-60020 |
RZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 55539-60010 |
VZJ9#..MTM..VX;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ95..GX,STD |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-60010 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 55539-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 55539-60010 |
VZJ95..ARL,CO;VZJ95..MTM..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,CO,GCC,GEN |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-60010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 55539-60010 |
RZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ9#,VZJ95..ARL,CO,GEN,MA |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B2 |
KZJ9#,LJ9#,RZJ9#,VZJ95 MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080B2 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B2 |
KZJ9#,LJ9#,RZJ9#,VZJ95 MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080B2 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B2 |
KZJ9#,LJ9#,RZJ9#,VZJ95 MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080B2 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B2 |
KZJ9#,LJ9#,RZJ9#,VZJ95 MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080B2 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B2 |
KZJ9#,LJ9#,RZJ9#,VZJ95 MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080B2 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B2 |
KZJ9#,LJ9#,RZJ9#,VZJ95 MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080B2 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B2 |
KZJ9#,LJ9#,RZJ9#,VZJ95 MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080B2 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B2 |
KZJ9#,LJ9#,RZJ9#,VZJ95 MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080B2 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539T - COVER, SPARE SWITCH HOLE | ||||
| 55524-60020B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55524-60020B0 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-35010B0 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1# |
1 | ||
| 55545-35010B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-60010B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55547-60010B0 |
RZJ95..CBR;VZJ95..GCC;RZJ95,VZJ95..GX..ARL;KZJ9#,LJ9#,RZJ90,VZJ90 MD.MOON MIST,TRIM1# |
1 | ||
| 55547-60010B0 |
VZJ95..GX;VZJ95..MTM..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,CO,GCC,GEN MD.MOON MIST,TRIM1# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-34010E0 |
KZJ9#..GEN OAK,TRIM4# |
1 | ||
| 55560-34010B1 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90..GEN MD.MOON MIST,TRIM1# |
1 | ||
| 55560-34010B1 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN MD.MOON MIST,TRIM1# |
1 | ||
| 55560-34010B1 |
KZJ9#..GEN MD.MOON MIST,TRIM1# |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-89101B0 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1# |
1 | ||
| 55565-89101B0 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-89101B0 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) MD.MOON MIST,TRIM1# |
1 | ||
| 55569-89101B0 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55573A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55573-32010 |
KZJ9#,LJ9#,RZJ9#,VZJ95 |
2 | ||
| 55573-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 55617A - COVER, THROTTLE KNOB HOLE | ||||
| 55531-60020B0 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 55531-60020B0 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-60050 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 55670-60050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| Common parts | ||||
| 55416-60030 | ||||
| 55531-60030 | ||||
| 90119-06022 | ||||
| 90119-08B72 | ||||
| 90179-08068 | ||||
| 90183-05040 | ||||
| 90183-05094 | ||||
| 90467-06133C0 | ||||
| 90468-04177 | ||||
| 93530-54010 | ||||
| 93540-54014 | ||||
| 93560-55016 | ||||
| 93568-15014 | ||||
| 93568-55012 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
