KZJ90L-GJMNX (1996)
Toyota Land Cruiser 90

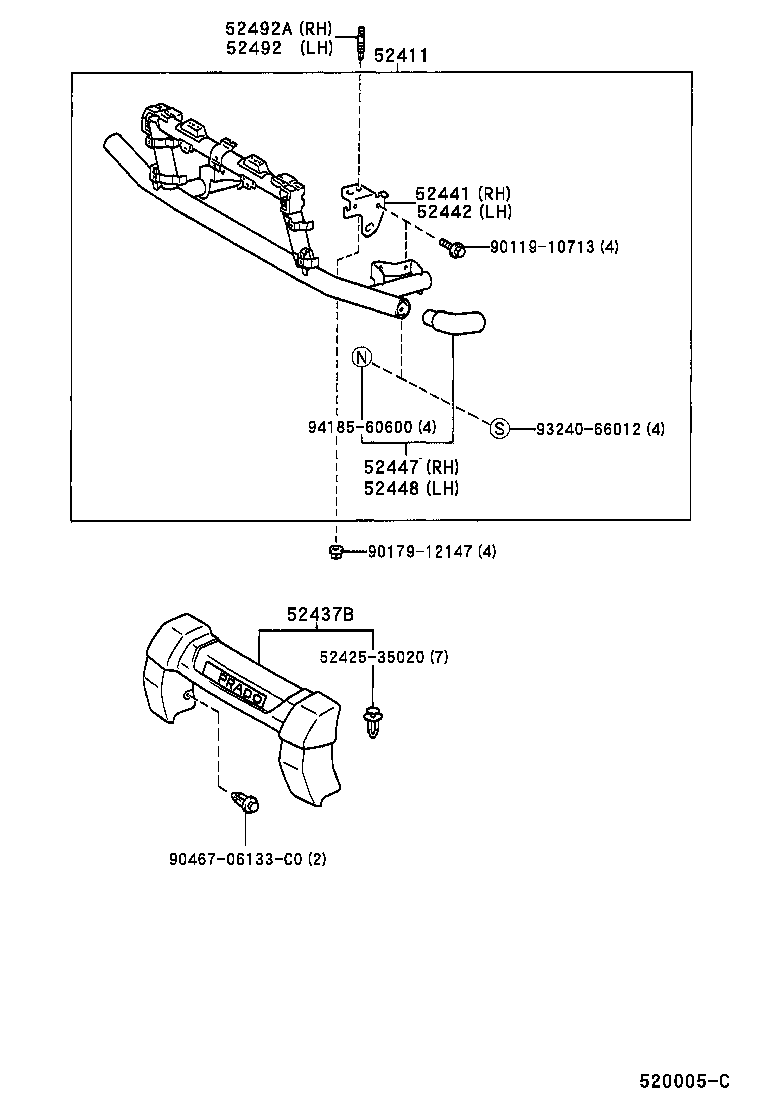

ILLUST NO. 2 OF 2(9604-9808)GCC,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52411 - GUARD, FRONT BUMPER | ||||
| 52401-60120 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 52437B - COVER, FRONT BUMPER GUARD BASE | ||||
| 52437-60030 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 52441 - BASE, FRONT BUMPER GUARD, NO.1 RH | ||||
| 52441-35030 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 52441-60110 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 52442 - BASE, FRONT BUMPER GUARD, NO.1 LH | ||||
| 52442-60070 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 52442-35030 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 52447 - PAD, FRONT BUMPER GUARD, NO.2 RH | ||||
| 52447-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 52448 - PAD, FRONT BUMPER GUARD, NO.2 LH | ||||
| 52448-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 52492 - BOLT, BUMPER PAD, NO.2 | ||||
| 52492-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
2 | ||
| 52492A - BOLT, BUMPER PAD, NO.3 | ||||
| 52492-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
2 | ||
| Common parts | ||||
| 52425-35020 | ||||
| 90119-10713 | ||||
| 90179-12147 | ||||
| 90467-06133C0 | ||||
| 93240-66012 | ||||
| 94185-60600 | ||||

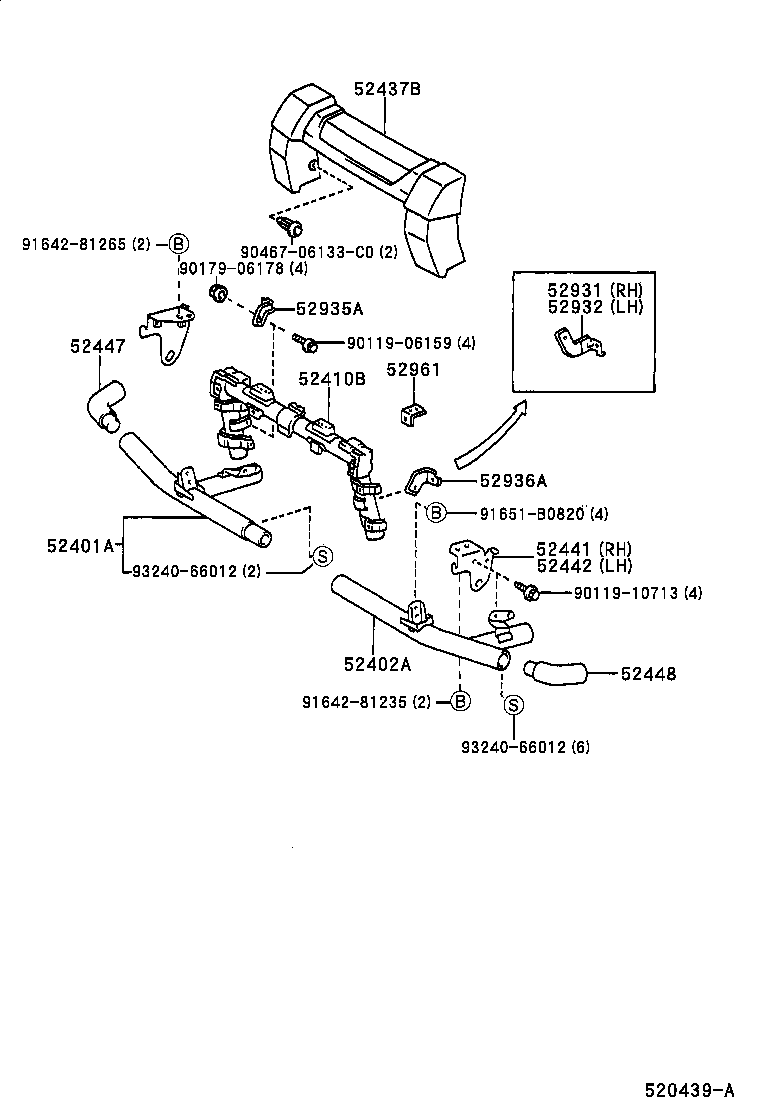

ILLUST NO. 2 OF 2(9808- )GCC,GEN,MA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52401A - GUARD SUB-ASSY, FRONT BUMPER, RH | ||||
| 52401-60140 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 52402A - GUARD SUB-ASSY, FRONT BUMPER, LH | ||||
| 52402-60040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 52410B - GUARD ASSY, FRONT BUMPER | ||||
| 52410-60100 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 52437B - COVER, FRONT BUMPER GUARD BASE | ||||
| 52437-60030 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 52441 - BASE, FRONT BUMPER GUARD, NO.1 RH | ||||
| 52441-35030 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 52441-60110 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 52442 - BASE, FRONT BUMPER GUARD, NO.1 LH | ||||
| 52442-60070 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 52442-35030 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 52447 - PAD, FRONT BUMPER GUARD, NO.2 RH | ||||
| 52447-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 52448 - PAD, FRONT BUMPER GUARD, NO.2 LH | ||||
| 52448-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 52931 - BRACKET, SIDE BUMPER, FRONT RH | ||||
| 52931-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 52932 - BRACKET, SIDE BUMPER, FRONT LH | ||||
| 52932-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 52935A - REINFORCEMENT, SIDE BUMPER, RH | ||||
| 52935-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 52936A - REINFORCEMENT, SIDE BUMPER, LH | ||||
| 52936-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 52961 - STAY, SIDE BUMPER GUARD | ||||
| 52961-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
2 | ||
| Common parts | ||||
| 90119-06159 | ||||
| 90119-10713 | ||||
| 90179-06178 | ||||
| 90467-06133C0 | ||||
| 91642-81235 | ||||
| 91642-81265 | ||||
| 91651-B0820 | ||||
| 93240-66012 | ||||

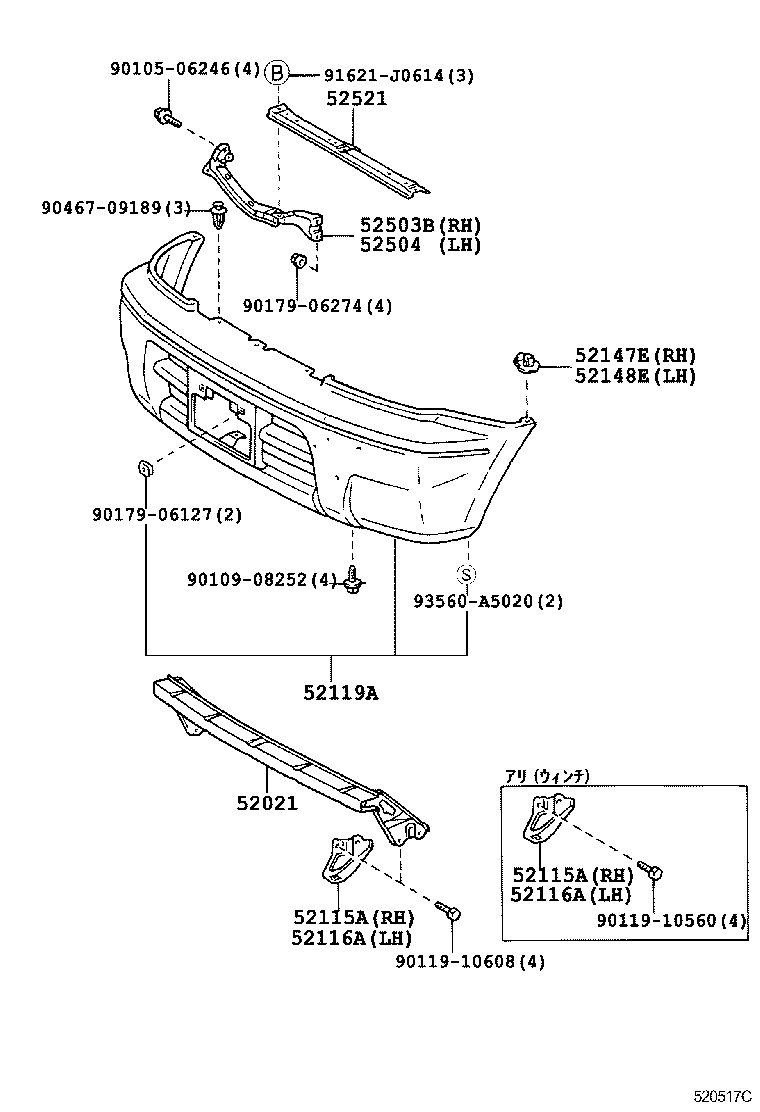

ILLUST NO. 1 OF 2(9604- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 52021-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 52021-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 52021-60010 |
VZJ95..ARL;KZJ9#,LJ9#,RZJ9#,VZJ90 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-60050 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 52115-60050 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90 |
1 | ||
| 52115-60050 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-60050 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 52115-60050 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90 |
1 | ||
| 52115-60050 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-60090 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
1 | ||
| 52116-60090 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90 |
1 | ||
| 52116-60090 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-60090 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN |
1 | ||
| 52116-60090 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ90 |
1 | ||
| 52116-60090 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-60030 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN W(WINCH) |
1 | ||
| 52119-60900 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX W(FRONT FENDER MOULDING) |
1 | ||
| 52119-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 52119-60010 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 52119-60900 |
VZJ95..ARL;KZJ9#,LJ95,RZJ9#,VZJ90..GX,VX W(FRONT FENDER MOULDING) |
1 | ||
| 52119-60070 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN W(WINCH & FRONT BUMPER GUARD) |
1 | ||
| 52119-60070 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN W(WINCH & FRONT BUMPER GUARD) |
1 | ||
| 52119-60030 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN W(WINCH) |
1 | ||
| 52119-60903 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(GCC,GEN) W(FRONT FENDER MOULDING & FRONT BUMPER GUARD & WINCH) |
1 | ||
| 52119-60900 |
RZJ90..EFI..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX W(FRONT FENDER MOULDING) |
1 | ||
| 52119-60903 |
RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(GCC,GEN) W(FRONT FENDER MOULDING & FRONT BUMPER GUARD & WINCH) |
1 | ||
| 52119-60902 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(GCC,GEN) W(FRONT FENDER MOULDING & WINCH) |
1 | ||
| 52147E - BRACKET, FRONT BUMPER MOUNTING, RH | ||||
| 52147-16080 |
VZJ95..ARL;VZJ95..MTM..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,CO,GCC,GEN |
1 | ||
| 52147-16080 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 52147-16080 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 52148E - BRACKET, FRONT BUMPER MOUNTING, LH | ||||
| 52147-16080 |
VZJ95..ARL;VZJ95..MTM..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,CO,GCC,GEN |
1 | ||
| 52147-16080 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 52147-16080 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 52503B - RETAINER SUB-ASSY, FRONT BUMPER SIDE, NO.1 RH | ||||
| 52503-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 52503-60020 |
VZJ95..ARL;KZJ9#,LJ9#,RZJ9#,VZJ90 |
1 | ||
| 52503-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 52504 - RETAINER SUB-ASSY, FRONT BUMPER SIDE, NO.1 LH | ||||
| 52504-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 52504-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 52504-60010 |
VZJ95..ARL;KZJ9#,LJ9#,RZJ9#,VZJ90 |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 52521-60020 |
VZJ95..ARL;KZJ9#,LJ9#,RZJ9#,VZJ90 |
1 | ||
| 52521-60020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| Common parts | ||||
| 90105-06246 | ||||
| 90109-08252 | ||||
| 90119-10560 | ||||
| 90119-10608 | ||||
| 90179-06127 | ||||
| 90179-06274 | ||||
| 90467-09189 | ||||
| 91621-J0614 | ||||
| 93560-A5020 | ||||
