KZJ90L-GJMNX (1996)
Toyota Land Cruiser 90

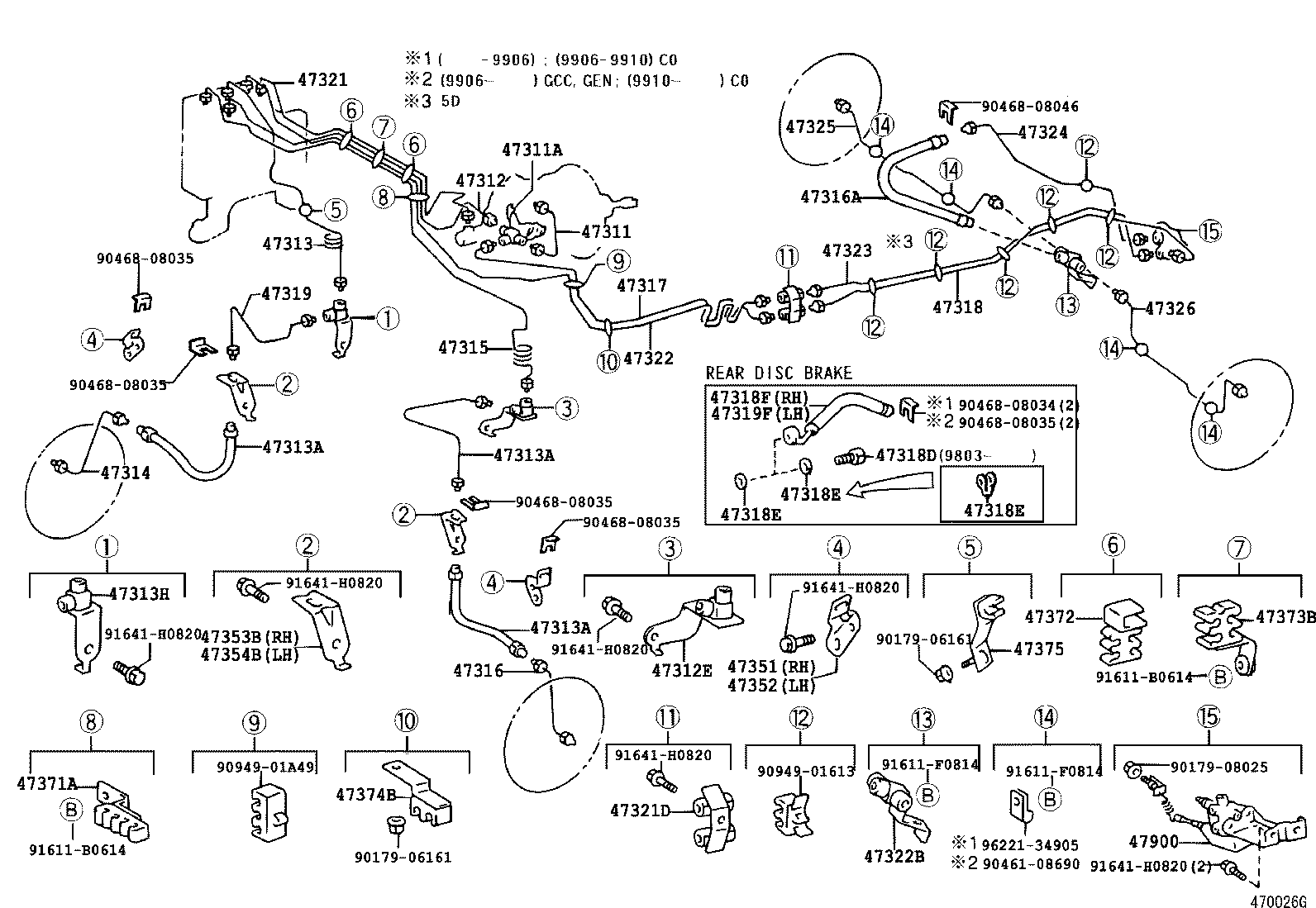

ILLUST NO. 2 OF 2(9604- )LHD
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-60030 |
RZJ90..GX..GEN;KZJ9#,RZJ95,VZJ9#..LHD..(GX,VX) |
1 | ||
| 44510-60030 |
KZJ9#,RZJ9#,VZJ9#..LHD..(GX,VX) |
1 | ||
| 44050-60030 |
RZJ90..GX..GEN;KZJ9#,VZJ9#..LHD;RZJ95..LHD..GX..CBR |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-35080 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
3 | ||
| 44545-35080 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,RZJ90,VZJ9#..(GX,VX)..(EFI,TD)..(ARL,GCC,GEN) |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-35080 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
3 | ||
| 44545-35080 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,RZJ90,VZJ9#..(GX,VX)..(EFI,TD)..(ARL,GCC,GEN) |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-35080 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
3 | ||
| 44545-35080 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,RZJ90,VZJ9#..(GX,VX)..(EFI,TD)..(ARL,GCC,GEN) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-35090 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
3 | ||
| 44546-35090 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,RZJ90,VZJ9#..(GX,VX)..(EFI,TD)..(ARL,GCC,GEN) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-35090 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
3 | ||
| 44546-35090 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,RZJ90,VZJ9#..(GX,VX)..(EFI,TD)..(ARL,GCC,GEN) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-35090 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
3 | ||
| 44546-35090 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,RZJ90,VZJ9#..(GX,VX)..(EFI,TD)..(ARL,GCC,GEN) |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-35040 |
RZJ90..GX..GEN;KZJ9#,VZJ9#..LHD;RZJ95..LHD..GX..CBR |
1 | ||
| 44590-35040 |
RZJ90..GX..GEN;KZJ9#,RZJ95,VZJ9#..LHD..(GX,VX) |
1 | ||
| Common parts | ||||
| 90179-06074 | ||||
| 91631-60814 | ||||

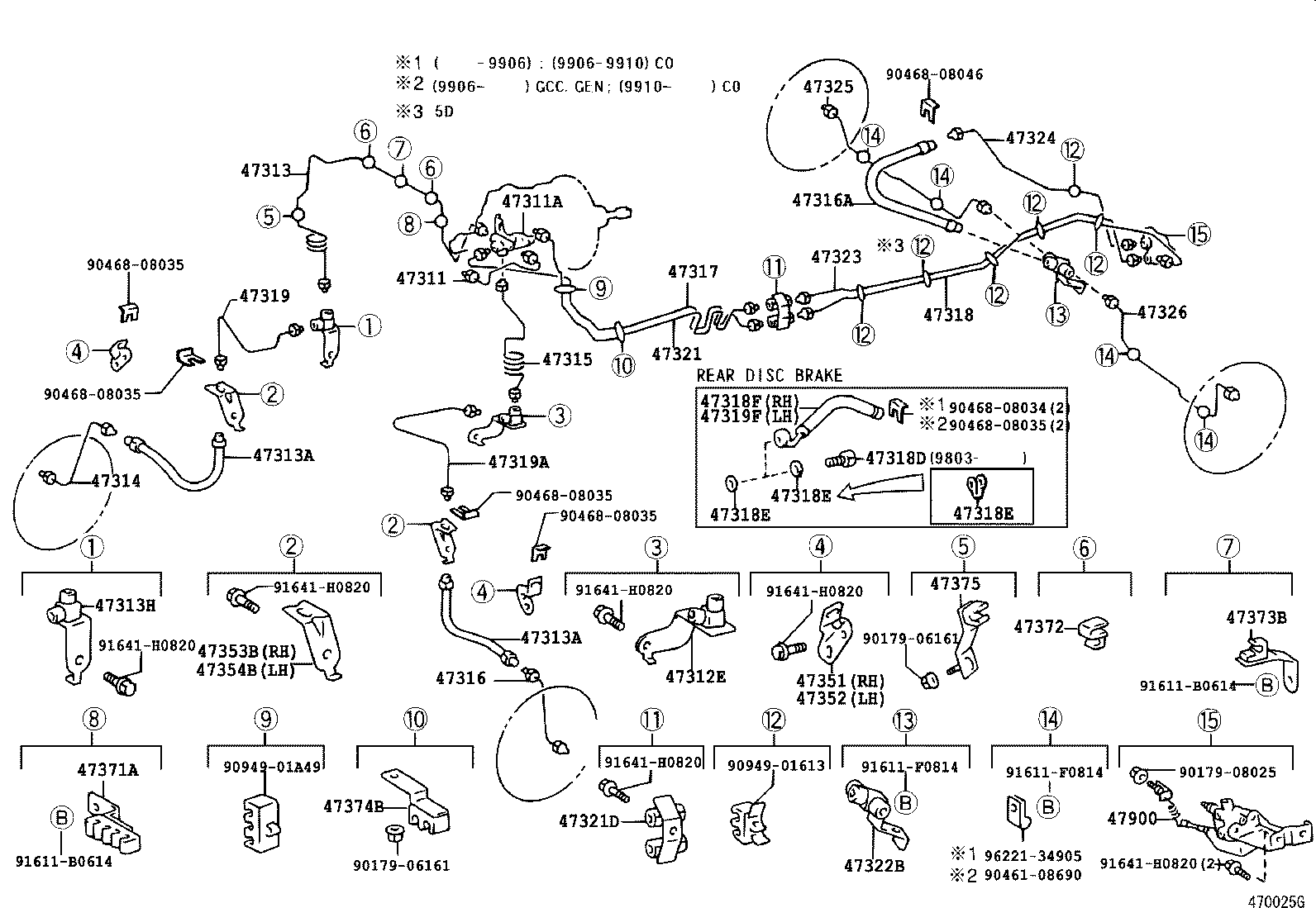

(9604- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-35470 |
RZJ90..GX..GEN;KZJ9#,VZJ9#..LHD;RZJ95..LHD..GX..CBR W(ABS) |
1 | ||
| 47311-35480 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD..(GCC,GEN) |
1 | ||
| 47311-35470 |
KZJ9#..GEN W(ABS) |
1 | ||
| 47311-35480 |
KZJ9#..GEN |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90904-14006 |
RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 90904-13021 |
KZJ9#..GEN W(ABS) |
1 | ||
| 90904-13021 |
RZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) W(ABS) |
1 | ||
| 90904-14006 |
KZJ9#..GEN |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-12040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90904-12040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 90904-12040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-3D040 |
KZJ9#,RZJ9#,VZJ9#..LHD..(GX,VX)..(GCC,GEN) W(ABS) |
1 | ||
| 47313-3D010 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD..(GCC,GEN) |
1 | ||
| 47313-3D040 |
RZJ90..GX..GEN;KZJ9#,VZJ9#..LHD;RZJ95..LHD..GX..CBR W(ABS) |
1 | ||
| 47313-3D010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..(GCC,GEN) |
1 | ||
| 47313-3D040 |
RZJ90..GX..GEN;KZJ9#,RZJ95,VZJ9#..LHD..(GX,VX) W(ABS) |
1 | ||
| 47313-3D010 |
VZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..LHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02862 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90947-02B14 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02862 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90947-02B14 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90904-12041 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 90904-12041 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 90904-12041 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-35330 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47314-35330 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-35300 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..(GCC,GEN) |
1 | ||
| 47315-35300 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD..(GCC,GEN) |
1 | ||
| 47315-35310 |
KZJ9#,RZJ9#,VZJ9#..LHD..(GX,VX)..(GCC,GEN) W(ABS) |
1 | ||
| 47315-35310 |
RZJ90..GX..GEN;KZJ9#,RZJ95,VZJ9#..LHD..(GX,VX) W(ABS) |
1 | ||
| 47315-35300 |
VZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..LHD |
1 | ||
| 47315-35310 |
RZJ90..GX..GEN;KZJ9#,VZJ9#..LHD;RZJ95..LHD..GX..CBR W(ABS) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-35250 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47316-35250 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02869 |
RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD |
1 | ||
| 90947-02869 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-35040 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD |
1 | ||
| 47317-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..(GCC,GEN) |
1 | ||
| 47317-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-60100 |
KZJ90,LJ90,RZJ90,VZJ90 |
1 | ||
| 47318-60101 |
KZJ90,LJ90,RZJ90,VZJ90 |
1 | ||
| 47318-60111 |
KZJ90,LJ90,RZJ90,VZJ90 |
1 | ||
| 47318-60111 |
KZJ90,LJ90,RZJ90,VZJ90..GCC,GEN |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
KZJ9#,RZJ9#,VZJ9#..GX,VX |
2 | ||
| 90401-10058 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
2 | ||
| 47389-30010 |
KZJ9#,RZJ9#,VZJ9#..GX,VX |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
2 | ||
| 47389-30010 |
KZJ9#,RZJ9#,VZJ9#..GX,VX |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
2 | ||
| 47389-30010 |
KZJ9#,RZJ9#,VZJ9#..GX,VX |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02A07 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
1 | ||
| 90947-02614 |
RZJ90..EFI..GEN;KZJ9#,RZJ95,VZJ9#..GX,VX |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47313-3D050 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47313-3D050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47313-3D050 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47319A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47315-35320 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47315-35320 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47315-35320 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02615 |
RZJ90..EFI..GEN;KZJ9#,RZJ95,VZJ9#..GX,VX |
1 | ||
| 90947-02A08 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-35750 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..(GCC,GEN) |
1 | ||
| 47321-60200 |
RZJ90..GX..GEN;KZJ9#,VZJ9#..LHD;RZJ95..LHD..GX..CBR W(ABS) |
1 | ||
| 47321-60200 |
KZJ9#,RZJ9#,VZJ9#..LHD..(GX,VX)..(GCC,GEN) W(ABS) |
1 | ||
| 47321-35750 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD..(GCC,GEN) |
1 | ||
| 47321-60200 |
RZJ90..GX..GEN;KZJ9#,RZJ95,VZJ9#..LHD..(GX,VX) W(ABS) |
1 | ||
| 47321-35750 |
VZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..LHD |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10166 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90412-10166 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 90412-10166 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10263 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 90413-10263 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90413-10263 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-60600 |
KZJ90,LJ90,RZJ90,VZJ90 |
1 | ||
| 47323-60601 |
KZJ90,LJ90,RZJ90,VZJ90 |
1 | ||
| 47323-60611 |
KZJ90,LJ90,RZJ90,VZJ90..GCC,GEN |
1 | ||
| 47323-60611 |
KZJ90,LJ90,RZJ90,VZJ90 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-60271 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47324-35241 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47324-35240 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47324-60271 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-60190 |
RZJ95..ARL;KZJ9#,VZJ9#;RZJ95..GX..CBR;RZJ90..EFI..GEN W(REAR DISC BRAKE) |
1 | ||
| 47325-60200 |
KZJ9#,LJ9#,RZJ9# |
1 | ||
| 47325-60221 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) W(REAR DRUM BRAKE) |
1 | ||
| 47325-60211 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
1 | ||
| 47325-60211 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 47325-60190 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(REAR DISC BRAKE) |
1 | ||
| 47325-60200 |
KZJ9#,LJ9#,RZJ9#..CO,GCC,GEN |
1 | ||
| 47325-60221 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-60220 |
KZJ9#,LJ9#,RZJ9# |
1 | ||
| 47326-60210 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(REAR DISC BRAKE) |
1 | ||
| 47326-60220 |
KZJ9#,LJ9#,RZJ9#..CO,GCC,GEN |
1 | ||
| 47326-60231 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) W(REAR DRUM BRAKE) |
1 | ||
| 47326-60191 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 47326-60210 |
RZJ95..ARL;KZJ9#,VZJ9#;RZJ95..GX..CBR;RZJ90..EFI..GEN W(REAR DISC BRAKE) |
1 | ||
| 47326-60231 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 47326-60191 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-35270 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47351-35270 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47351-35270 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-35310 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47352-35310 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47352-35310 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-35110 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47353-35110 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47353-35110 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-35100 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47354-35100 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47354-35100 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-35300 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47371-35300 |
VZJ9#..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#..GX,STD |
1 | ||
| 47371-35300 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47371-60140 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) W(ABS) |
1 | ||
| 47371-60140 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) W(ACTIVE TRC OR VSC) |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-35150 |
RZJ95..LHD..GX;LJ9#,RZJ95..RHD;VZJ95..ATM..GCC;VZJ95..MTM..(ARL,GCC);KZJ9#,RZJ90,VZJ90..(GX,VX)..(ARL,GCC,GEN) W(ABS) |
2 | ||
| 47372-35150 |
RZJ90..EFI..GEN;KZJ9#,RZJ95,VZJ9#..LHD..(GX,VX) W(ABS) |
2 | ||
| 47372-35170 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD..(GCC,GEN) |
2 | ||
| 47372-35150 |
VZJ95..MTM;KZJ95..ATM..ARL;VZJ95..LHD..ATM;LJ9#,RZJ95..RHD..GEN;KZJ9#,RZJ9#,VZJ90..LHD..(GX,VX)..(GCC,GEN) W(ABS) |
2 | ||
| 47372-35170 |
VZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..LHD |
2 | ||
| 47372-35170 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..(GCC,GEN) |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47373-35090 |
RZJ95..ARL;KZJ9#,VZJ9#;RZJ95..GX..CBR;RZJ90..EFI..GEN W(ABS) |
1 | ||
| 47373-35090 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(ABS) |
1 | ||
| 47373-35090 |
RZJ95,VZJ95..(GX,VX)..(ARL,CO,GCC,GEN);KZJ9#,RZJ90,VZJ90..MTM..(GX,VX)..(ARL,GCC,GEN) W(ABS) |
1 | ||
| 47373-35070 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD..(GCC,GEN) |
1 | ||
| 47373-35090 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(EFI,TD)..(ARL,GCC,GEN) W(ABS) |
1 | ||
| 47373-35070 |
VZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..LHD |
1 | ||
| 47373-35070 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..(GCC,GEN) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47374-35030 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47374-35030 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47374-35030 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47375-35160 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD |
1 | ||
| 47375-35160 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..(GCC,GEN) |
1 | ||
| 47375-35160 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 47900 - VALVE ASSY, LOAD SENSING W/SPRING | ||||
| 47900-60220 |
KZJ90,RZJ90,VZJ90..EFI,TD W(ABS) |
1 | ||
| 47900-60230 |
KZJ90,LJ90,RZJ90,VZJ90 |
1 | ||
| 47900-60221 |
KZJ90,RZJ90,VZJ90..(EFI,TD)..(GCC,GEN) W(ABS) |
1 | ||
| 47900-60221 |
KZJ90 W(ABS) |
1 | ||
| 47900-60231 |
RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 |
1 | ||
| 47900-60231 |
KZJ90 |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90179-08025 | ||||
| 90461-08690 | ||||
| 90468-08034 | ||||
| 90468-08035 | ||||
| 90468-08046 | ||||
| 90949-01613 | ||||
| 90949-01A49 | ||||
| 91611-B0614 | ||||
| 91611-F0814 | ||||
| 91641-H0820 | ||||
| 96221-34905 | ||||
ILLUST NO. 1 OF 2(9604- )LHD
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-35470 |
RZJ90..GX..GEN;KZJ9#,VZJ9#..LHD;RZJ95..LHD..GX..CBR W(ABS) |
1 | ||
| 47311-35480 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD..(GCC,GEN) |
1 | ||
| 47311-35470 |
KZJ9#..GEN W(ABS) |
1 | ||
| 47311-35480 |
KZJ9#..GEN |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90904-14006 |
RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 90904-13021 |
KZJ9#..GEN W(ABS) |
1 | ||
| 90904-13021 |
RZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) W(ABS) |
1 | ||
| 90904-14006 |
KZJ9#..GEN |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-60880 |
KZJ9#,RZJ9#,VZJ9#..LHD..(GX,VX)..(GCC,GEN) |
1 | ||
| 47312-60880 |
RZJ90..GX..GEN;KZJ9#,VZJ9#..LHD;RZJ95..LHD..GX..CBR |
1 | ||
| 47312-60880 |
RZJ90..GX..GEN;KZJ9#,RZJ95,VZJ9#..LHD..(GX,VX) |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-12040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90904-12040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 90904-12040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-3D040 |
KZJ9#,RZJ9#,VZJ9#..LHD..(GX,VX)..(GCC,GEN) W(ABS) |
1 | ||
| 47313-3D010 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD..(GCC,GEN) |
1 | ||
| 47313-3D040 |
RZJ90..GX..GEN;KZJ9#,VZJ9#..LHD;RZJ95..LHD..GX..CBR W(ABS) |
1 | ||
| 47313-3D010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..(GCC,GEN) |
1 | ||
| 47313-3D040 |
RZJ90..GX..GEN;KZJ9#,RZJ95,VZJ9#..LHD..(GX,VX) W(ABS) |
1 | ||
| 47313-3D010 |
VZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..LHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02862 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90947-02B14 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02862 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90947-02B14 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02862 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90947-02B14 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90904-12041 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 90904-12041 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 90904-12041 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-35330 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47314-35330 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-35300 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..(GCC,GEN) |
1 | ||
| 47315-35300 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD..(GCC,GEN) |
1 | ||
| 47315-35310 |
KZJ9#,RZJ9#,VZJ9#..LHD..(GX,VX)..(GCC,GEN) W(ABS) |
1 | ||
| 47315-35310 |
RZJ90..GX..GEN;KZJ9#,RZJ95,VZJ9#..LHD..(GX,VX) W(ABS) |
1 | ||
| 47315-35300 |
VZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..LHD |
1 | ||
| 47315-35310 |
RZJ90..GX..GEN;KZJ9#,VZJ9#..LHD;RZJ95..LHD..GX..CBR W(ABS) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-35250 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47316-35250 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02869 |
RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD |
1 | ||
| 90947-02869 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-35040 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD |
1 | ||
| 47317-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..(GCC,GEN) |
1 | ||
| 47317-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-60100 |
KZJ90,LJ90,RZJ90,VZJ90 |
1 | ||
| 47318-60101 |
KZJ90,LJ90,RZJ90,VZJ90 |
1 | ||
| 47318-60111 |
KZJ90,LJ90,RZJ90,VZJ90 |
1 | ||
| 47318-60111 |
KZJ90,LJ90,RZJ90,VZJ90..GCC,GEN |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
KZJ9#,RZJ9#,VZJ9#..GX,VX |
2 | ||
| 90401-10058 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
2 | ||
| 47389-30010 |
KZJ9#,RZJ9#,VZJ9#..GX,VX |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
2 | ||
| 47389-30010 |
KZJ9#,RZJ9#,VZJ9#..GX,VX |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
2 | ||
| 47389-30010 |
KZJ9#,RZJ9#,VZJ9#..GX,VX |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02A07 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
1 | ||
| 90947-02614 |
RZJ90..EFI..GEN;KZJ9#,RZJ95,VZJ9#..GX,VX |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47313-3D050 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47313-3D050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47313-3D050 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02615 |
RZJ90..EFI..GEN;KZJ9#,RZJ95,VZJ9#..GX,VX |
1 | ||
| 90947-02A08 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-35750 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..(GCC,GEN) |
1 | ||
| 47321-60200 |
RZJ90..GX..GEN;KZJ9#,VZJ9#..LHD;RZJ95..LHD..GX..CBR W(ABS) |
1 | ||
| 47321-60200 |
KZJ9#,RZJ9#,VZJ9#..LHD..(GX,VX)..(GCC,GEN) W(ABS) |
1 | ||
| 47321-35750 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD..(GCC,GEN) |
1 | ||
| 47321-60200 |
RZJ90..GX..GEN;KZJ9#,RZJ95,VZJ9#..LHD..(GX,VX) W(ABS) |
1 | ||
| 47321-35750 |
VZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..LHD |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10166 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90412-10166 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 90412-10166 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-35730 |
RZJ90..GX..GEN;KZJ9#,VZJ9#..LHD;RZJ95..LHD..GX..CBR |
1 | ||
| 47322-35730 |
RZJ90..GX..GEN;KZJ9#,RZJ95,VZJ9#..LHD..(GX,VX) |
1 | ||
| 47322-35730 |
KZJ9#,RZJ9#,VZJ9#..LHD..(GX,VX)..(GCC,GEN) |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10263 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 90413-10263 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90413-10263 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-60600 |
KZJ90,LJ90,RZJ90,VZJ90 |
1 | ||
| 47323-60601 |
KZJ90,LJ90,RZJ90,VZJ90 |
1 | ||
| 47323-60611 |
KZJ90,LJ90,RZJ90,VZJ90..GCC,GEN |
1 | ||
| 47323-60611 |
KZJ90,LJ90,RZJ90,VZJ90 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-60271 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47324-35241 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47324-35240 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47324-60271 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-60190 |
RZJ95..ARL;KZJ9#,VZJ9#;RZJ95..GX..CBR;RZJ90..EFI..GEN W(REAR DISC BRAKE) |
1 | ||
| 47325-60200 |
KZJ9#,LJ9#,RZJ9# |
1 | ||
| 47325-60221 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) W(REAR DRUM BRAKE) |
1 | ||
| 47325-60211 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
1 | ||
| 47325-60211 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 47325-60190 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(REAR DISC BRAKE) |
1 | ||
| 47325-60200 |
KZJ9#,LJ9#,RZJ9#..CO,GCC,GEN |
1 | ||
| 47325-60221 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-60220 |
KZJ9#,LJ9#,RZJ9# |
1 | ||
| 47326-60210 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(REAR DISC BRAKE) |
1 | ||
| 47326-60220 |
KZJ9#,LJ9#,RZJ9#..CO,GCC,GEN |
1 | ||
| 47326-60231 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) W(REAR DRUM BRAKE) |
1 | ||
| 47326-60191 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 47326-60210 |
RZJ95..ARL;KZJ9#,VZJ9#;RZJ95..GX..CBR;RZJ90..EFI..GEN W(REAR DISC BRAKE) |
1 | ||
| 47326-60231 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 47326-60191 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-35270 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47351-35270 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47351-35270 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-35310 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47352-35310 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47352-35310 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-35110 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47353-35110 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47353-35110 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-35100 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47354-35100 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47354-35100 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-35300 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47371-35300 |
VZJ9#..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#..GX,STD |
1 | ||
| 47371-35300 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47371-60140 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) W(ABS) |
1 | ||
| 47371-60140 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) W(ACTIVE TRC OR VSC) |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-35150 |
RZJ95..LHD..GX;LJ9#,RZJ95..RHD;VZJ95..ATM..GCC;VZJ95..MTM..(ARL,GCC);KZJ9#,RZJ90,VZJ90..(GX,VX)..(ARL,GCC,GEN) W(ABS) |
2 | ||
| 47372-35150 |
RZJ90..EFI..GEN;KZJ9#,RZJ95,VZJ9#..LHD..(GX,VX) W(ABS) |
2 | ||
| 47372-35170 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD..(GCC,GEN) |
2 | ||
| 47372-35150 |
VZJ95..MTM;KZJ95..ATM..ARL;VZJ95..LHD..ATM;LJ9#,RZJ95..RHD..GEN;KZJ9#,RZJ9#,VZJ90..LHD..(GX,VX)..(GCC,GEN) W(ABS) |
2 | ||
| 47372-35170 |
VZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..LHD |
2 | ||
| 47372-35170 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..(GCC,GEN) |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47373-35090 |
RZJ95..ARL;KZJ9#,VZJ9#;RZJ95..GX..CBR;RZJ90..EFI..GEN W(ABS) |
1 | ||
| 47373-35090 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(ABS) |
1 | ||
| 47373-35090 |
RZJ95,VZJ95..(GX,VX)..(ARL,CO,GCC,GEN);KZJ9#,RZJ90,VZJ90..MTM..(GX,VX)..(ARL,GCC,GEN) W(ABS) |
1 | ||
| 47373-35070 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD..(GCC,GEN) |
1 | ||
| 47373-35090 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(EFI,TD)..(ARL,GCC,GEN) W(ABS) |
1 | ||
| 47373-35070 |
VZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..LHD |
1 | ||
| 47373-35070 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..(GCC,GEN) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47374-35030 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47374-35030 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47374-35030 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47375-35160 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD |
1 | ||
| 47375-35160 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..(GCC,GEN) |
1 | ||
| 47375-35160 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 47900 - VALVE ASSY, LOAD SENSING W/SPRING | ||||
| 47900-60220 |
KZJ90,RZJ90,VZJ90..EFI,TD W(ABS) |
1 | ||
| 47900-60230 |
KZJ90,LJ90,RZJ90,VZJ90 |
1 | ||
| 47900-60221 |
KZJ90,RZJ90,VZJ90..(EFI,TD)..(GCC,GEN) W(ABS) |
1 | ||
| 47900-60221 |
KZJ90 W(ABS) |
1 | ||
| 47900-60231 |
RZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90 |
1 | ||
| 47900-60231 |
KZJ90 |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90179-08025 | ||||
| 90461-08690 | ||||
| 90468-08034 | ||||
| 90468-08035 | ||||
| 90468-08046 | ||||
| 90949-01613 | ||||
| 90949-01A49 | ||||
| 91611-B0614 | ||||
| 91611-F0814 | ||||
| 91641-H0820 | ||||
| 96221-34905 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
