KZJ90L-GJMNX (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000
Engine 1KZT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )KZJ9#..GEN

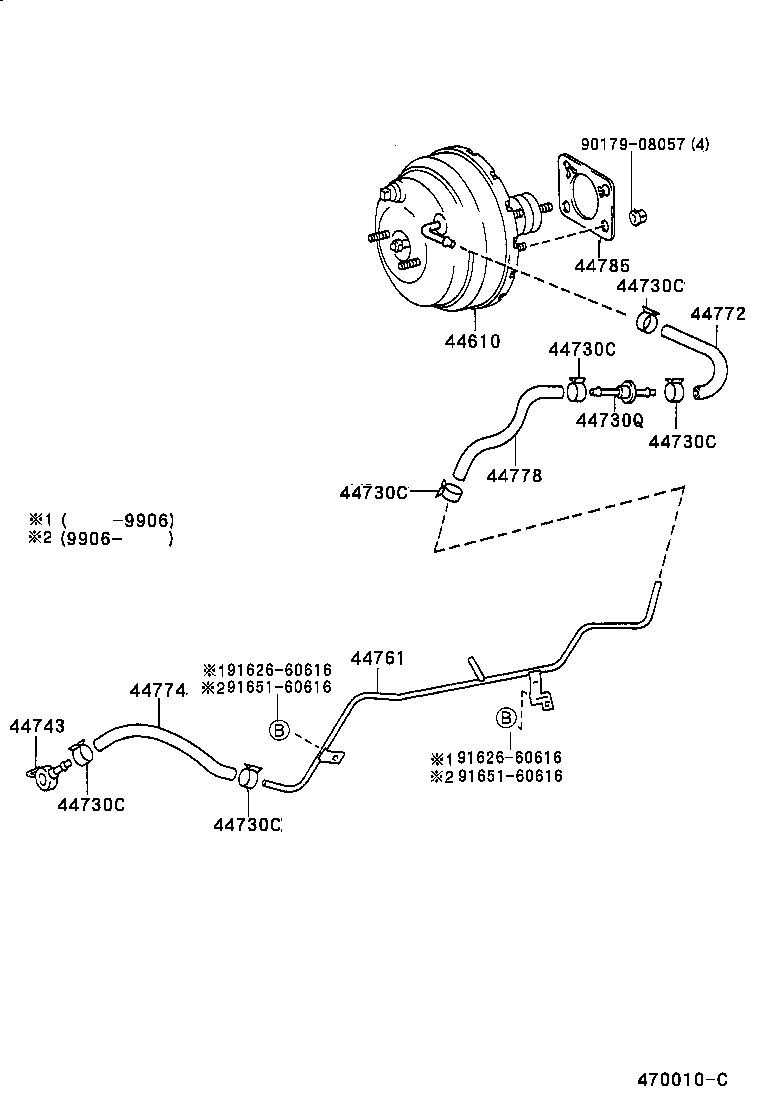

Click highlighted areas on diagram

diagram 44610 44730C 44730C 44730C 44730C 44730C 44730C 44730Q 44743 44761 44772 44774 44778 44785 9017908057 9162660616 9162660616 9165160616 9165160616
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-60870

KZJ9#

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZJ9#;LJ9#..RHD

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZJ9#;LJ9#..RHD

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZJ9#;LJ9#..RHD

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZJ9#;LJ9#..RHD

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZJ9#;LJ9#..RHD

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZJ9#;LJ9#..RHD

 6
44730Q - VALVE ASSY, VACUUM CHECK, NO.2
44730-10010

KZJ9#..GEN

 1
44730-10010

RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,VZJ95..(EFI,TD)..(ARL,GEN)

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09175

KZJ9#

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-35140

KZJ9#

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-35330

KZJ9#

 1
44772-35330

KZJ9#..GEN

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
95447-09220

KZJ9#

 1
95447-09220

KZJ9#

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-35040

KZJ9#

 1
44778-35040

KZJ9#..GEN

 1
44785 - GASKET, BRAKE BOOSTER
44785-35030

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
44785-35030

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
Common parts
90179-08057
91626-60616
91651-60616
