KZJ90L-GJMNX (1996)
Toyota Land Cruiser 90
(9604- )

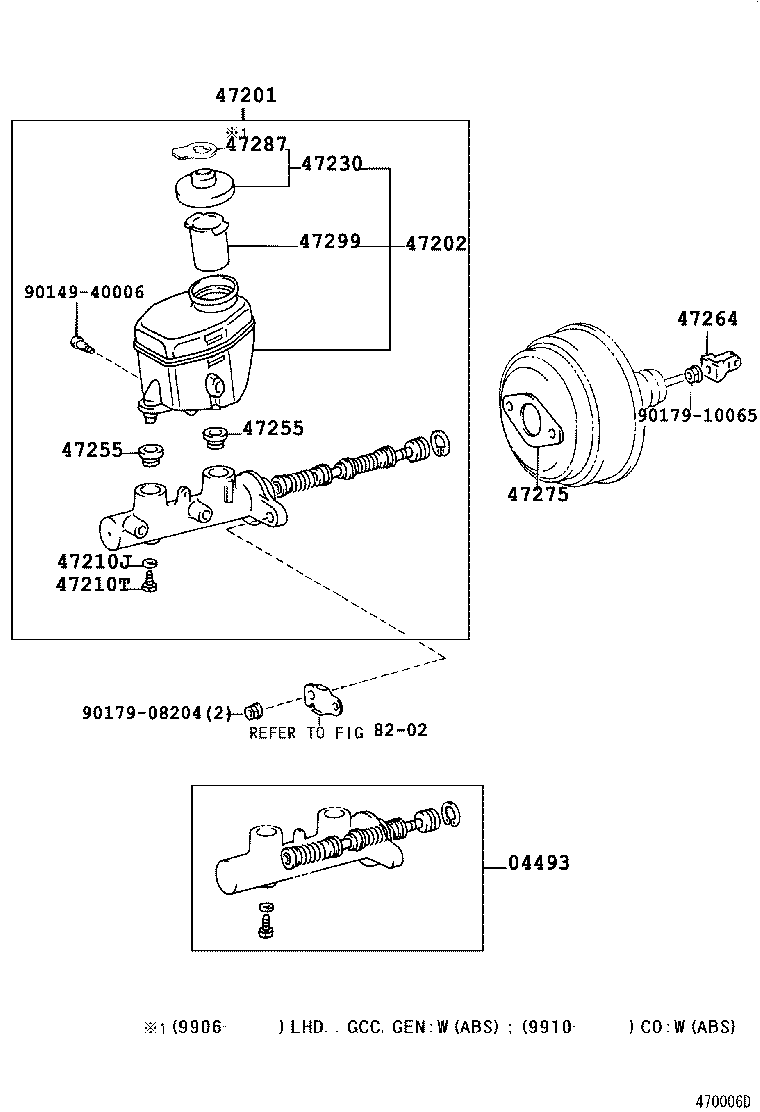

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-3D010 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,RZJ90,VZJ9#..(GX,VX)..(EFI,TD)..(ARL,GCC,GEN) W(ABS) |
1 | ||
| 04493-60280 |
RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 04493-3D010 |
KZJ9#..GEN W(ABS) |
1 | ||
| 04493-60280 |
KZJ9#..GEN |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-3D350 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 47201-60700 |
KZJ9#,RZJ9#,VZJ9#..LHD..(GX,VX) W(ABS) |
1 | ||
| 47201-3D350 |
KZJ9#..GEN |
1 | ||
| 47201-3D470 |
RZJ90..GX..GEN;KZJ9#,VZJ9#..LHD;RZJ95..LHD..GX..CBR W(ABS) |
1 | ||
| 47201-3D470 |
KZJ9#..GEN W(ABS) |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-35040 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,VZJ9#..GCC,GEN |
1 | ||
| 47220-35040 |
KZJ9#..GEN |
1 | ||
| 47220-60090 |
RZJ90..GX..GEN;KZJ9#,VZJ9#..LHD;RZJ95..LHD..GX..CBR W(ABS) |
1 | ||
| 47220-60090 |
KZJ9#..GEN W(ABS) |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90029-43001 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN W(ABS) |
1 | ||
| 90029-43001 |
VZJ9#;KZJ9#,LJ9#,RZJ9#..GX,STD W(ABS) |
1 | ||
| 90430-06104 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 90109-06077 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-12040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47230-20140 |
KZJ9#,RZJ9#,VZJ9#..LHD..(GX,VX)..(GCC,GEN) W(ABS) |
1 | ||
| 47230-12040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47230-20140 |
VZJ95..MTM..VX;VZJ95..ATM..CO;KZJ9#,RZJ9#,VZJ90..LHD..(GX,VX)..(GCC,GEN) W(ABS) |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 47255-16010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 47255-16010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47264-50010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-12020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47275-12020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-20010 |
RZJ90..GX..GEN;KZJ9#,RZJ95,VZJ9#..LHD..(GX,VX) |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-24010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47299-24010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-08204 | ||||
| 90179-10065 | ||||
| Linked diagrams | ||||
| 8202 | ||||
