KZJ90L-GJMNX (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000
Engine 1KZT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604-0108)GX,VX..ARL,CO,GCC,GEN ; (0108- )VZJ95..ARL,GCC ; (0108- )KZJ95,LJ9

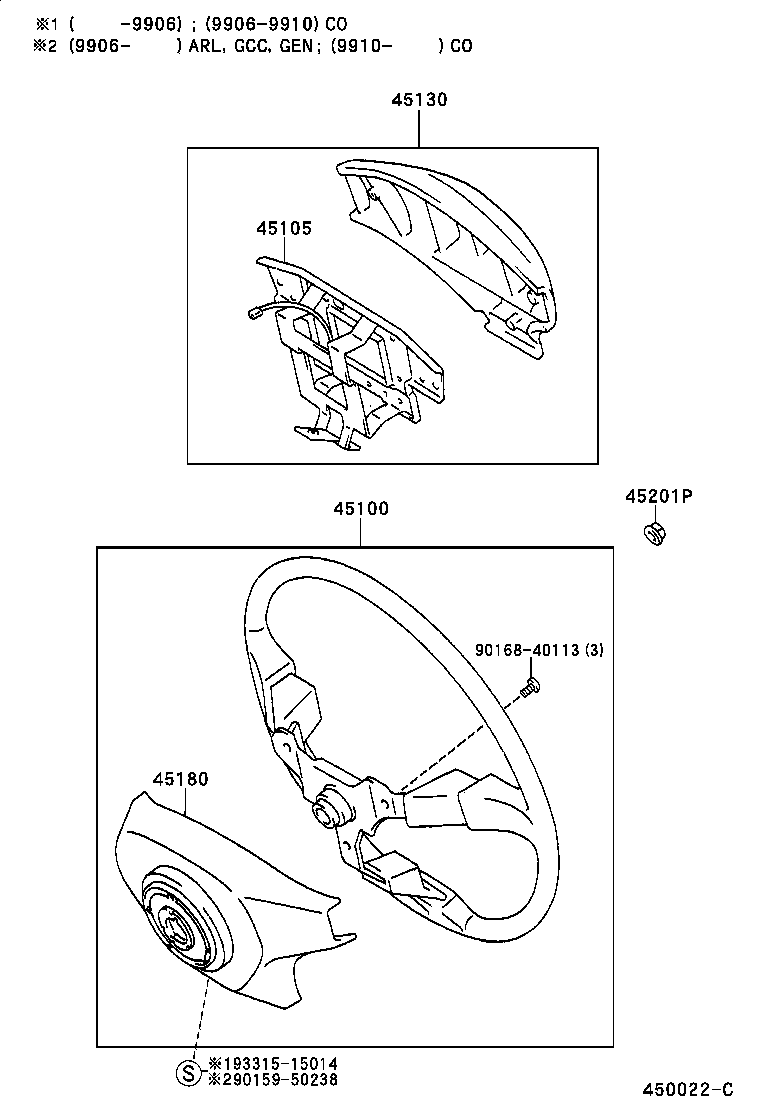

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45105 45130 45180 45201P 9015950238 9016840113 9331515014
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-60250B0

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)

3-SPOKE,URETHANE,MD.MOON MIST,TRIM1#

 1
45100-60250B0

VZJ95..ARL;VZJ95..MTM..GCC;KZJ9#,LJ95,RZJ9#,VZJ90..(GX,VX)..(ARL,CO,GCC,GEN)

3-SPOKE,URETHANE,MD.MOON MIST,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-30220

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)

 1
45105-30220

VZJ95..ARL;VZJ95..MTM..GCC;KZJ9#,LJ95,RZJ9#,VZJ90..(GX,VX)..(ARL,CO,GCC,GEN)

 1
45130 - BUTTON ASSY, HORN
45130-43010B1

VZJ95..ARL;VZJ95..MTM..GCC;KZJ9#,LJ95,RZJ9#,VZJ90..(GX,VX)..(ARL,CO,GCC,GEN)

W/O(*80),MD.MOON MIST,TRIM1#

 1
45130-43010B1

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)

W/O(*80),MD.MOON MIST,TRIM1#

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-60070B0

RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)

MD.MOON MIST,TRIM1#

 1
45180-60070B0

VZJ95..ARL;VZJ95..MTM..GCC;KZJ9#,LJ95,RZJ9#,VZJ90..(GX,VX)..(ARL,CO,GCC,GEN)

MD.MOON MIST,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
90179-12071

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
Common parts
90159-50238
90168-40113
93315-15014
