KZJ90L-GJMNX (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000
Engine 1KZT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )KZJ9#..GEN

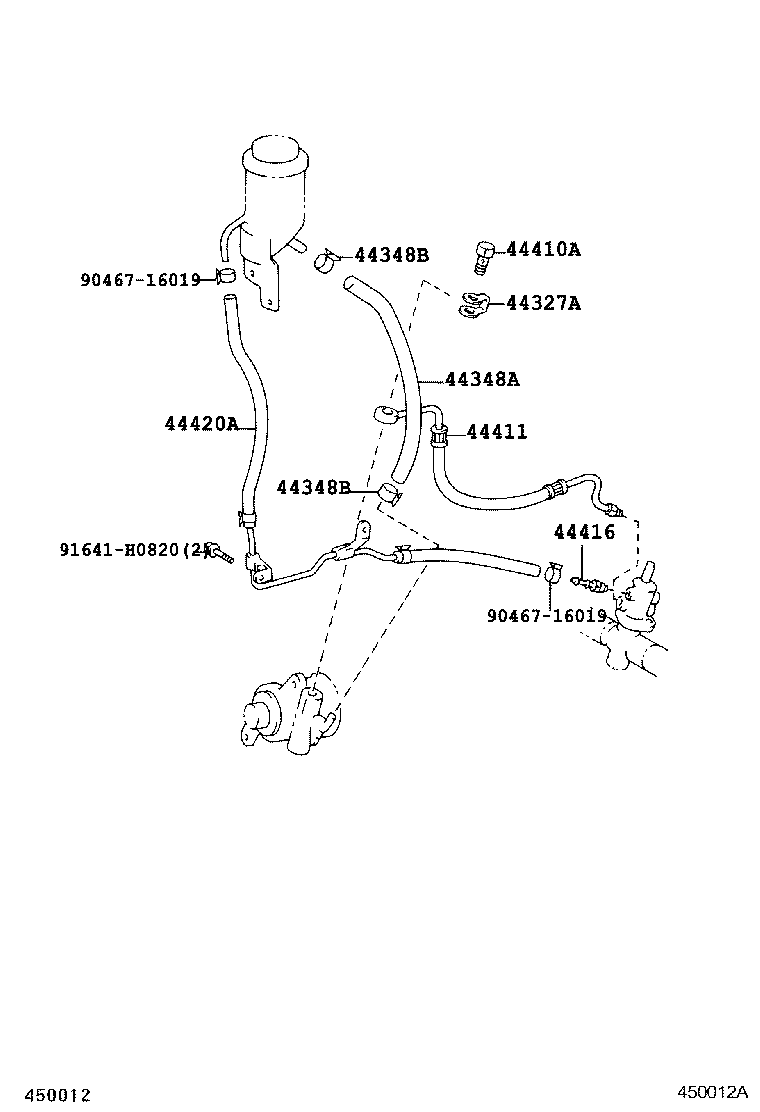

Click highlighted areas on diagram

diagram 44327A 44348A 44348B 44348B 44410A 44411 44416 44420A 9046716019 9046716019 91641H0820
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

KZJ9#,LJ9#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-35180

KZJ9#

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90467-21005

KZJ9#,LJ9#

 2
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90467-21005

KZJ9#,LJ9#

 2
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
96341-41603

KZJ9#,LJ9#

 1
96341-41603

KZJ9#..GEN

 1
44411 - HOSE, PRESSURE FEED
44411-35450

KZJ9#

 1
44411-35450

KZJ9#..GEN

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-42020

KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD

 1
44416-42020

KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..(GCC,GEN)

 1
44416-42020

RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD

 1
44420A - TUBE ASSY, RETURN
44420-35160

KZJ9#

 1
Common parts
90467-16019
91641-H0820
