KZJ90L-GJMNX (1996)
Toyota Land Cruiser 90

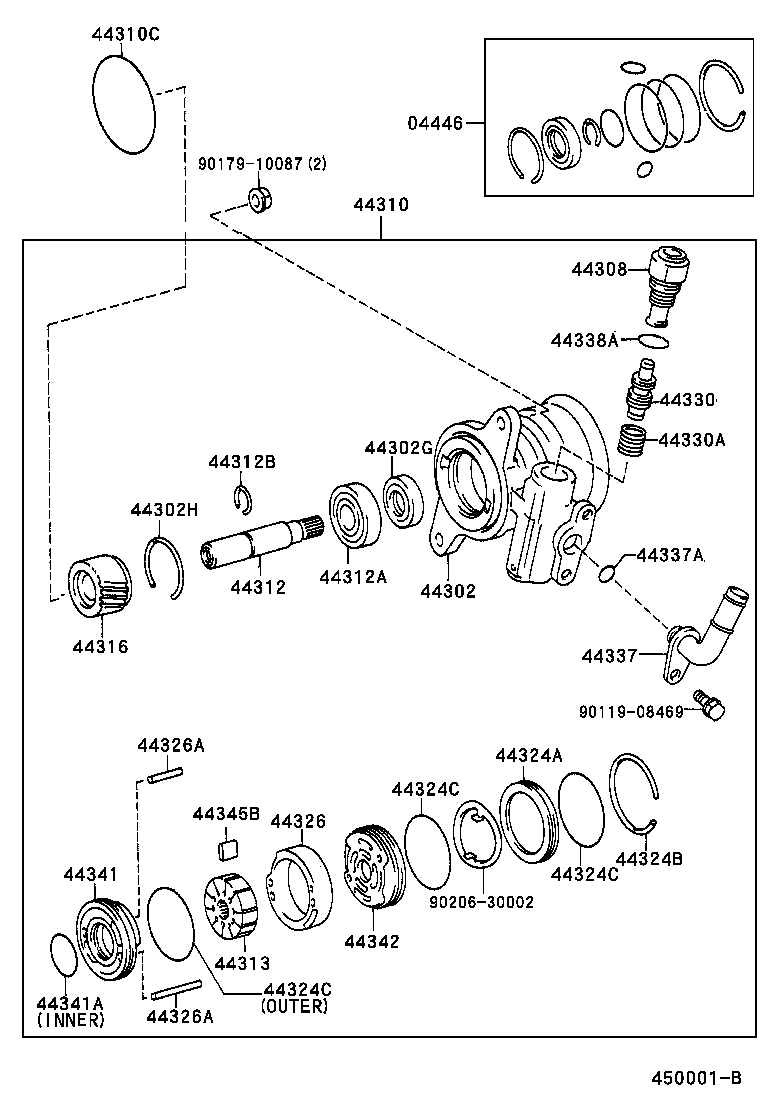

ILLUST NO. 1 OF 2(9604- )KZJ9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-26040 |
KZJ9# |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-26020 |
KZJ9# |
1 | ||
| 44302-26020 |
KZJ9#..GEN |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90316-17004 |
KZJ9# |
1 | ||
| 90316-17004 |
KZJ9#..GEN |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90520-38016 |
KZJ9# |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-60070 |
KZJ9# |
1 | ||
| 44308-60070 |
KZJ9#..GEN |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44310-35500 |
KZJ9# |
1 | ||
| 44310C - RING, O(FOR VANE PUMP) | ||||
| 90301-60002 |
KZJ9# |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-60020 |
KZJ9# |
1 | ||
| 44312-60020 |
KZJ9#..GEN |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90363-17016 |
KZJ9#..GEN |
1 | ||
| 90363-17016 |
KZJ9# |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-15005 |
KZJ9#,LJ9# |
1 | ||
| 90520-15005 |
KZJ9#..GEN |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-26090 |
RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,RZJ90,VZJ9#..(GX,VX)..(EFI,TD) MARK 3 |
1 | ||
| 44313-26080 |
RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,RZJ90,VZJ9#..(GX,VX)..(EFI,TD) MARK 2 |
1 | ||
| 44313-26080 |
KZJ9#..GEN MARK 2 |
1 | ||
| 44313-26060 |
KZJ9#..GEN NO MARK |
1 | ||
| 44313-26100 |
KZJ9#..GEN MARK 4 |
1 | ||
| 44313-26070 |
RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,RZJ90,VZJ9#..(GX,VX)..(EFI,TD) MARK 1 |
1 | ||
| 44313-26070 |
KZJ9#..GEN MARK 1 |
1 | ||
| 44313-26060 |
RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,RZJ90,VZJ9#..(GX,VX)..(EFI,TD) NO MARK |
1 | ||
| 44313-26100 |
RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,RZJ90,VZJ9#..(GX,VX)..(EFI,TD) MARK 4 |
1 | ||
| 44313-26090 |
KZJ9#..GEN MARK 3 |
1 | ||
| 44316 - GEAR, VANE PUMP | ||||
| 44316-60030 |
KZJ9# |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-60040 |
KZJ9# |
1 | ||
| 44324-60040 |
KZJ9#..GEN |
1 | ||
| 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) | ||||
| 90521-62002 |
KZJ9# |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90301-53006 |
KZJ9#..GEN |
3 | ||
| 90301-53006 |
KZJ9# |
3 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90301-53006 |
KZJ9#..GEN |
3 | ||
| 90301-53006 |
KZJ9# |
3 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90301-53006 |
KZJ9#..GEN |
3 | ||
| 90301-53006 |
KZJ9# |
3 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12280 |
KZJ9# MARK 1 |
1 | ||
| 44325-12290 |
KZJ9# MARK 2 |
1 | ||
| 44325-12300 |
KZJ9# MARK 3 |
1 | ||
| 44325-12310 |
KZJ9# MARK 4 |
1 | ||
| 44325-12290 |
KZJ9#..GEN MARK 2 |
1 | ||
| 44325-12300 |
KZJ9#..GEN MARK 3 |
1 | ||
| 44325-12310 |
KZJ9#..GEN MARK 4 |
1 | ||
| 44325-12270 |
KZJ9#..GEN NO MARK |
1 | ||
| 44325-12270 |
KZJ9# NO MARK |
1 | ||
| 44325-12280 |
KZJ9#..GEN MARK 1 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
KZJ9# L=43,OD=4.0 |
1 | ||
| 90250-04047 |
KZJ9# L=28,OD=4.0 |
1 | ||
| 90250-04047 |
KZJ9#..GEN L=28,OD=4.0 |
1 | ||
| 90250-04049 |
KZJ9#..GEN L=43,OD=4.0 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
KZJ9# L=43,OD=4.0 |
1 | ||
| 90250-04047 |
KZJ9# L=28,OD=4.0 |
1 | ||
| 90250-04047 |
KZJ9#..GEN L=28,OD=4.0 |
1 | ||
| 90250-04049 |
KZJ9#..GEN L=43,OD=4.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-26210 |
KZJ9# MARK C |
1 | ||
| 44330-26240 |
KZJ9# MARK F |
1 | ||
| 44330-26220 |
KZJ9# MARK D |
1 | ||
| 44330-26200 |
KZJ9# MARK B |
1 | ||
| 44330-26190 |
KZJ9# MARK A |
1 | ||
| 44330-26230 |
KZJ9# MARK E |
1 | ||
| 44330-26190 |
KZJ9#..GEN MARK A |
1 | ||
| 44330-26210 |
KZJ9#..GEN MARK C |
1 | ||
| 44330-26200 |
KZJ9#..GEN MARK B |
1 | ||
| 44330-26230 |
KZJ9#..GEN MARK E |
1 | ||
| 44330-26220 |
KZJ9#..GEN MARK D |
1 | ||
| 44330-26240 |
KZJ9#..GEN MARK F |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
KZJ9#,LJ9# |
1 | ||
| 90501-12103 |
KZJ9#..GEN |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-35060 |
KZJ9# |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11016 |
KZJ9# |
1 | ||
| 90301-11010 |
KZJ9# |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19018 |
KZJ9#..GEN ID=19.2,OD=22.3 |
1 | ||
| 90301-19003 |
KZJ9#,RZJ9#,VZJ9# ID=19.5,OD=22.5 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-60010 |
KZJ9# |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-28005 |
KZJ9# |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-60020 |
KZJ9# |
1 | ||
| 44342-60020 |
KZJ9#..GEN |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-60010 |
KZJ9# L=15.000 |
10 | ||
| 44345-60040 |
KZJ9# L=14.994 |
10 | ||
| 44345-60030 |
KZJ9# L=14.996 |
10 | ||
| 44345-60050 |
KZJ9# L=14.992 |
10 | ||
| 44345-60010 |
KZJ9#..GEN L=15.000 |
10 | ||
| 44345-60020 |
KZJ9#..GEN L=14.998 |
10 | ||
| 44345-60020 |
KZJ9# L=14.998 |
10 | ||
| 44345-60040 |
KZJ9#..GEN L=14.994 |
10 | ||
| 44345-60030 |
KZJ9#..GEN L=14.996 |
10 | ||
| 44345-60050 |
KZJ9#..GEN L=14.992 |
10 | ||
| Common parts | ||||
| 90119-08469 | ||||
| 90179-10087 | ||||
| 90206-30002 | ||||

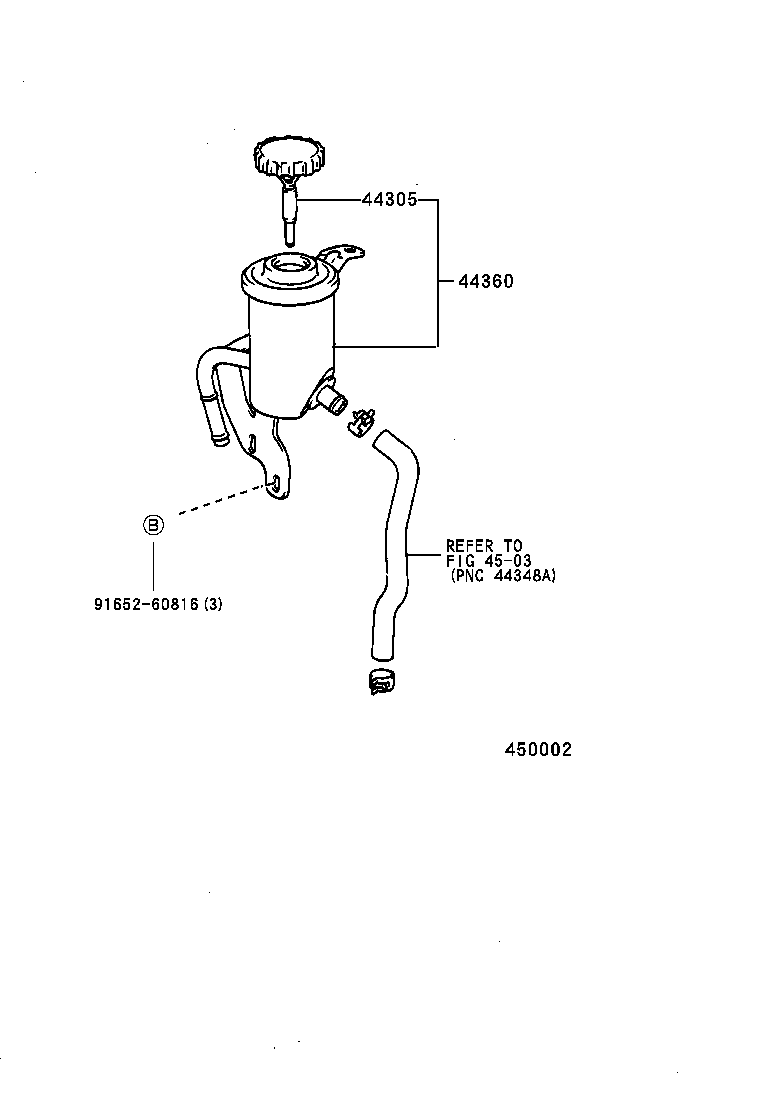

ILLUST NO. 2 OF 2(9604- )KZJ9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-24030 |
KZJ9# |
1 | ||
| 44305-24030 |
KZJ9#..GEN |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-35130 |
KZJ9# |
1 | ||
| Common parts | ||||
| 91652-60816 | ||||
| Linked diagrams | ||||
| 4503 | ||||
