KZJ90L-GJMNX (1996)
Toyota Land Cruiser 90
(9604-9801)GX,VX

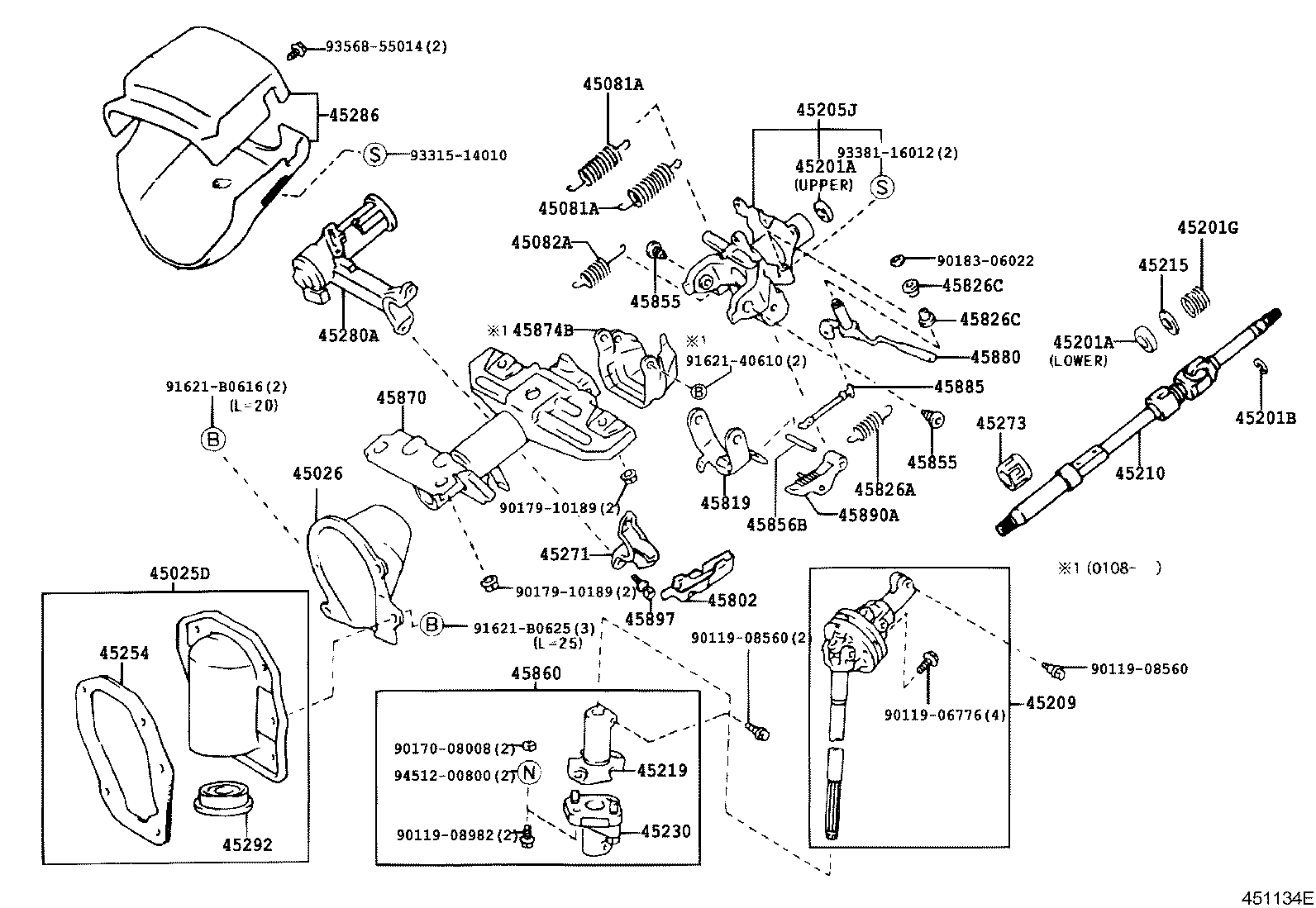

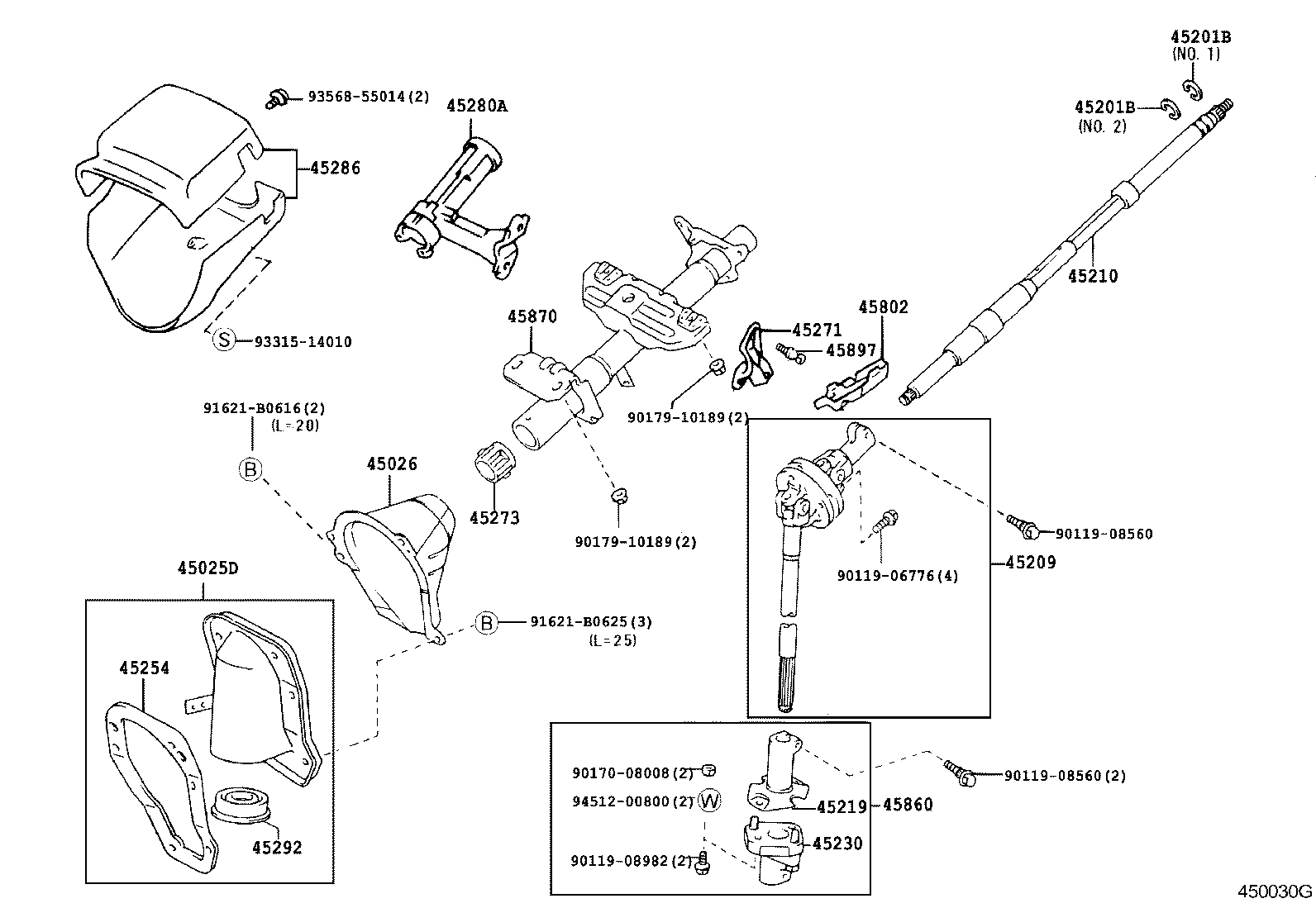

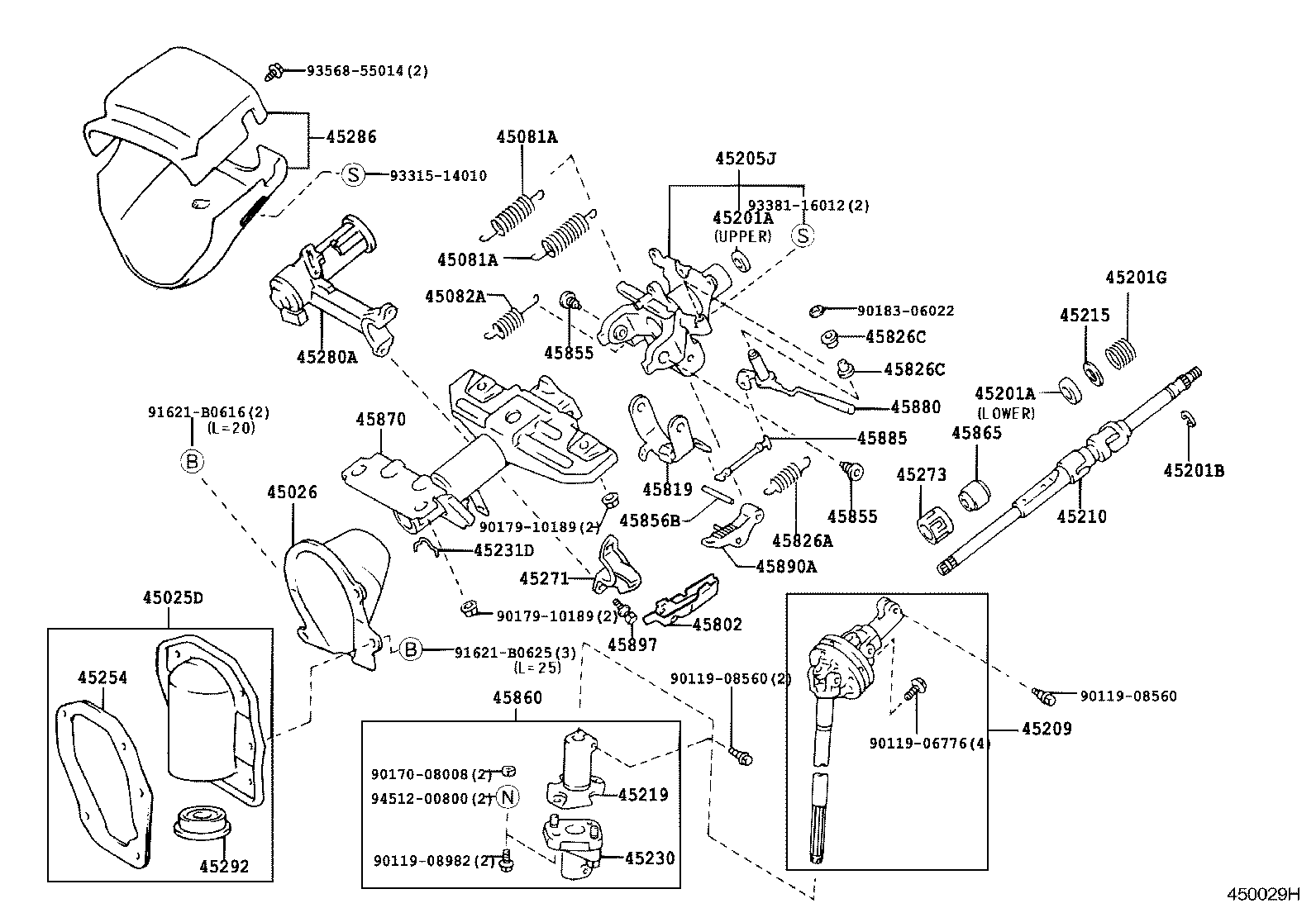

TILT STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-35290 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 45025-35350 |
KZJ9#..GEN |
1 | ||
| 45025-35350 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-35040 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD |
1 | ||
| 45026-35040 |
KZJ9#..GEN |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-25006 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
2 | ||
| 90506-25006 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
2 | ||
| 90506-25006 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
2 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-25006 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
2 | ||
| 90506-25006 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
2 | ||
| 90506-25006 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
2 | ||
| 45082A - SPRING, TORSION(FOR TILT STEERING RETURN) | ||||
| 90507-16024 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 90507-16024 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 90507-16024 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18011 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) LOWER |
1 | ||
| 90363-18011 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) LOWER |
1 | ||
| 90363-18009 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) UPPER |
1 | ||
| 90363-18009 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX UPPER |
1 | ||
| 90363-18009 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) UPPER |
1 | ||
| 90363-18011 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX LOWER |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18011 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) LOWER |
1 | ||
| 90363-18011 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) LOWER |
1 | ||
| 90363-18009 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) UPPER |
1 | ||
| 90363-18009 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX UPPER |
1 | ||
| 90363-18009 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) UPPER |
1 | ||
| 90363-18011 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX LOWER |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN T=1.20,NO.1 |
1 | ||
| 90520-17269 |
KZJ9#,LJ9#,RZJ9#..GEN T=1.20,NO.1 |
1 | ||
| 90520-17042 |
RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90 T=1.20,NO.2 |
1 | ||
| 90520-17269 |
RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90 T=1.20,NO.1 |
1 | ||
| 90520-17042 |
KZJ9#,LJ9#,RZJ9#..GEN T=1.20,NO.2 |
1 | ||
| 90520-17042 |
KZJ9#..GEN T=1.20,W(TILT STEERING) |
1 | ||
| 90520-17269 |
KZJ9#..GEN T=1.20,NO.1 |
1 | ||
| 90520-17042 |
KZJ9#..GEN T=1.20,NO.2 |
1 | ||
| 90520-17042 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) T=1.20,W(TILT STEERING) |
1 | ||
| 90520-17042 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN T=1.20,NO.2 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 90501-40017 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 90501-40017 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-35260 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45290-60040 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX W(TILT STEERING) |
1 | ||
| 45290-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX W(TILT STEERING) |
1 | ||
| 45290-60010 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 45290-60030 |
KZJ9#..GEN |
1 | ||
| 45290-60030 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 45290-60011 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 45290-60021 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX W(TILT STEERING) |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-35200 |
RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90 |
1 | ||
| 45210-35200 |
KZJ9#,LJ9#,RZJ9#..GEN |
1 | ||
| 45210-35200 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 45210-35210 |
KZJ9#,LJ95,RZJ9#..GX..GEN W(TILT STEERING) |
1 | ||
| 45210-35200 |
KZJ9#,LJ9#,RZJ9#..CO,GEN |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 45215-12010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 45215-12010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 45219 - YOKE, STEERING SLIDING | ||||
| 45209-35101 |
KZJ9#..GEN |
1 | ||
| 45209-35100 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-35090 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 45231D - RING, HOLE SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-01005 |
RZJ95..GX..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..GX,VX |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-35130 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD |
1 | ||
| 45254-35130 |
KZJ9#..GEN |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12070 |
RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90 |
1 | ||
| 45271-12070 |
KZJ9#,LJ9#,RZJ9#..GEN |
1 | ||
| 45271-12070 |
KZJ9#..GEN |
1 | ||
| 45271-12080 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) W(TILT STEERING) |
1 | ||
| 45271-12070 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 45271-12080 |
KZJ9#..GEN W(TILT STEERING) |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-16020 |
KZJ9#..GEN |
1 | ||
| 45273-16010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-60410 |
KZJ9#,LJ9#,RZJ9#..GEN |
1 | ||
| 45280-60410 |
KZJ9#..GEN |
1 | ||
| 45280-60410 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 45280-60420 |
KZJ9#..GEN W(TILT STEERING) |
1 | ||
| 45280-60410 |
RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90 |
1 | ||
| 45280-60420 |
KZJ9#,LJ95,RZJ9#,VZJ95..(GX,VX)..(ARL,CO,GEN) W(TILT STEERING) |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-60952B0 |
KZJ9#,LJ95,RZJ9#..LHD..GX W(TILT STEERING),MD.MOON MIST,TRIM1# |
1 | ||
| 45286-60951B0 |
KZJ9#,LJ9#,RZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 45286-60951B0 |
KZJ9#,LJ9#,RZJ9#..LHD..(CO,GEN) MD.MOON MIST,TRIM1# |
1 | ||
| 45286-60952E0 |
KZJ9#..GEN W(TILT STEERING),OAK,TRIM4# |
1 | ||
| 45286-60952B0 |
KZJ9#..GEN W(TILT STEERING),MD.MOON MIST,TRIM1# |
1 | ||
| 45286-60952B0 |
RZJ95..LHD..GX..CBR..GEN;KZJ9#,LJ95,RZJ90..LHD..GX W(TILT STEERING),MD.MOON MIST,TRIM1# |
1 | ||
| 45286-60951B0 |
KZJ9#..GEN MD.MOON MIST,TRIM1# |
1 | ||
| 45286-60951E0 |
KZJ9#..GEN OAK,TRIM4# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35080 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 45292-35090 |
KZJ9#..GEN |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-35010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 45819-35010 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 45819-35010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90905-07012 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 90905-07012 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 90905-07012 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90389-08120 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
2 | ||
| 90389-08120 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
2 | ||
| 90389-08120 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
2 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90389-08120 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
2 | ||
| 90389-08120 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
2 | ||
| 90389-08120 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
2 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-35010 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) OD=10 |
2 | ||
| 45855-35010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) OD=10 |
2 | ||
| 45855-35010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX OD=10 |
2 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-35010 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) OD=10 |
2 | ||
| 45855-35010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) OD=10 |
2 | ||
| 45855-35010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX OD=10 |
2 | ||
| 45856B - SHAFT, T1LT STEERING, NO.2 | ||||
| 45856-42010 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 45856-42010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 45856-42010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 45860 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45860-35171 |
KZJ9#..GEN |
1 | ||
| 45860-35170 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 45865 - COLLAR, STEERING MAIN SHAFT | ||||
| 45865-12050 |
RZJ95..GX..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..GX,VX |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-35320 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 45870-35340 |
VZJ95..ARL;KZJ9#,LJ95,RZJ9#..GX W(TILT STEERING) |
1 | ||
| 45870-35320 |
KZJ9#,LJ9#,RZJ9#..GEN |
1 | ||
| 45870-35320 |
KZJ9#..GEN |
1 | ||
| 45870-35320 |
RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90 |
1 | ||
| 45870-35360 |
KZJ9#..GEN W(TILT STEERING) |
1 | ||
| 45880 - LEVER ASSY, STEERING TILT | ||||
| 45880-60020 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 45880-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 45880-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 45885 - LINK, TILT LEVER | ||||
| 45885-35010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 45885-35010 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 45885-35010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-35010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 45890-35010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 45890-35010 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 45897-12020 |
KZJ9#..GEN |
2 | ||
| Common parts | ||||
| 90119-06776 | ||||
| 90119-08560 | ||||
| 90119-08982 | ||||
| 90170-08008 | ||||
| 90179-10189 | ||||
| 90183-06022 | ||||
| 91621-B0616 | ||||
| 91621-B0625 | ||||
| 93315-14010 | ||||
| 93381-16012 | ||||
| 93568-55014 | ||||
| 94512-00800 | ||||
(9604- )RZJ95..CBR ; (9604- )RZJ95..EFI..ARL,GEN ; (9604- )KZJ9#,LJ9#,RZJ9
RIGID STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-35290 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 45025-35350 |
KZJ9#..GEN |
1 | ||
| 45025-35350 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-35040 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD |
1 | ||
| 45026-35040 |
KZJ9#..GEN |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN T=1.20,NO.1 |
1 | ||
| 90520-17269 |
KZJ9#,LJ9#,RZJ9#..GEN T=1.20,NO.1 |
1 | ||
| 90520-17042 |
RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90 T=1.20,NO.2 |
1 | ||
| 90520-17269 |
RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90 T=1.20,NO.1 |
1 | ||
| 90520-17042 |
KZJ9#,LJ9#,RZJ9#..GEN T=1.20,NO.2 |
1 | ||
| 90520-17042 |
KZJ9#..GEN T=1.20,W(TILT STEERING) |
1 | ||
| 90520-17269 |
KZJ9#..GEN T=1.20,NO.1 |
1 | ||
| 90520-17042 |
KZJ9#..GEN T=1.20,NO.2 |
1 | ||
| 90520-17042 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) T=1.20,W(TILT STEERING) |
1 | ||
| 90520-17042 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN T=1.20,NO.2 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN T=1.20,NO.1 |
1 | ||
| 90520-17269 |
KZJ9#,LJ9#,RZJ9#..GEN T=1.20,NO.1 |
1 | ||
| 90520-17042 |
RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90 T=1.20,NO.2 |
1 | ||
| 90520-17269 |
RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90 T=1.20,NO.1 |
1 | ||
| 90520-17042 |
KZJ9#,LJ9#,RZJ9#..GEN T=1.20,NO.2 |
1 | ||
| 90520-17042 |
KZJ9#..GEN T=1.20,W(TILT STEERING) |
1 | ||
| 90520-17269 |
KZJ9#..GEN T=1.20,NO.1 |
1 | ||
| 90520-17042 |
KZJ9#..GEN T=1.20,NO.2 |
1 | ||
| 90520-17042 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) T=1.20,W(TILT STEERING) |
1 | ||
| 90520-17042 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN T=1.20,NO.2 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45290-60040 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX W(TILT STEERING) |
1 | ||
| 45290-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX W(TILT STEERING) |
1 | ||
| 45290-60010 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 45290-60030 |
KZJ9#..GEN |
1 | ||
| 45290-60030 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 45290-60011 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 45290-60021 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX W(TILT STEERING) |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-35200 |
RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90 |
1 | ||
| 45210-35200 |
KZJ9#,LJ9#,RZJ9#..GEN |
1 | ||
| 45210-35200 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 45210-35210 |
KZJ9#,LJ95,RZJ9#..GX..GEN W(TILT STEERING) |
1 | ||
| 45210-35200 |
KZJ9#,LJ9#,RZJ9#..CO,GEN |
1 | ||
| 45219 - YOKE, STEERING SLIDING | ||||
| 45209-35101 |
KZJ9#..GEN |
1 | ||
| 45209-35100 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-35090 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-35130 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD |
1 | ||
| 45254-35130 |
KZJ9#..GEN |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12070 |
RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90 |
1 | ||
| 45271-12070 |
KZJ9#,LJ9#,RZJ9#..GEN |
1 | ||
| 45271-12070 |
KZJ9#..GEN |
1 | ||
| 45271-12080 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) W(TILT STEERING) |
1 | ||
| 45271-12070 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 45271-12080 |
KZJ9#..GEN W(TILT STEERING) |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-16020 |
KZJ9#..GEN |
1 | ||
| 45273-16010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-60410 |
KZJ9#,LJ9#,RZJ9#..GEN |
1 | ||
| 45280-60410 |
KZJ9#..GEN |
1 | ||
| 45280-60410 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 45280-60420 |
KZJ9#..GEN W(TILT STEERING) |
1 | ||
| 45280-60410 |
RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90 |
1 | ||
| 45280-60420 |
KZJ9#,LJ95,RZJ9#,VZJ95..(GX,VX)..(ARL,CO,GEN) W(TILT STEERING) |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-60952B0 |
KZJ9#,LJ95,RZJ9#..LHD..GX W(TILT STEERING),MD.MOON MIST,TRIM1# |
1 | ||
| 45286-60951B0 |
KZJ9#,LJ9#,RZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 45286-60951B0 |
KZJ9#,LJ9#,RZJ9#..LHD..(CO,GEN) MD.MOON MIST,TRIM1# |
1 | ||
| 45286-60952E0 |
KZJ9#..GEN W(TILT STEERING),OAK,TRIM4# |
1 | ||
| 45286-60952B0 |
KZJ9#..GEN W(TILT STEERING),MD.MOON MIST,TRIM1# |
1 | ||
| 45286-60952B0 |
RZJ95..LHD..GX..CBR..GEN;KZJ9#,LJ95,RZJ90..LHD..GX W(TILT STEERING),MD.MOON MIST,TRIM1# |
1 | ||
| 45286-60951B0 |
KZJ9#..GEN MD.MOON MIST,TRIM1# |
1 | ||
| 45286-60951E0 |
KZJ9#..GEN OAK,TRIM4# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35080 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 45292-35090 |
KZJ9#..GEN |
1 | ||
| 45860 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45860-35171 |
KZJ9#..GEN |
1 | ||
| 45860-35170 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-35320 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 45870-35340 |
VZJ95..ARL;KZJ9#,LJ95,RZJ9#..GX W(TILT STEERING) |
1 | ||
| 45870-35320 |
KZJ9#,LJ9#,RZJ9#..GEN |
1 | ||
| 45870-35320 |
KZJ9#..GEN |
1 | ||
| 45870-35320 |
RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90 |
1 | ||
| 45870-35360 |
KZJ9#..GEN W(TILT STEERING) |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 45897-12020 |
KZJ9#..GEN |
2 | ||
| Common parts | ||||
| 90119-06776 | ||||
| 90119-08560 | ||||
| 90119-08982 | ||||
| 90170-08008 | ||||
| 90179-10189 | ||||
| 91621-B0616 | ||||
| 91621-B0625 | ||||
| 93315-14010 | ||||
| 93568-55014 | ||||
| 94512-00800 | ||||
(9801- )GX,VX
TILT STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-35290 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD |
1 | ||
| 45025-35350 |
KZJ9#..GEN |
1 | ||
| 45025-35350 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-35040 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD |
1 | ||
| 45026-35040 |
KZJ9#..GEN |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-25006 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
2 | ||
| 90506-25006 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
2 | ||
| 90506-25006 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
2 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-25006 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
2 | ||
| 90506-25006 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
2 | ||
| 90506-25006 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
2 | ||
| 45082A - SPRING, TORSION(FOR TILT STEERING RETURN) | ||||
| 90507-16024 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 90507-16024 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 90507-16024 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18011 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) LOWER |
1 | ||
| 90363-18011 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) LOWER |
1 | ||
| 90363-18009 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) UPPER |
1 | ||
| 90363-18009 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX UPPER |
1 | ||
| 90363-18009 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) UPPER |
1 | ||
| 90363-18011 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX LOWER |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18011 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) LOWER |
1 | ||
| 90363-18011 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) LOWER |
1 | ||
| 90363-18009 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) UPPER |
1 | ||
| 90363-18009 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX UPPER |
1 | ||
| 90363-18009 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) UPPER |
1 | ||
| 90363-18011 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX LOWER |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN T=1.20,NO.1 |
1 | ||
| 90520-17269 |
KZJ9#,LJ9#,RZJ9#..GEN T=1.20,NO.1 |
1 | ||
| 90520-17042 |
RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90 T=1.20,NO.2 |
1 | ||
| 90520-17269 |
RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90 T=1.20,NO.1 |
1 | ||
| 90520-17042 |
KZJ9#,LJ9#,RZJ9#..GEN T=1.20,NO.2 |
1 | ||
| 90520-17042 |
KZJ9#..GEN T=1.20,W(TILT STEERING) |
1 | ||
| 90520-17269 |
KZJ9#..GEN T=1.20,NO.1 |
1 | ||
| 90520-17042 |
KZJ9#..GEN T=1.20,NO.2 |
1 | ||
| 90520-17042 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) T=1.20,W(TILT STEERING) |
1 | ||
| 90520-17042 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN T=1.20,NO.2 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 90501-40017 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 90501-40017 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-35260 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45290-60040 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX W(TILT STEERING) |
1 | ||
| 45290-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX W(TILT STEERING) |
1 | ||
| 45290-60010 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 45290-60030 |
KZJ9#..GEN |
1 | ||
| 45290-60030 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 45290-60011 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 45290-60021 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX W(TILT STEERING) |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-35200 |
RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90 |
1 | ||
| 45210-35200 |
KZJ9#,LJ9#,RZJ9#..GEN |
1 | ||
| 45210-35200 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 45210-35210 |
KZJ9#,LJ95,RZJ9#..GX..GEN W(TILT STEERING) |
1 | ||
| 45210-35200 |
KZJ9#,LJ9#,RZJ9#..CO,GEN |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 45215-12010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 45215-12010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 45219 - YOKE, STEERING SLIDING | ||||
| 45209-35101 |
KZJ9#..GEN |
1 | ||
| 45209-35100 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-35090 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-35130 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD |
1 | ||
| 45254-35130 |
KZJ9#..GEN |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12070 |
RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90 |
1 | ||
| 45271-12070 |
KZJ9#,LJ9#,RZJ9#..GEN |
1 | ||
| 45271-12070 |
KZJ9#..GEN |
1 | ||
| 45271-12080 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) W(TILT STEERING) |
1 | ||
| 45271-12070 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 45271-12080 |
KZJ9#..GEN W(TILT STEERING) |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-16020 |
KZJ9#..GEN |
1 | ||
| 45273-16010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-60410 |
KZJ9#,LJ9#,RZJ9#..GEN |
1 | ||
| 45280-60410 |
KZJ9#..GEN |
1 | ||
| 45280-60410 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 45280-60420 |
KZJ9#..GEN W(TILT STEERING) |
1 | ||
| 45280-60410 |
RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90 |
1 | ||
| 45280-60420 |
KZJ9#,LJ95,RZJ9#,VZJ95..(GX,VX)..(ARL,CO,GEN) W(TILT STEERING) |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-60952B0 |
KZJ9#,LJ95,RZJ9#..LHD..GX W(TILT STEERING),MD.MOON MIST,TRIM1# |
1 | ||
| 45286-60951B0 |
KZJ9#,LJ9#,RZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 45286-60951B0 |
KZJ9#,LJ9#,RZJ9#..LHD..(CO,GEN) MD.MOON MIST,TRIM1# |
1 | ||
| 45286-60952E0 |
KZJ9#..GEN W(TILT STEERING),OAK,TRIM4# |
1 | ||
| 45286-60952B0 |
KZJ9#..GEN W(TILT STEERING),MD.MOON MIST,TRIM1# |
1 | ||
| 45286-60952B0 |
RZJ95..LHD..GX..CBR..GEN;KZJ9#,LJ95,RZJ90..LHD..GX W(TILT STEERING),MD.MOON MIST,TRIM1# |
1 | ||
| 45286-60951B0 |
KZJ9#..GEN MD.MOON MIST,TRIM1# |
1 | ||
| 45286-60951E0 |
KZJ9#..GEN OAK,TRIM4# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35080 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 45292-35090 |
KZJ9#..GEN |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-35010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 45819-35010 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 45819-35010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90905-07012 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 90905-07012 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 90905-07012 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90389-08120 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
2 | ||
| 90389-08120 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
2 | ||
| 90389-08120 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
2 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90389-08120 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
2 | ||
| 90389-08120 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
2 | ||
| 90389-08120 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
2 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-35010 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) OD=10 |
2 | ||
| 45855-35010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) OD=10 |
2 | ||
| 45855-35010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX OD=10 |
2 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-35010 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) OD=10 |
2 | ||
| 45855-35010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) OD=10 |
2 | ||
| 45855-35010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX OD=10 |
2 | ||
| 45856B - SHAFT, T1LT STEERING, NO.2 | ||||
| 45856-42010 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 45856-42010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 45856-42010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 45860 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45860-35171 |
KZJ9#..GEN |
1 | ||
| 45860-35170 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-35320 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 45870-35340 |
VZJ95..ARL;KZJ9#,LJ95,RZJ9#..GX W(TILT STEERING) |
1 | ||
| 45870-35320 |
KZJ9#,LJ9#,RZJ9#..GEN |
1 | ||
| 45870-35320 |
KZJ9#..GEN |
1 | ||
| 45870-35320 |
RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90 |
1 | ||
| 45870-35360 |
KZJ9#..GEN W(TILT STEERING) |
1 | ||
| 45880 - LEVER ASSY, STEERING TILT | ||||
| 45880-60020 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 45880-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 45880-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 45885 - LINK, TILT LEVER | ||||
| 45885-35010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 45885-35010 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 45885-35010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-35010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 45890-35010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 45890-35010 |
RZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 45897-12020 |
KZJ9#..GEN |
2 | ||
| Common parts | ||||
| 90119-06776 | ||||
| 90119-08560 | ||||
| 90119-08982 | ||||
| 90170-08008 | ||||
| 90179-10189 | ||||
| 90183-06022 | ||||
| 91621-40610 | ||||
| 91621-B0616 | ||||
| 91621-B0625 | ||||
| 93315-14010 | ||||
| 93381-16012 | ||||
| 93568-55014 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
