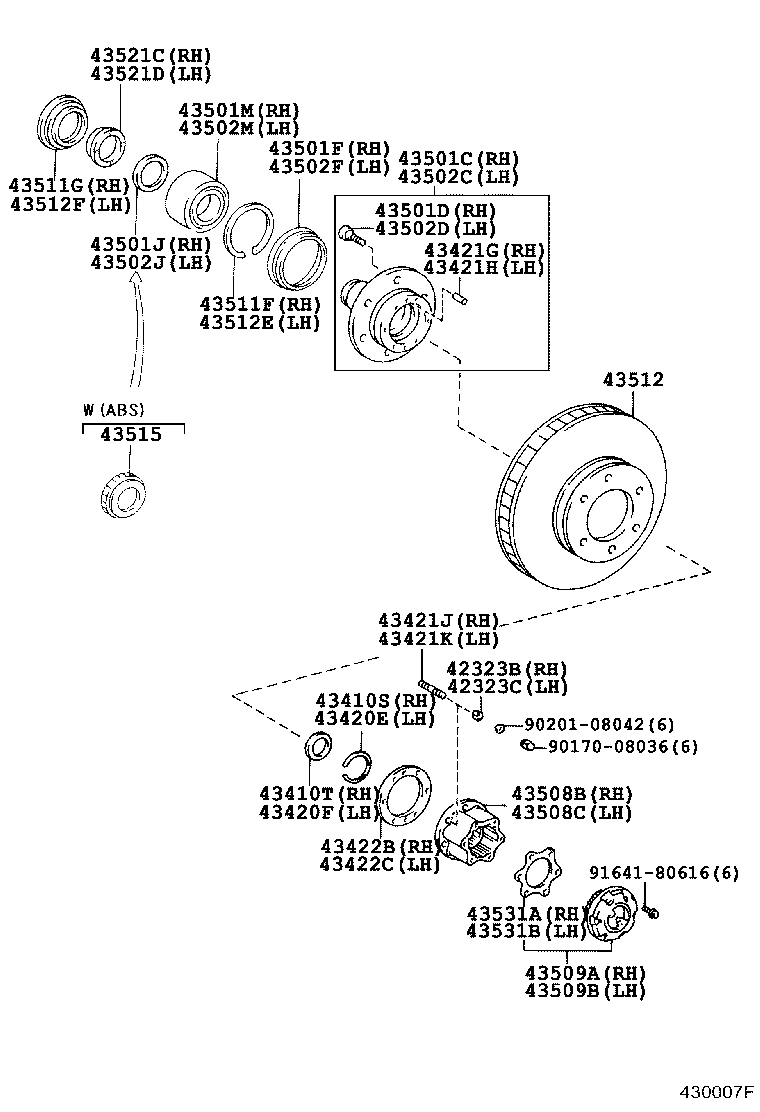

KZJ90L-GJMNX (1996)
Toyota Land Cruiser 90
(9604-0001)GX,STD..GCC,GEN,MA ; (0001- )MTM..GCC,GEN,MA
W(MANUAL FREE WHEEL HUB)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42323B - WASHER, CONE (FOR FRONT AXLE SHAFT RH) | ||||
| 42323-60010 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
6 | ||
| 42323-60010 |
KZJ9#..GEN |
6 | ||
| 42323C - WASHER, CONE (FOR FRONT AXLE SHAFT LH) | ||||
| 42323-60010 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
6 | ||
| 42323-60010 |
KZJ9#..GEN |
6 | ||
| 43410S - RING, SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90520-27023 |
KZJ9#..GEN T=1.5 |
1 | ||
| 90520-27023 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN T=1.5 |
1 | ||
| 43410T - SPACER (FOR FRONT DRIVE SHAFT RH) | ||||
| 90560-27005 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN T=2.0 |
1 | ||
| 90560-27005 |
KZJ9#..GEN T=2.0 |
1 | ||
| 43420E - RING, SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90520-27023 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN T=1.5 |
1 | ||
| 90520-27023 |
KZJ9#..GEN T=1.5 |
1 | ||
| 43420F - SPACER (FOR FRONT DRIVE SHAFT LH) | ||||
| 90560-27005 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN T=2.0 |
1 | ||
| 90560-27005 |
KZJ9#..GEN T=2.0 |
1 | ||
| 43421G - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE RH) | ||||
| 90250-07057 |
KZJ9#..GEN |
1 | ||
| 90250-07057 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
2 | ||
| 43421H - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE LH) | ||||
| 90250-07057 |
KZJ9#,LJ9#,RZJ9#..MTM..(GCC,GEN,MA) |
1 | ||
| 90250-07057 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(GCC,GEN,MA) |
1 | ||
| 90250-07057 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
2 | ||
| 43421J - BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE RH) | ||||
| 90116-08383 |
KZJ9#..GEN |
6 | ||
| 90116-08383 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
6 | ||
| 43421K - BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE LH) | ||||
| 90116-08383 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
6 | ||
| 90116-08383 |
KZJ9#..GEN |
6 | ||
| 43422B - GASKET, FRONT AXLE OUTER SHAFT FLANGE, RH | ||||
| 43422-60060 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 43422-60060 |
KZJ9#..GEN |
1 | ||
| 43422C - GASKET, FRONT AXLE OUTER SHAFT FLANGE, LH | ||||
| 43422-60060 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 43422-60060 |
KZJ9#..GEN |
1 | ||
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43502-35170 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 43502-35160 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(MANUAL FREE WHEEL HUB) |
1 | ||
| 43502-35170 |
KZJ9#..GEN |
1 | ||
| 43502-35170 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 43502-35160 |
KZJ9#..GEN W(MANUAL FREE WHEEL HUB) |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02049 |
KZJ9#..GEN |
6 | ||
| 90942-02049 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
6 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90312-95001 |
KZJ9#..GEN |
1 | ||
| 90312-95001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 43501J - SPACER (FOR FRONT AXLE HUB RH) | ||||
| 90560-52001 |
RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 90560-52001 |
KZJ9#..GEN |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90369-54001 |
KZJ9#..GEN |
1 | ||
| 90369-54001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-35170 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 43502-35170 |
KZJ9#..GEN |
1 | ||
| 43502-35160 |
KZJ9#..GEN W(MANUAL FREE WHEEL HUB) |
1 | ||
| 43502-35160 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(MANUAL FREE WHEEL HUB) |
1 | ||
| 43502-35170 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02049 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
6 | ||
| 90942-02049 |
KZJ9#..GEN |
6 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90312-95001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90312-95001 |
KZJ9#..GEN |
1 | ||
| 43502J - SPACER (FOR FRONT AXLE HUB LH) | ||||
| 90560-52001 |
RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 90560-52001 |
KZJ9#..GEN |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90369-54001 |
KZJ9#..GEN |
1 | ||
| 90369-54001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 43508B - BODY SUB-ASSY, FREE WHEEL HUB, RH | ||||
| 43508-35040 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 43508-35040 |
KZJ9#..GEN |
1 | ||
| 43508C - BODY SUB-ASSY, FREE WHEEL HUB, LH | ||||
| 43508-35040 |
KZJ9#..GEN |
1 | ||
| 43508-35040 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 43509A - COVER SUB-ASSY, FREE WHEEL HUB, RH | ||||
| 43509-35040 |
KZJ9#..GEN |
1 | ||
| 43509-35040 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 43509B - COVER SUB-ASSY, FREE WHEEL HUB, LH | ||||
| 43509-35040 |
KZJ9#..GEN |
1 | ||
| 43509-35040 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 43511F - RING, HOLE SNAP (FOR FRONT AXLE HUB RH) | ||||
| 90521-99114 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90521-99114 |
KZJ9#..GEN |
1 | ||
| 43511G - SEAL, OIL (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90316-69001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90316-69001 |
KZJ9#..GEN |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-35210 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 43512-60120 |
KZJ9#,LJ9#,RZJ9#,VZJ95 |
2 | ||
| 43512E - RING, HOLE SNAP (FOR FRONT AXLE HUB LH) | ||||
| 90521-99114 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90521-99114 |
KZJ9#..GEN |
1 | ||
| 43512F - SEAL, OIL (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90316-69001 |
KZJ9#..GEN |
1 | ||
| 90316-69001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 43515 - ROTOR, SKID CONTROL, FRONT | ||||
| 43515-35010 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
2 | ||
| 43515-35010 |
RZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 43521C - NUT, FRONT WHEEL ADJUSTING, RH | ||||
| 43521-35010 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 43521-35010 |
KZJ9#..GEN |
1 | ||
| 43521D - NUT, FRONT WHEEL ADJUSTING, LH | ||||
| 43521-35010 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 43521-35010 |
KZJ9#..GEN |
1 | ||
| 43531A - GASKET, FREE WHEEL HUB, RH | ||||
| 43531-60010 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 43531-60010 |
KZJ9#..GEN |
1 | ||
| 43531B - GASKET, FREE WHEEL HUB, LH | ||||
| 43531-60010 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
1 | ||
| 43531-60010 |
KZJ9#..GEN |
1 | ||
| Common parts | ||||
| 90170-08036 | ||||
| 90201-08042 | ||||
| 91641-80616 | ||||

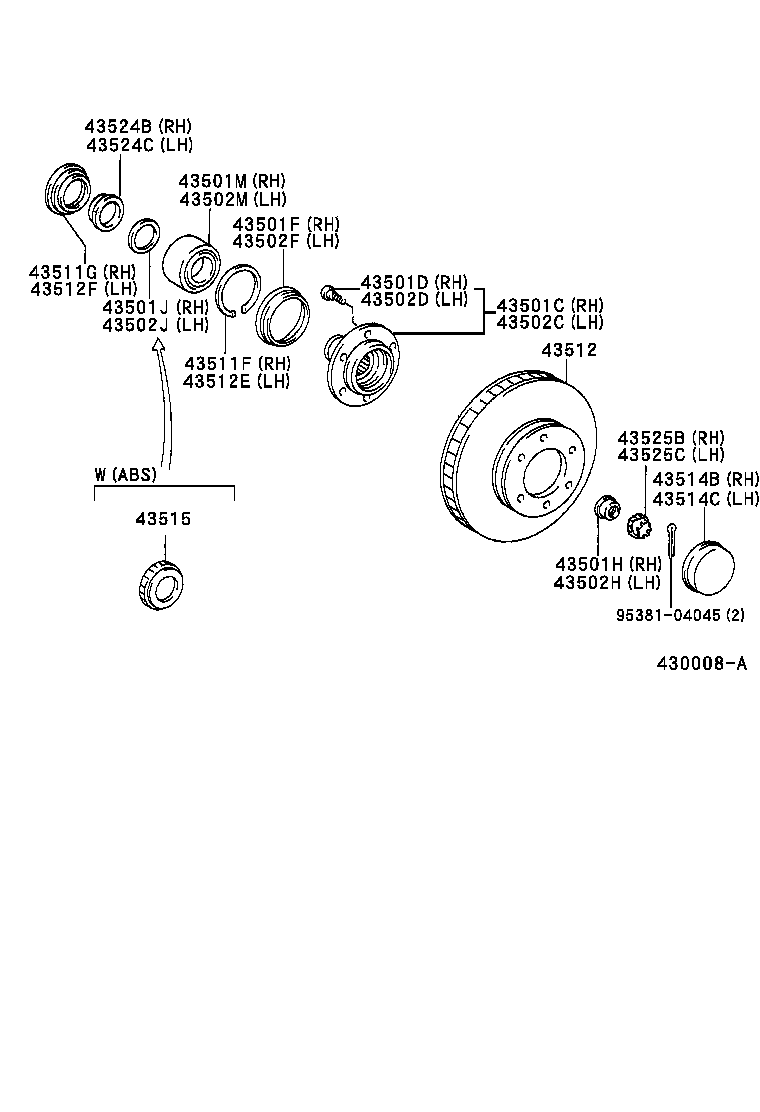

(9604- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43502-35160 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(MANUAL FREE WHEEL HUB) |
1 | ||
| 43502-35170 |
KZJ9#..GEN |
1 | ||
| 43502-35170 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 43502-35170 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 43502-35160 |
KZJ9#..GEN W(MANUAL FREE WHEEL HUB) |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02049 |
KZJ9#..GEN |
6 | ||
| 90942-02049 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
6 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90312-95001 |
KZJ9#..GEN |
1 | ||
| 90312-95001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90179-28007 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 90179-28007 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 43501J - SPACER (FOR FRONT AXLE HUB RH) | ||||
| 90560-52001 |
RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 90560-52001 |
KZJ9#..GEN |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90369-54001 |
KZJ9#..GEN |
1 | ||
| 90369-54001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-35170 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 43502-35170 |
KZJ9#..GEN |
1 | ||
| 43502-35160 |
KZJ9#..GEN W(MANUAL FREE WHEEL HUB) |
1 | ||
| 43502-35160 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(MANUAL FREE WHEEL HUB) |
1 | ||
| 43502-35170 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02049 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
6 | ||
| 90942-02049 |
KZJ9#..GEN |
6 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90312-95001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90312-95001 |
KZJ9#..GEN |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90179-28007 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 90179-28007 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 43502J - SPACER (FOR FRONT AXLE HUB LH) | ||||
| 90560-52001 |
RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 90560-52001 |
KZJ9#..GEN |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90369-54001 |
KZJ9#..GEN |
1 | ||
| 90369-54001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 43511F - RING, HOLE SNAP (FOR FRONT AXLE HUB RH) | ||||
| 90521-99114 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90521-99114 |
KZJ9#..GEN |
1 | ||
| 43511G - SEAL, OIL (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90316-69001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90316-69001 |
KZJ9#..GEN |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-35210 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 43512-60120 |
KZJ9#,LJ9#,RZJ9#,VZJ95 |
2 | ||
| 43512E - RING, HOLE SNAP (FOR FRONT AXLE HUB LH) | ||||
| 90521-99114 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90521-99114 |
KZJ9#..GEN |
1 | ||
| 43512F - SEAL, OIL (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90316-69001 |
KZJ9#..GEN |
1 | ||
| 90316-69001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-28010 |
KZJ9#..GEN |
1 | ||
| 43514-28010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 43514-28010 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-28010 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 43514-28010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 43514-28010 |
KZJ9#..GEN |
1 | ||
| 43515 - ROTOR, SKID CONTROL, FRONT | ||||
| 43515-35010 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
2 | ||
| 43515-35010 |
RZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 43524B - SPACER, FRONT WHEEL INNER BEARING, RH | ||||
| 43524-35010 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 43524-35010 |
KZJ9#..GEN |
1 | ||
| 43524-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 43524C - SPACER, FRONT WHEEL INNER BEARING, LH | ||||
| 43524-35010 |
KZJ9#..GEN |
1 | ||
| 43524-35010 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 43524-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 43525-35010 |
KZJ9#..GEN |
1 | ||
| 43525-35010 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-35010 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 43525-35010 |
KZJ9#..GEN |
1 | ||
| 43525-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| Common parts | ||||
| 95381-04045 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
