Toyota Land cruiser 90 KZJ90 DISC WHEEL & WHEEL CAP

KZJ90L-GJMNX (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000

Engine 1KZT

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

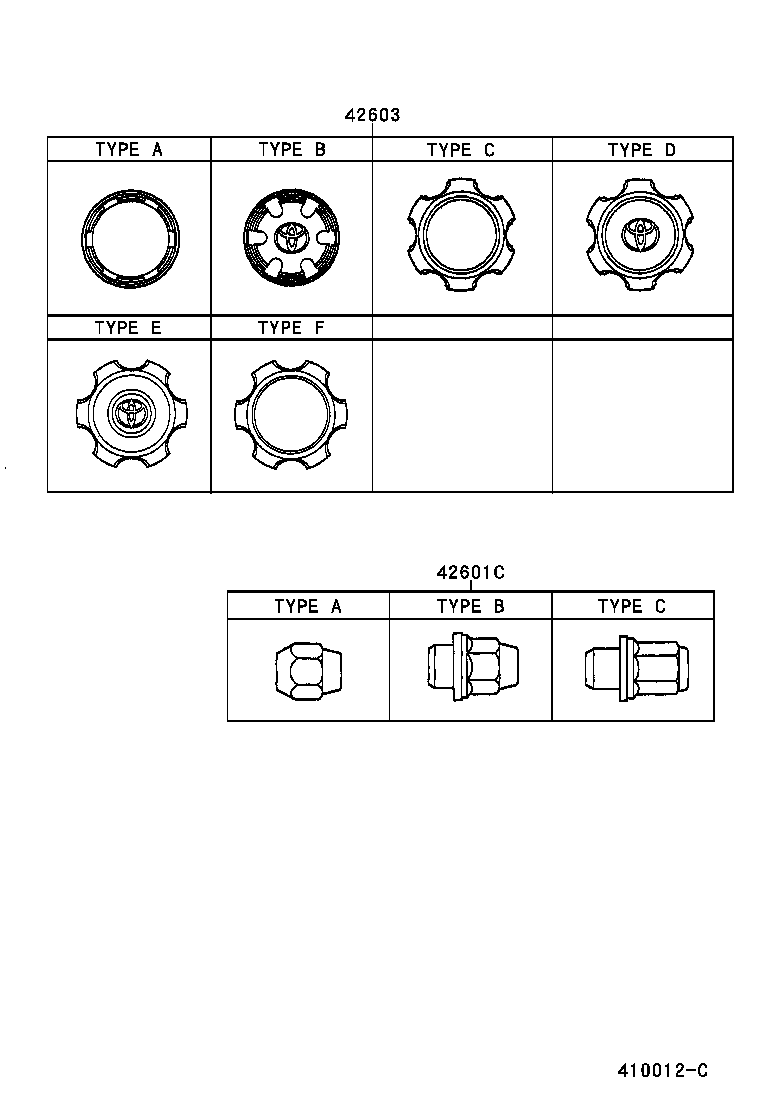

ILLUST NO. 3 OF 4(9604- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601C - NUT, HUB (FOR AXLE)
90942-01075	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) TYPE A:REFER TO ILLUSTRATION	04/1996 - 05/2000	24
90942-01077	RZJ95..ARL;RZJ95..GX..CBR;RZJ90..EFI..GEN;KZJ9#,LJ95,VZJ9#..GX,VX TYPE B:REFER TO ILLUSTRATION	07/1998 - 06/1999	24
90942-01077	KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX TYPE B:REFER TO ILLUSTRATION	04/1996 - 07/1998	24
90942-01075	VZJ95..ARL,GCC;KZJ9#,LJ9#,RZJ9#,VZJ90 TYPE A:REFER ILLUST.	06/1999 - 12/2999	24
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-35610	KZJ9#,LJ9#,RZJ9#,VZJ9# *STE,TYPE B:REFER TO ILLUSTRATION	04/1996 - 07/1998	4
42603-35630	KZJ9#,LJ95,RZJ9#..GX..(GCC,GEN) *ALU,TYPE D:REFER TO ILLUSTRATION,REAR	04/1996 - 07/1998	2
42603-35620	RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90..GX..GEN *ALU,TYPE C:REFER TO ILLUSTRATION,FRONT	07/1998 - 06/1999	2
42603-35630	RZJ95..ARL;RZJ95..GX..CBR;RZJ90..EFI..GEN;KZJ9#,LJ95,VZJ9#..GX,VX *ALU,TYPE D:REFER TO ILLUSTRATION	07/1998 - 06/1999	4
42603-35610	KZJ9#,LJ9#,RZJ9#..GCC,GEN *STE,TYPE B:REFER TO ILLUSTRATION,REAR	04/1996 - 06/1999	2
42603-35630	RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90..GX..GEN *ALU,TYPE D:REFER TO ILLUSTRATION,REAR	07/1998 - 06/1999	2
42603-35620	KZJ9#,LJ95,RZJ9#..GX..(GCC,GEN) *ALU,TYPE C:REFER TO ILLUSTRATION,FRONT	04/1996 - 07/1998	2
42603-35610	RZJ90..GX;RZJ9#..CBR;RZJ95..ARL;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD *STE,TYPE B:REFER TO ILLUSTRATION	07/1998 - 05/2000	4
42603-60370	KZJ9#,LJ95,RZJ9#..GX..(GCC,GEN) *ALU,TYPE E:REFER TO ILLUSTRATION, W(SINGLE TIRE)	06/1999 - 01/2000	2
42603-35600	KZJ9#,LJ9#,RZJ9#..GCC,GEN *STE,TYPE A:REFER TO ILLUSTRATION,FRONT	04/1996 - 06/1999	2
42603-35630	KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX *ALU,TYPE D:REFER TO ILLUSTRATION	04/1996 - 07/1998	4
42603-60370	KZJ9#,LJ95,RZJ9#..MTM..GX..(GCC,GEN) *ALU,TYPE E:REFER TO ILLUSTRATION	01/2000 - 08/2000	2
42603-60370	KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) *ALU,TYPE E:REFER TO ILLUSTRATION, FULL TIME 4WD	06/1999 - 08/2000	4
42603-35630	RZJ95..ARL;VZJ95..ATM..GCC;KZJ9#,LJ95,RZJ90,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GEN) *ALU,TYPE D:REFER TO ILLUSTRATION	06/1999 - 12/2999	4
42603-35610	RZJ95..VX;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..ARL,GCC,GEN *STE,TYPE B:REFER ILLUST.	06/1999 - 12/2999	4

ILLUST NO. 4 OF 4(9604- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90942-03083
90942-03084
90942-03085
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03167
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03223
90942-03224
90942-03225
90942-03360
90942-03361
90942-03362
90942-03363
90942-03364
90942-03365
90942-03366
90942-03367
90942-03368
90942-03369

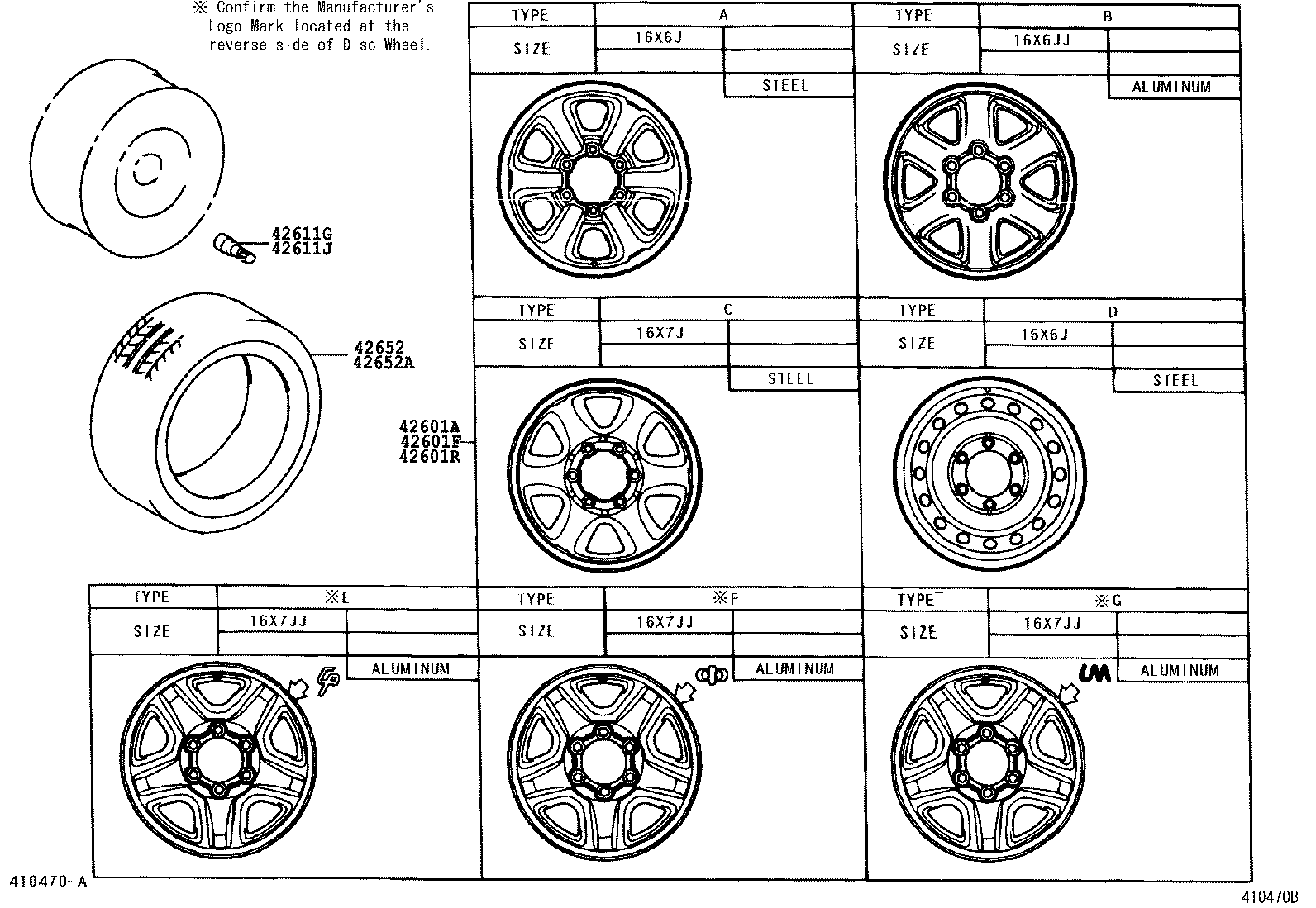

ILLUST NO. 1 OF 4(9604- )

Click highlighted areas on diagram

TYPE A TO TYPE G

Part #	Description	Period	Qty
42601A - WHEEL, DISC (FOR SPARE)
42601-60540	KZJ9#,LJ9#,RZJ9#,VZJ9# 16X6J,TYPE A:REFER TO ILLUSTRATION	04/1996 - 01/1998	1
42611-60140	RZJ95..ARL;RZJ95..GX..CBR;VZJ95..ATM..GCC;KZJ9#,LJ95,RZJ90,VZJ95..(GX,VX)..(ARL,GEN) 16X6JJ TOPY,TYPE B:REFER TO ILLUSTRATION	01/1998 - 07/1998	1
42611-0W020	KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX 16X7JJ CAPTIN,TYPE E:REFER TO ILLUSTRATION	04/1996 - 07/1998	1
42601-35740	KZJ9#,LJ9#,RZJ9#,VZJ9# 16X7J,#,TYPE C:REFER TO ILLUSTRATION	04/1996 - 07/1998	1
42601-60530	KZJ9#,LJ9#,RZJ9#..GEN 16X6JJ,OFFSET 30,TYPE D:REFER TO ILLUSTRATION	04/1996 - 06/1999	1
42611-60170	KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX 16X7JJ U-MOLD,TYPE G:REFER TO ILLUSTRATION	03/1997 - 07/1998	1
42601-60540	RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# 16X6J,TYPE A:REFER TO ILLUSTRATION	01/1998 - 06/1999	1
42611-60140	VZJ95..ARL;VZJ95..ATM..GCC;KZJ9#,LJ95,RZJ9#..GX 16X6JJ TOPY,TYPE B:REFER TO ILLUSTRATION	04/1996 - 01/1998	1
42611-60170	RZJ95..ARL;RZJ95..GX..CBR;RZJ90..EFI..GEN;KZJ9#,LJ95,VZJ9#..GX,VX 16X7JJ U-MOLD,TYPE G:REFER TO ILLUSTRATION	07/1998 - 12/1998	1
42611-60150	RZJ95..ARL;RZJ95..GX..CBR;RZJ90..EFI..GEN;KZJ9#,LJ95,VZJ9#..GX,VX 16X7JJ CHUO SEIKI,TYPE F:REFER TO ILLUSTRATION	07/1998 - 06/1999	1
42611-60150	KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX 16X7JJ CHUO SEIKI,TYPE F:REFER TO ILLUSTRATION	04/1996 - 07/1998	1
42601-35740	RZJ95..CBR;RZJ95,VZJ95..EFI..(ARL,CO,GCC);KZJ9#,LJ9#,RZJ90,VZJ90..GCC,GEN 16X7J,#,TYPE C:REFER TO ILLUSTRATION	07/1998 - 06/1999	1
42611-0W020	RZJ95..ARL;RZJ95..GX..CBR;RZJ90..EFI..GEN;KZJ9#,LJ95,VZJ9#..GX,VX 16X7JJ CAPTIN,TYPE E:REFER TO ILLUSTRATION	07/1998 - 06/1999	1
42611-60220	KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) 16X7JJ,TYPE H:REFER TO ILLUSTRATION	06/1999 - 08/2000	1
42601-60540	VZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..CO,GCC,GEN 16X6J,TYPE A:REFER ILLUST.	06/1999 - 12/2999	1
42601F - WHEEL, DISC (FOR FRONT)
42601-60540	KZJ9#,LJ9#,RZJ9#,VZJ9# 16X6J,TYPE A:REFER TO ILLUSTRATION	04/1996 - 01/1998	2
42601-35740	KZJ9#,LJ9#,RZJ9#,VZJ9# 16X7J,#,TYPE C:REFER TO ILLUSTRATION	04/1996 - 07/1998	2
42611-60150	KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX 16X7JJ CHUO SEIKI,TYPE F:REFER TO ILLUSTRATION	04/1996 - 07/1998	2
42611-60140	RZJ95..ARL;RZJ95..GX..CBR;VZJ95..ATM..GCC;KZJ9#,LJ95,RZJ90,VZJ95..(GX,VX)..(ARL,GEN) 16X6JJ TOPY,TYPE B:REFER TO ILLUSTRATION	01/1998 - 07/1998	2
42611-0W020	KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX 16X7JJ CAPTIN,TYPE E:REFER TO ILLUSTRATION	04/1996 - 07/1998	2
42611-0W020	RZJ95..ARL;RZJ95..GX..CBR;RZJ90..EFI..GEN;KZJ9#,LJ95,VZJ9#..GX,VX 16X7JJ CAPTIN,TYPE E:REFER TO ILLUSTRATION	07/1998 - 06/1999	2
42611-60170	KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX 16X7JJ U-MOLD,TYPE G:REFER TO ILLUSTRATION	03/1997 - 07/1998	2
42611-60220	KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) 16X7JJ,TYPE H:REFER TO ILLUSTRATION	06/1999 - 08/2000	2
42611-60170	RZJ95..ARL;RZJ95..GX..CBR;RZJ90..EFI..GEN;KZJ9#,LJ95,VZJ9#..GX,VX 16X7JJ U-MOLD,TYPE G:REFER TO ILLUSTRATION	07/1998 - 12/1998	2
42601-60530	KZJ9#,LJ9#,RZJ9#..GEN 16X6JJ,OFFSET 30,TYPE D:REFER TO ILLUSTRATION	04/1996 - 06/1999	2
42611-60140	VZJ95..ARL;VZJ95..ATM..GCC;KZJ9#,LJ95,RZJ9#..GX 16X6JJ TOPY,TYPE B:REFER TO ILLUSTRATION	04/1996 - 01/1998	2
42611-60150	RZJ95..ARL;RZJ95..GX..CBR;RZJ90..EFI..GEN;KZJ9#,LJ95,VZJ9#..GX,VX 16X7JJ CHUO SEIKI,TYPE F:REFER TO ILLUSTRATION	07/1998 - 06/1999	2
42601-60540	RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# 16X6J,TYPE A:REFER TO ILLUSTRATION	01/1998 - 06/1999	2
42601-35740	RZJ95..CBR;RZJ95,VZJ95..EFI..(ARL,CO,GCC);KZJ9#,LJ9#,RZJ90,VZJ90..GCC,GEN 16X7J,#,TYPE C:REFER TO ILLUSTRATION	07/1998 - 06/1999	2
42601-60540	VZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..CO,GCC,GEN 16X6J,TYPE A:REFER ILLUST.	06/1999 - 12/2999	2
42601R - WHEEL, DISC (FOR REAR)
42601-35740	KZJ9#,LJ9#,RZJ9#,VZJ9# 16X7J,#,TYPE C:REFER TO ILLUSTRATION	04/1996 - 07/1998	2
42601-60540	KZJ9#,LJ9#,RZJ9#,VZJ9# 16X6J,TYPE A:REFER TO ILLUSTRATION	04/1996 - 01/1998	2
42611-60170	RZJ95..ARL;RZJ95..GX..CBR;RZJ90..EFI..GEN;KZJ9#,LJ95,VZJ9#..GX,VX 16X7JJ U-MOLD,TYPE G:REFER TO ILLUSTRATION	07/1998 - 12/1998	2
42611-60150	KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX 16X7JJ CHUO SEIKI,TYPE F:REFER TO ILLUSTRATION	04/1996 - 07/1998	2
42611-60140	VZJ95..ARL;VZJ95..ATM..GCC;KZJ9#,LJ95,RZJ9#..GX 16X6JJ TOPY,TYPE B:REFER TO ILLUSTRATION	04/1996 - 01/1998	2
42601-60540	RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# 16X6J,TYPE A:REFER TO ILLUSTRATION	01/1998 - 06/1999	2
42611-60140	RZJ95..ARL;RZJ95..GX..CBR;VZJ95..ATM..GCC;KZJ9#,LJ95,RZJ90,VZJ95..(GX,VX)..(ARL,GEN) 16X6JJ TOPY,TYPE B:REFER TO ILLUSTRATION	01/1998 - 07/1998	2
42611-60170	KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX 16X7JJ U-MOLD,TYPE G:REFER TO ILLUSTRATION	03/1997 - 07/1998	2
42611-0W020	KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX 16X7JJ CAPTIN,TYPE E:REFER TO ILLUSTRATION	04/1996 - 07/1998	2
42601-60530	KZJ9#,LJ9#,RZJ9#..GEN 16X6JJ,OFFSET 30,TYPE D:REFER TO ILLUSTRATION	04/1996 - 06/1999	2
42611-0W020	RZJ95..ARL;RZJ95..GX..CBR;RZJ90..EFI..GEN;KZJ9#,LJ95,VZJ9#..GX,VX 16X7JJ CAPTIN,TYPE E:REFER TO ILLUSTRATION	07/1998 - 06/1999	2
42601-35740	RZJ95..CBR;RZJ95,VZJ95..EFI..(ARL,CO,GCC);KZJ9#,LJ9#,RZJ90,VZJ90..GCC,GEN 16X7J,#,TYPE C:REFER TO ILLUSTRATION	07/1998 - 06/1999	2
42611-60220	KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) 16X7JJ,TYPE H:REFER TO ILLUSTRATION	06/1999 - 08/2000	2
42601-60540	VZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..CO,GCC,GEN 16X6J,TYPE A:REFER ILLUST.	06/1999 - 12/2999	2
42611-60150	RZJ95..ARL;RZJ95..GX..CBR;RZJ90..EFI..GEN;KZJ9#,LJ95,VZJ9#..GX,VX 16X7JJ CHUO SEIKI,TYPE F:REFER TO ILLUSTRATION	07/1998 - 06/1999	2
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	4
90942-05009	KZJ9#..GEN	06/1999 - 08/2000	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	KZJ9#..GEN	06/1999 - 08/2000	1
90942-05009	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
42652 - TIRE
42652-60241	KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN 215/80R16,*B/S	04/1996 - 01/1998	4
42652-60350	KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN 215/80R16,*D/L	04/1996 - 01/1998	4
42652-35860	RZJ90..EFI..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..(GX,VX)..(CO,GCC,GEN) 265/70R16,*D/L	04/1996 - 06/1999	4
42605-6A450	VZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ9#..GCC,GEN 215/80R16,*D/L,W/TUB	04/1996 - 06/1999	4
42652-60350	RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN 215/80R16,*D/L	01/1998 - 06/1999	4
42605-6A460	KZJ9#,LJ9#,RZJ9#..GEN 265/70R16,*D/L,W/TUB	04/1996 - 07/1998	4
42652-60241	RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN 215/80R16,*B/S	01/1998 - 06/1999	4
42605-6A460	KZJ9#,LJ95,RZJ9#..GX..GEN 265/70R16,*D/L,W/TUB	06/1999 - 08/1999	4
42605-6A460	RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90..GEN 265/70R16,*D/L,W/TUB	07/1998 - 06/1999	4
42652-35870	RZJ90..GX..GEN;RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ95,VZJ9#..(GX,VX)..(CO,GCC,GEN) 265/70R16,*B/S	04/1996 - 10/1999	4
42652-60350	VZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..CO,GCC,GEN 215/80R16,*D/L	06/1999 - 12/1999	4
42652A - TIRE (FOR SPARE)
42652-60241	KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN 215/80R16,*B/S	04/1996 - 01/1998	1
42652-60350	KZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN 215/80R16,*D/L	04/1996 - 01/1998	1
42605-6A450	VZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ9#..GCC,GEN 215/80R16,*D/L,W/TUB	04/1996 - 06/1999	1
42652-60241	RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN 215/80R16,*B/S	01/1998 - 06/1999	1
42652-35870	RZJ90..GX..GEN;RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ95,VZJ9#..(GX,VX)..(CO,GCC,GEN) 265/70R16,*B/S	04/1996 - 10/1999	1
42605-6A460	KZJ9#,LJ9#,RZJ9#..GEN 265/70R16,*D/L,W/TUB	04/1996 - 07/1998	1
42605-6A460	KZJ9#,LJ95,RZJ9#..GX..GEN 265/70R16,*D/L,W/TUB	06/1999 - 08/1999	1
42605-6A460	RZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90..GEN 265/70R16,*D/L,W/TUB	07/1998 - 06/1999	1
42652-35860	RZJ90..EFI..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..(GX,VX)..(CO,GCC,GEN) 265/70R16,*D/L	04/1996 - 06/1999	1
42652-60350	VZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..CO,GCC,GEN 215/80R16,*D/L	06/1999 - 12/1999	1
42652-60350	RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN 215/80R16,*D/L	01/1998 - 06/1999	1

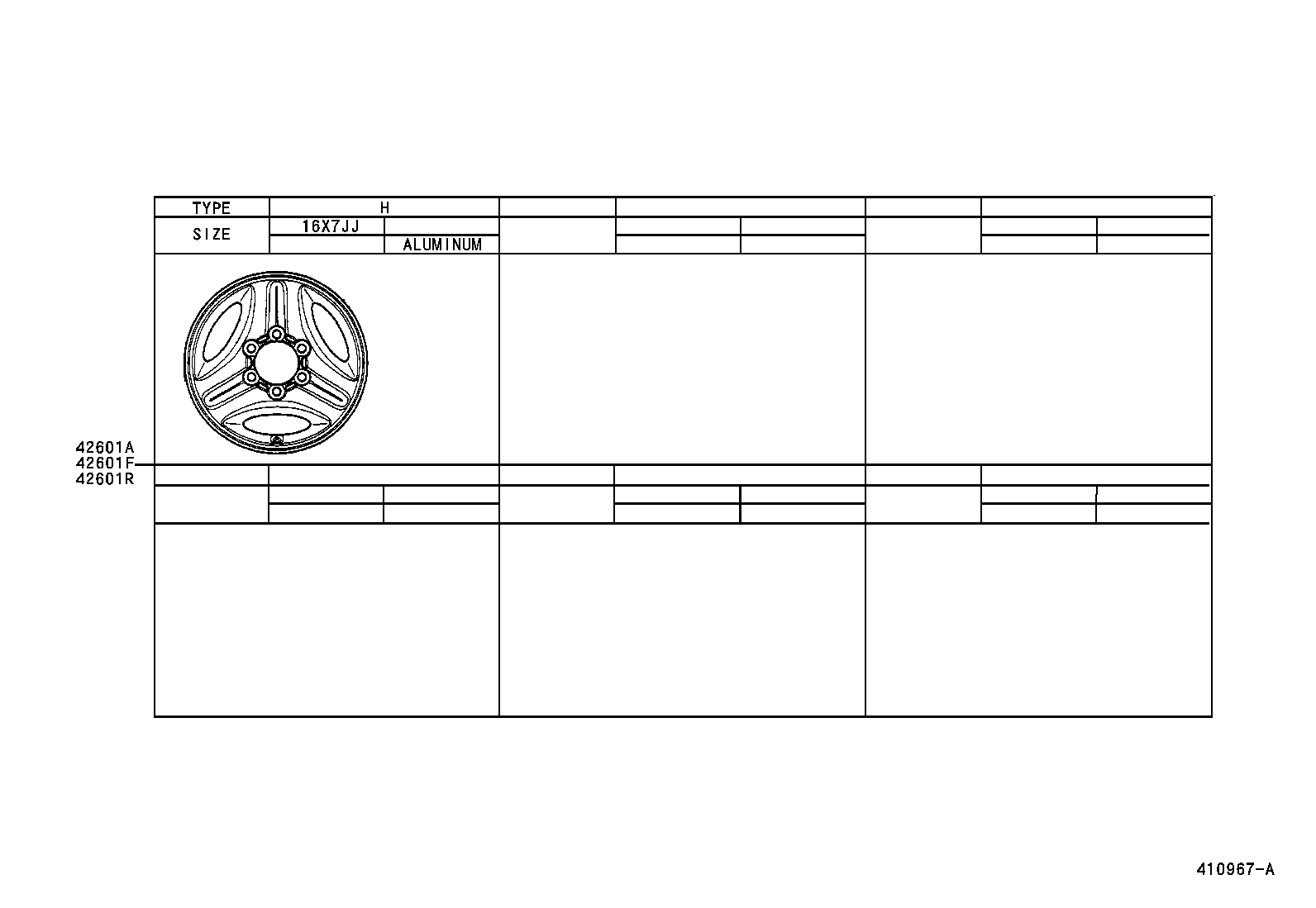

ILLUST NO. 2 OF 4(9906- )

Click highlighted areas on diagram

TYPE H

Part #	Description	Period	Qty
42601A - WHEEL, DISC (FOR SPARE)
42601-60540	KZJ9#,LJ9#,RZJ9#,VZJ9# 16X6J,TYPE A:REFER TO ILLUSTRATION	04/1996 - 01/1998	1
42611-60140	RZJ95..ARL;RZJ95..GX..CBR;VZJ95..ATM..GCC;KZJ9#,LJ95,RZJ90,VZJ95..(GX,VX)..(ARL,GEN) 16X6JJ TOPY,TYPE B:REFER TO ILLUSTRATION	01/1998 - 07/1998	1
42611-0W020	KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX 16X7JJ CAPTIN,TYPE E:REFER TO ILLUSTRATION	04/1996 - 07/1998	1
42601-35740	KZJ9#,LJ9#,RZJ9#,VZJ9# 16X7J,#,TYPE C:REFER TO ILLUSTRATION	04/1996 - 07/1998	1
42601-60530	KZJ9#,LJ9#,RZJ9#..GEN 16X6JJ,OFFSET 30,TYPE D:REFER TO ILLUSTRATION	04/1996 - 06/1999	1
42611-60170	KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX 16X7JJ U-MOLD,TYPE G:REFER TO ILLUSTRATION	03/1997 - 07/1998	1
42601-60540	RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# 16X6J,TYPE A:REFER TO ILLUSTRATION	01/1998 - 06/1999	1
42611-60140	VZJ95..ARL;VZJ95..ATM..GCC;KZJ9#,LJ95,RZJ9#..GX 16X6JJ TOPY,TYPE B:REFER TO ILLUSTRATION	04/1996 - 01/1998	1
42611-60170	RZJ95..ARL;RZJ95..GX..CBR;RZJ90..EFI..GEN;KZJ9#,LJ95,VZJ9#..GX,VX 16X7JJ U-MOLD,TYPE G:REFER TO ILLUSTRATION	07/1998 - 12/1998	1
42611-60150	RZJ95..ARL;RZJ95..GX..CBR;RZJ90..EFI..GEN;KZJ9#,LJ95,VZJ9#..GX,VX 16X7JJ CHUO SEIKI,TYPE F:REFER TO ILLUSTRATION	07/1998 - 06/1999	1
42611-60150	KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX 16X7JJ CHUO SEIKI,TYPE F:REFER TO ILLUSTRATION	04/1996 - 07/1998	1
42601-35740	RZJ95..CBR;RZJ95,VZJ95..EFI..(ARL,CO,GCC);KZJ9#,LJ9#,RZJ90,VZJ90..GCC,GEN 16X7J,#,TYPE C:REFER TO ILLUSTRATION	07/1998 - 06/1999	1
42611-0W020	RZJ95..ARL;RZJ95..GX..CBR;RZJ90..EFI..GEN;KZJ9#,LJ95,VZJ9#..GX,VX 16X7JJ CAPTIN,TYPE E:REFER TO ILLUSTRATION	07/1998 - 06/1999	1
42611-60220	KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) 16X7JJ,TYPE H:REFER TO ILLUSTRATION	06/1999 - 08/2000	1
42601-60540	VZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..CO,GCC,GEN 16X6J,TYPE A:REFER ILLUST.	06/1999 - 12/2999	1
42601F - WHEEL, DISC (FOR FRONT)
42601-60540	KZJ9#,LJ9#,RZJ9#,VZJ9# 16X6J,TYPE A:REFER TO ILLUSTRATION	04/1996 - 01/1998	2
42601-35740	KZJ9#,LJ9#,RZJ9#,VZJ9# 16X7J,#,TYPE C:REFER TO ILLUSTRATION	04/1996 - 07/1998	2
42611-60150	KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX 16X7JJ CHUO SEIKI,TYPE F:REFER TO ILLUSTRATION	04/1996 - 07/1998	2
42611-60140	RZJ95..ARL;RZJ95..GX..CBR;VZJ95..ATM..GCC;KZJ9#,LJ95,RZJ90,VZJ95..(GX,VX)..(ARL,GEN) 16X6JJ TOPY,TYPE B:REFER TO ILLUSTRATION	01/1998 - 07/1998	2
42611-0W020	KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX 16X7JJ CAPTIN,TYPE E:REFER TO ILLUSTRATION	04/1996 - 07/1998	2
42611-0W020	RZJ95..ARL;RZJ95..GX..CBR;RZJ90..EFI..GEN;KZJ9#,LJ95,VZJ9#..GX,VX 16X7JJ CAPTIN,TYPE E:REFER TO ILLUSTRATION	07/1998 - 06/1999	2
42611-60170	KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX 16X7JJ U-MOLD,TYPE G:REFER TO ILLUSTRATION	03/1997 - 07/1998	2
42611-60220	KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) 16X7JJ,TYPE H:REFER TO ILLUSTRATION	06/1999 - 08/2000	2
42611-60170	RZJ95..ARL;RZJ95..GX..CBR;RZJ90..EFI..GEN;KZJ9#,LJ95,VZJ9#..GX,VX 16X7JJ U-MOLD,TYPE G:REFER TO ILLUSTRATION	07/1998 - 12/1998	2
42601-60530	KZJ9#,LJ9#,RZJ9#..GEN 16X6JJ,OFFSET 30,TYPE D:REFER TO ILLUSTRATION	04/1996 - 06/1999	2
42611-60140	VZJ95..ARL;VZJ95..ATM..GCC;KZJ9#,LJ95,RZJ9#..GX 16X6JJ TOPY,TYPE B:REFER TO ILLUSTRATION	04/1996 - 01/1998	2
42611-60150	RZJ95..ARL;RZJ95..GX..CBR;RZJ90..EFI..GEN;KZJ9#,LJ95,VZJ9#..GX,VX 16X7JJ CHUO SEIKI,TYPE F:REFER TO ILLUSTRATION	07/1998 - 06/1999	2
42601-60540	RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# 16X6J,TYPE A:REFER TO ILLUSTRATION	01/1998 - 06/1999	2
42601-35740	RZJ95..CBR;RZJ95,VZJ95..EFI..(ARL,CO,GCC);KZJ9#,LJ9#,RZJ90,VZJ90..GCC,GEN 16X7J,#,TYPE C:REFER TO ILLUSTRATION	07/1998 - 06/1999	2
42601-60540	VZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..CO,GCC,GEN 16X6J,TYPE A:REFER ILLUST.	06/1999 - 12/2999	2
42601R - WHEEL, DISC (FOR REAR)
42601-35740	KZJ9#,LJ9#,RZJ9#,VZJ9# 16X7J,#,TYPE C:REFER TO ILLUSTRATION	04/1996 - 07/1998	2
42601-60540	KZJ9#,LJ9#,RZJ9#,VZJ9# 16X6J,TYPE A:REFER TO ILLUSTRATION	04/1996 - 01/1998	2
42611-60170	RZJ95..ARL;RZJ95..GX..CBR;RZJ90..EFI..GEN;KZJ9#,LJ95,VZJ9#..GX,VX 16X7JJ U-MOLD,TYPE G:REFER TO ILLUSTRATION	07/1998 - 12/1998	2
42611-60150	KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX 16X7JJ CHUO SEIKI,TYPE F:REFER TO ILLUSTRATION	04/1996 - 07/1998	2
42611-60140	VZJ95..ARL;VZJ95..ATM..GCC;KZJ9#,LJ95,RZJ9#..GX 16X6JJ TOPY,TYPE B:REFER TO ILLUSTRATION	04/1996 - 01/1998	2
42601-60540	RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# 16X6J,TYPE A:REFER TO ILLUSTRATION	01/1998 - 06/1999	2
42611-60140	RZJ95..ARL;RZJ95..GX..CBR;VZJ95..ATM..GCC;KZJ9#,LJ95,RZJ90,VZJ95..(GX,VX)..(ARL,GEN) 16X6JJ TOPY,TYPE B:REFER TO ILLUSTRATION	01/1998 - 07/1998	2
42611-60170	KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX 16X7JJ U-MOLD,TYPE G:REFER TO ILLUSTRATION	03/1997 - 07/1998	2
42611-0W020	KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX 16X7JJ CAPTIN,TYPE E:REFER TO ILLUSTRATION	04/1996 - 07/1998	2
42601-60530	KZJ9#,LJ9#,RZJ9#..GEN 16X6JJ,OFFSET 30,TYPE D:REFER TO ILLUSTRATION	04/1996 - 06/1999	2
42611-0W020	RZJ95..ARL;RZJ95..GX..CBR;RZJ90..EFI..GEN;KZJ9#,LJ95,VZJ9#..GX,VX 16X7JJ CAPTIN,TYPE E:REFER TO ILLUSTRATION	07/1998 - 06/1999	2
42601-35740	RZJ95..CBR;RZJ95,VZJ95..EFI..(ARL,CO,GCC);KZJ9#,LJ9#,RZJ90,VZJ90..GCC,GEN 16X7J,#,TYPE C:REFER TO ILLUSTRATION	07/1998 - 06/1999	2
42611-60220	KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) 16X7JJ,TYPE H:REFER TO ILLUSTRATION	06/1999 - 08/2000	2
42601-60540	VZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..CO,GCC,GEN 16X6J,TYPE A:REFER ILLUST.	06/1999 - 12/2999	2
42611-60150	RZJ95..ARL;RZJ95..GX..CBR;RZJ90..EFI..GEN;KZJ9#,LJ95,VZJ9#..GX,VX 16X7JJ CHUO SEIKI,TYPE F:REFER TO ILLUSTRATION	07/1998 - 06/1999	2

KZJ90L-GJMNX (1996)

ILLUST NO. 3 OF 4(9604- )

ILLUST NO. 4 OF 4(9604- )

ILLUST NO. 1 OF 4(9604- )

ILLUST NO. 2 OF 4(9906- )
