KZJ90L-GJMNX (1996)
Toyota Land Cruiser 90
(9604- )KZJ9#,LJ9#,RZJ9#

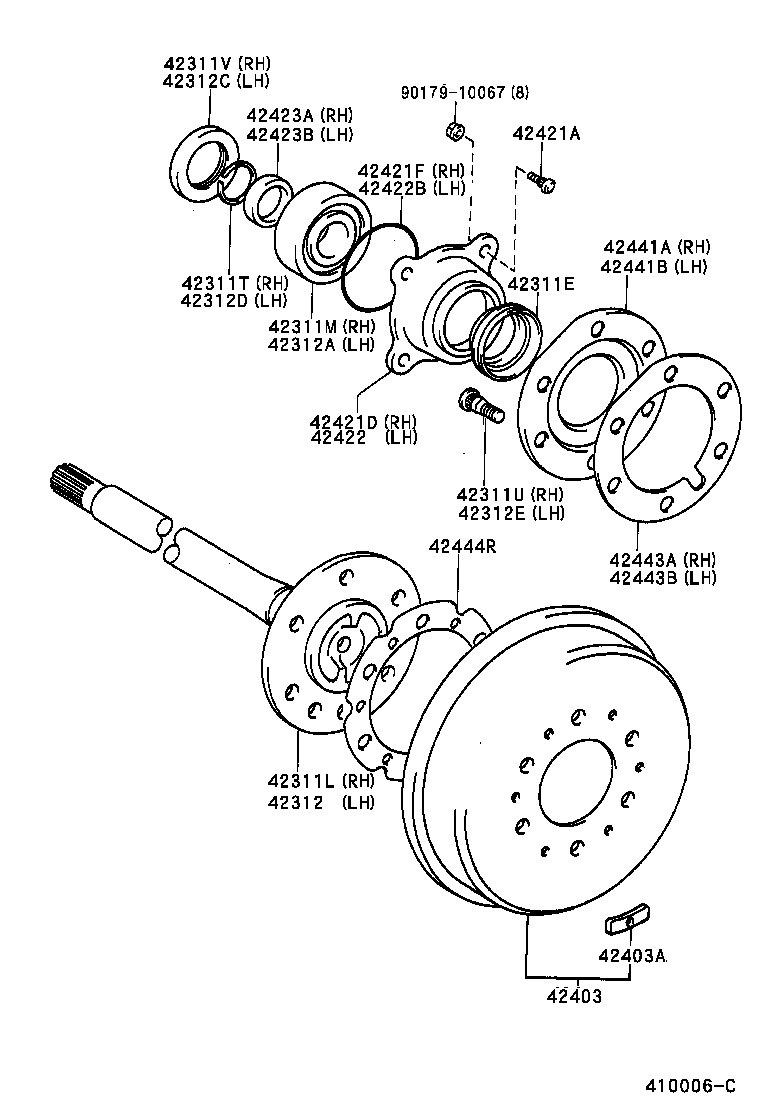

W(REAR DRUM BRAKE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90313-48001 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
2 | ||
| 90313-48004 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ95..(EFI,TD)..(ARL,GEN) W(REAR DISC BRAKE) |
2 | ||
| 90313-48001 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
2 | ||
| 90313-48004 |
VZJ95..ARL;KZJ9#,RZJ9#..GX W(REAR DISC BRAKE) |
2 | ||
| 90313-48004 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) W(REAR DISC BRAKE) |
2 | ||
| 90313-48004 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) W(REAR DISC BRAKE) |
2 | ||
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-35270 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 42311-60140 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(ABS) |
1 | ||
| 42311-35270 |
RZJ95..LHD..GEN;RZJ95..ATM..GCC;RZJ95..RHD..GX..GEN;KZJ9#,LJ9#,RZJ90..GEN W(REAR DRUM BRAKE) |
1 | ||
| 42311-35270 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 42311M - BEARING (FOR REAR AXLE SHAFT RH) | ||||
| 90363-40020 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 90369-40003 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ95..(EFI,TD)..(ARL,GEN) W(REAR DISC BRAKE) |
1 | ||
| 90363-40020 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 90363-40020 |
RZJ95..LHD..GEN;RZJ95..ATM..GCC;RZJ95..RHD..GX..GEN;KZJ9#,LJ9#,RZJ90..GEN W(REAR DRUM BRAKE) |
1 | ||
| 90369-40003 |
VZJ95..ARL;KZJ9#,RZJ9#..GX W(REAR DISC BRAKE) |
1 | ||
| 90369-40003 |
KZJ9#..GEN W(REAR DISC BRAKE) |
1 | ||
| 42311T - RING, SNAP (FOR REAR AXLE SHAFT RH) | ||||
| 90520-36045 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 90520-36045 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02052 |
RZJ9#..CBR;RZJ90..GX..GEN;KZJ9#,LJ9#,VZJ9#;RZJ95..RHD..GX..EFI |
6 | ||
| 90942-02079 |
RZJ95..ATM;RZJ95..LHD..GEN;VZJ95..MTM..GCC;RZJ95,VZJ95..RHD..(GX,VX);KZJ9#,LJ9#,RZJ90,VZJ90..ARL,GCC,GEN |
6 | ||
| 90942-02052 |
RZJ95..ATM;RZJ95..RHD..GX;RZJ95..LHD..GEN;KZJ9#,LJ9#,RZJ90,VZJ9#..ARL,GCC,GEN |
6 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90310-50001 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W(REAR DRUM BRAKE) OR W(REAR DISC BRAKE & ABS) |
1 | ||
| 90310-50005 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W(REAR DRUM BRAKE) OR W(REAR DISC BRAKE & ABS) |
1 | ||
| 90310-50005 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN W(REAR DRUM BRAKE) OR W(REAR DISC BRAKE & ABS) |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42311-35270 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 42311-35270 |
RZJ95..LHD..GEN;RZJ95..ATM..GCC;RZJ95..RHD..GX..GEN;KZJ9#,LJ9#,RZJ90..GEN W(REAR DRUM BRAKE) |
1 | ||
| 42311-60140 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(ABS) |
1 | ||
| 42311-35270 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 42312A - BEARING (FOR REAR AXLE SHAFT LH) | ||||
| 90363-40020 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 90369-40003 |
VZJ95..ARL;KZJ9#,RZJ9#..GX W(REAR DISC BRAKE) |
1 | ||
| 90369-40003 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ95..(EFI,TD)..(ARL,GEN) W(REAR DISC BRAKE) |
1 | ||
| 90363-40020 |
RZJ95..LHD..GEN;RZJ95..ATM..GCC;RZJ95..RHD..GX..GEN;KZJ9#,LJ9#,RZJ90..GEN W(REAR DRUM BRAKE) |
1 | ||
| 90363-40020 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 90369-40003 |
KZJ9#..GEN W(REAR DISC BRAKE) |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90310-50005 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN W(REAR DRUM BRAKE) OR W(REAR DISC BRAKE & ABS) |
1 | ||
| 90310-50001 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W(REAR DRUM BRAKE) OR W(REAR DISC BRAKE & ABS) |
1 | ||
| 90310-50005 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W(REAR DRUM BRAKE) OR W(REAR DISC BRAKE & ABS) |
1 | ||
| 42312D - RING, SNAP (FOR REAR AXLE SHAFT LH) | ||||
| 90520-36045 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90520-36045 |
RZJ95..LHD;RZJ95..RHD..GX;KZJ9#,LJ9#,RZJ90,VZJ9#..ARL,GCC,GEN |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02052 |
RZJ9#..CBR;RZJ90..GX..GEN;KZJ9#,LJ9#,VZJ9#;RZJ95..RHD..GX..EFI |
6 | ||
| 90942-02079 |
RZJ95..ATM;RZJ95..LHD..GEN;VZJ95..MTM..GCC;RZJ95,VZJ95..RHD..(GX,VX);KZJ9#,LJ9#,RZJ90,VZJ90..ARL,GCC,GEN |
6 | ||
| 90942-02052 |
RZJ95..ATM;RZJ95..RHD..GX;RZJ95..LHD..GEN;KZJ9#,LJ9#,RZJ90,VZJ9#..ARL,GCC,GEN |
6 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-35110 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
2 | ||
| 42431-35110 |
KZJ9#,LJ9#,RZJ9# |
2 | ||
| 42431-35110 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD |
2 | ||
| 42431-35110 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01195 |
KZJ9#,LJ9#,RZJ9# 40G |
1 | ||
| 90937-01196 |
KZJ9#,LJ9#,RZJ9# 50G |
1 | ||
| 90937-01195 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD 40G |
1 | ||
| 90937-01118 |
KZJ9#,LJ9#,RZJ9# 20G |
1 | ||
| 90937-01117 |
KZJ9#,LJ9#,RZJ9# 10G |
1 | ||
| 90937-01119 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD 30G |
1 | ||
| 90937-01117 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD 10G |
1 | ||
| 90937-01196 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN 50G |
1 | ||
| 90937-01117 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN 10G |
1 | ||
| 90937-01195 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN 40G |
1 | ||
| 90937-01119 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) 30G |
1 | ||
| 90937-01118 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD 20G |
1 | ||
| 90937-01119 |
KZJ9#,LJ9#,RZJ9# 30G |
1 | ||
| 90937-01119 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN 30G |
1 | ||
| 90937-01118 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN 20G |
1 | ||
| 90937-01118 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) 20G |
1 | ||
| 90937-01117 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) 10G |
1 | ||
| 90937-01196 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD 50G |
1 | ||
| 90937-01195 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) 40G |
1 | ||
| 90937-01196 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) 50G |
1 | ||
| 42421A - BOLT (FOR REAR AXLE BEARING CASE) | ||||
| 90114-10002 |
RZJ95..CBR;RZJ95..LHD..EFI;KZJ9#,LJ9#,RZJ90;RZJ95..RHD..GX..EFI..(GEN,MA) |
8 | ||
| 90114-10002 |
RZJ95..ATM;RZJ95..RHD..GX;RZJ95..LHD..GEN;KZJ9#,LJ9#,RZJ90..GEN |
8 | ||
| 90114-10002 |
KZJ9#,LJ9#,RZJ9# |
8 | ||
| 90114-10002 |
RZJ95..LHD..GEN;RZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ90..CO,GEN;RZJ95..RHD..GX..(GEN,MA) |
8 | ||
| 42421D - CASE, REAR AXLE BEARING, RH | ||||
| 42421-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ95..(EFI,TD)..(ARL,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42421-35030 |
RZJ95..LHD..GEN;RZJ95..ATM..GCC;RZJ95..RHD..GX..GEN;KZJ9#,LJ9#,RZJ90..GEN W(REAR DRUM BRAKE) |
1 | ||
| 42421-60030 |
VZJ95..ARL;KZJ9#,RZJ9#..GX W(REAR DISC BRAKE) |
1 | ||
| 42421-35030 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 42421-60030 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42421-35030 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 42421-60030 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42421F - RING, O (FOR REAR AXLE BEARING CASE RH) | ||||
| 90301-88077 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 90301-78001 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ95..(EFI,TD)..(ARL,GEN) W(REAR DISC BRAKE) |
1 | ||
| 90301-78001 |
VZJ95..ARL;KZJ9#,RZJ9#..GX W(REAR DISC BRAKE) |
1 | ||
| 90301-88077 |
RZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ9#..(DSL,EFI,TD)..(CO,GEN) W(REAR DRUM BRAKE) |
1 | ||
| 90301-78001 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42422 - CASE, REAR AXLE BEARING, LH | ||||
| 42422-60020 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ95..(EFI,TD)..(ARL,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42421-35030 |
RZJ95..LHD..GEN;RZJ95..ATM..GCC;RZJ95..RHD..GX..GEN;KZJ9#,LJ9#,RZJ90..GEN W(REAR DRUM BRAKE) |
1 | ||
| 42421-35030 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 42422-60020 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42421-35030 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 42422-60020 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42422-60020 |
VZJ95..ARL;KZJ9#,RZJ9#..GX W(REAR DISC BRAKE) |
1 | ||
| 42422B - RING, O (FOR REAR AXLE BEARING CASE LH) | ||||
| 90301-88077 |
RZJ95..ATM;RZJ95..RHD..GX;RZJ95..LHD..GEN;KZJ9#,LJ9#,RZJ90..GEN W(REAR DRUM BRAKE) |
1 | ||
| 90301-78001 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) W(REAR DISC BRAKE) |
1 | ||
| 90301-78001 |
VZJ95..ARL;KZJ9#,RZJ9#..GX W(REAR DISC BRAKE) |
1 | ||
| 90301-88077 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 90301-78001 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) W(REAR DISC BRAKE) |
1 | ||
| 90301-78001 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ95..(EFI,TD)..(ARL,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42423A - RETAINER, REAR AXLE BEARING, INNER RH | ||||
| 42423-20010 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 42423-60020 |
RZJ95..ARL;KZJ9#,VZJ9#;RZJ95..GX..CBR;RZJ90..EFI..GEN W(ABS & REAR DISC BRAKE),NO.2 |
1 | ||
| 42423-20010 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 42423-60020 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) W(ABS & REAR DISC BRAKE),NO.2 |
1 | ||
| 42423-20010 |
RZJ95..ARL;KZJ9#,VZJ9#;RZJ95..GX..CBR;RZJ90..EFI..GEN W(ABS & REAR DISC BRAKE),NO.1 |
1 | ||
| 42423-60020 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(ABS & REAR DISC BRAKE),NO.2 |
1 | ||
| 42423-20010 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(ABS & REAR DISC BRAKE),NO.1 |
1 | ||
| 42423-20010 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) W(ABS & REAR DISC BRAKE),NO.1 |
1 | ||
| 42423B - RETAINER, REAR AXLE BEARING, INNER LH | ||||
| 42423-20010 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 42423-20010 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 42423-60020 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(ABS & REAR DISC BRAKE),NO.2 |
1 | ||
| 42423-60020 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) W(ABS & REAR DISC BRAKE),NO.2 |
1 | ||
| 42423-20010 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(ABS & REAR DISC BRAKE),NO.1 |
1 | ||
| 42423-20010 |
RZJ95..ARL;KZJ9#,VZJ9#;RZJ95..GX..CBR;RZJ90..EFI..GEN W(ABS & REAR DISC BRAKE),NO.1 |
1 | ||
| 42423-60020 |
RZJ95..ARL;KZJ9#,VZJ9#;RZJ95..GX..CBR;RZJ90..EFI..GEN W(ABS & REAR DISC BRAKE),NO.2 |
1 | ||
| 42423-20010 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) W(ABS & REAR DISC BRAKE),NO.1 |
1 | ||
| 42441A - DEFLECTOR, BRAKE DRUM OIL RH | ||||
| 42441-35020 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 42441-35020 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 42441-35020 |
RZJ95..ATM;RZJ95..RHD..GX;RZJ95..LHD..GEN;KZJ9#,LJ9#,RZJ90..GEN W(REAR DRUM BRAKE) |
1 | ||
| 42441-60020 |
VZJ95..ARL;KZJ9#,RZJ9#..GX W(REAR DISC BRAKE) |
1 | ||
| 42441-60020 |
VZJ95..ARL;KZJ9#,RZJ9#..GX..(GCC,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42441-35020 |
RZJ95..LHD;KZJ9#,LJ9#,RZJ90..CO,GEN;RZJ95..RHD..GX..(GEN,MA) W(REAR DRUM BRAKE) |
1 | ||
| 42441-60020 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ95..(EFI,TD)..(ARL,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42441B - DEFLECTOR, BRAKE DRUM OIL LH | ||||
| 42441-60020 |
VZJ95..ARL;KZJ9#,RZJ9#..GX W(REAR DISC BRAKE) |
1 | ||
| 42441-35020 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 42441-35020 |
RZJ95..CBR;RZJ95..LHD..EFI;KZJ9#,LJ9#,RZJ90..GEN;RZJ95..RHD..GX..EFI..GEN W(REAR DRUM BRAKE) |
1 | ||
| 42441-60020 |
VZJ95..ARL;KZJ9#,RZJ9#..GX..(GCC,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42441-35020 |
RZJ95..LHD..GEN;RZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ90..CO,GEN;RZJ95..RHD..GX..(GEN,MA) W(REAR DRUM BRAKE) |
1 | ||
| 42441-60020 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ95..(EFI,TD)..(ARL,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42443A - GASKET, BRAKE DRUM OIL DEFLECTOR, RH | ||||
| 42443-55020 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 42443-55020 |
RZJ95..ATM;RZJ95..RHD..GX;RZJ95..LHD..GEN;KZJ9#,LJ9#,RZJ90..GEN W(REAR DRUM BRAKE) |
1 | ||
| 42443-60010 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ95..(EFI,TD)..(ARL,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42443-60010 |
VZJ95..ARL;KZJ9#,RZJ9#..GX W(REAR DISC BRAKE) |
1 | ||
| 42443-60010 |
VZJ95..ARL;KZJ9#,RZJ9#..GX..(GCC,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42443-55020 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 42443B - GASKET, BRAKE DRUM OIL DEFLECTOR, LH | ||||
| 42443-60010 |
VZJ95..ARL;KZJ9#,RZJ9#..GX W(REAR DISC BRAKE) |
1 | ||
| 42443-55020 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 42443-55020 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 42443-60010 |
VZJ95..ARL;KZJ9#,RZJ9#..GX..(GCC,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42443-55020 |
RZJ95..ATM;RZJ95..RHD..GX;RZJ95..LHD..GEN;KZJ9#,LJ9#,RZJ90..GEN W(REAR DRUM BRAKE) |
1 | ||
| 42443-60010 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ95..(EFI,TD)..(ARL,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42444R - GASKET, BRAKE DRUM (FOR REAR AXLE) | ||||
| 42444-35050 |
KZJ9#,LJ9#,RZJ9# |
2 | ||
| 42444-35050 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN |
2 | ||
| 42444-35050 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) |
2 | ||
| 42444-35050 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD |
2 | ||
| Common parts | ||||
| 90179-10067 | ||||
(9604- )RZJ95..VX ; (9604- )KZJ9#,VZJ9# ;(9604- )RZJ9#..GX..ARL,GCC,GEN
W(REAR DISC BRAKE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90313-48001 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
2 | ||
| 90313-48004 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ95..(EFI,TD)..(ARL,GEN) W(REAR DISC BRAKE) |
2 | ||
| 90313-48001 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
2 | ||
| 90313-48004 |
VZJ95..ARL;KZJ9#,RZJ9#..GX W(REAR DISC BRAKE) |
2 | ||
| 90313-48004 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) W(REAR DISC BRAKE) |
2 | ||
| 90313-48004 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) W(REAR DISC BRAKE) |
2 | ||
| 42311F - WASHER, PLATE (FOR REAR AXLE SHAFT) | ||||
| 90208-40002 |
KZJ9#,RZJ9#,VZJ9#..GX,VX |
2 | ||
| 90208-40002 |
RZJ95..ARL;KZJ9#,VZJ9#;RZJ95..GX..CBR;RZJ90..EFI..GEN |
2 | ||
| 90208-40002 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
2 | ||
| 90208-40002 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
2 | ||
| 42311F - WASHER, PLATE (FOR REAR AXLE SHAFT) | ||||
| 90208-40002 |
KZJ9#,RZJ9#,VZJ9#..GX,VX |
2 | ||
| 90208-40002 |
RZJ95..ARL;KZJ9#,VZJ9#;RZJ95..GX..CBR;RZJ90..EFI..GEN |
2 | ||
| 90208-40002 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
2 | ||
| 90208-40002 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
2 | ||
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-35270 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 42311-60140 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(ABS) |
1 | ||
| 42311-35270 |
RZJ95..LHD..GEN;RZJ95..ATM..GCC;RZJ95..RHD..GX..GEN;KZJ9#,LJ9#,RZJ90..GEN W(REAR DRUM BRAKE) |
1 | ||
| 42311-35270 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 42311M - BEARING (FOR REAR AXLE SHAFT RH) | ||||
| 90363-40020 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 90369-40003 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ95..(EFI,TD)..(ARL,GEN) W(REAR DISC BRAKE) |
1 | ||
| 90363-40020 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 90363-40020 |
RZJ95..LHD..GEN;RZJ95..ATM..GCC;RZJ95..RHD..GX..GEN;KZJ9#,LJ9#,RZJ90..GEN W(REAR DRUM BRAKE) |
1 | ||
| 90369-40003 |
VZJ95..ARL;KZJ9#,RZJ9#..GX W(REAR DISC BRAKE) |
1 | ||
| 90369-40003 |
KZJ9#..GEN W(REAR DISC BRAKE) |
1 | ||
| 42311T - RING, SNAP (FOR REAR AXLE SHAFT RH) | ||||
| 90520-36045 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 90520-36045 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02052 |
RZJ9#..CBR;RZJ90..GX..GEN;KZJ9#,LJ9#,VZJ9#;RZJ95..RHD..GX..EFI |
6 | ||
| 90942-02079 |
RZJ95..ATM;RZJ95..LHD..GEN;VZJ95..MTM..GCC;RZJ95,VZJ95..RHD..(GX,VX);KZJ9#,LJ9#,RZJ90,VZJ90..ARL,GCC,GEN |
6 | ||
| 90942-02052 |
RZJ95..ATM;RZJ95..RHD..GX;RZJ95..LHD..GEN;KZJ9#,LJ9#,RZJ90,VZJ9#..ARL,GCC,GEN |
6 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90310-50001 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W(REAR DRUM BRAKE) OR W(REAR DISC BRAKE & ABS) |
1 | ||
| 90310-50005 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W(REAR DRUM BRAKE) OR W(REAR DISC BRAKE & ABS) |
1 | ||
| 90310-50005 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN W(REAR DRUM BRAKE) OR W(REAR DISC BRAKE & ABS) |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42311-35270 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 42311-35270 |
RZJ95..LHD..GEN;RZJ95..ATM..GCC;RZJ95..RHD..GX..GEN;KZJ9#,LJ9#,RZJ90..GEN W(REAR DRUM BRAKE) |
1 | ||
| 42311-60140 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(ABS) |
1 | ||
| 42311-35270 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 42312A - BEARING (FOR REAR AXLE SHAFT LH) | ||||
| 90363-40020 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 90369-40003 |
VZJ95..ARL;KZJ9#,RZJ9#..GX W(REAR DISC BRAKE) |
1 | ||
| 90369-40003 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ95..(EFI,TD)..(ARL,GEN) W(REAR DISC BRAKE) |
1 | ||
| 90363-40020 |
RZJ95..LHD..GEN;RZJ95..ATM..GCC;RZJ95..RHD..GX..GEN;KZJ9#,LJ9#,RZJ90..GEN W(REAR DRUM BRAKE) |
1 | ||
| 90363-40020 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 90369-40003 |
KZJ9#..GEN W(REAR DISC BRAKE) |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90310-50005 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN W(REAR DRUM BRAKE) OR W(REAR DISC BRAKE & ABS) |
1 | ||
| 90310-50001 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W(REAR DRUM BRAKE) OR W(REAR DISC BRAKE & ABS) |
1 | ||
| 90310-50005 |
KZJ9#,LJ9#,RZJ9#,VZJ9# W(REAR DRUM BRAKE) OR W(REAR DISC BRAKE & ABS) |
1 | ||
| 42312D - RING, SNAP (FOR REAR AXLE SHAFT LH) | ||||
| 90520-36045 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90520-36045 |
RZJ95..LHD;RZJ95..RHD..GX;KZJ9#,LJ9#,RZJ90,VZJ9#..ARL,GCC,GEN |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02052 |
RZJ9#..CBR;RZJ90..GX..GEN;KZJ9#,LJ9#,VZJ9#;RZJ95..RHD..GX..EFI |
6 | ||
| 90942-02079 |
RZJ95..ATM;RZJ95..LHD..GEN;VZJ95..MTM..GCC;RZJ95,VZJ95..RHD..(GX,VX);KZJ9#,LJ9#,RZJ90,VZJ90..ARL,GCC,GEN |
6 | ||
| 90942-02052 |
RZJ95..ATM;RZJ95..RHD..GX;RZJ95..LHD..GEN;KZJ9#,LJ9#,RZJ90,VZJ9#..ARL,GCC,GEN |
6 | ||
| 42421D - CASE, REAR AXLE BEARING, RH | ||||
| 42421-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ95..(EFI,TD)..(ARL,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42421-35030 |
RZJ95..LHD..GEN;RZJ95..ATM..GCC;RZJ95..RHD..GX..GEN;KZJ9#,LJ9#,RZJ90..GEN W(REAR DRUM BRAKE) |
1 | ||
| 42421-60030 |
VZJ95..ARL;KZJ9#,RZJ9#..GX W(REAR DISC BRAKE) |
1 | ||
| 42421-35030 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 42421-60030 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42421-35030 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 42421-60030 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42421F - RING, O (FOR REAR AXLE BEARING CASE RH) | ||||
| 90301-88077 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 90301-78001 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ95..(EFI,TD)..(ARL,GEN) W(REAR DISC BRAKE) |
1 | ||
| 90301-78001 |
VZJ95..ARL;KZJ9#,RZJ9#..GX W(REAR DISC BRAKE) |
1 | ||
| 90301-88077 |
RZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ9#..(DSL,EFI,TD)..(CO,GEN) W(REAR DRUM BRAKE) |
1 | ||
| 90301-78001 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42422 - CASE, REAR AXLE BEARING, LH | ||||
| 42422-60020 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ95..(EFI,TD)..(ARL,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42421-35030 |
RZJ95..LHD..GEN;RZJ95..ATM..GCC;RZJ95..RHD..GX..GEN;KZJ9#,LJ9#,RZJ90..GEN W(REAR DRUM BRAKE) |
1 | ||
| 42421-35030 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 42422-60020 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42421-35030 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 42422-60020 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42422-60020 |
VZJ95..ARL;KZJ9#,RZJ9#..GX W(REAR DISC BRAKE) |
1 | ||
| 42422B - RING, O (FOR REAR AXLE BEARING CASE LH) | ||||
| 90301-88077 |
RZJ95..ATM;RZJ95..RHD..GX;RZJ95..LHD..GEN;KZJ9#,LJ9#,RZJ90..GEN W(REAR DRUM BRAKE) |
1 | ||
| 90301-78001 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) W(REAR DISC BRAKE) |
1 | ||
| 90301-78001 |
VZJ95..ARL;KZJ9#,RZJ9#..GX W(REAR DISC BRAKE) |
1 | ||
| 90301-88077 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 90301-78001 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) W(REAR DISC BRAKE) |
1 | ||
| 90301-78001 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ95..(EFI,TD)..(ARL,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42423A - RETAINER, REAR AXLE BEARING, INNER RH | ||||
| 42423-20010 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 42423-60020 |
RZJ95..ARL;KZJ9#,VZJ9#;RZJ95..GX..CBR;RZJ90..EFI..GEN W(ABS & REAR DISC BRAKE),NO.2 |
1 | ||
| 42423-20010 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 42423-60020 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) W(ABS & REAR DISC BRAKE),NO.2 |
1 | ||
| 42423-20010 |
RZJ95..ARL;KZJ9#,VZJ9#;RZJ95..GX..CBR;RZJ90..EFI..GEN W(ABS & REAR DISC BRAKE),NO.1 |
1 | ||
| 42423-60020 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(ABS & REAR DISC BRAKE),NO.2 |
1 | ||
| 42423-20010 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(ABS & REAR DISC BRAKE),NO.1 |
1 | ||
| 42423-20010 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) W(ABS & REAR DISC BRAKE),NO.1 |
1 | ||
| 42423A - RETAINER, REAR AXLE BEARING, INNER RH | ||||
| 42423-20010 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 42423-60020 |
RZJ95..ARL;KZJ9#,VZJ9#;RZJ95..GX..CBR;RZJ90..EFI..GEN W(ABS & REAR DISC BRAKE),NO.2 |
1 | ||
| 42423-20010 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 42423-60020 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) W(ABS & REAR DISC BRAKE),NO.2 |
1 | ||
| 42423-20010 |
RZJ95..ARL;KZJ9#,VZJ9#;RZJ95..GX..CBR;RZJ90..EFI..GEN W(ABS & REAR DISC BRAKE),NO.1 |
1 | ||
| 42423-60020 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(ABS & REAR DISC BRAKE),NO.2 |
1 | ||
| 42423-20010 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(ABS & REAR DISC BRAKE),NO.1 |
1 | ||
| 42423-20010 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) W(ABS & REAR DISC BRAKE),NO.1 |
1 | ||
| 42423A - RETAINER, REAR AXLE BEARING, INNER RH | ||||
| 42423-20010 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 42423-60020 |
RZJ95..ARL;KZJ9#,VZJ9#;RZJ95..GX..CBR;RZJ90..EFI..GEN W(ABS & REAR DISC BRAKE),NO.2 |
1 | ||
| 42423-20010 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 42423-60020 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) W(ABS & REAR DISC BRAKE),NO.2 |
1 | ||
| 42423-20010 |
RZJ95..ARL;KZJ9#,VZJ9#;RZJ95..GX..CBR;RZJ90..EFI..GEN W(ABS & REAR DISC BRAKE),NO.1 |
1 | ||
| 42423-60020 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(ABS & REAR DISC BRAKE),NO.2 |
1 | ||
| 42423-20010 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(ABS & REAR DISC BRAKE),NO.1 |
1 | ||
| 42423-20010 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) W(ABS & REAR DISC BRAKE),NO.1 |
1 | ||
| 42423B - RETAINER, REAR AXLE BEARING, INNER LH | ||||
| 42423-20010 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 42423-20010 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 42423-60020 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(ABS & REAR DISC BRAKE),NO.2 |
1 | ||
| 42423-60020 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) W(ABS & REAR DISC BRAKE),NO.2 |
1 | ||
| 42423-20010 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(ABS & REAR DISC BRAKE),NO.1 |
1 | ||
| 42423-20010 |
RZJ95..ARL;KZJ9#,VZJ9#;RZJ95..GX..CBR;RZJ90..EFI..GEN W(ABS & REAR DISC BRAKE),NO.1 |
1 | ||
| 42423-60020 |
RZJ95..ARL;KZJ9#,VZJ9#;RZJ95..GX..CBR;RZJ90..EFI..GEN W(ABS & REAR DISC BRAKE),NO.2 |
1 | ||
| 42423-20010 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) W(ABS & REAR DISC BRAKE),NO.1 |
1 | ||
| 42423B - RETAINER, REAR AXLE BEARING, INNER LH | ||||
| 42423-20010 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 42423-20010 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 42423-60020 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(ABS & REAR DISC BRAKE),NO.2 |
1 | ||
| 42423-60020 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) W(ABS & REAR DISC BRAKE),NO.2 |
1 | ||
| 42423-20010 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(ABS & REAR DISC BRAKE),NO.1 |
1 | ||
| 42423-20010 |
RZJ95..ARL;KZJ9#,VZJ9#;RZJ95..GX..CBR;RZJ90..EFI..GEN W(ABS & REAR DISC BRAKE),NO.1 |
1 | ||
| 42423-60020 |
RZJ95..ARL;KZJ9#,VZJ9#;RZJ95..GX..CBR;RZJ90..EFI..GEN W(ABS & REAR DISC BRAKE),NO.2 |
1 | ||
| 42423-20010 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) W(ABS & REAR DISC BRAKE),NO.1 |
1 | ||
| 42423B - RETAINER, REAR AXLE BEARING, INNER LH | ||||
| 42423-20010 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 42423-20010 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 42423-60020 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(ABS & REAR DISC BRAKE),NO.2 |
1 | ||
| 42423-60020 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) W(ABS & REAR DISC BRAKE),NO.2 |
1 | ||
| 42423-20010 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(ABS & REAR DISC BRAKE),NO.1 |
1 | ||
| 42423-20010 |
RZJ95..ARL;KZJ9#,VZJ9#;RZJ95..GX..CBR;RZJ90..EFI..GEN W(ABS & REAR DISC BRAKE),NO.1 |
1 | ||
| 42423-60020 |
RZJ95..ARL;KZJ9#,VZJ9#;RZJ95..GX..CBR;RZJ90..EFI..GEN W(ABS & REAR DISC BRAKE),NO.2 |
1 | ||
| 42423-20010 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) W(ABS & REAR DISC BRAKE),NO.1 |
1 | ||
| 42431 - DISC, REAR | ||||
| 42431-60200 |
RZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 42441A - DEFLECTOR, BRAKE DRUM OIL RH | ||||
| 42441-35020 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 42441-35020 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 42441-35020 |
RZJ95..ATM;RZJ95..RHD..GX;RZJ95..LHD..GEN;KZJ9#,LJ9#,RZJ90..GEN W(REAR DRUM BRAKE) |
1 | ||
| 42441-60020 |
VZJ95..ARL;KZJ9#,RZJ9#..GX W(REAR DISC BRAKE) |
1 | ||
| 42441-60020 |
VZJ95..ARL;KZJ9#,RZJ9#..GX..(GCC,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42441-35020 |
RZJ95..LHD;KZJ9#,LJ9#,RZJ90..CO,GEN;RZJ95..RHD..GX..(GEN,MA) W(REAR DRUM BRAKE) |
1 | ||
| 42441-60020 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ95..(EFI,TD)..(ARL,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42441B - DEFLECTOR, BRAKE DRUM OIL LH | ||||
| 42441-60020 |
VZJ95..ARL;KZJ9#,RZJ9#..GX W(REAR DISC BRAKE) |
1 | ||
| 42441-35020 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 42441-35020 |
RZJ95..CBR;RZJ95..LHD..EFI;KZJ9#,LJ9#,RZJ90..GEN;RZJ95..RHD..GX..EFI..GEN W(REAR DRUM BRAKE) |
1 | ||
| 42441-60020 |
VZJ95..ARL;KZJ9#,RZJ9#..GX..(GCC,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42441-35020 |
RZJ95..LHD..GEN;RZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ90..CO,GEN;RZJ95..RHD..GX..(GEN,MA) W(REAR DRUM BRAKE) |
1 | ||
| 42441-60020 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ95..(EFI,TD)..(ARL,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42443A - GASKET, BRAKE DRUM OIL DEFLECTOR, RH | ||||
| 42443-55020 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 42443-55020 |
RZJ95..ATM;RZJ95..RHD..GX;RZJ95..LHD..GEN;KZJ9#,LJ9#,RZJ90..GEN W(REAR DRUM BRAKE) |
1 | ||
| 42443-60010 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ95..(EFI,TD)..(ARL,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42443-60010 |
VZJ95..ARL;KZJ9#,RZJ9#..GX W(REAR DISC BRAKE) |
1 | ||
| 42443-60010 |
VZJ95..ARL;KZJ9#,RZJ9#..GX..(GCC,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42443-55020 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 42443B - GASKET, BRAKE DRUM OIL DEFLECTOR, LH | ||||
| 42443-60010 |
VZJ95..ARL;KZJ9#,RZJ9#..GX W(REAR DISC BRAKE) |
1 | ||
| 42443-55020 |
KZJ9#,LJ9#,RZJ9#..GCC,GEN W(REAR DRUM BRAKE) |
1 | ||
| 42443-55020 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 42443-60010 |
VZJ95..ARL;KZJ9#,RZJ9#..GX..(GCC,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42443-55020 |
RZJ95..ATM;RZJ95..RHD..GX;RZJ95..LHD..GEN;KZJ9#,LJ9#,RZJ90..GEN W(REAR DRUM BRAKE) |
1 | ||
| 42443-60010 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ95..(EFI,TD)..(ARL,GEN) W(REAR DISC BRAKE) |
1 | ||
| 42444A - GASKET, BRAKE DISC, REAR | ||||
| 42444-60020 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
2 | ||
| 42444-60020 |
RZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 42444-60020 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
2 | ||
| 42444A - GASKET, BRAKE DISC, REAR | ||||
| 42444-60020 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
2 | ||
| 42444-60020 |
RZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 42444-60020 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
2 | ||
| 43517 - ROTOR, SKID CONTROL, REAR | ||||
| 43517-35010 |
RZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 43517-35010 |
RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) |
2 | ||
| 43517-35010 |
KZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) |
2 | ||

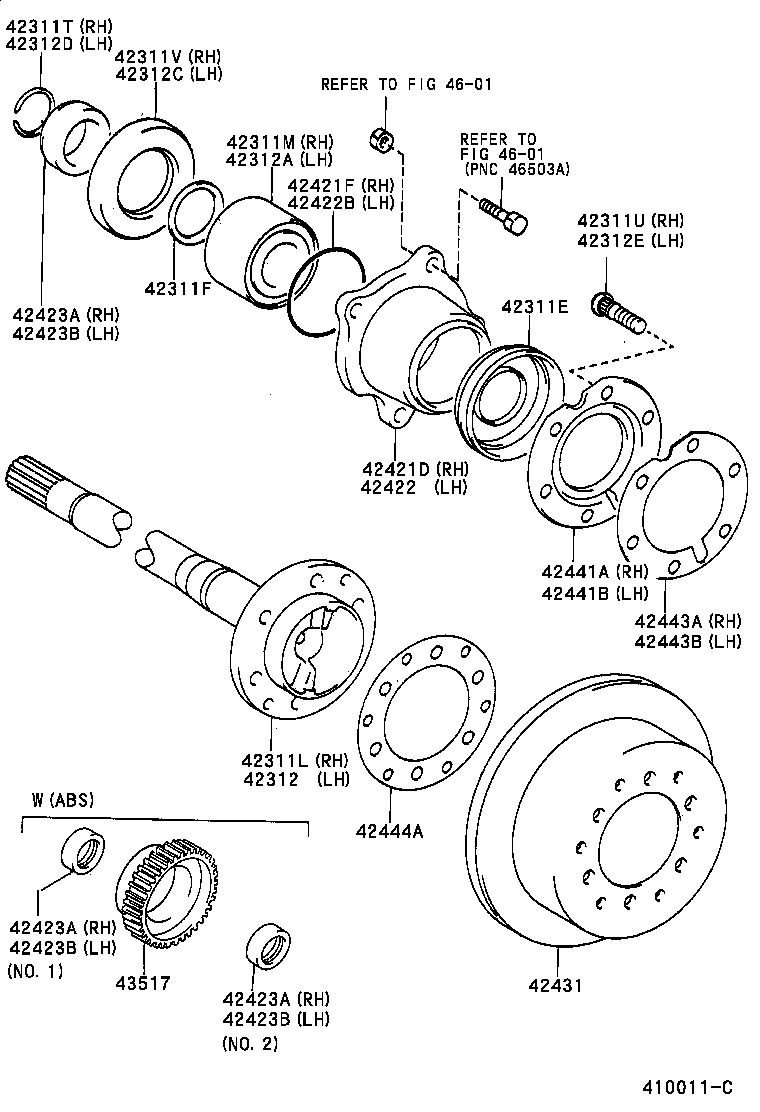

| Linked diagrams | ||||
| 4601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
