KZJ90L-GJMNX (1996)
Toyota Land Cruiser 90

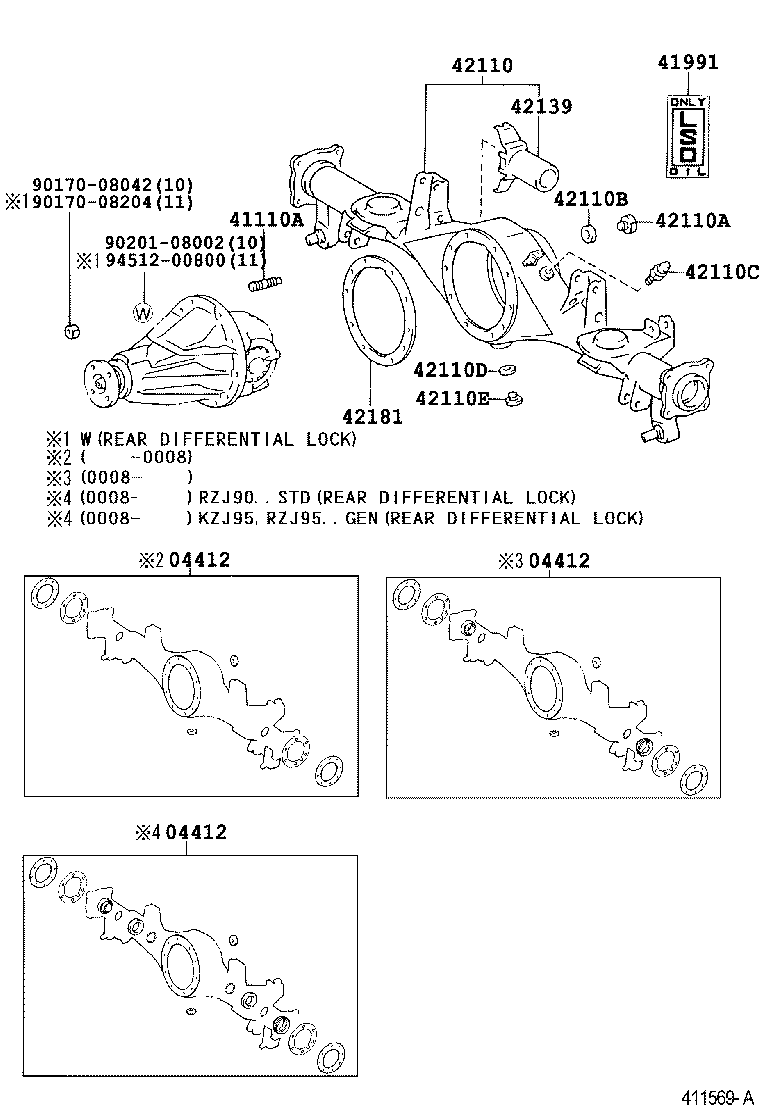

ILLUST NO. 1 OF 2(9604- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039 - GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41039-34070 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA W(LSD) |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35150 |
KZJ9#,RZJ9#..(CBR,TD)..GEN W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 41101-35170 |
KZJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 41101-35170 |
RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,RZJ90,VZJ9#..(GX,VX)..(EFI,TD) |
1 | ||
| 41101-35170 |
KZJ9#,RZJ9#,VZJ9# |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-3D020 |
KZJ9#,RZJ9#,VZJ9# *FGR=43:10=4.300 |
1 | ||
| 41110-3D040 |
KZJ9#,RZJ9#,VZJ9# *FGR=43:10=4.300,W(LSD) & AXLE CODE=A02A |
1 | ||
| 41110-35890 |
KZJ9#,VZJ9# *FGR=41:10=4.100 |
1 | ||
| 41110-3D060 |
KZJ9#,VZJ9#..ARL,GCC,GEN *FGR=41:10=4.100,W(LSD) & AXLE CODE=A01A |
1 | ||
| 41110-35890 |
KZJ9#,VZJ9#..LHD *FGR=41:10=4.100 |
1 | ||
| 41110-3D080 |
KZJ9#,RZJ9#..(CBR,TD)..GEN *FGR=43:10=4.300,W(REAR DIFFERENTIAL LOCK) & AXLE CODE=A02B |
1 | ||
| 41110-3D020 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,RZJ9#,VZJ90..GCC,GEN *FGR=43:10=4.300 |
1 | ||
| 41110-3D020 |
RZJ95..CBR;VZJ95..LHD;KZJ9#,RZJ90,VZJ90..GCC,GEN *FGR=43:10=4.300 |
1 | ||
| 41110-35890 |
KZJ9#,VZJ90;VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC) *FGR=41:10=4.100 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 90105-12053 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 90105-12053 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-35010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 41115-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 41115-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-69465 |
KZJ9#,RZJ9#..(CBR,TD)..GEN *FGR=43:10=4.300,W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 41201-80102 |
KZJ9#,VZJ9#..EFI,TD *FGR=41:10=4.100 |
1 | ||
| 41201-80104 |
RZJ95..CBR;VZJ95..LHD;KZJ9#,RZJ90,VZJ90..GCC,GEN *FGR=43:10=4.300 |
1 | ||
| 41201-80104 |
KZJ9#,RZJ9#,VZJ9# *FGR=43:10=4.300 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35087 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 90366-35087 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 90366-35087 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30025 |
KZJ9#,RZJ9#..(CBR,TD)..GEN W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 90366-30067 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90366-30067 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 90366-30067 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38047 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 90311-38047 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35497 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.70 |
1 | ||
| 90201-35498 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.73 |
1 | ||
| 90201-35502 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.85 |
1 | ||
| 90201-35499 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.76 |
1 | ||
| 90201-35507 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.00 |
1 | ||
| 90201-35513 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.18 |
1 | ||
| 90201-35511 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.12 |
1 | ||
| 90201-35500 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.79 |
1 | ||
| 90201-35510 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.09 |
1 | ||
| 90201-35512 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.15 |
1 | ||
| 90201-35514 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.21 |
1 | ||
| 90201-35508 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.03 |
1 | ||
| 90201-35504 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.91 |
1 | ||
| 90201-35506 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.97 |
1 | ||
| 90201-35497 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.70 |
1 | ||
| 90201-35505 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.94 |
1 | ||
| 90201-35515 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35516 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35509 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.06 |
1 | ||
| 90201-35502 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.85 |
1 | ||
| 90201-35518 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35503 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.88 |
1 | ||
| 90201-35501 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.82 |
1 | ||
| 90201-35500 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.79 |
1 | ||
| 90201-35517 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35510 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.09 |
1 | ||
| 90201-35499 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.76 |
1 | ||
| 90201-35505 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.94 |
1 | ||
| 90201-35506 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.97 |
1 | ||
| 90201-35508 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.03 |
1 | ||
| 90201-35501 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.82 |
1 | ||
| 90201-35509 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.06 |
1 | ||
| 90201-35504 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.91 |
1 | ||
| 90201-35503 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.88 |
1 | ||
| 90201-35511 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.12 |
1 | ||
| 90201-35498 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.73 |
1 | ||
| 90201-35507 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.00 |
1 | ||
| 90201-35512 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.15 |
1 | ||
| 90201-35497 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.70 |
1 | ||
| 90201-35513 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.18 |
1 | ||
| 90201-35515 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35517 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35514 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.21 |
1 | ||
| 90201-35498 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.73 |
1 | ||
| 90201-35516 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35499 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.76 |
1 | ||
| 90201-35508 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.03 |
1 | ||
| 90201-35501 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.82 |
1 | ||
| 90201-35505 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.94 |
1 | ||
| 90201-35506 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.97 |
1 | ||
| 90201-35518 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35509 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.06 |
1 | ||
| 90201-35500 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.79 |
1 | ||
| 90201-35515 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35503 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.88 |
1 | ||
| 90201-35511 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.12 |
1 | ||
| 90201-35507 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.00 |
1 | ||
| 90201-35512 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.15 |
1 | ||
| 90201-35510 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.09 |
1 | ||
| 90201-35514 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.21 |
1 | ||
| 90201-35516 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35504 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.91 |
1 | ||
| 90201-35502 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.85 |
1 | ||
| 90201-35518 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35513 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.18 |
1 | ||
| 90201-35517 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.30,MARK 03 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35080 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20018 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=37 |
1 | ||
| 90179-20018 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=37 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 41214-26010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
5 | ||
| 41222-60010 |
KZJ9#,RZJ9#..(CBR,TD)..GEN W(REAR DIFFERENTIAL LOCK) |
5 | ||
| 41222-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
5 | ||
| 41222-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
10 | ||
| 90101-11353 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
10 | ||
| 90101-11353 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 41231-24010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 41231-24010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 41252-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
KZJ9#,RZJ9#..(CBR,TD)..GEN RH |
1 | ||
| 90366-50007 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 90366-50007 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
2 | ||
| 90366-50007 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90366-75001 |
KZJ9#,RZJ9#..(CBR,TD)..GEN LH |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
KZJ9#,RZJ9#..(CBR,TD)..GEN RH |
1 | ||
| 90366-50007 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 90366-50007 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
2 | ||
| 90366-50007 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90366-75001 |
KZJ9#,RZJ9#..(CBR,TD)..GEN LH |
1 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41302-35020 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN |
1 | ||
| 41302-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA W(LSD) |
1 | ||
| 41302-35040 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W(LSD) |
1 | ||
| 41302-35020 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN |
1 | ||
| 41302-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN |
1 | ||
| 41302-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-10084 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
8 | ||
| 90105-10084 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
8 | ||
| 90105-10084 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
KZJ9#,RZJ9#..(CBR,TD)..GEN RH |
1 | ||
| 41315-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
2 | ||
| 41315-35020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 41315-60010 |
KZJ9#,RZJ9#..(CBR,TD)..GEN LH |
1 | ||
| 41315-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
KZJ9#,RZJ9#..(CBR,TD)..GEN RH |
1 | ||
| 41315-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
2 | ||
| 41315-35020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 41315-60010 |
KZJ9#,RZJ9#..(CBR,TD)..GEN LH |
1 | ||
| 41315-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 41316-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
2 | ||
| 41316-35010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 41331-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN |
2 | ||
| 41331-35030 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN W(LSD) |
2 | ||
| 41331-35030 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W(LSD) |
2 | ||
| 41331-35040 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN |
2 | ||
| 41331-35040 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN |
2 | ||
| 41331-35040 |
VZJ95..MTM..VX;KZJ95,VZJ95..ATM..(ARL,CO,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..CO,GCC,GEN |
2 | ||
| 41331-60040 |
KZJ9#,RZJ9#..(CBR,TD)..GEN LH |
1 | ||
| 41331-35040 |
RZJ90..STD;KZJ9#,RZJ95..GEN W(REAR DIFFERENTIAL LOCK),RH |
1 | ||
| 41331-60040 |
RZJ90..STD;KZJ9#,RZJ95..GEN W(REAR DIFFERENTIAL LOCK),LH |
1 | ||
| 41331-35040 |
KZJ9#,RZJ9#..(CBR,TD)..GEN RH |
1 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 41331-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN |
2 | ||
| 41331-35030 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN W(LSD) |
2 | ||
| 41331-35030 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W(LSD) |
2 | ||
| 41331-35040 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN |
2 | ||
| 41331-35040 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN |
2 | ||
| 41331-35040 |
VZJ95..MTM..VX;KZJ95,VZJ95..ATM..(ARL,CO,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..CO,GCC,GEN |
2 | ||
| 41331-60040 |
KZJ9#,RZJ9#..(CBR,TD)..GEN LH |
1 | ||
| 41331-35040 |
RZJ90..STD;KZJ9#,RZJ95..GEN W(REAR DIFFERENTIAL LOCK),RH |
1 | ||
| 41331-60040 |
RZJ90..STD;KZJ9#,RZJ95..GEN W(REAR DIFFERENTIAL LOCK),LH |
1 | ||
| 41331-35040 |
KZJ9#,RZJ9#..(CBR,TD)..GEN RH |
1 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 41341-30020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 41341-30020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 41341-30020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 41341-30020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 41341-30020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 41341-30020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 41341-30020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 41341-30020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41351-30060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 41351-30060 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41351-30060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 41351-30060 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41351-30060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 41351-30060 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41351-30060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 41351-30060 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35330 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.1 |
2 | ||
| 41361-35350 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.3 |
2 | ||
| 41361-35290 |
RZJ95..ATM;RZJ95..GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ9# T=1.70,MARK N,W(LSD) |
2 | ||
| 41361-35320 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.0 |
2 | ||
| 41361-35160 |
RZJ95..ATM;RZJ95..GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ9# T=1.8,W(LSD) |
6 | ||
| 41361-35310 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=0.9 |
2 | ||
| 41361-35340 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.2 |
2 | ||
| 41361-60290 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=0.90,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-35330 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=1.1 |
2 | ||
| 41361-35350 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=1.3 |
2 | ||
| 41361-35310 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=0.9 |
2 | ||
| 41361-35340 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=1.2 |
2 | ||
| 41361-35320 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=1.0 |
2 | ||
| 41361-35320 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=1.0 |
2 | ||
| 41361-60320 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=1.20,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-60300 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=1.00,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-35340 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=1.2 |
2 | ||
| 41361-35310 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=0.9 |
2 | ||
| 41361-35330 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=1.1 |
2 | ||
| 41361-60310 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=1.10,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-35310 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=0.9 |
2 | ||
| 41361-35330 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=1.1 |
2 | ||
| 41361-35350 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=1.3 |
2 | ||
| 41361-60330 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=1.30,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-35320 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=1.0 |
2 | ||
| 41361-35340 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=1.2 |
2 | ||
| 41361-35350 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=1.3 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35330 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.1 |
2 | ||
| 41361-35350 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.3 |
2 | ||
| 41361-35290 |
RZJ95..ATM;RZJ95..GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ9# T=1.70,MARK N,W(LSD) |
2 | ||
| 41361-35320 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.0 |
2 | ||
| 41361-35160 |
RZJ95..ATM;RZJ95..GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ9# T=1.8,W(LSD) |
6 | ||
| 41361-35310 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=0.9 |
2 | ||
| 41361-35340 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.2 |
2 | ||
| 41361-60290 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=0.90,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-35330 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=1.1 |
2 | ||
| 41361-35350 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=1.3 |
2 | ||
| 41361-35310 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=0.9 |
2 | ||
| 41361-35340 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=1.2 |
2 | ||
| 41361-35320 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=1.0 |
2 | ||
| 41361-35320 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=1.0 |
2 | ||
| 41361-60320 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=1.20,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-60300 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=1.00,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-35340 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=1.2 |
2 | ||
| 41361-35310 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=0.9 |
2 | ||
| 41361-35330 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=1.1 |
2 | ||
| 41361-60310 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=1.10,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-35310 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=0.9 |
2 | ||
| 41361-35330 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=1.1 |
2 | ||
| 41361-35350 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=1.3 |
2 | ||
| 41361-60330 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=1.30,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-35320 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=1.0 |
2 | ||
| 41361-35340 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=1.2 |
2 | ||
| 41361-35350 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=1.3 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 41306-35040 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W(LSD) |
1 | ||
| 41306-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA W(LSD) |
1 | ||
| 41371-35020 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN |
1 | ||
| 41371-35020 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN |
1 | ||
| 41371-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
ILLUST NO. 1 OF 2(9604- )
LIMITED SLIP DIFFERENTIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039 - GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41039-34070 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA W(LSD) |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35150 |
KZJ9#,RZJ9#..(CBR,TD)..GEN W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 41101-35170 |
KZJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 41101-35170 |
RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,RZJ90,VZJ9#..(GX,VX)..(EFI,TD) |
1 | ||
| 41101-35170 |
KZJ9#,RZJ9#,VZJ9# |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-3D020 |
KZJ9#,RZJ9#,VZJ9# *FGR=43:10=4.300 |
1 | ||
| 41110-3D040 |
KZJ9#,RZJ9#,VZJ9# *FGR=43:10=4.300,W(LSD) & AXLE CODE=A02A |
1 | ||
| 41110-35890 |
KZJ9#,VZJ9# *FGR=41:10=4.100 |
1 | ||
| 41110-3D060 |
KZJ9#,VZJ9#..ARL,GCC,GEN *FGR=41:10=4.100,W(LSD) & AXLE CODE=A01A |
1 | ||
| 41110-35890 |
KZJ9#,VZJ9#..LHD *FGR=41:10=4.100 |
1 | ||
| 41110-3D080 |
KZJ9#,RZJ9#..(CBR,TD)..GEN *FGR=43:10=4.300,W(REAR DIFFERENTIAL LOCK) & AXLE CODE=A02B |
1 | ||
| 41110-3D020 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,RZJ9#,VZJ90..GCC,GEN *FGR=43:10=4.300 |
1 | ||
| 41110-3D020 |
RZJ95..CBR;VZJ95..LHD;KZJ9#,RZJ90,VZJ90..GCC,GEN *FGR=43:10=4.300 |
1 | ||
| 41110-35890 |
KZJ9#,VZJ90;VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC) *FGR=41:10=4.100 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 90105-12053 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 90105-12053 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-35010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 41115-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 41115-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-69465 |
KZJ9#,RZJ9#..(CBR,TD)..GEN *FGR=43:10=4.300,W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 41201-80102 |
KZJ9#,VZJ9#..EFI,TD *FGR=41:10=4.100 |
1 | ||
| 41201-80104 |
RZJ95..CBR;VZJ95..LHD;KZJ9#,RZJ90,VZJ90..GCC,GEN *FGR=43:10=4.300 |
1 | ||
| 41201-80104 |
KZJ9#,RZJ9#,VZJ9# *FGR=43:10=4.300 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35087 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 90366-35087 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 90366-35087 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30025 |
KZJ9#,RZJ9#..(CBR,TD)..GEN W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 90366-30067 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90366-30067 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 90366-30067 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38047 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 90311-38047 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35507 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.00 |
1 | ||
| 90201-35497 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.70 |
1 | ||
| 90201-35498 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.73 |
1 | ||
| 90201-35502 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.85 |
1 | ||
| 90201-35499 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.76 |
1 | ||
| 90201-35507 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.00 |
1 | ||
| 90201-35513 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.18 |
1 | ||
| 90201-35511 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.12 |
1 | ||
| 90201-35500 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.79 |
1 | ||
| 90201-35510 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.09 |
1 | ||
| 90201-35512 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.15 |
1 | ||
| 90201-35514 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.21 |
1 | ||
| 90201-35508 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.03 |
1 | ||
| 90201-35504 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.91 |
1 | ||
| 90201-35506 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.97 |
1 | ||
| 90201-35497 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.70 |
1 | ||
| 90201-35505 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.94 |
1 | ||
| 90201-35515 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35516 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35509 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.06 |
1 | ||
| 90201-35502 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.85 |
1 | ||
| 90201-35518 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35503 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.88 |
1 | ||
| 90201-35501 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.82 |
1 | ||
| 90201-35500 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.79 |
1 | ||
| 90201-35517 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35510 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.09 |
1 | ||
| 90201-35499 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.76 |
1 | ||
| 90201-35505 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.94 |
1 | ||
| 90201-35506 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.97 |
1 | ||
| 90201-35508 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.03 |
1 | ||
| 90201-35501 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.82 |
1 | ||
| 90201-35509 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.06 |
1 | ||
| 90201-35504 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.91 |
1 | ||
| 90201-35503 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.88 |
1 | ||
| 90201-35511 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.12 |
1 | ||
| 90201-35498 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.73 |
1 | ||
| 90201-35512 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.15 |
1 | ||
| 90201-35497 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.70 |
1 | ||
| 90201-35513 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.18 |
1 | ||
| 90201-35515 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35517 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35514 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.21 |
1 | ||
| 90201-35498 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.73 |
1 | ||
| 90201-35516 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35499 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.76 |
1 | ||
| 90201-35508 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.03 |
1 | ||
| 90201-35501 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.82 |
1 | ||
| 90201-35505 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.94 |
1 | ||
| 90201-35506 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.97 |
1 | ||
| 90201-35518 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35509 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.06 |
1 | ||
| 90201-35500 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.79 |
1 | ||
| 90201-35515 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35503 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.88 |
1 | ||
| 90201-35511 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.12 |
1 | ||
| 90201-35507 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.00 |
1 | ||
| 90201-35512 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.15 |
1 | ||
| 90201-35510 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.09 |
1 | ||
| 90201-35514 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.21 |
1 | ||
| 90201-35516 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35504 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.91 |
1 | ||
| 90201-35502 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.85 |
1 | ||
| 90201-35518 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35513 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.18 |
1 | ||
| 90201-35517 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.30,MARK 03 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35080 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20018 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=37 |
1 | ||
| 90179-20018 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=37 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 41214-26010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
5 | ||
| 41222-60010 |
KZJ9#,RZJ9#..(CBR,TD)..GEN W(REAR DIFFERENTIAL LOCK) |
5 | ||
| 41222-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
5 | ||
| 41222-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
10 | ||
| 90101-11353 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
10 | ||
| 90101-11353 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 41231-24010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 41231-24010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 41252-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
KZJ9#,RZJ9#..(CBR,TD)..GEN RH |
1 | ||
| 90366-50007 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 90366-50007 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
2 | ||
| 90366-50007 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90366-75001 |
KZJ9#,RZJ9#..(CBR,TD)..GEN LH |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
KZJ9#,RZJ9#..(CBR,TD)..GEN RH |
1 | ||
| 90366-50007 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 90366-50007 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
2 | ||
| 90366-50007 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90366-75001 |
KZJ9#,RZJ9#..(CBR,TD)..GEN LH |
1 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41302-35020 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN |
1 | ||
| 41302-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA W(LSD) |
1 | ||
| 41302-35040 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W(LSD) |
1 | ||
| 41302-35020 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN |
1 | ||
| 41302-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN |
1 | ||
| 41302-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-10084 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
8 | ||
| 90105-10084 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
8 | ||
| 90105-10084 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
8 | ||
| 41308 - MEMBER KIT, CLUTCH | ||||
| 41308-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
1 | ||
| 41308-35010 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
KZJ9#,RZJ9#..(CBR,TD)..GEN RH |
1 | ||
| 41315-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
2 | ||
| 41315-35020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 41315-60010 |
KZJ9#,RZJ9#..(CBR,TD)..GEN LH |
1 | ||
| 41315-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
KZJ9#,RZJ9#..(CBR,TD)..GEN RH |
1 | ||
| 41315-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
2 | ||
| 41315-35020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 41315-60010 |
KZJ9#,RZJ9#..(CBR,TD)..GEN LH |
1 | ||
| 41315-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 41316-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
2 | ||
| 41316-35010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 41331-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN |
2 | ||
| 41331-35030 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN W(LSD) |
2 | ||
| 41331-35030 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W(LSD) |
2 | ||
| 41331-35040 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN |
2 | ||
| 41331-35040 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN |
2 | ||
| 41331-35040 |
VZJ95..MTM..VX;KZJ95,VZJ95..ATM..(ARL,CO,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..CO,GCC,GEN |
2 | ||
| 41331-60040 |
KZJ9#,RZJ9#..(CBR,TD)..GEN LH |
1 | ||
| 41331-35040 |
RZJ90..STD;KZJ9#,RZJ95..GEN W(REAR DIFFERENTIAL LOCK),RH |
1 | ||
| 41331-60040 |
RZJ90..STD;KZJ9#,RZJ95..GEN W(REAR DIFFERENTIAL LOCK),LH |
1 | ||
| 41331-35040 |
KZJ9#,RZJ9#..(CBR,TD)..GEN RH |
1 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 41331-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN |
2 | ||
| 41331-35030 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN W(LSD) |
2 | ||
| 41331-35030 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W(LSD) |
2 | ||
| 41331-35040 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN |
2 | ||
| 41331-35040 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN |
2 | ||
| 41331-35040 |
VZJ95..MTM..VX;KZJ95,VZJ95..ATM..(ARL,CO,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..CO,GCC,GEN |
2 | ||
| 41331-60040 |
KZJ9#,RZJ9#..(CBR,TD)..GEN LH |
1 | ||
| 41331-35040 |
RZJ90..STD;KZJ9#,RZJ95..GEN W(REAR DIFFERENTIAL LOCK),RH |
1 | ||
| 41331-60040 |
RZJ90..STD;KZJ9#,RZJ95..GEN W(REAR DIFFERENTIAL LOCK),LH |
1 | ||
| 41331-35040 |
KZJ9#,RZJ9#..(CBR,TD)..GEN RH |
1 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 41341-30020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 41341-30020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 41341-30020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 41341-30020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 41341-30020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 41341-30020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 41341-30020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 41341-30020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41351-30060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 41351-30060 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41351-30060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 41351-30060 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41351-30060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 41351-30060 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41351-30060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 41351-30060 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35330 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.1 |
2 | ||
| 41361-35350 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.3 |
2 | ||
| 41361-35290 |
RZJ95..ATM;RZJ95..GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ9# T=1.70,MARK N,W(LSD) |
2 | ||
| 41361-35320 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.0 |
2 | ||
| 41361-35160 |
RZJ95..ATM;RZJ95..GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ9# T=1.8,W(LSD) |
6 | ||
| 41361-35310 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=0.9 |
2 | ||
| 41361-35340 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.2 |
2 | ||
| 41361-60290 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=0.90,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-35330 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=1.1 |
2 | ||
| 41361-35350 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=1.3 |
2 | ||
| 41361-35310 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=0.9 |
2 | ||
| 41361-35340 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=1.2 |
2 | ||
| 41361-35320 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=1.0 |
2 | ||
| 41361-35320 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=1.0 |
2 | ||
| 41361-60320 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=1.20,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-60300 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=1.00,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-35340 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=1.2 |
2 | ||
| 41361-35310 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=0.9 |
2 | ||
| 41361-35330 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=1.1 |
2 | ||
| 41361-60310 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=1.10,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-35310 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=0.9 |
2 | ||
| 41361-35330 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=1.1 |
2 | ||
| 41361-35350 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=1.3 |
2 | ||
| 41361-60330 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=1.30,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-35320 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=1.0 |
2 | ||
| 41361-35340 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=1.2 |
2 | ||
| 41361-35350 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=1.3 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35330 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.1 |
2 | ||
| 41361-35350 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.3 |
2 | ||
| 41361-35290 |
RZJ95..ATM;RZJ95..GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ9# T=1.70,MARK N,W(LSD) |
2 | ||
| 41361-35320 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.0 |
2 | ||
| 41361-35160 |
RZJ95..ATM;RZJ95..GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ9# T=1.8,W(LSD) |
6 | ||
| 41361-35310 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=0.9 |
2 | ||
| 41361-35340 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.2 |
2 | ||
| 41361-60290 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=0.90,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-35330 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=1.1 |
2 | ||
| 41361-35350 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=1.3 |
2 | ||
| 41361-35310 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=0.9 |
2 | ||
| 41361-35340 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=1.2 |
2 | ||
| 41361-35320 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=1.0 |
2 | ||
| 41361-35320 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=1.0 |
2 | ||
| 41361-60320 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=1.20,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-60300 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=1.00,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-35340 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=1.2 |
2 | ||
| 41361-35310 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=0.9 |
2 | ||
| 41361-35330 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=1.1 |
2 | ||
| 41361-60310 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=1.10,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-35310 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=0.9 |
2 | ||
| 41361-35330 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=1.1 |
2 | ||
| 41361-35350 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=1.3 |
2 | ||
| 41361-60330 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=1.30,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-35320 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=1.0 |
2 | ||
| 41361-35340 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=1.2 |
2 | ||
| 41361-35350 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=1.3 |
2 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90564-50003 |
RZJ95..ATM;RZJ95..GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ9# T=0.25 |
1 | ||
| 90564-50001 |
RZJ95..ATM;RZJ95..GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ9# T=0.15 |
1 | ||
| 90564-50004 |
RZJ95..ATM;RZJ95..GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ9# T=0.30 |
1 | ||
| 90564-50002 |
RZJ95..ATM;RZJ95..GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ9# T=0.20 |
1 | ||
| 90564-50005 |
RZJ95..ATM;RZJ95..GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ9# T=0.35 |
1 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90564-50003 |
RZJ95..ATM;RZJ95..GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ9# T=0.25 |
1 | ||
| 90564-50001 |
RZJ95..ATM;RZJ95..GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ9# T=0.15 |
1 | ||
| 90564-50004 |
RZJ95..ATM;RZJ95..GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ9# T=0.30 |
1 | ||
| 90564-50002 |
RZJ95..ATM;RZJ95..GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ9# T=0.20 |
1 | ||
| 90564-50005 |
RZJ95..ATM;RZJ95..GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ9# T=0.35 |
1 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 41306-35040 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W(LSD) |
1 | ||
| 41306-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA W(LSD) |
1 | ||
| 41371-35020 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN |
1 | ||
| 41371-35020 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN |
1 | ||
| 41371-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN |
1 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-22020 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) |
6 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-22020 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) |
6 | ||
| 41388 - RETAINER, SPRING, LH | ||||
| 41388-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
1 | ||
| 41388-35020 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 41465B - SPRING, COMPRESSION (FOR REAR DIFFERENTIAL LOCK RETAINE | ||||
| 90501-12110 |
KZJ9#,RZJ9#..(CBR,TD)..GEN W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 90501-07112 |
VZJ95..ARL;KZJ9#,LJ9#,RZJ9#..ARL,GCC,GEN W(LSD) |
1 | ||
| 90501-65003 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA W(LSD) |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
ILLUST NO. 1 OF 2(9604- )KZJ9#,RZJ9#
REAR DIFFERENTAIL LOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33275L - SEAT, REAR DIFFERENTIAL LOCK SHIFT DETENT BALL SPRING | ||||
| 33275-16010 |
KZJ9#,RZJ9#..(CBR,TD)..GEN |
1 | ||
| 41039 - GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41039-34070 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA W(LSD) |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35150 |
KZJ9#,RZJ9#..(CBR,TD)..GEN W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 41101-35170 |
KZJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 41101-35170 |
RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,RZJ90,VZJ9#..(GX,VX)..(EFI,TD) |
1 | ||
| 41101-35170 |
KZJ9#,RZJ9#,VZJ9# |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-3D020 |
KZJ9#,RZJ9#,VZJ9# *FGR=43:10=4.300 |
1 | ||
| 41110-3D040 |
KZJ9#,RZJ9#,VZJ9# *FGR=43:10=4.300,W(LSD) & AXLE CODE=A02A |
1 | ||
| 41110-35890 |
KZJ9#,VZJ9# *FGR=41:10=4.100 |
1 | ||
| 41110-3D060 |
KZJ9#,VZJ9#..ARL,GCC,GEN *FGR=41:10=4.100,W(LSD) & AXLE CODE=A01A |
1 | ||
| 41110-35890 |
KZJ9#,VZJ9#..LHD *FGR=41:10=4.100 |
1 | ||
| 41110-3D080 |
KZJ9#,RZJ9#..(CBR,TD)..GEN *FGR=43:10=4.300,W(REAR DIFFERENTIAL LOCK) & AXLE CODE=A02B |
1 | ||
| 41110-3D020 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,RZJ9#,VZJ90..GCC,GEN *FGR=43:10=4.300 |
1 | ||
| 41110-3D020 |
RZJ95..CBR;VZJ95..LHD;KZJ9#,RZJ90,VZJ90..GCC,GEN *FGR=43:10=4.300 |
1 | ||
| 41110-35890 |
KZJ9#,VZJ90;VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC) *FGR=41:10=4.100 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 90105-12053 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 90105-12053 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-35010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 41115-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 41115-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-69465 |
KZJ9#,RZJ9#..(CBR,TD)..GEN *FGR=43:10=4.300,W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 41201-80102 |
KZJ9#,VZJ9#..EFI,TD *FGR=41:10=4.100 |
1 | ||
| 41201-80104 |
RZJ95..CBR;VZJ95..LHD;KZJ9#,RZJ90,VZJ90..GCC,GEN *FGR=43:10=4.300 |
1 | ||
| 41201-80104 |
KZJ9#,RZJ9#,VZJ9# *FGR=43:10=4.300 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35087 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 90366-35087 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 90366-35087 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30025 |
KZJ9#,RZJ9#..(CBR,TD)..GEN W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 90366-30067 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90366-30067 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 90366-30067 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38047 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 90311-38047 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35497 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.70 |
1 | ||
| 90201-35498 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.73 |
1 | ||
| 90201-35502 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.85 |
1 | ||
| 90201-35499 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.76 |
1 | ||
| 90201-35507 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.00 |
1 | ||
| 90201-35513 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.18 |
1 | ||
| 90201-35511 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.12 |
1 | ||
| 90201-35500 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.79 |
1 | ||
| 90201-35510 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.09 |
1 | ||
| 90201-35512 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.15 |
1 | ||
| 90201-35514 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.21 |
1 | ||
| 90201-35508 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.03 |
1 | ||
| 90201-35504 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.91 |
1 | ||
| 90201-35506 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.97 |
1 | ||
| 90201-35497 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.70 |
1 | ||
| 90201-35505 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.94 |
1 | ||
| 90201-35515 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35516 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35509 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.06 |
1 | ||
| 90201-35502 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.85 |
1 | ||
| 90201-35518 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35503 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.88 |
1 | ||
| 90201-35501 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.82 |
1 | ||
| 90201-35500 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.79 |
1 | ||
| 90201-35517 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35510 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.09 |
1 | ||
| 90201-35499 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.76 |
1 | ||
| 90201-35505 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.94 |
1 | ||
| 90201-35506 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.97 |
1 | ||
| 90201-35508 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.03 |
1 | ||
| 90201-35501 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.82 |
1 | ||
| 90201-35509 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.06 |
1 | ||
| 90201-35504 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.91 |
1 | ||
| 90201-35503 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=47,T=1.88 |
1 | ||
| 90201-35511 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.12 |
1 | ||
| 90201-35498 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=1.73 |
1 | ||
| 90201-35507 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.00 |
1 | ||
| 90201-35512 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.15 |
1 | ||
| 90201-35497 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.70 |
1 | ||
| 90201-35513 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.18 |
1 | ||
| 90201-35515 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35517 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35514 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.21 |
1 | ||
| 90201-35498 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.73 |
1 | ||
| 90201-35516 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35499 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.76 |
1 | ||
| 90201-35508 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.03 |
1 | ||
| 90201-35501 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.82 |
1 | ||
| 90201-35505 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.94 |
1 | ||
| 90201-35506 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.97 |
1 | ||
| 90201-35518 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35509 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.06 |
1 | ||
| 90201-35500 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.79 |
1 | ||
| 90201-35515 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35503 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.88 |
1 | ||
| 90201-35511 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.12 |
1 | ||
| 90201-35507 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.00 |
1 | ||
| 90201-35512 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.15 |
1 | ||
| 90201-35510 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.09 |
1 | ||
| 90201-35514 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.21 |
1 | ||
| 90201-35516 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35504 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.91 |
1 | ||
| 90201-35502 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=1.85 |
1 | ||
| 90201-35518 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35513 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.18 |
1 | ||
| 90201-35517 |
KZJ9#,LJ9#,RZJ9#,VZJ9# OD=47,T=2.30,MARK 03 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35080 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20018 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=37 |
1 | ||
| 90179-20018 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN OD=37 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 41214-26010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
5 | ||
| 41222-60010 |
KZJ9#,RZJ9#..(CBR,TD)..GEN W(REAR DIFFERENTIAL LOCK) |
5 | ||
| 41222-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
5 | ||
| 41222-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
10 | ||
| 90101-11353 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
10 | ||
| 90101-11353 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 41231-24010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 41231-24010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 41252-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-60060 |
KZJ9#,RZJ9#..(CBR,TD)..GEN |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
KZJ9#,RZJ9#..(CBR,TD)..GEN RH |
1 | ||
| 90366-50007 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 90366-50007 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
2 | ||
| 90366-50007 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90366-75001 |
KZJ9#,RZJ9#..(CBR,TD)..GEN LH |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
KZJ9#,RZJ9#..(CBR,TD)..GEN RH |
1 | ||
| 90366-50007 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 90366-50007 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
2 | ||
| 90366-50007 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90366-75001 |
KZJ9#,RZJ9#..(CBR,TD)..GEN LH |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
KZJ9#,RZJ9#..(CBR,TD)..GEN RH |
1 | ||
| 41315-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
2 | ||
| 41315-35020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 41315-60010 |
KZJ9#,RZJ9#..(CBR,TD)..GEN LH |
1 | ||
| 41315-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
KZJ9#,RZJ9#..(CBR,TD)..GEN RH |
1 | ||
| 41315-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
2 | ||
| 41315-35020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 41315-60010 |
KZJ9#,RZJ9#..(CBR,TD)..GEN LH |
1 | ||
| 41315-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 41316-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
2 | ||
| 41316-35010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 41331-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN |
2 | ||
| 41331-35030 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN W(LSD) |
2 | ||
| 41331-35030 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W(LSD) |
2 | ||
| 41331-35040 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN |
2 | ||
| 41331-35040 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN |
2 | ||
| 41331-35040 |
VZJ95..MTM..VX;KZJ95,VZJ95..ATM..(ARL,CO,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..CO,GCC,GEN |
2 | ||
| 41331-60040 |
KZJ9#,RZJ9#..(CBR,TD)..GEN LH |
1 | ||
| 41331-35040 |
RZJ90..STD;KZJ9#,RZJ95..GEN W(REAR DIFFERENTIAL LOCK),RH |
1 | ||
| 41331-60040 |
RZJ90..STD;KZJ9#,RZJ95..GEN W(REAR DIFFERENTIAL LOCK),LH |
1 | ||
| 41331-35040 |
KZJ9#,RZJ9#..(CBR,TD)..GEN RH |
1 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 41331-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN |
2 | ||
| 41331-35030 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN W(LSD) |
2 | ||
| 41331-35030 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W(LSD) |
2 | ||
| 41331-35040 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN |
2 | ||
| 41331-35040 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN |
2 | ||
| 41331-35040 |
VZJ95..MTM..VX;KZJ95,VZJ95..ATM..(ARL,CO,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..CO,GCC,GEN |
2 | ||
| 41331-60040 |
KZJ9#,RZJ9#..(CBR,TD)..GEN LH |
1 | ||
| 41331-35040 |
RZJ90..STD;KZJ9#,RZJ95..GEN W(REAR DIFFERENTIAL LOCK),RH |
1 | ||
| 41331-60040 |
RZJ90..STD;KZJ9#,RZJ95..GEN W(REAR DIFFERENTIAL LOCK),LH |
1 | ||
| 41331-35040 |
KZJ9#,RZJ9#..(CBR,TD)..GEN RH |
1 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 41341-30020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 41341-30020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 41341-30020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 41341-30020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 41341-30020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 41341-30020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 41341-30020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 41341-30020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41351-30060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 41351-30060 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41351-30060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 41351-30060 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41351-30060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 41351-30060 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
4 | ||
| 41351-30060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 41351-30060 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35330 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.1 |
2 | ||
| 41361-35350 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.3 |
2 | ||
| 41361-35290 |
RZJ95..ATM;RZJ95..GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ9# T=1.70,MARK N,W(LSD) |
2 | ||
| 41361-35320 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.0 |
2 | ||
| 41361-35160 |
RZJ95..ATM;RZJ95..GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ9# T=1.8,W(LSD) |
6 | ||
| 41361-35310 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=0.9 |
2 | ||
| 41361-35340 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.2 |
2 | ||
| 41361-60290 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=0.90,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-35330 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=1.1 |
2 | ||
| 41361-35350 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=1.3 |
2 | ||
| 41361-35310 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=0.9 |
2 | ||
| 41361-35340 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=1.2 |
2 | ||
| 41361-35320 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=1.0 |
2 | ||
| 41361-35320 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=1.0 |
2 | ||
| 41361-60320 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=1.20,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-60300 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=1.00,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-35340 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=1.2 |
2 | ||
| 41361-35310 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=0.9 |
2 | ||
| 41361-35330 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=1.1 |
2 | ||
| 41361-60310 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=1.10,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-35310 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=0.9 |
2 | ||
| 41361-35330 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=1.1 |
2 | ||
| 41361-35350 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=1.3 |
2 | ||
| 41361-60330 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=1.30,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-35320 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=1.0 |
2 | ||
| 41361-35340 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=1.2 |
2 | ||
| 41361-35350 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=1.3 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35330 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.1 |
2 | ||
| 41361-35350 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.3 |
2 | ||
| 41361-35290 |
RZJ95..ATM;RZJ95..GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ9# T=1.70,MARK N,W(LSD) |
2 | ||
| 41361-35320 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.0 |
2 | ||
| 41361-35160 |
RZJ95..ATM;RZJ95..GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ9# T=1.8,W(LSD) |
6 | ||
| 41361-35310 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=0.9 |
2 | ||
| 41361-35340 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.2 |
2 | ||
| 41361-60290 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=0.90,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-35330 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=1.1 |
2 | ||
| 41361-35350 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=1.3 |
2 | ||
| 41361-35310 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=0.9 |
2 | ||
| 41361-35340 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=1.2 |
2 | ||
| 41361-35320 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN T=1.0 |
2 | ||
| 41361-35320 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=1.0 |
2 | ||
| 41361-60320 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=1.20,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-60300 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=1.00,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-35340 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=1.2 |
2 | ||
| 41361-35310 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=0.9 |
2 | ||
| 41361-35330 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=1.1 |
2 | ||
| 41361-60310 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=1.10,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-35310 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=0.9 |
2 | ||
| 41361-35330 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=1.1 |
2 | ||
| 41361-35350 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN T=1.3 |
2 | ||
| 41361-60330 |
KZJ9#,RZJ9#..(CBR,TD)..GEN T=1.30,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 41361-35320 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=1.0 |
2 | ||
| 41361-35340 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=1.2 |
2 | ||
| 41361-35350 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN T=1.3 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 41306-35040 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) W(LSD) |
1 | ||
| 41306-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA W(LSD) |
1 | ||
| 41371-35020 |
VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN |
1 | ||
| 41371-35020 |
RZJ95..CBR;KZJ9#,LJ9#,RZJ90,VZJ9#..CO,GCC,GEN |
1 | ||
| 41371-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN |
1 | ||
| 41442 - BOLT OR PIN, SHIFT FORK LOCK | ||||
| 90254-05016 |
KZJ9#,RZJ9#..(CBR,TD)..GEN |
1 | ||
| 41450 - ACTUATOR, DIFFERENTIAL LOCK SHIFT | ||||
| 41450-35030 |
KZJ9#,RZJ9#..(CBR,TD)..GEN |
1 | ||
| 41450C - RING, O (FOR REAR DIFFERENTIAL LOCK SHIFT ACTUATOR) | ||||
| 90301-20005 |
KZJ9#,RZJ9#..(CBR,TD)..GEN |
1 | ||
| 41451 - FORK, REAR DIFFERENTIAL LOCK SHIFT | ||||
| 41451-60020 |
KZJ9#,RZJ9#..(CBR,TD)..GEN |
1 | ||
| 41453 - SLEEVE, REAR DIFFERENTIAL LOCK | ||||
| 41453-60020 |
KZJ9#,RZJ9#..(CBR,TD)..GEN |
1 | ||
| 41460J - BALL (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90360-08009 |
KZJ9#,RZJ9#..(CBR,TD)..GEN |
1 | ||
| 41462K - SHAFT, REAR DIFFERENTIAL LOCK SHIFT FORK | ||||
| 41462-60020 |
KZJ9#,RZJ9#..(CBR,TD)..GEN |
1 | ||
| 41465B - SPRING, COMPRESSION (FOR REAR DIFFERENTIAL LOCK RETAINE | ||||
| 90501-12110 |
KZJ9#,RZJ9#..(CBR,TD)..GEN W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 90501-07112 |
VZJ95..ARL;KZJ9#,LJ9#,RZJ9#..ARL,GCC,GEN W(LSD) |
1 | ||
| 90501-65003 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA W(LSD) |
1 | ||
| 41465D - PLUG (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90341-10065 |
KZJ9#,RZJ9#..(CBR,TD)..GEN |
2 | ||
| 41465D - PLUG (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90341-10065 |
KZJ9#,RZJ9#..(CBR,TD)..GEN |
2 | ||
| 41469A - RETAINER, REAR DIFFERENTIAL LOCK SHAFT | ||||
| 41469-60010 |
KZJ9#,RZJ9#..(CBR,TD)..GEN |
1 | ||
| 41507 - TUBE, REAR DIFFERENTIAL LOCK ACTUATOR BREATHER | ||||
| 41507-60080 |
KZJ9#,RZJ9#..(CBR,TD)..GEN |
1 | ||
| Common parts | ||||
| 90105-08050 | ||||
| 90105-08214 | ||||
| 91611-60814 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(9604- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-35100 |
KZJ9#,RZJ9#..(CBR,TD)..GEN W(REAR DRUM BRAKE & REAR DIFFERENTIAL LOCK) |
1 | ||
| 04412-25060 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 04412-25060 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD W(REAR DRUM BRAKE) |
1 | ||
| 04412-60160 |
KZJ9#,RZJ95..GX..(CBR,TD)..GEN W(REAR DISC BRAKE & REAR DIFFERENTIAL LOCK) |
1 | ||
| 04412-60100 |
VZJ95..ARL;KZJ9#,RZJ9#..GX W(REAR DISC BRAKE) |
1 | ||
| 04412-60160 |
KZJ9#,RZJ95..GX..GEN W(REAR DISC BRAKE & REAR DIFFERENTIAL LOCK) |
1 | ||
| 04412-60100 |
RZJ90..GX..GEN;KZJ9#,RZJ95,VZJ9#..(GX,VX)..(ARL,CO,GCC,GEN) W(REAR DISC BRAKE) |
1 | ||
| 04412-60100 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ95..(EFI,TD)..(ARL,GEN) W(REAR DISC BRAKE) |
1 | ||
| 04412-35100 |
RZJ90..STD;RZJ95..RHD..GX..GEN;KZJ9#,RZJ95..LHD..GEN W(REAR DRUM BRAKE & REAR DIFFERENTIAL LOCK) |
1 | ||
| 04412-25060 |
RZJ95..LHD..GEN;RZJ95..ATM..GCC;RZJ95..RHD..GX..GEN;KZJ9#,LJ9#,RZJ90..CO,GEN W(REAR DRUM BRAKE) |
1 | ||
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-35100 |
KZJ9#,RZJ9#..(CBR,TD)..GEN W(REAR DRUM BRAKE & REAR DIFFERENTIAL LOCK) |
1 | ||
| 04412-25060 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 04412-25060 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD W(REAR DRUM BRAKE) |
1 | ||
| 04412-60160 |
KZJ9#,RZJ95..GX..(CBR,TD)..GEN W(REAR DISC BRAKE & REAR DIFFERENTIAL LOCK) |
1 | ||
| 04412-60100 |
VZJ95..ARL;KZJ9#,RZJ9#..GX W(REAR DISC BRAKE) |
1 | ||
| 04412-60160 |
KZJ9#,RZJ95..GX..GEN W(REAR DISC BRAKE & REAR DIFFERENTIAL LOCK) |
1 | ||
| 04412-60100 |
RZJ90..GX..GEN;KZJ9#,RZJ95,VZJ9#..(GX,VX)..(ARL,CO,GCC,GEN) W(REAR DISC BRAKE) |
1 | ||
| 04412-60100 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ95..(EFI,TD)..(ARL,GEN) W(REAR DISC BRAKE) |
1 | ||
| 04412-35100 |
RZJ90..STD;RZJ95..RHD..GX..GEN;KZJ9#,RZJ95..LHD..GEN W(REAR DRUM BRAKE & REAR DIFFERENTIAL LOCK) |
1 | ||
| 04412-25060 |
RZJ95..LHD..GEN;RZJ95..ATM..GCC;RZJ95..RHD..GX..GEN;KZJ9#,LJ9#,RZJ90..CO,GEN W(REAR DRUM BRAKE) |
1 | ||
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-35100 |
KZJ9#,RZJ9#..(CBR,TD)..GEN W(REAR DRUM BRAKE & REAR DIFFERENTIAL LOCK) |
1 | ||
| 04412-25060 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 04412-25060 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD W(REAR DRUM BRAKE) |
1 | ||
| 04412-60160 |
KZJ9#,RZJ95..GX..(CBR,TD)..GEN W(REAR DISC BRAKE & REAR DIFFERENTIAL LOCK) |
1 | ||
| 04412-60100 |
VZJ95..ARL;KZJ9#,RZJ9#..GX W(REAR DISC BRAKE) |
1 | ||
| 04412-60160 |
KZJ9#,RZJ95..GX..GEN W(REAR DISC BRAKE & REAR DIFFERENTIAL LOCK) |
1 | ||
| 04412-60100 |
RZJ90..GX..GEN;KZJ9#,RZJ95,VZJ9#..(GX,VX)..(ARL,CO,GCC,GEN) W(REAR DISC BRAKE) |
1 | ||
| 04412-60100 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ95..(EFI,TD)..(ARL,GEN) W(REAR DISC BRAKE) |
1 | ||
| 04412-35100 |
RZJ90..STD;RZJ95..RHD..GX..GEN;KZJ9#,RZJ95..LHD..GEN W(REAR DRUM BRAKE & REAR DIFFERENTIAL LOCK) |
1 | ||
| 04412-25060 |
RZJ95..LHD..GEN;RZJ95..ATM..GCC;RZJ95..RHD..GX..GEN;KZJ9#,LJ9#,RZJ90..CO,GEN W(REAR DRUM BRAKE) |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08329 |
KZJ9#,RZJ9#..(CBR,TD)..GEN S=17 & 12,L=37 |
7 | ||
| 90116-08330 |
KZJ9#,RZJ9#..(CBR,TD)..GEN S=17 & 12,L=111,W(REAR DIFFERENTIAL LOCK) |
2 | ||
| 90116-08329 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ95..(DSL,EFI,TD)..(ARL,GEN) S=17 & 12,L=37,W(REAR DIFFERENTIAL LOCK) |
8 | ||
| 90116-08233 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) S=14 & 14,L=42 |
2 | ||
| 90116-08233 |
KZJ9#,LJ9#,RZJ9#,VZJ9# S=14 & 14,L=42 |
2 | ||
| 41991 - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-22010 |
RZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-60550 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ9#..(EFI,TD)..(ARL,GCC,GEN) W(ABS) |
1 | ||
| 42110-60530 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD W(REAR DRUM BRAKE) |
1 | ||
| 42110-60560 |
KZJ9#,RZJ9#..(CBR,TD)..GEN W(REAR DRUM BRAKE & REAR DIFFERENTIAL LOCK) |
1 | ||
| 42110-60550 |
KZJ9#,RZJ9#,VZJ9#..GX,VX W(ABS) |
1 | ||
| 42110-60530 |
KZJ9#,LJ9#,RZJ9# W(REAR DRUM BRAKE) |
1 | ||
| 42110-60580 |
KZJ9#,RZJ95..GX..(CBR,TD)..GEN W(ABS & REAR DIFFERENTIAL LOCK) |
1 | ||
| 42110-60530 |
RZJ95..ATM;RZJ95..RHD..GX;RZJ95..LHD..GEN;KZJ9#,LJ9#,RZJ90..GEN W(REAR DRUM BRAKE) |
1 | ||
| 42110-60550 |
RZJ95..ATM;RZJ95..MTM..GX..(ARL,GCC,GEN);KZJ9#,RZJ90,VZJ9#..(GX,VX)..(ARL,GCC,GEN,MA) W(ABS) |
1 | ||
| 42110-60530 |
RZJ95..LHD;RZJ95..RHD..GX..GEN;KZJ9#,LJ9#,RZJ90..DSL,EFI,TD W(REAR DRUM BRAKE) |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
KZJ9#,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 90341-18006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 12157-10010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90930-03031 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
RZJ95..LHD;RZJ95..RHD..GX;KZJ9#,LJ9#,RZJ90,VZJ9#..ARL,GCC,GEN |
1 | ||
| 12157-10010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 90341-18057 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42139-40010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 42139-40010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-60020 |
RZJ95..LHD;RZJ95..RHD..GX;KZJ9#,LJ9#,RZJ90,VZJ9#..ARL,GCC,GEN |
1 | ||
| 42181-60020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 42181-60050 |
KZJ9#,RZJ9#..(CBR,TD)..GEN W(REAR DIFFERENTIAL LOCK) |
1 | ||
| Common parts | ||||
| 90170-08042 | ||||
| 90170-08204 | ||||
| 90201-08002 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
