KZJ90L-GJMNX (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000
Engine 1KZT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )

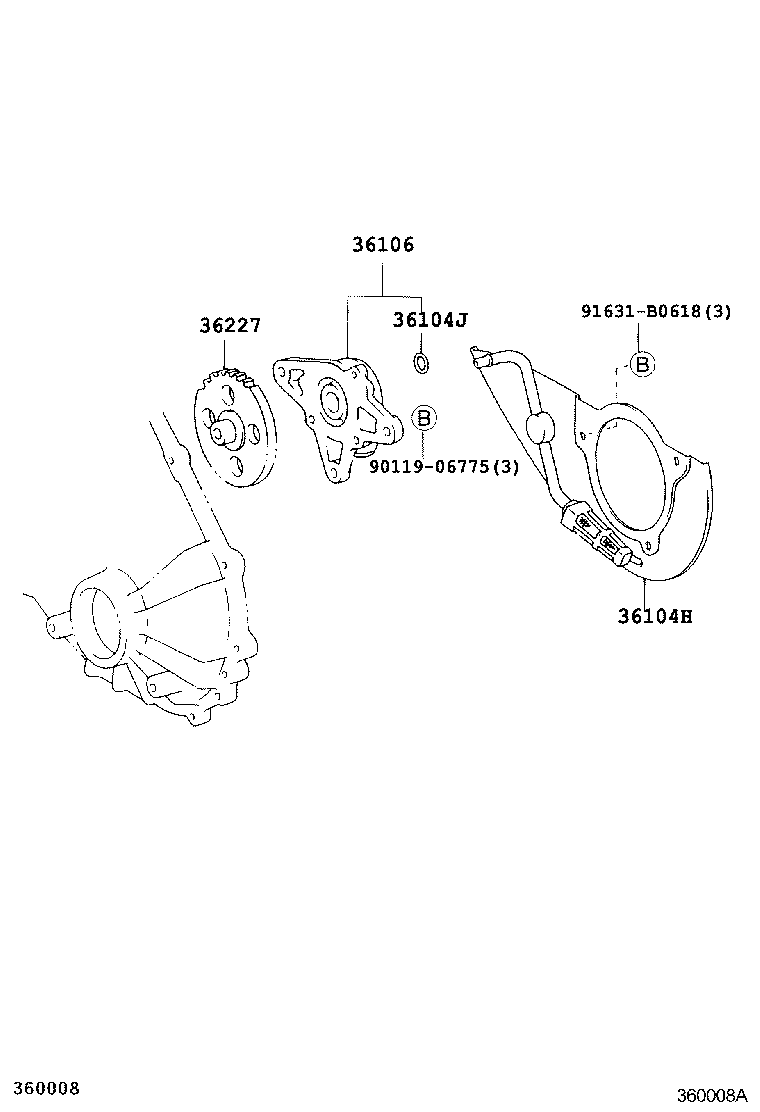

Click highlighted areas on diagram

diagram 36104H 36104J 36106 36227 9011906775 91631B0618
Part # Description Qty Price
36104H - SEPARATOR SUB-ASSY, TRANSFER OIL
36104-35021

RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD

 1
36104-35021

KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA)

 1
36104J - RING, O (FOR TRANSFER OIL PUMP BODY)
96721-19009

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
96721-19009

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
36106 - BODY SUB-ASSY, TRANSFER OIL PUMP
36106-35031

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
36106-35031

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
36227 - GEAR, TRANSFER OIL PUMP
36227-35020

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
36227-35020

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
Common parts
90119-06775
91631-B0618
