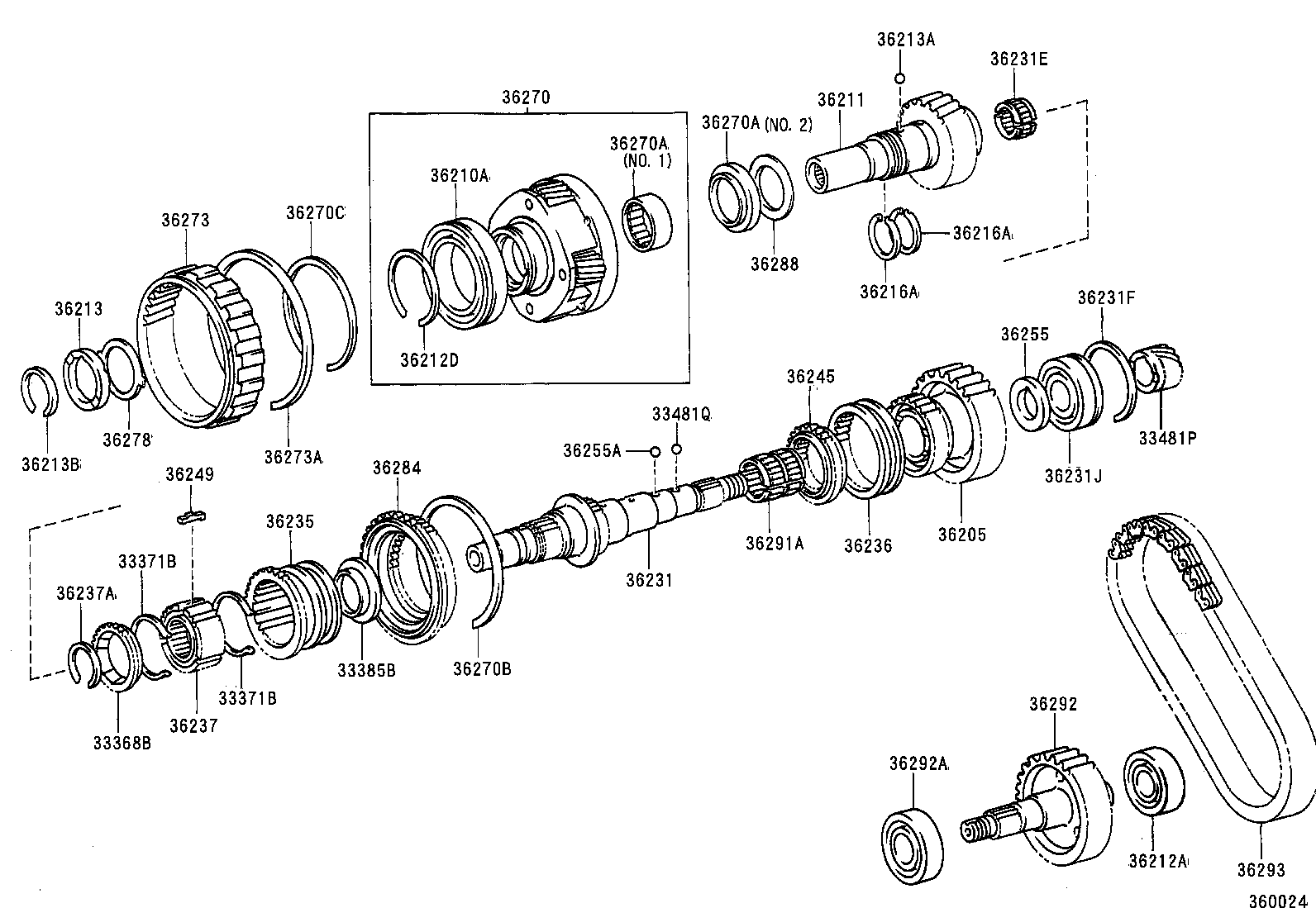

KZJ90L-GJMNX (1996)
Toyota Land Cruiser 90
(9604- )GX,STD..CO,GCC,GEN,MA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33368B - RING, SYNCHRONIZER (FOR TRANSFER FRONT DRIVE CLUTCH) | ||||
| 33367-14010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
1 | ||
| 33367-14010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..MTM |
1 | ||
| 33371B - SPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER) | ||||
| 33371-14010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..MTM |
2 | ||
| 33371-14010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
2 | ||
| 33371B - SPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER) | ||||
| 33371-14010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..MTM |
2 | ||
| 33371-14010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
2 | ||
| 33385B - RETAINER, SHIFTING KEY (FOR TRANSFER FRONT DRIVE CLUTCH | ||||
| 33385-35010 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD |
1 | ||
| 33385-35010 |
KZJ9#,LJ9#,RZJ9#..MTM..(CO,GCC,GEN,MA) |
1 | ||
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-35111 |
RZJ9#..CBR;RZJ90..GX..GEN;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) N=11 |
1 | ||
| 33481-35111 |
RZJ95,VZJ95;KZJ9#,RZJ90,VZJ90..GCC,GEN,MA N=11 |
1 | ||
| 33481Q - KEY OR BALL, SPEEDOMETER DRIVE GEAR (FOR TRANSFER) | ||||
| 90360-05012 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90360-05012 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36205 - SPROCKET SUB-ASSY, TRANSFER DRIVE | ||||
| 36205-35070 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD |
1 | ||
| 36205-35070 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) |
1 | ||
| 36210A - BEARING (FOR TRANSFER INPUT SHAFT) | ||||
| 90363-75001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90363-75001 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36211 - SHAFT, TRANSFER INPUT | ||||
| 36201-35040 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 36201-35040 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 36212A - BEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR) | ||||
| 90363-28004 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90363-28004 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36212D - RING, SHAFT SNAP (FOR TRANSFER INPUT BEARING) | ||||
| 90520-72003 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.55,MARK 3 |
1 | ||
| 90520-72001 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.45,MARK 1 |
1 | ||
| 90520-72002 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=1.50,MARK 2 |
1 | ||
| 90520-72002 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.50,MARK 2 |
1 | ||
| 90520-72005 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=1.65,MARK 5 |
1 | ||
| 90520-72001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=1.45,MARK 1 |
1 | ||
| 90520-72004 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.60,MARK 4 |
1 | ||
| 90520-72004 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=1.60,MARK 4 |
1 | ||
| 90520-72003 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=1.55,MARK 3 |
1 | ||
| 90520-72005 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.65,MARK 5 |
1 | ||
| 36213 - STOPPER, TRANSFER INPUT GEAR | ||||
| 36213-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36213-35020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36213A - BALL (FOR TRANSFER INPUT GEAR STOPPER) | ||||
| 90360-05012 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90360-05012 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36213B - RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER) | ||||
| 90520-44003 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=2.10-2.15 |
1 | ||
| 90520-44004 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=2.15-2.20 |
1 | ||
| 90520-44006 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=2.25-2.30 |
1 | ||
| 90520-44005 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=2.20-2.25 |
1 | ||
| 90520-44007 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=2.30-2.35 |
1 | ||
| 90520-44014 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=2.65-2.70 |
1 | ||
| 90520-44009 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=2.40-2.45 |
1 | ||
| 90520-44012 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=2.55-2.60 |
1 | ||
| 90520-44017 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=2.80-2.85 |
1 | ||
| 90520-44016 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=2.75-2.80 |
1 | ||
| 90520-44003 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=2.10-2.15 |
1 | ||
| 90520-44010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=2.45-2.50 |
1 | ||
| 90520-44011 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=2.50-2.55 |
1 | ||
| 90520-44008 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=2.35-2.40 |
1 | ||
| 90520-44008 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=2.35-2.40 |
1 | ||
| 90520-44015 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=2.70-2.75 |
1 | ||
| 90520-44020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=2.95-3.00 |
1 | ||
| 90520-44005 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=2.20-2.25 |
1 | ||
| 90520-44011 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=2.50-2.55 |
1 | ||
| 90520-44018 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=2.85-2.90 |
1 | ||
| 90520-44009 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=2.40-2.45 |
1 | ||
| 90520-44010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=2.45-2.50 |
1 | ||
| 90520-44013 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=2.60-2.65 |
1 | ||
| 90520-44021 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=3.00-3.05 |
1 | ||
| 90520-44013 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=2.60-2.65 |
1 | ||
| 90520-44018 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=2.85-2.90 |
1 | ||
| 90520-44004 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=2.15-2.20 |
1 | ||
| 90520-44006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=2.25-2.30 |
1 | ||
| 90520-44019 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=2.90-2.95 |
1 | ||
| 90520-44012 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=2.55-2.60 |
1 | ||
| 90520-44007 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=2.30-2.35 |
1 | ||
| 90520-44020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=2.95-3.00 |
1 | ||
| 90520-44015 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=2.70-2.75 |
1 | ||
| 90520-44019 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=2.90-2.95 |
1 | ||
| 90520-44016 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=2.75-2.80 |
1 | ||
| 90520-44014 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=2.65-2.70 |
1 | ||
| 90520-44017 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=2.80-2.85 |
1 | ||
| 90520-44021 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=3.00-3.05 |
1 | ||
| 36216A - RING, TRANSFER INPUT SHAFT SEAL, NO.1 | ||||
| 36216-35011 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 36216A - RING, TRANSFER INPUT SHAFT SEAL, NO.1 | ||||
| 36216-35011 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 36231 - SHAFT, TRANSFER OUTPUT, REAR | ||||
| 36231-35030 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-28004 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 90364-28004 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90520-71221 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=1.65,ID=71.1 |
1 | ||
| 90520-71221 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.65,ID=71.1 |
1 | ||
| 36231J - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| 90363-32006 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90363-32006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 36235-35021 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36235-35021 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36236 - SLEEVE, FRONT DRIVE CLUTCH | ||||
| 36236-35040 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD |
1 | ||
| 36236-35040 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) |
1 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36237-35030 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD |
1 | ||
| 36237-35030 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) |
1 | ||
| 36237A - RING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB) | ||||
| 90520-39006 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD T=2.20-2.25,MARK C |
1 | ||
| 90520-39004 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD T=2.10-2.15,MARK A |
1 | ||
| 90520-39008 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD T=2.30-2.35,MARK E |
1 | ||
| 90520-39010 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD T=2.40-2.45,MARK G |
1 | ||
| 90520-39013 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD T=2.00-2.05,MARK K |
1 | ||
| 90520-39005 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD T=2.15-2.20,MARK B |
1 | ||
| 90520-39011 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD T=2.45-2.50,MARK H |
1 | ||
| 90520-39004 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) T=2.10-2.15,MARK A |
1 | ||
| 90520-39014 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD T=2.05-2.10,MARK L |
1 | ||
| 90520-39006 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) T=2.20-2.25,MARK C |
1 | ||
| 90520-39009 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD T=2.35-2.40,MARK F |
1 | ||
| 90520-39007 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD T=2.25-2.30,MARK D |
1 | ||
| 90520-39012 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD T=2.50-2.55,MARK J |
1 | ||
| 90520-39010 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) T=2.40-2.45,MARK G |
1 | ||
| 90520-39005 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) T=2.15-2.20,MARK B |
1 | ||
| 90520-39009 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) T=2.35-2.40,MARK F |
1 | ||
| 90520-39012 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) T=2.50-2.55,MARK J |
1 | ||
| 90520-39013 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) T=2.00-2.05,MARK K |
1 | ||
| 90520-39008 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) T=2.30-2.35,MARK E |
1 | ||
| 90520-39007 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) T=2.25-2.30,MARK D |
1 | ||
| 90520-39014 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) T=2.05-2.10,MARK L |
1 | ||
| 90520-39011 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) T=2.45-2.50,MARK H |
1 | ||
| 36245 - PIECE, TRANSFER FRONT DRIVE GEAR | ||||
| 36245-35040 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD |
1 | ||
| 36249 - KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.2 | ||||
| 36249-35030 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..MTM |
3 | ||
| 36249-35030 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
3 | ||
| 36255 - SPACER, TRANSFER OUTPUT SHAFT, NO.1 | ||||
| 36255-35020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36255-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36255A - BALL (FOR TRANSFER OUTPUT SHAFT SPACER) | ||||
| 90360-05012 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) |
1 | ||
| 90360-05012 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD |
1 | ||
| 36270 - GEAR ASSY, TRANSFER LOW PLANETARY | ||||
| 36270-35900 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36270-35900 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36270A - BEARING (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90364-47001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.1 |
1 | ||
| 90374-49001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.2 |
1 | ||
| 90364-47001 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.1 |
1 | ||
| 90374-49001 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.2 |
1 | ||
| 36270A - BEARING (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90364-47001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.1 |
1 | ||
| 90374-49001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.2 |
1 | ||
| 90364-47001 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.1 |
1 | ||
| 90374-49001 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.2 |
1 | ||
| 36270B - RING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90521-99056 |
KZJ9#,LJ9#,RZJ9#,VZJ9# T=1.8 |
1 | ||
| 90521-99056 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=1.8 |
1 | ||
| 36270C - RING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARIN | ||||
| 90520-99001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36273 - GEAR, TRANSFER LOW PLANETARY RING | ||||
| 36273-35030 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36273-35030 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36273A - RING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR) | ||||
| 90521-99052 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36278 - WASHER, MANUAL TRANSFER PLANETARY CARRIER | ||||
| 36278-35010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) T=0.95-1.05 |
1 | ||
| 36284 - PIECE, TRANSFER LOW PLANETARY GEAR SPLINE | ||||
| 36284-35021 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36284-35021 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36288 - RACE, TRANSFER THRUST BEARING, NO.1 | ||||
| 36288-28010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36288-28010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36291A - BEARING (FOR TRANSFER DRIVE SPROCKET) | ||||
| 90364-37013 |
LJ95..STD;RZJ95..ATM;RZJ95..MTM..ARL;KZJ9#,LJ90,VZJ9# |
1 | ||
| 90364-37009 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36292 - SPROCKET, TRANSFER DRIVEN | ||||
| 36292-35030 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET) | ||||
| 90363-32037 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90363-32037 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36293 - CHAIN, TRANSFER FRONT DRIVE | ||||
| 36293-35030 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
