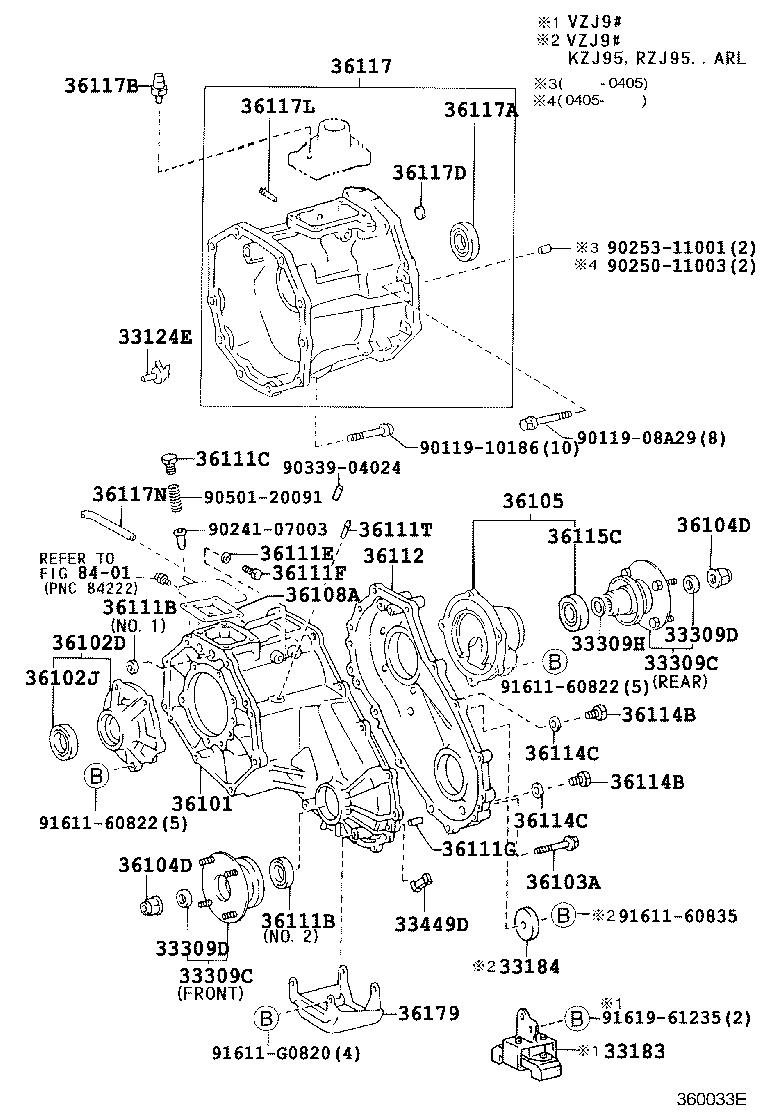

KZJ90L-GJMNX (1996)
Toyota Land Cruiser 90
(9604- )KZJ9#,VZJ9#..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-35100 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 33124-35100 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-35091 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) REAR |
1 | ||
| 33309-35100 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) FRONT |
1 | ||
| 33309-35091 |
KZJ9#,LJ9#,RZJ9#,VZJ9# REAR |
1 | ||
| 33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-35091 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) REAR |
1 | ||
| 33309-35100 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) FRONT |
1 | ||
| 33309-35091 |
KZJ9#,LJ9#,RZJ9#,VZJ9# REAR |
1 | ||
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90312-23001 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90312-23001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90312-23001 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90312-23001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 33309H - WASHER, TRANSFER OUTPUT SHAFT | ||||
| 36275-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# N=30,OD=38 |
2 | ||
| 36275-35010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) N=30,OD=38 |
2 | ||
| 33449D - MAGNET (FOR TRANSFER CASE) | ||||
| 33449-32020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 33449-32020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36101 - CASE SUB-ASSY, TRANSFER | ||||
| 36111-35060 |
KZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA) |
1 | ||
| 36111-35060 |
RZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD |
1 | ||
| 36102D - RETAINER SUB-ASSY, TRANSFER RH BEARING | ||||
| 36102-35031 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER) | ||||
| 90311-40021 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36103A - BOLT (FOR TRANSFER CASE) | ||||
| 90119-08A28 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) *8-1.25PX55-30 |
12 | ||
| 90119-08A28 |
KZJ9#,LJ9#,RZJ9#,VZJ9# *8-1.25PX55-30 |
12 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-22016 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 90179-22016 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-22016 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 90179-22016 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT | ||||
| 36105-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36105-35040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36108A - DEFLECTOR SUB-ASSY, BREATHER OIL | ||||
| 36108-35060 |
VZJ95;KZJ9#,LJ9#,RZJ9#,VZJ90..MTM |
1 | ||
| 36108-35060 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-41008 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.2 |
1 | ||
| 90311-15008 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.1 |
2 | ||
| 90311-15008 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.1 |
2 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-41008 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.2 |
1 | ||
| 90311-15008 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.1 |
2 | ||
| 90311-15008 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.1 |
2 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90341-14012 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 90341-14012 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
RZJ95..MTM;VZJ95..ARL;VZJ95..MTM..VX;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN |
2 | ||
| 90430-18008 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
2 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
RZJ95..MTM;VZJ95..ARL;VZJ95..MTM..VX;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN |
2 | ||
| 90341-18006 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
2 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10214 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) L=14,OD=10 |
2 | ||
| 90250-10214 |
KZJ9#,LJ9#,RZJ9#,VZJ9# L=14,OD=10 |
2 | ||
| 36111T - TUBE (FOR TRANSFER CASE) | ||||
| 90441-05001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90441-05001 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36112-35040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36112-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90341-18006 |
RZJ9#..CBR;RZJ90..GX..GEN;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90341-18006 |
RZJ9#..CBR;RZJ90..GX..GEN;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90430-18008 |
RZJ9#..CBR;RZJ90..GX..GEN;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90430-18008 |
RZJ9#..CBR;RZJ90..GX..GEN;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-41007 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90311-41007 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36117 - ADAPTER, TRANSFER | ||||
| 36107-35160 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 36107-35160 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 36117A - SEAL, OIL(FOR TRANSFER ADAPTER) | ||||
| 90311-40007 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
1 | ||
| 90311-40007 |
KZJ9#,RZJ9#,VZJ9#..MTM |
1 | ||
| 36117B - PLUG, BREATHER(FOR TRANSFER ADAPTER) | ||||
| 90930-03075 |
KZJ9#,LJ9#,VZJ9#..MTM |
1 | ||
| 90930-03075 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 36117D - PLUG(FOR TRANSFER ADAPTER) | ||||
| 90331-21003 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
1 | ||
| 90331-21003 |
KZJ9#,RZJ9#,VZJ9#..MTM |
1 | ||
| 36117L - TUBE(FOR TRANSFER ADAPTER) | ||||
| 90441-05001 |
KZJ9#,RZJ9#,VZJ9# |
1 | ||
| 90441-05001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36117N - HOSE(FOR TRANSFER ADAPTER) | ||||
| 90447-08126 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
1 | ||
| 90447-08126 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..MTM |
1 | ||
| 36179 - PROTECTOR, TRANSFER CASE LOWER | ||||
| 36179-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36179-35010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90119-08A29 | ||||
| 90119-10186 | ||||
| 90241-07003 | ||||
| 90250-11003 | ||||
| 90253-11001 | ||||
| 90339-04024 | ||||
| 90501-20091 | ||||
| 91611-60822 | ||||
| 91611-60835 | ||||
| 91611-G0820 | ||||
| 91619-61235 | ||||
| Linked diagrams | ||||
| 8401 | ||||
