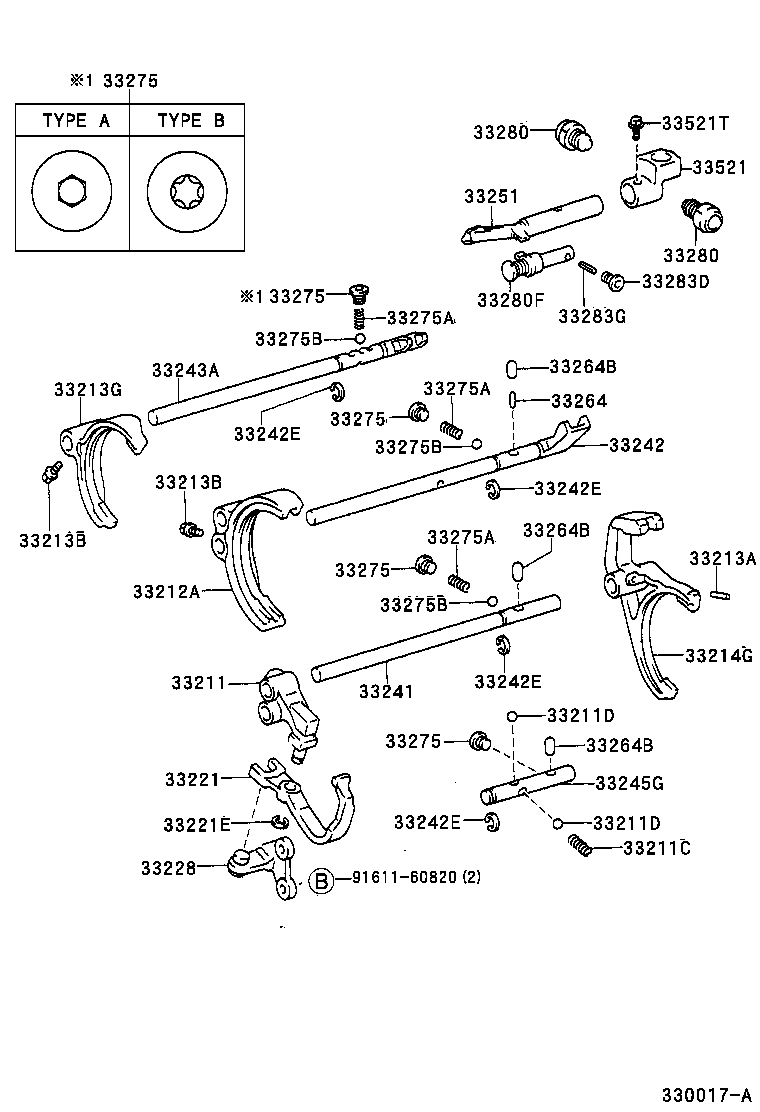

KZJ90L-GJMNX (1996)
Toyota Land Cruiser 90
(9604- )KZJ9#,VZJ9#..MTM
R150F,R151F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-35050 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 33211-35050 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 33211C - SPRING, COMPRESSION(FOR REVERSE SHIFT FORK RETURN) | ||||
| 90501-12166 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 90501-12166 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 33211D - BALL(FOR REVERSE SHIFT FORK) | ||||
| 90360-10003 |
KZJ9#,VZJ9#..MTM OD=9.52,STEEL |
2 | ||
| 90360-10003 |
KZJ9#,VZJ9#..MTM OD=9.52,STEEL |
2 | ||
| 33211D - BALL(FOR REVERSE SHIFT FORK) | ||||
| 90360-10003 |
KZJ9#,VZJ9#..MTM OD=9.52,STEEL |
2 | ||
| 90360-10003 |
KZJ9#,VZJ9#..MTM OD=9.52,STEEL |
2 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-35032 |
KZJ9#..GEN |
1 | ||
| 33212-35032 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
KZJ9#..GEN |
1 | ||
| 90254-05016 |
RZJ9#..CBR;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN);KZJ9#,RZJ90,VZJ9#..MTM..(GX,VX)..(EFI,TD) |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06077 |
KZJ9#,VZJ9#..MTM |
2 | ||
| 90105-06077 |
KZJ9#..GEN |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06077 |
KZJ9#,VZJ9#..MTM |
2 | ||
| 90105-06077 |
KZJ9#..GEN |
2 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-35040 |
KZJ9#..GEN |
1 | ||
| 33213-35040 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33230-35010 |
KZJ9#..GEN |
1 | ||
| 33230-35010 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-35050 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 33221-35050 |
KZJ9#..GEN |
1 | ||
| 33221E - RING(FOR REVERSE SHIFT ARM END SHAFT) | ||||
| 96160-01000 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 96160-01000 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 33228 - BRACKET, REVERSE SHIFT ARM | ||||
| 33228-35030 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 33228-35030 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-35060 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 33244-35060 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-60090 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 33242-35040 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 33242-60090 |
KZJ9#..GEN |
1 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
KZJ9#,VZJ9#..MTM |
4 | ||
| 90520-12003 |
KZJ9#..GEN |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
KZJ9#,VZJ9#..MTM |
4 | ||
| 90520-12003 |
KZJ9#..GEN |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
KZJ9#,VZJ9#..MTM |
4 | ||
| 90520-12003 |
KZJ9#..GEN |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
KZJ9#,VZJ9#..MTM |
4 | ||
| 90520-12003 |
KZJ9#..GEN |
4 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-60120 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 33243-35080 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 33243-60120 |
KZJ9#..GEN |
1 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-35090 |
KZJ9#..GEN |
1 | ||
| 33245-35090 |
KZJ9# |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-35150 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 33251-35150 |
KZJ9#..GEN |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-05029 |
KZJ9#,VZJ9#..MTM L=11.5,OD=4.8 |
1 | ||
| 90250-05029 |
KZJ9#..GEN L=11.5,OD=4.8 |
1 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10003 |
KZJ9#,VZJ9#..MTM L=13.6,OD=9.5 |
3 | ||
| 90361-10003 |
KZJ9#,VZJ9#..MTM L=13.6,OD=9.5 |
3 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10003 |
KZJ9#,VZJ9#..MTM L=13.6,OD=9.5 |
3 | ||
| 90361-10003 |
KZJ9#,VZJ9#..MTM L=13.6,OD=9.5 |
3 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10003 |
KZJ9#,VZJ9#..MTM L=13.6,OD=9.5 |
3 | ||
| 90361-10003 |
KZJ9#,VZJ9#..MTM L=13.6,OD=9.5 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
KZJ9#,VZJ9#..MTM OD=18,TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 90341-12014 |
KZJ9#,VZJ9#..MTM OD=17,TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 90341-12014 |
KZJ9#,VZJ9#..MTM OD=17,TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
KZJ9#,VZJ9#..MTM OD=18,TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 90341-12014 |
KZJ9#,VZJ9#..MTM OD=17,TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 90341-12014 |
KZJ9#,VZJ9#..MTM OD=17,TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
KZJ9#,VZJ9#..MTM OD=18,TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 90341-12014 |
KZJ9#,VZJ9#..MTM OD=17,TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 90341-12014 |
KZJ9#,VZJ9#..MTM OD=17,TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
KZJ9#,VZJ9#..MTM OD=18,TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 90341-12014 |
KZJ9#,VZJ9#..MTM OD=17,TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 90341-12014 |
KZJ9#,VZJ9#..MTM OD=17,TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
KZJ9#,VZJ9#..MTM OD=18,TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 90341-12014 |
KZJ9#,VZJ9#..MTM OD=17,TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 90341-12014 |
KZJ9#,VZJ9#..MTM OD=17,TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
KZJ9#,VZJ9#..MTM L=33.8 |
3 | ||
| 90501-16143 |
KZJ9#,VZJ9#..MTM L=33.8 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
KZJ9#,VZJ9#..MTM L=33.8 |
3 | ||
| 90501-16143 |
KZJ9#,VZJ9#..MTM L=33.8 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
KZJ9#,VZJ9#..MTM L=33.8 |
3 | ||
| 90501-16143 |
KZJ9#,VZJ9#..MTM L=33.8 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
KZJ9#,VZJ9#..MTM |
3 | ||
| 90360-10003 |
KZJ9#..GEN |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
KZJ9#,VZJ9#..MTM |
3 | ||
| 90360-10003 |
KZJ9#..GEN |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
KZJ9#,VZJ9#..MTM |
3 | ||
| 90360-10003 |
KZJ9#..GEN |
3 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-35021 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) RH |
1 | ||
| 33280-35021 |
KZJ9#..GEN RH |
1 | ||
| 33280-27011 |
KZJ9#,VZJ9#..MTM LH |
1 | ||
| 33280-27011 |
KZJ9#..GEN LH |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-35021 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) RH |
1 | ||
| 33280-35021 |
KZJ9#..GEN RH |
1 | ||
| 33280-27011 |
KZJ9#,VZJ9#..MTM LH |
1 | ||
| 33280-27011 |
KZJ9#..GEN LH |
1 | ||
| 33280F - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-35100 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 33280-35100 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 90341-12008 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 90341-12008 |
KZJ9#..GEN |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05001 |
KZJ9#,LJ9#,VZJ9#..MTM |
1 | ||
| 90254-05001 |
KZJ9#..GEN |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-35260 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 33521-35260 |
KZJ9#..GEN |
1 | ||
| 33521T - BOLT (FOR SHIFT LEVER HOUSING) | ||||
| 90105-08079 |
KZJ9#..GEN |
1 | ||
| 90105-08079 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 91611-60820 | ||||
