KZJ90L-GJMNX (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000
Engine 1KZT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )KZJ9#,VZJ9#..MTM

Click highlighted areas on diagram

R150F,R151F

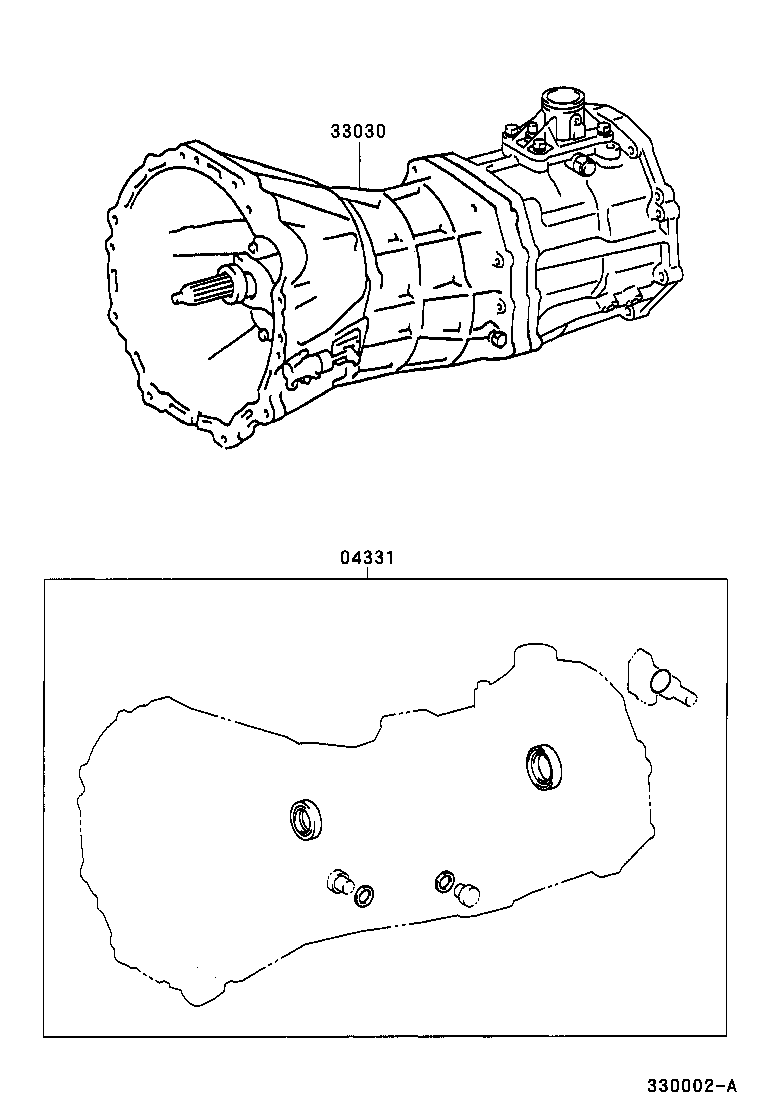

diagram 04331 33030
Part # Description Qty Price
04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-35230

KZJ9#,VZJ9#..MTM

 1
04331-35230

KZJ9#,VZJ9#..MTM

 1
33030 - TRANSMISSION UNIT ASSY, MANUAL
33030-6A180

KZJ9#..GEN

 1
33030-6A180

KZJ9#

 1
