KZJ90L-GJMNX (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000
Engine 1KZT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )KZJ9#..GX

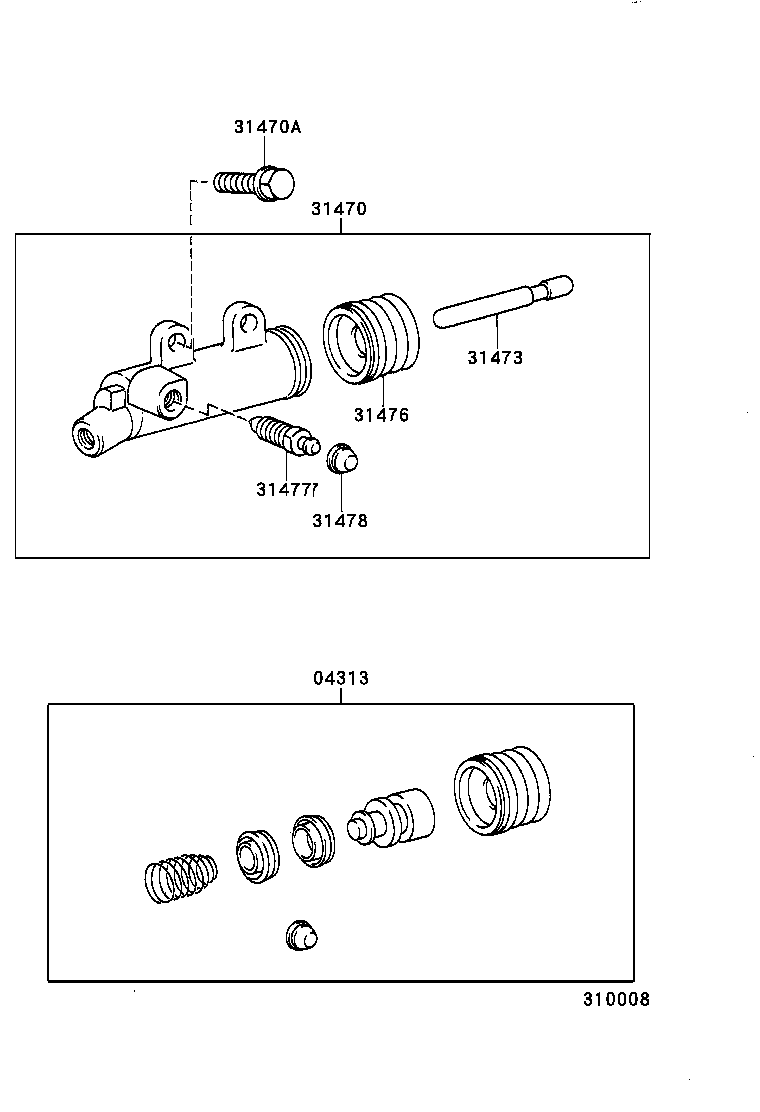

Click highlighted areas on diagram

diagram 04313 31470 31470A 31473 31476 31477 31477 31478
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-18020

KZJ9#

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-35140

KZJ9#

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-60825

KZJ9#,LJ9#,RZJ9#..MTM

*8-1.25PX25-25

 2
91611-G0820

KZJ9#,VZJ9#..MTM

*8-1.25PX20-20

 2
91611-G0820

KZJ9#,VZJ9#..MTM

*8-1.25PX20-20

 2
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-60141

KZJ9#

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-22010

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)

 1
31476-22010

KZJ9#,LJ9#,RZJ9#,VZJ9#..MTM

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

KZJ9#,LJ9#,RZJ9#,VZJ9#..MTM

 1
47547-12010

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

KZJ9#,LJ9#,RZJ9#,VZJ9#..MTM

 1
47547-12010

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

KZJ9#,LJ9#,RZJ9#,VZJ9#..MTM

 1
31478-30010

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)

 1
