KZJ90L-GJMNX (1996)
Toyota Land Cruiser 90

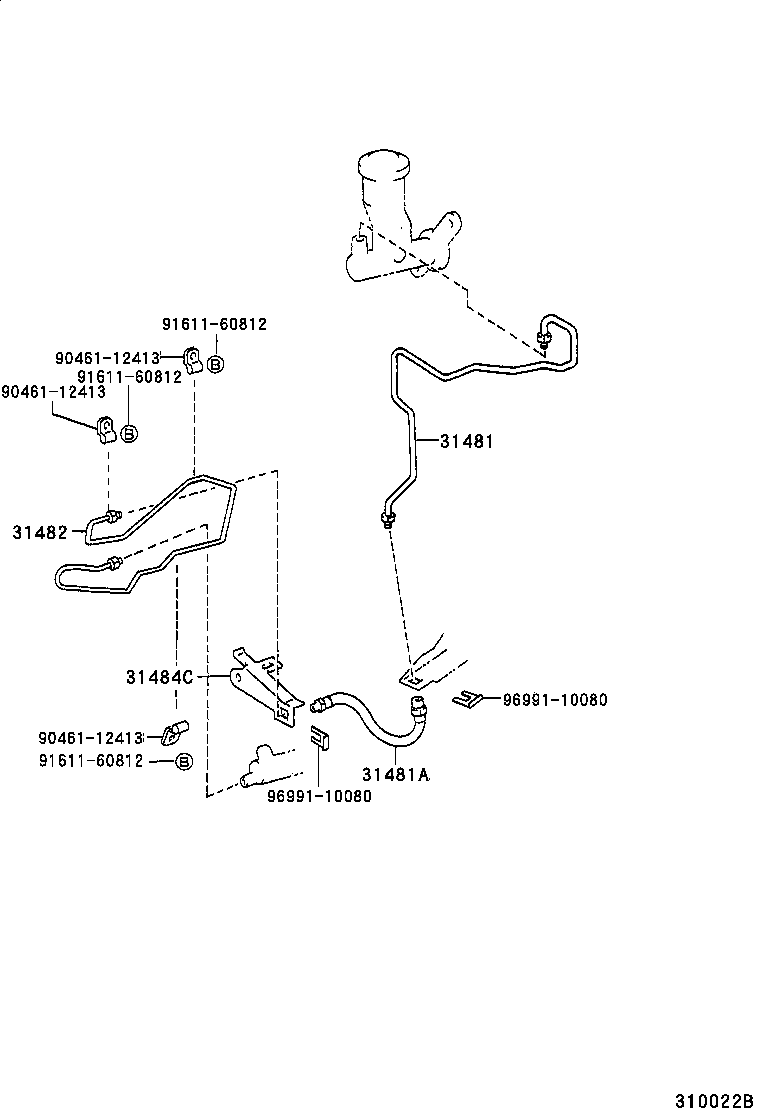

ILLUST NO. 2 OF 2(9604- )KZJ9#..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-35420 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD..MTM |
1 | ||
| 31481-35420 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..MTM |
1 | ||
| 31481-35420 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..MTM..(GCC,GEN) |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90931-01091 |
KZJ9# |
1 | ||
| 90947-02863 |
KZJ9#,RZJ9#..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-60030 |
KZJ9# |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-35290 |
KZJ9# |
1 | ||
| Common parts | ||||
| 90461-12413 | ||||
| 91611-60812 | ||||
| 96991-10080 | ||||

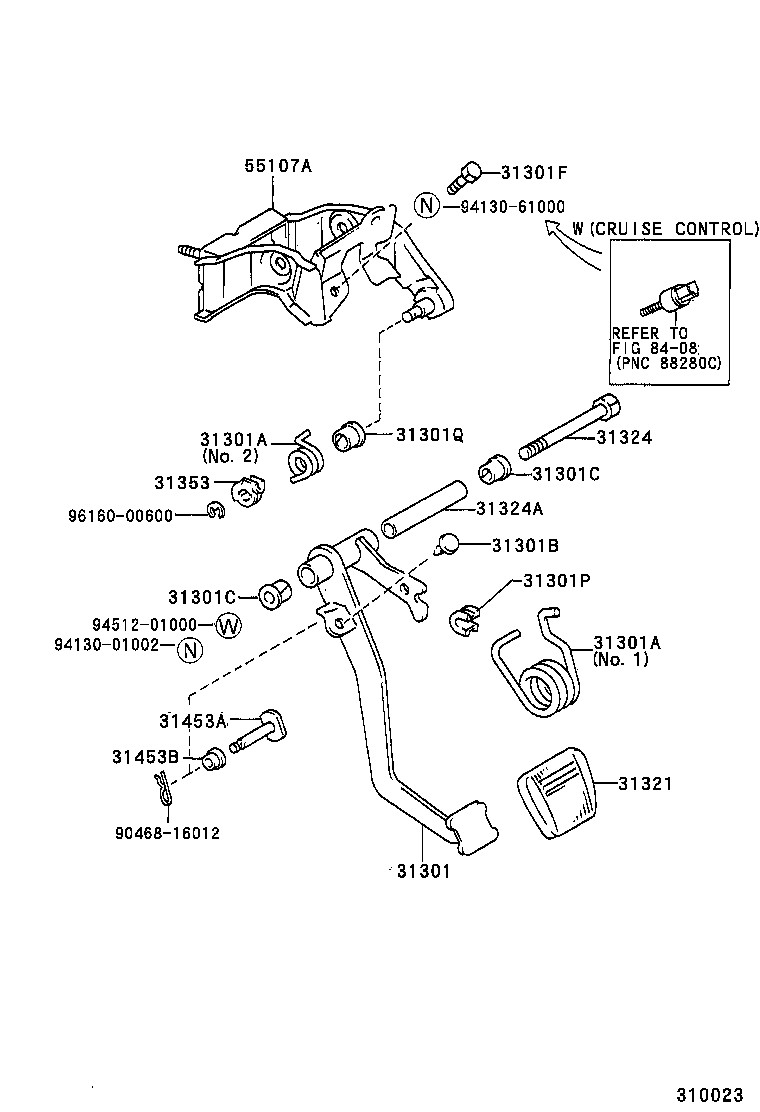

ILLUST NO. 1 OF 2(9604- )KZJ9#,VZJ9#..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31310-60060 |
KZJ9#,VZJ9#..LHD..MTM |
1 | ||
| 31310-60060 |
KZJ9#,VZJ9#..MTM..(GCC,GEN) |
1 | ||
| 31310-60060 |
KZJ9#,VZJ9#..LHD..MTM |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90949-03017 |
KZJ9#,VZJ9#..MTM..(ARL,GCC,GEN) NO.2 |
1 | ||
| 90949-03017 |
KZJ9#,VZJ9#..MTM NO.2 |
1 | ||
| 90949-03045 |
KZJ9#,VZJ9#..MTM..(GCC,GEN) NO.1 |
1 | ||
| 90949-03045 |
KZJ9#,VZJ9#..LHD..MTM NO.1 |
1 | ||
| 90949-03017 |
KZJ9#,VZJ9#..MTM NO.2 |
1 | ||
| 90949-03045 |
KZJ9#,VZJ9#..LHD..MTM NO.1 |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90949-03017 |
KZJ9#,VZJ9#..MTM..(ARL,GCC,GEN) NO.2 |
1 | ||
| 90949-03017 |
KZJ9#,VZJ9#..MTM NO.2 |
1 | ||
| 90949-03045 |
KZJ9#,VZJ9#..MTM..(GCC,GEN) NO.1 |
1 | ||
| 90949-03045 |
KZJ9#,VZJ9#..LHD..MTM NO.1 |
1 | ||
| 90949-03017 |
KZJ9#,VZJ9#..MTM NO.2 |
1 | ||
| 90949-03045 |
KZJ9#,VZJ9#..LHD..MTM NO.1 |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
1 | ||
| 90541-06036 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..MTM |
1 | ||
| 90541-06036 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..MTM..(ARL,GCC,GEN) |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..MTM..(ARL,GCC,GEN) |
2 | ||
| 90386-13015 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..MTM |
2 | ||
| 90386-13015 |
KZJ9#,VZJ95..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..MTM..(ARL,GCC,GEN) |
2 | ||
| 90386-13015 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..MTM |
2 | ||
| 90386-13015 |
KZJ9#,VZJ95..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
1 | ||
| 90101-10369 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..MTM..(ARL,GCC,GEN) |
1 | ||
| 90101-10369 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..MTM |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 90389-06055 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 90389-06055 |
KZJ9#,VZJ9#..MTM..(ARL,GCC,GEN) |
1 | ||
| 31301Q - BUSH(FOR CLUTCH PEDAL SPRING) | ||||
| 90386-13015 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 90386-13015 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 90386-13015 |
KZJ9#,VZJ9#..MTM..(ARL,GCC,GEN) |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..MTM..(ARL,GCC,GEN) |
1 | ||
| 31321-14020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..MTM |
1 | ||
| 31321-14020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10177 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
1 | ||
| 90101-10177 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..MTM |
1 | ||
| 90101-10177 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..MTM..(ARL,GCC,GEN) |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10082 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..MTM |
1 | ||
| 90387-10082 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..MTM..(ARL,GCC,GEN) |
1 | ||
| 90387-10082 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-35010 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 31353-35010 |
KZJ9#,VZJ9#..MTM..(ARL,GCC,GEN) |
1 | ||
| 31353-35010 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 47148-35030 |
RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD..MTM L=28.5 |
1 | ||
| 47148-35030 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..MTM L=28.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08033 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..MTM..(ARL,GCC,GEN) |
1 | ||
| 90386-08033 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..MTM |
1 | ||
| 90386-08033 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-60130 |
KZJ9#,VZJ9#..LHD..MTM |
1 | ||
| 55107-60130 |
KZJ9#,VZJ9#..LHD..MTM |
1 | ||
| Common parts | ||||
| 90468-16012 | ||||
| 94130-01002 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 8408 | ||||
