KZJ90L-GJMNX (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000
Engine 1KZT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )KZJ9#..MTM

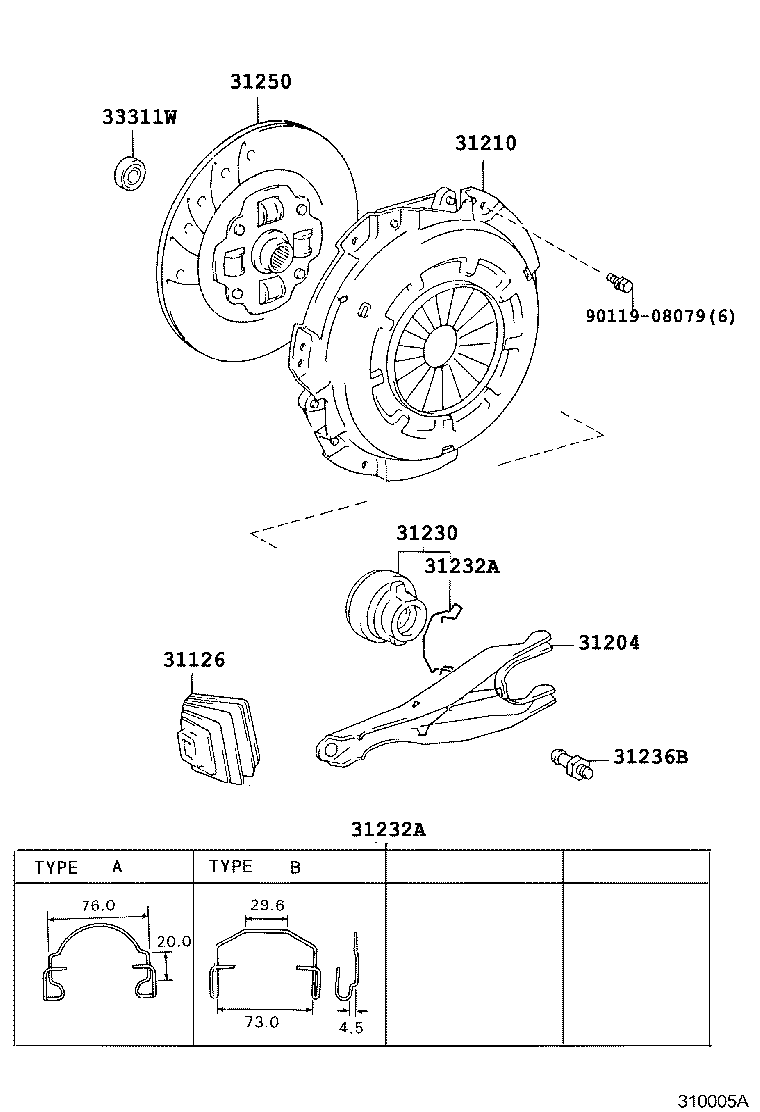

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31232A 31236B 31250 33311W 9011908079
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-60080

KZJ9#

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-60090

KZJ9#

 1
31210 - COVER ASSY, CLUTCH
31210-26090

KZJ9#

 1
31210-60170

KZJ9#

 1
31210-26090

KZJ9#..GEN

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-60170

KZJ9#

 1
31232A - CLIP, RELEASE BEARING HUB
31232-36030

KZJ9#

TYPE A:REFER TO ILLUSTRATION

 1
31232-60030

KZJ9#

TYPE B:REFER TO ILLUSTRATION

 1
31232A - CLIP, RELEASE BEARING HUB
31232-36030

KZJ9#

TYPE A:REFER TO ILLUSTRATION

 1
31232-60030

KZJ9#

TYPE B:REFER TO ILLUSTRATION

 1
31236B - SUPPORT, RELEASE FORK
31236-60060

KZJ9#

 1
31250 - DISC ASSY, CLUTCH
31250-35341

KZJ9#

 1
31250-26171

KZJ9#

 1
31250-35340

KZJ9#

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)

 1
90363-12002

KZJ9#..GEN

 1
Common parts
90119-08079
