KZJ90L-GJMNX (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000
Engine 1KZT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604-0008)1KZT

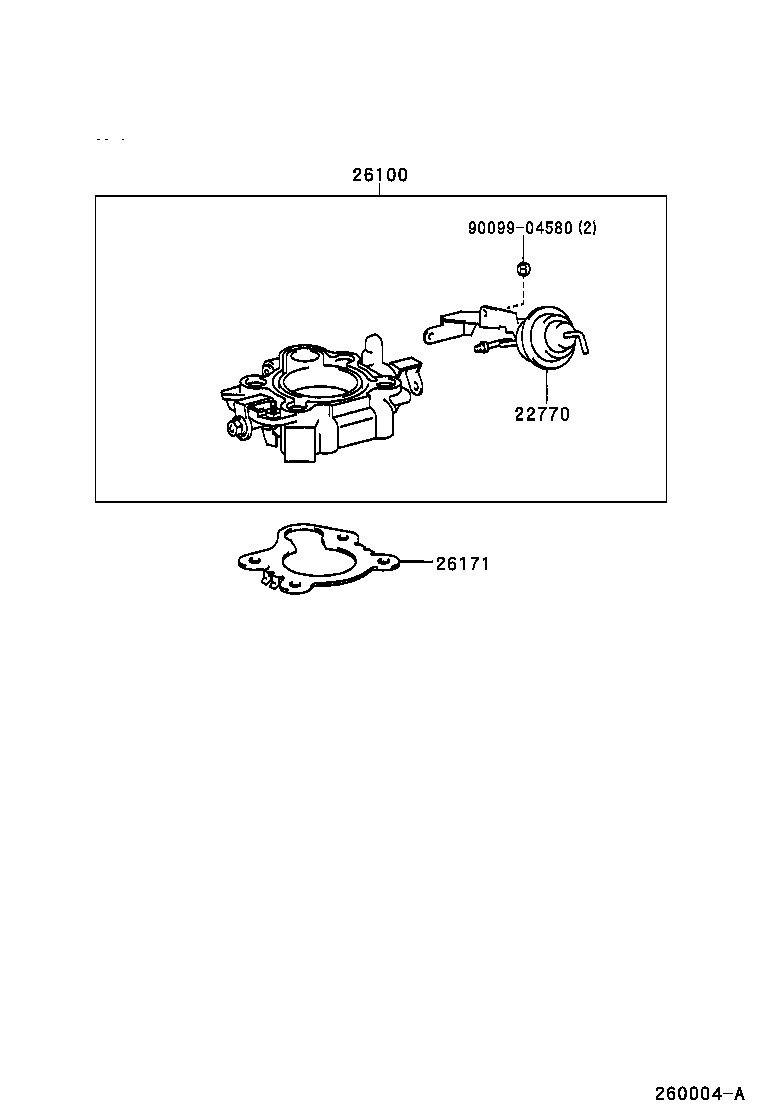

Click highlighted areas on diagram

diagram 22770 26100 26171 9009904580
Part # Description Qty Price
22770 - ACTUATOR, IDEL UP
26133-67090

1KZT..KZJ9#

 1
26133-67090

1KZT..KZJ9#

 1
26100 - VENTURI ASSY
26100-67090

1KZT..KZJ9#

 1
26100-67090

1KZT..KZJ9#

 1
26171 - GASKET, VENTURI
26171-67010

1KZT..KZJ9#

 1
26171-67010

1KZ#..KZJ9#..GEN,MA

 1
Common parts
90099-04580
