KZJ90L-GJMNX (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000
Engine 1KZT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )1KZ#

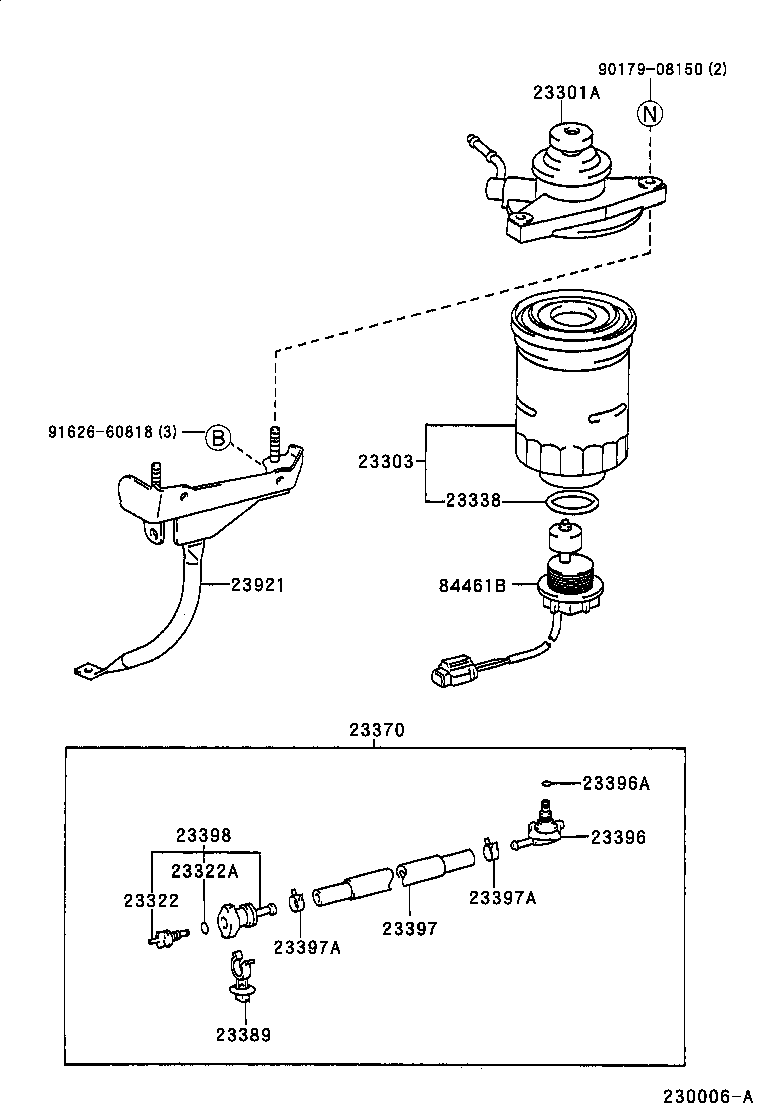

Click highlighted areas on diagram

diagram 23301A 23303 23322 23322A 23338 23370 23389 23396 23396A 23397 23397A 23397A 23398 23921 84461B 9017908150 9162660818
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23380-67160

1KZT..KZJ9#

 1
23380-67310

1KZT..KZJ9#

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010

1KZT..KZJ9#

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64010

1KZT..KZJ9#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

1KZT..KZJ9#

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

1KZT..KZJ9#

 1
23370 - COCK ASSY, FUEL FILTER DRAIN
23370-67010

1KZT..KZJ9#

 1
23389 - CLAMP, FUEL FILTER
23389-67140

1KZT..KZJ9#

 1
23396 - COCK, FUEL FILTER DRAIN
23396-67140

1KZT..KZJ9#

 1
23396A - RING, O(FOR DRAIN COCK)
23344-54010

1KZT..KZJ9#

 1
23397 - HOSE, FUEL FILTER DRAIN
23397-67140

1KZT..KZJ9#

 1
23397A - CLIP, HOSE(FOR DRAIN HOSE)
90099-35036

1KZT..KZJ9#

 2
23397A - CLIP, HOSE(FOR DRAIN HOSE)
90099-35036

1KZT..KZJ9#

 2
23398 - VALVE, FUEL FILTER DRAIN
23398-67140

1KZT..KZJ9#

 1
23921 - SUPPORT, FUEL FILTER
23921-67060

1KZT..KZJ9#

 1
84461B - SWITCH, LEVEL WARNING
84461-60060

KZJ9#

 1
Common parts
90179-08150
91626-60818
