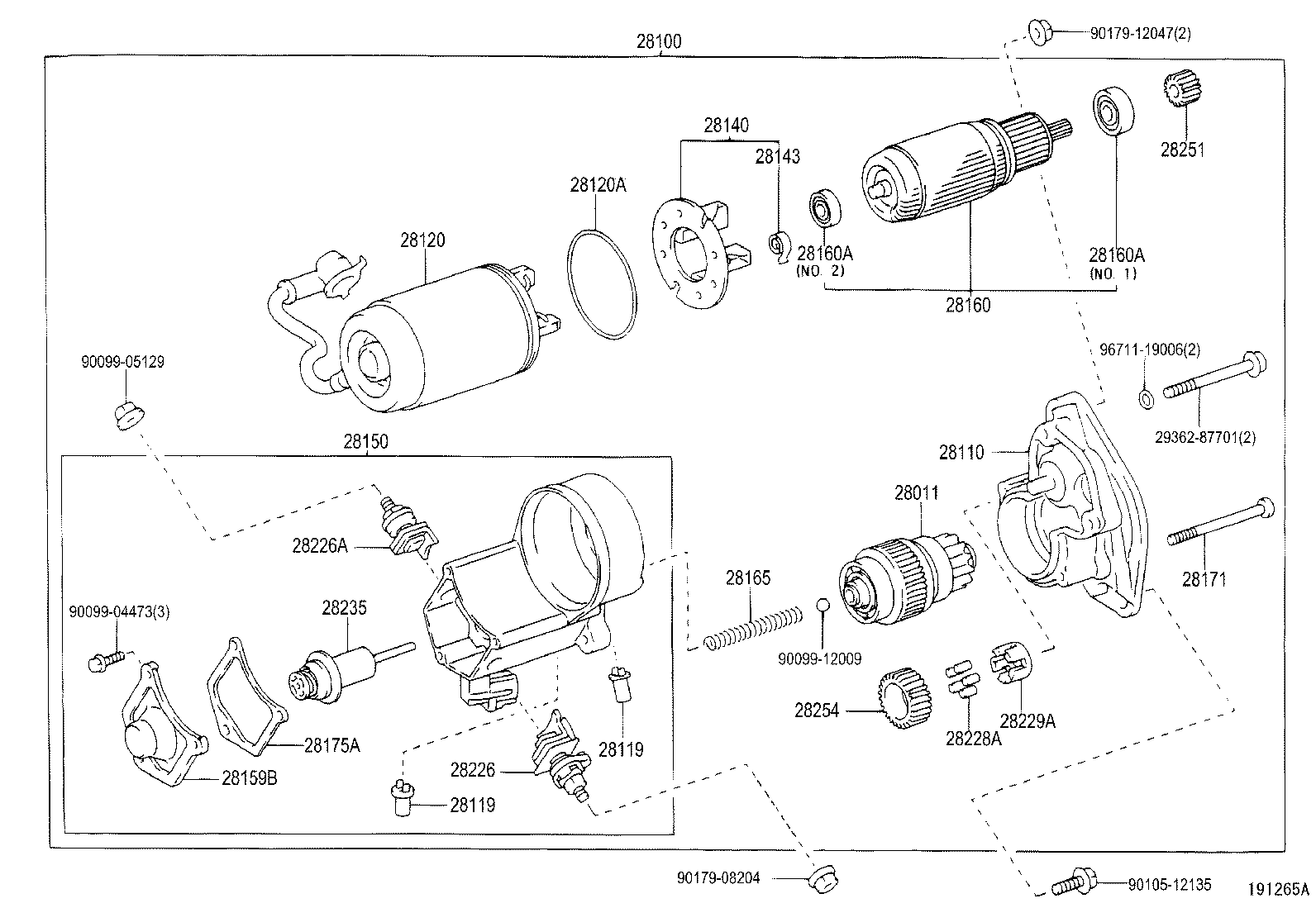

KZJ90L-GJMNX (1996)
Toyota Land Cruiser 90
(9604- )1KZ#
12V 2.7KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-67030 |
1KZT..KZJ9# |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-67050 |
1KZT..KZJ9# 12V 2.2KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-67050 |
1KZT..KZJ9# |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-46080 |
1KZT..KZJ9# |
2 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-46080 |
1KZT..KZJ9# |
2 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-64040 |
1KZT..KZJ9# |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-64040 |
1KZT..KZJ9# |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17115 |
1KZT..KZJ9# |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-67050 |
1KZT..KZJ9# |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
1KZT..KZJ9# |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-64041 |
1KZT..KZJ9# |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
1KZT..KZJ9# NO.2 |
1 | ||
| 28253-54070 |
1KZT..KZJ9# NO.1 |
1 | ||
| 28253-54070 |
1KZT..KZJ9# NO.1 |
1 | ||
| 90099-10143 |
1KZT..KZJ9# NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
1KZT..KZJ9# NO.2 |
1 | ||
| 28253-54070 |
1KZT..KZJ9# NO.1 |
1 | ||
| 28253-54070 |
1KZT..KZJ9# NO.1 |
1 | ||
| 90099-10143 |
1KZT..KZJ9# NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
1KZT..KZJ9# |
1 | ||
| 28171 - BOLT, STARTER | ||||
| 28171-87702 |
1KZT..KZJ9# |
2 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
1KZT..KZJ9# |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-76100 |
1KZT..KZJ9# |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
3RZF..RZJ95..GCC;1KZT,3L..KZJ9#,LJ9# 12V 2.0KW,2.2KW |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
3RZFE,5VZFE..RZJ95,VZJ95;1KZ#,3L,3RZFE,5VZFE..KZJ9#,LJ9#,RZJ90,VZJ90..MTM 12V 1.2KW,1.4KW |
5 | ||
| 28228-26040 |
3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN);1KZT,3L,3RZF,5VZFE..KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.2KW,1.4KW |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
1KZT..KZJ9# |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
1KZT..KZJ9# |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-54070 |
1KZT..KZJ9# |
1 | ||
| 28254 - PINION, STARTER IDLE GEAR | ||||
| 28254-64040 |
1KZT..KZJ9# |
1 | ||
| Common parts | ||||
| 90099-00254 | ||||
| 90099-02205 | ||||
| 90099-02325 | ||||
| 90099-04207 | ||||
| 90099-04473 | ||||
| 90099-12009 | ||||
| 90105-12053 | ||||
| 90105-12135 | ||||
| 90179-10195 | ||||
| 90179-12047 | ||||

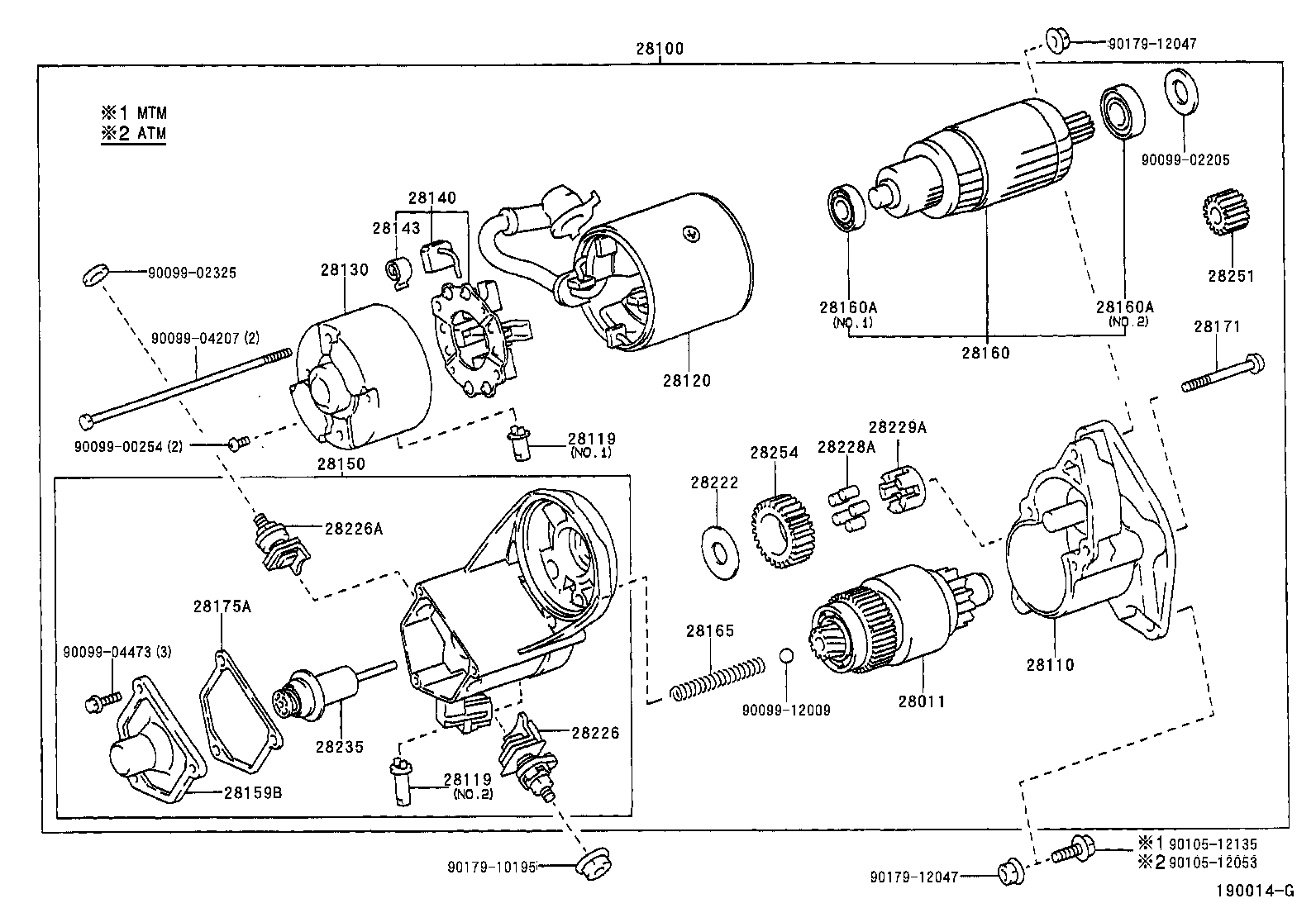

(9604- )1KZ#
12V 2.2KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-67030 |
1KZT..KZJ9# |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-67050 |
1KZT..KZJ9# 12V 2.2KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-67050 |
1KZT..KZJ9# |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-46080 |
1KZT..KZJ9# |
2 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-46080 |
1KZT..KZJ9# |
2 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-64040 |
1KZT..KZJ9# |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-64040 |
1KZT..KZJ9# |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17115 |
1KZT..KZJ9# |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-67050 |
1KZT..KZJ9# |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
1KZT..KZJ9# |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-64041 |
1KZT..KZJ9# |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
1KZT..KZJ9# NO.2 |
1 | ||
| 28253-54070 |
1KZT..KZJ9# NO.1 |
1 | ||
| 28253-54070 |
1KZT..KZJ9# NO.1 |
1 | ||
| 90099-10143 |
1KZT..KZJ9# NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
1KZT..KZJ9# NO.2 |
1 | ||
| 28253-54070 |
1KZT..KZJ9# NO.1 |
1 | ||
| 28253-54070 |
1KZT..KZJ9# NO.1 |
1 | ||
| 90099-10143 |
1KZT..KZJ9# NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
1KZT..KZJ9# |
1 | ||
| 28171 - BOLT, STARTER | ||||
| 28171-87702 |
1KZT..KZJ9# |
2 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
1KZT..KZJ9# |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-76100 |
1KZT..KZJ9# |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
3RZF..RZJ95..GCC;1KZT,3L..KZJ9#,LJ9# 12V 2.0KW,2.2KW |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
3RZFE,5VZFE..RZJ95,VZJ95;1KZ#,3L,3RZFE,5VZFE..KZJ9#,LJ9#,RZJ90,VZJ90..MTM 12V 1.2KW,1.4KW |
5 | ||
| 28228-26040 |
3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN);1KZT,3L,3RZF,5VZFE..KZJ9#,LJ9#,RZJ9#,VZJ9# 12V 1.2KW,1.4KW |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
1KZT..KZJ9# |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
1KZT..KZJ9# |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-54070 |
1KZT..KZJ9# |
1 | ||
| 28254 - PINION, STARTER IDLE GEAR | ||||
| 28254-64040 |
1KZT..KZJ9# |
1 | ||
| Common parts | ||||
| 29362-87701 | ||||
| 90099-04473 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90105-12135 | ||||
| 90179-08204 | ||||
| 90179-12047 | ||||
| 96711-19006 | ||||
