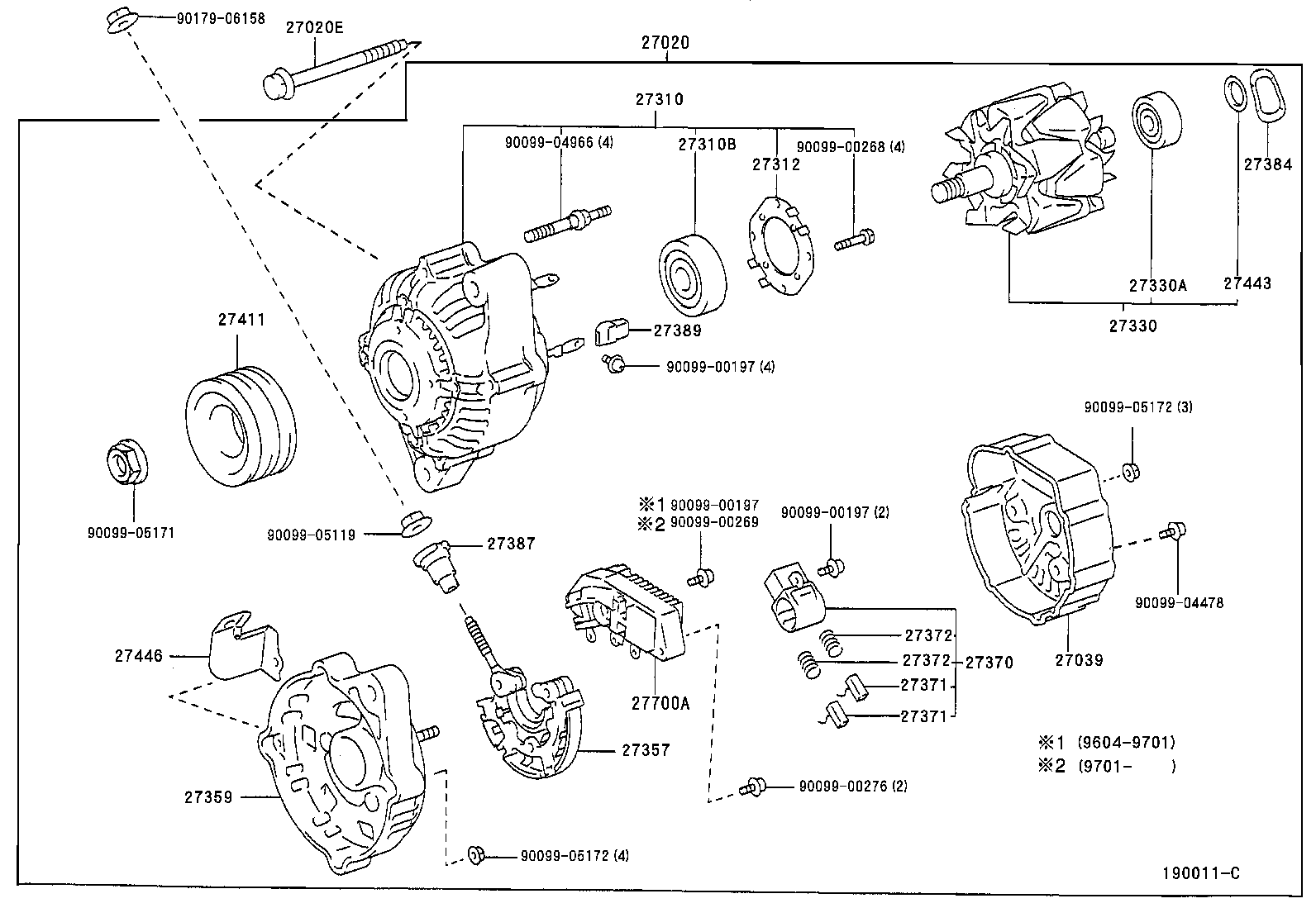

KZJ90L-GJMNX (1996)
Toyota Land Cruiser 90
(9604-9906)1KZT
12V 60A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-67060 |
1KZT..KZJ9# 12V 60A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10092 |
1KZT..KZJ9# |
1 | ||
| 90105-10092 |
1KZT..KZJ9# |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-16380 |
1KZT,3L,3RZ#..KZJ9#,LJ9#,RZJ9#..MTM |
1 | ||
| 27039-73020 |
1KZT,3L,3RZ#..KZJ9#,LJ9#,RZJ9#..MTM |
1 | ||
| 27039-16380 |
1KZT,3L..KZJ9#,LJ9# |
1 | ||
| 27039-67100 |
1KZ#..KZJ9#..GX 12V 70A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-67020 |
1KZT..KZJ9# |
1 | ||
| 27310-67100 |
1KZ#..KZJ9#..GX 12V 70A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
1KZT,3RZ#..KZJ9#,RZJ9#..MTM |
1 | ||
| 90099-10178 |
1KZT..KZJ9# |
1 | ||
| 90099-10199 |
1KZ#..KZJ9#..GX 12V 60A |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-70200 |
1KZT..KZJ9# |
1 | ||
| 27312-70200 |
1KZT,3RZ#..KZJ9#,RZJ9#..MTM |
1 | ||
| 27312-72100 |
1KZ#..KZJ9#..GX 12V 70A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64570 |
1KZT,3RZ#..KZJ9#,RZJ9#..MTM |
1 | ||
| 27330-72101 |
1KZT..KZJ9# |
1 | ||
| 27330-64570 |
1KZT..KZJ9# |
1 | ||
| 27330-67100 |
1KZT,3RZFE..KZJ9#,RZJ9#..CO,GCC,GEN 12V 70A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
3RZFE..RZJ95..ATM;1KZT,3L,5VZFE..KZJ9#,LJ9#,VZJ9# |
1 | ||
| 90099-10140 |
1KZT,3L,3RZ#,5VZFE..KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 90099-10216 |
1KZ#..KZJ9#..GX 12V 70A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63020 |
1KZT,3L..KZJ9#,LJ9# |
1 | ||
| 27357-16380 |
1KZT,3L..KZJ9#,LJ9# |
1 | ||
| 27357-67100 |
1KZT,3RZFE..KZJ9#,RZJ9#..CO,GCC,GEN 12V 70A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-67021 |
1KZT..KZJ9# |
1 | ||
| 27359-67100 |
1KZ#..KZJ9#..GX 12V 70A |
1 | ||
| 27359-67022 |
1KZT..KZJ9# |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58320 |
1KZ#..KZJ9#..GX 12V 70A |
1 | ||
| 27370-58320 |
1KZT,3L..KZJ9#,LJ9# 12V 80A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
3RZFE..RZJ90..GX;1KZT,3L,3RZF..KZJ9#,LJ9#,RZJ9#;3RZFE..RZJ95..RHD..MTM..GX..(ARL,GEN) |
2 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
3RZFE..RZJ90..GX;1KZT,3L,3RZF..KZJ9#,LJ9#,RZJ9#;3RZFE..RZJ95..RHD..MTM..GX..(ARL,GEN) |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
3RZFE..RZJ90..GX;1KZT,3L,3RZF..KZJ9#,LJ9#,RZJ9#;3RZFE..RZJ95..RHD..MTM..GX..(ARL,GEN) |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
3RZFE..RZJ90..GX;1KZT,3L,3RZF..KZJ9#,LJ9#,RZJ9#;3RZFE..RZJ95..RHD..MTM..GX..(ARL,GEN) |
2 | ||
| 27384 - WASHER | ||||
| 27384-16380 |
3RZFE..RZJ90..GX;1KZT,3L,3RZF..KZJ9#,LJ9#,RZJ9#;3RZFE..RZJ95..RHD..MTM..GX..(ARL,GEN) |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-70170 |
1KZT,3L,3RZ#..KZJ9#,LJ9#,RZJ9#..MTM |
1 | ||
| 27387-70171 |
3RZFE..RZJ90..CO;1KZT,3L..KZJ9#,LJ9# |
1 | ||
| 27387-70170 |
1KZT,3RZ#..KZJ9#,RZJ9#..MTM |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-63020 |
1KZT,3L,3RZ#..KZJ9#,LJ9#,RZJ9#..MTM |
4 | ||
| 27389-63020 |
1KZT,3L..KZJ9#,LJ9# |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-67020 |
1KZT..KZJ9# |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN);1KZT,3L,3RZF,5VZFE..KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-46230 |
1KZT..KZJ9# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-54060 |
1KZT,3L..KZJ9#,LJ9# |
1 | ||
| 27700-50030 |
3RZFE..RZJ95..ATM..ARL;1KZT,3L,5VZFE..KZJ9#,LJ9#,VZJ9# |
1 | ||
| 27700-50030 |
3RZFE..RZJ95..ATM..ARL;1KZ#,3L,5VZFE..KZJ9#,LJ9#,VZJ9# |
1 | ||
| Common parts | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||

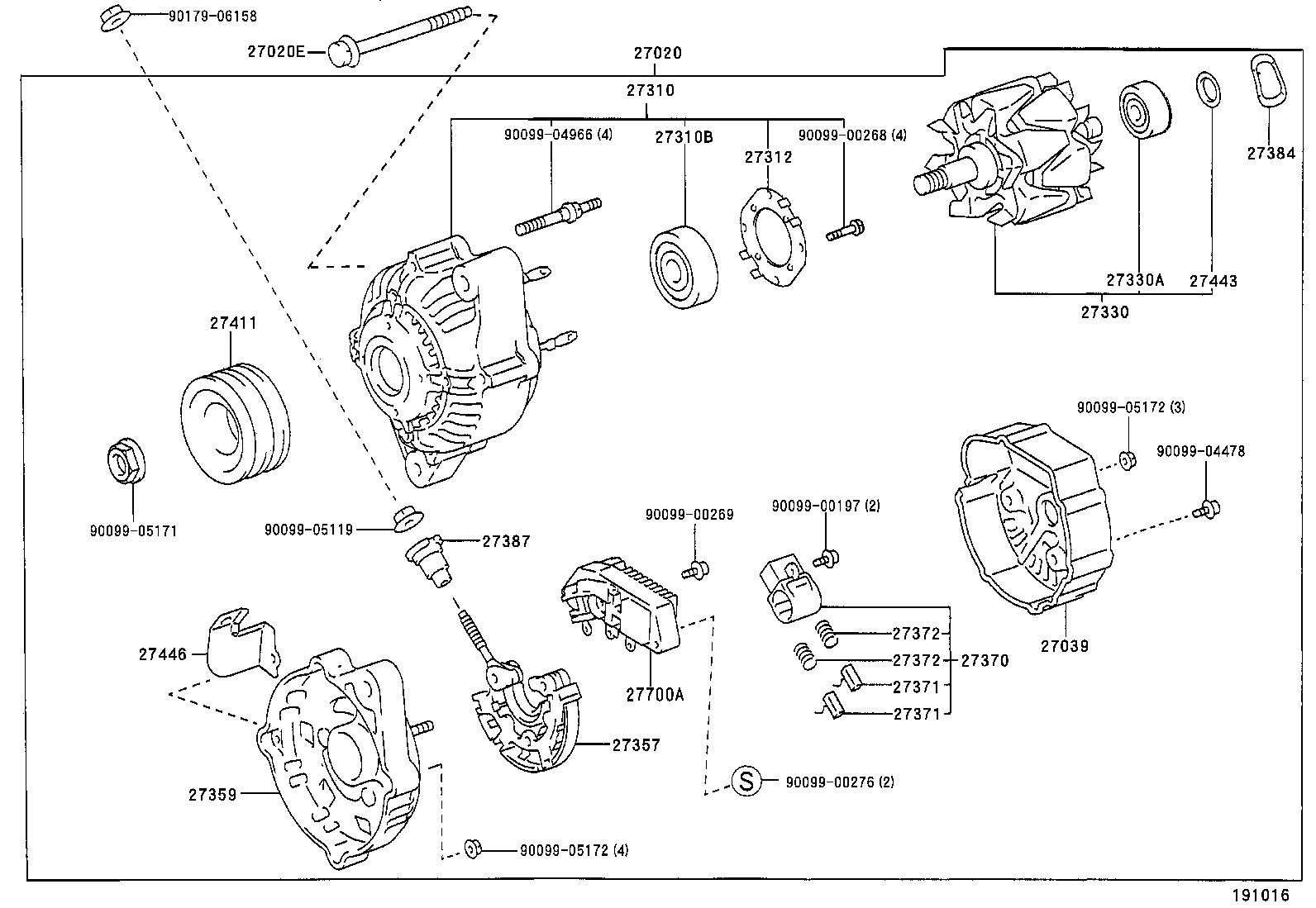

(9906- )1KZ#
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-67060 |
1KZT..KZJ9# 12V 60A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10092 |
1KZT..KZJ9# |
1 | ||
| 90105-10092 |
1KZT..KZJ9# |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-16380 |
1KZT,3L,3RZ#..KZJ9#,LJ9#,RZJ9#..MTM |
1 | ||
| 27039-73020 |
1KZT,3L,3RZ#..KZJ9#,LJ9#,RZJ9#..MTM |
1 | ||
| 27039-16380 |
1KZT,3L..KZJ9#,LJ9# |
1 | ||
| 27039-67100 |
1KZ#..KZJ9#..GX 12V 70A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-67020 |
1KZT..KZJ9# |
1 | ||
| 27310-67100 |
1KZ#..KZJ9#..GX 12V 70A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
1KZT,3RZ#..KZJ9#,RZJ9#..MTM |
1 | ||
| 90099-10178 |
1KZT..KZJ9# |
1 | ||
| 90099-10199 |
1KZ#..KZJ9#..GX 12V 60A |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-70200 |
1KZT..KZJ9# |
1 | ||
| 27312-70200 |
1KZT,3RZ#..KZJ9#,RZJ9#..MTM |
1 | ||
| 27312-72100 |
1KZ#..KZJ9#..GX 12V 70A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64570 |
1KZT,3RZ#..KZJ9#,RZJ9#..MTM |
1 | ||
| 27330-72101 |
1KZT..KZJ9# |
1 | ||
| 27330-64570 |
1KZT..KZJ9# |
1 | ||
| 27330-67100 |
1KZT,3RZFE..KZJ9#,RZJ9#..CO,GCC,GEN 12V 70A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
3RZFE..RZJ95..ATM;1KZT,3L,5VZFE..KZJ9#,LJ9#,VZJ9# |
1 | ||
| 90099-10140 |
1KZT,3L,3RZ#,5VZFE..KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 90099-10216 |
1KZ#..KZJ9#..GX 12V 70A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63020 |
1KZT,3L..KZJ9#,LJ9# |
1 | ||
| 27357-16380 |
1KZT,3L..KZJ9#,LJ9# |
1 | ||
| 27357-67100 |
1KZT,3RZFE..KZJ9#,RZJ9#..CO,GCC,GEN 12V 70A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-67021 |
1KZT..KZJ9# |
1 | ||
| 27359-67100 |
1KZ#..KZJ9#..GX 12V 70A |
1 | ||
| 27359-67022 |
1KZT..KZJ9# |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58320 |
1KZ#..KZJ9#..GX 12V 70A |
1 | ||
| 27370-58320 |
1KZT,3L..KZJ9#,LJ9# 12V 80A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
3RZFE..RZJ90..GX;1KZT,3L,3RZF..KZJ9#,LJ9#,RZJ9#;3RZFE..RZJ95..RHD..MTM..GX..(ARL,GEN) |
2 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
3RZFE..RZJ90..GX;1KZT,3L,3RZF..KZJ9#,LJ9#,RZJ9#;3RZFE..RZJ95..RHD..MTM..GX..(ARL,GEN) |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
3RZFE..RZJ90..GX;1KZT,3L,3RZF..KZJ9#,LJ9#,RZJ9#;3RZFE..RZJ95..RHD..MTM..GX..(ARL,GEN) |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
3RZFE..RZJ90..GX;1KZT,3L,3RZF..KZJ9#,LJ9#,RZJ9#;3RZFE..RZJ95..RHD..MTM..GX..(ARL,GEN) |
2 | ||
| 27384 - WASHER | ||||
| 27384-16380 |
3RZFE..RZJ90..GX;1KZT,3L,3RZF..KZJ9#,LJ9#,RZJ9#;3RZFE..RZJ95..RHD..MTM..GX..(ARL,GEN) |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-70170 |
1KZT,3L,3RZ#..KZJ9#,LJ9#,RZJ9#..MTM |
1 | ||
| 27387-70171 |
3RZFE..RZJ90..CO;1KZT,3L..KZJ9#,LJ9# |
1 | ||
| 27387-70170 |
1KZT,3RZ#..KZJ9#,RZJ9#..MTM |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-67020 |
1KZT..KZJ9# |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN);1KZT,3L,3RZF,5VZFE..KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-46230 |
1KZT..KZJ9# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-54060 |
1KZT,3L..KZJ9#,LJ9# |
1 | ||
| 27700-50030 |
3RZFE..RZJ95..ATM..ARL;1KZT,3L,5VZFE..KZJ9#,LJ9#,VZJ9# |
1 | ||
| 27700-50030 |
3RZFE..RZJ95..ATM..ARL;1KZ#,3L,5VZFE..KZJ9#,LJ9#,VZJ9# |
1 | ||
| Common parts | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||
