KZJ90L-GJMNX (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000
Engine 1KZT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )1KZT ; (9604- )1KZTE..RHD

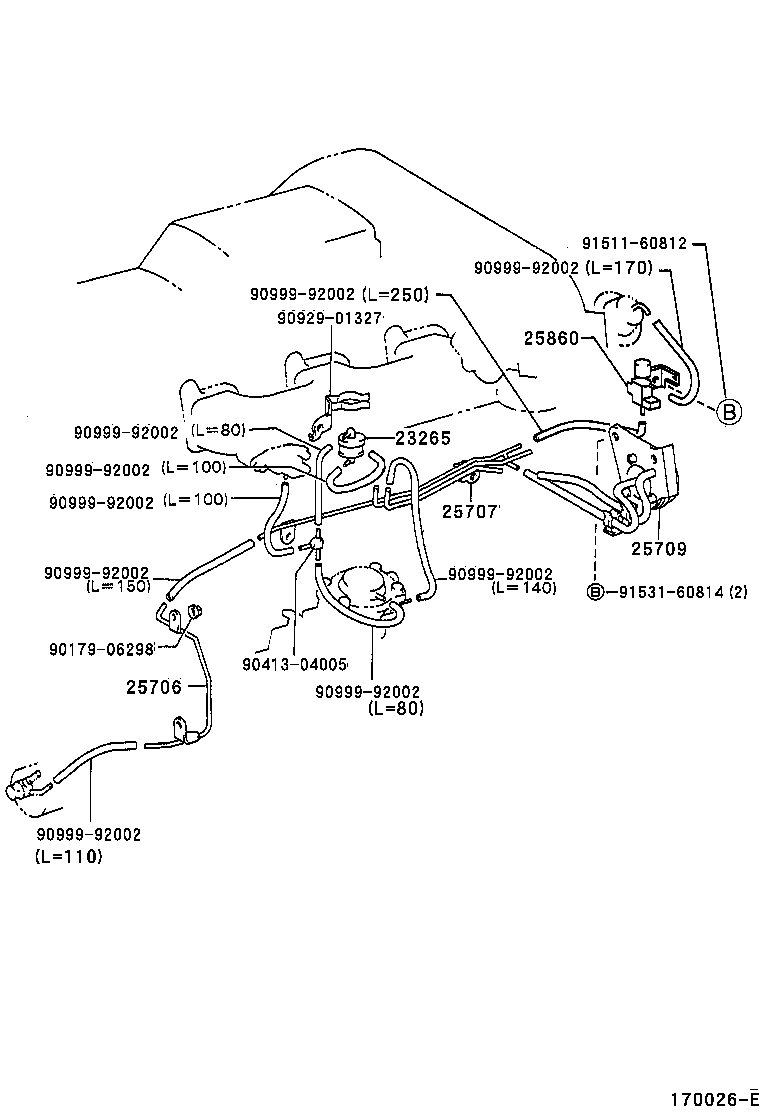

Click highlighted areas on diagram

diagram
Part # Description Qty Price

(9604-9906)1KZT

Click highlighted areas on diagram

diagram 23265 25706 25707 25709 25860 9017906298 9041304005 9092901327 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9151160812 9153160814
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11036

1KZT..KZJ9#

 1
90917-11036

1KZ#..KZJ9#..GEN,MA

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-67020

1KZT..KZJ9#

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-67030

1KZT..KZJ9#

 1
25707-67030

1KZT..KZJ9#

 1
25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR
25709-67010

1KZT..KZJ9#

 1
25709-67010

1KZT..KZJ9#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-67020

1KZT..KZJ9#

 1
25860-67020

1KZT..KZJ9#

 1
Common parts
90179-06298
90413-04005
90929-01327
90999-92002
91511-60812
91531-60814

(9906-0008)1KZT

Click highlighted areas on diagram

diagram 23265 25706 25707 25709 25860 9017906298 9041304005 9092901327 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9151160812 9153160814
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11036

1KZT..KZJ9#

 1
90917-11036

1KZ#..KZJ9#..GEN,MA

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-67020

1KZT..KZJ9#

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-67030

1KZT..KZJ9#

 1
25707-67030

1KZT..KZJ9#

 1
25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR
25709-67010

1KZT..KZJ9#

 1
25709-67010

1KZT..KZJ9#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-67020

1KZT..KZJ9#

 1
25860-67020

1KZT..KZJ9#

 1
Common parts
90179-06298
90413-04005
90929-01327
90999-92002
91511-60812
91531-60814
