KZJ90L-GJMNX (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000
Engine 1KZT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604-0008)1KZT ; (0008- )1KZTE..GEN

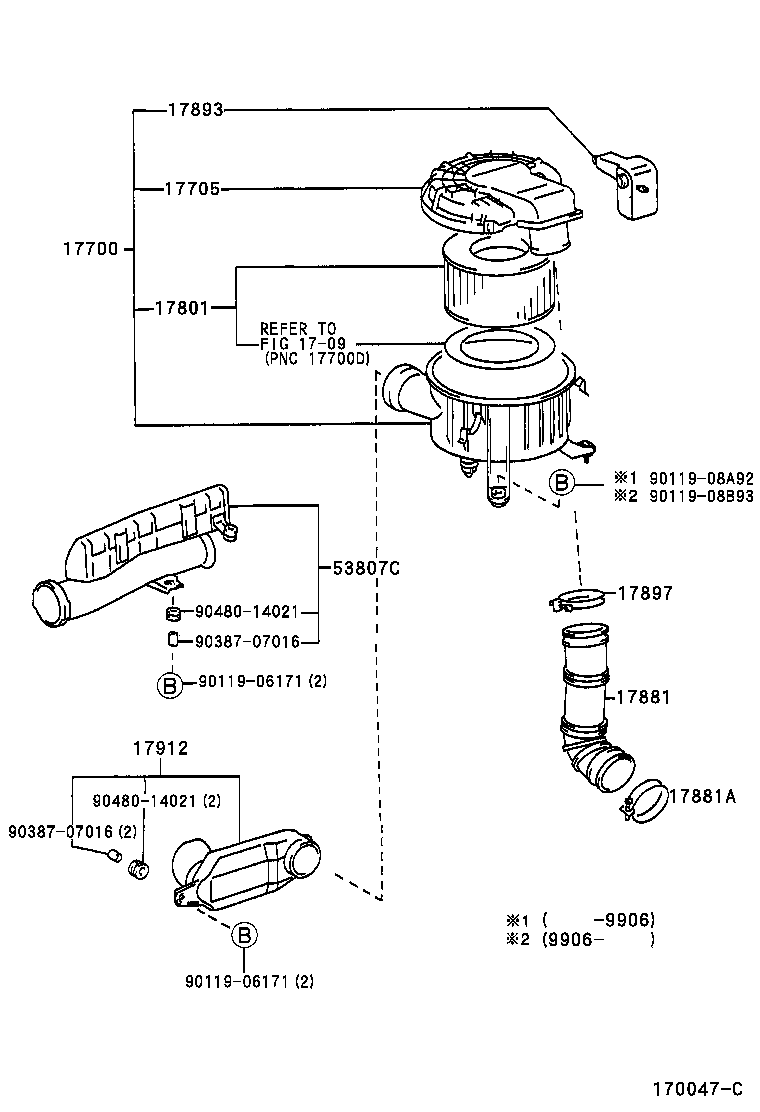

Click highlighted areas on diagram

diagram 1709 17700 17705 17801 17881 17881 17881A 17893 17897 17897 17912 53807C 9011906171 9011906171 9011908A92 9011908B93 9038707016 9038707016 9048014021 9048014021
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-67150

1KZT..KZJ9#

W(WARNING SENSOR)

 1
17700-67160

1KZT..KZJ9#

 1
17700-67160

1KZT..KZJ9#

 1
17700-67150

1KZT..KZJ9#

W(WARNING SENSOR)

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-67130

1KZT..KZJ9#

 1
17705-67120

1KZT..KZJ9#

W(WARNING SENSOR)

 1
17705-67120

1KZT..KZJ9#

W(WARNING SENSOR)

 1
17705-67130

1KZT..KZJ9#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-67060

1KZT..KZJ9#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-67060

1KZT..KZJ9#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-67060

1KZT..KZJ9#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690

1KZT..KZJ9#

 1
17893 - RESONATOR, INTAKE AIR
17893-67020

1KZT..KZJ9#

 1
17897 - CLAMP, HOSE(FOR AIR CLEANER)
96111-10780

1KZT..KZJ9#

 1
17897 - CLAMP, HOSE(FOR AIR CLEANER)
96111-10780

1KZT..KZJ9#

 1
17912 - DUCT, COOL AIR INTAKE, NO.2
52820-35010

1KZT..KZJ9#

 1
53807C - DUCT SUB-ASSY, FRONT FENDER AIR, RH
53807-60020

KZJ9#

 1
Common parts
90119-06171
90119-08A92
90119-08B93
90387-07016
90480-14021
Linked diagrams
1709
