KZJ90L-GJMNX (1996)
Toyota Land Cruiser 90

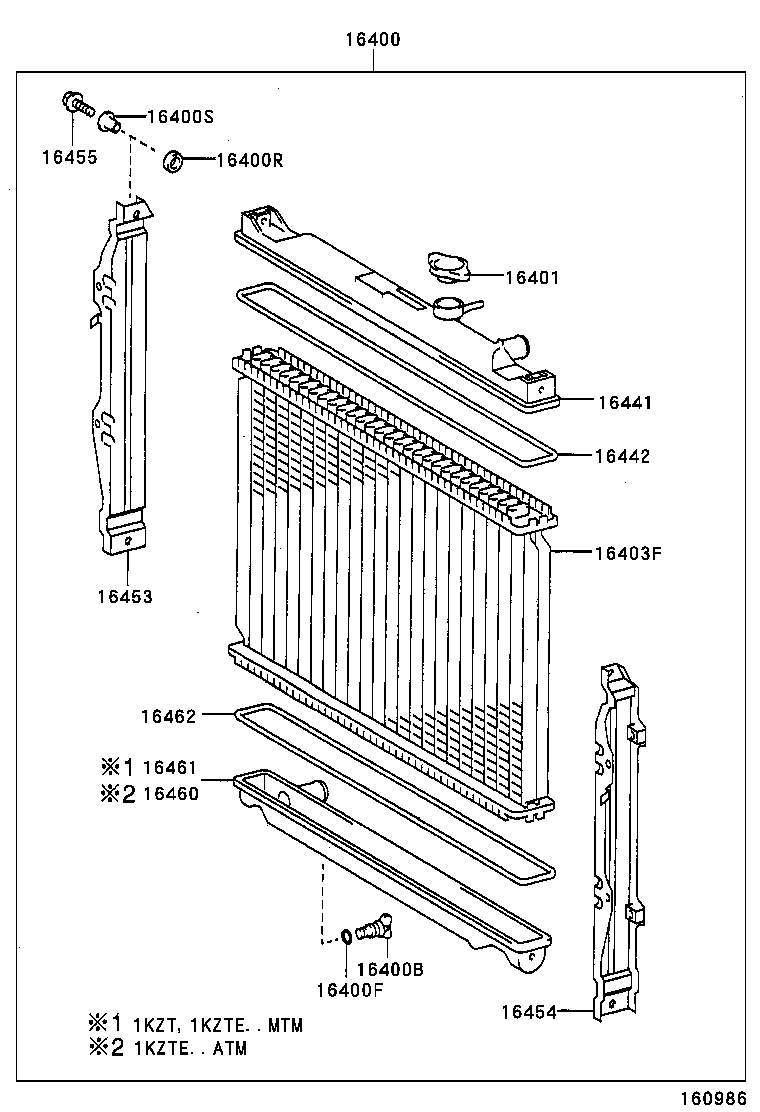

ILLUST NO. 2 OF 2(9604- )1KZ#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-67130 |
1KZT..KZJ9# |
1 | ||
| 16400-67130 |
1KZT..KZJ9# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
1KZT..KZJ9# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1KZT..KZJ9# |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-67130 |
1KZT..KZJ9# |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-67130 |
1KZT..KZJ9# |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
1KZT..KZJ9# |
1 | ||
| 16401-54750 |
1KZT..KZJ9# |
1 | ||
| 16401-54750 |
1KZT..KZJ9# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
1KZT..KZJ9# |
1 | ||
| 16401-54750 |
1KZT..KZJ9# |
1 | ||
| 16401-54750 |
1KZT..KZJ9# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-67130 |
1KZT..KZJ9# |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-67130 |
1KZT..KZJ9# |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-67130 |
1KZT..KZJ9# |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-67130 |
1KZT..KZJ9# |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-67130 |
1KZT..KZJ9# |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67130 |
1KZT..KZJ9# |
4 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-67130 |
1KZT..KZJ9# |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-67130 |
1KZT..KZJ9# |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-67130 |
1KZT..KZJ9# |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-67130 |
1KZT..KZJ9# |
1 | ||

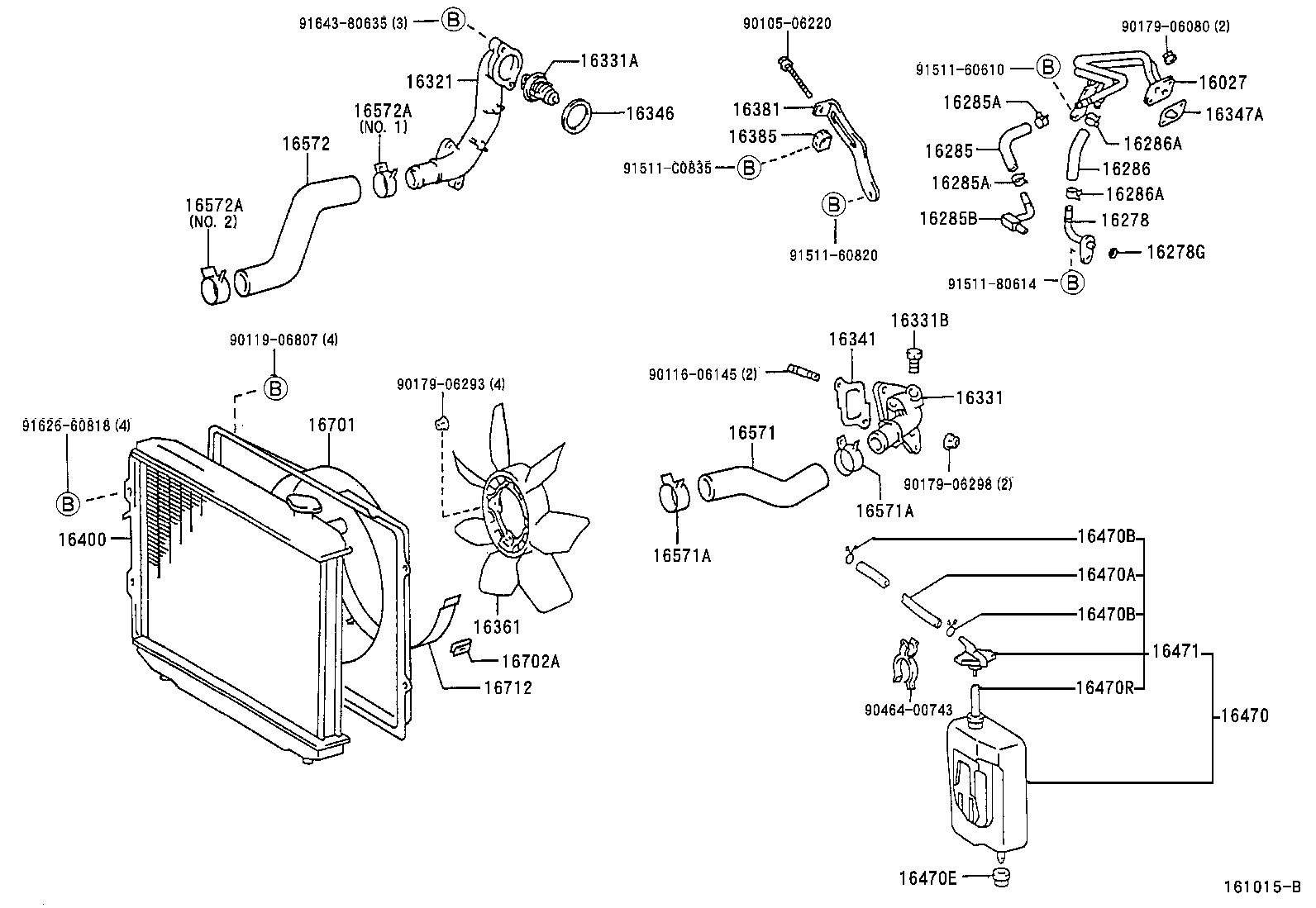

ILLUST NO. 1 OF 2(9604- )1KZ#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-67011 |
1KZT..KZJ9# |
1 | ||
| 16027-67010 |
1KZT..KZJ9# |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-67010 |
1KZT..KZJ9# |
1 | ||
| 16278G - RING, O(FOR WATER BY-PASS NO.2 PIPE) | ||||
| 96761-24010 |
1KZT..KZJ9# |
1 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-67010 |
1KZT..KZJ9# |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15022 |
1KZT..KZJ9# |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15022 |
1KZT..KZJ9# |
2 | ||
| 16285B - UNION(FOR TURBO WATER HOSE NO.2) | ||||
| 90405-10044 |
1KZT..KZJ9# |
1 | ||
| 16286 - HOSE, TURBO WATER, NO.3 | ||||
| 16285-67010 |
1KZT..KZJ9# |
1 | ||
| 16284-67020 |
1KZT..KZJ9# |
1 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-15022 |
1KZT..KZJ9# |
2 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-15022 |
1KZT..KZJ9# |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-67011 |
1KZT..KZJ9# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-67030 |
1KZT..KZJ9# |
1 | ||
| 16331-67030 |
1KZT..KZJ9# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03097 |
1KZT..KZJ9# *WAX 82-95 |
1 | ||
| 90916-03118 |
1KZT..KZJ9# *WAX 82-95 |
1 | ||
| 90916-03118 |
1KZ#..KZJ9#..GEN,MA *WAX 82-95 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90341-16094 |
1KZT..KZJ9# |
1 | ||
| 90341-16094 |
1KZT..KZJ9# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-67020 |
1KZT..KZJ9# |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-67010 |
1KZT..KZJ9# |
1 | ||
| 16347A - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-67010 |
1KZT..KZJ9# |
1 | ||
| 16361 - FAN | ||||
| 16361-67020 |
1KZT..KZJ9# |
1 | ||
| 16361-67020 |
1KZ#..KZJ9# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-67020 |
1KZT..KZJ9# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-67010 |
1KZT..KZJ9# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-67130 |
1KZT..KZJ9# |
1 | ||
| 16400-67130 |
1KZT..KZJ9# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75030 |
1KZT..KZJ9# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1KZT..KZJ9# *H,L=410 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1KZT..KZJ9# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1KZT..KZJ9# |
2 | ||
| 16470E - GROMMET, RADIATOR RESERVE TANK HOSE | ||||
| 90480-25025 |
1KZT..KZJ9# |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1KZT..KZJ9# *H,L=240 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-75020 |
1KZT..KZJ9# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-67070 |
1KZT..KZJ9# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-41006 |
1KZT..KZJ9# |
2 | ||
| 90467-41006 |
1KZT..KZJ9# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-41006 |
1KZT..KZJ9# |
2 | ||
| 90467-41006 |
1KZT..KZJ9# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-67070 |
1KZT..KZJ9# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41006 |
1KZT..KZJ9# |
2 | ||
| 90467-41006 |
1KZT..KZJ9# |
2 | ||
| 90467-41007 |
1KZ#..KZJ9# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41006 |
1KZT..KZJ9# |
2 | ||
| 90467-41006 |
1KZT..KZJ9# |
2 | ||
| 90467-41007 |
1KZ#..KZJ9# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-67080 |
1KZT..KZJ9# |
1 | ||
| 16711-67080 |
1KZ#..KZJ9# |
1 | ||
| 16702A - CLIP(FOR FAN SHROUD NO.2) | ||||
| 90468-06092 |
1KZT..KZJ9# |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-67050 |
1KZT..KZJ9# |
1 | ||
| 16712-67050 |
1KZ#..KZJ9# |
1 | ||
| Common parts | ||||
| 90105-06220 | ||||
| 90116-06145 | ||||
| 90119-06807 | ||||
| 90179-06080 | ||||
| 90179-06293 | ||||
| 90179-06298 | ||||
| 90464-00743 | ||||
| 91511-60610 | ||||
| 91511-60820 | ||||
| 91511-80614 | ||||
| 91511-C0835 | ||||
| 91626-60818 | ||||
| 91643-80635 | ||||
