UZJ100R-GNPEKQ (1998)
Toyota Land Cruiser 100

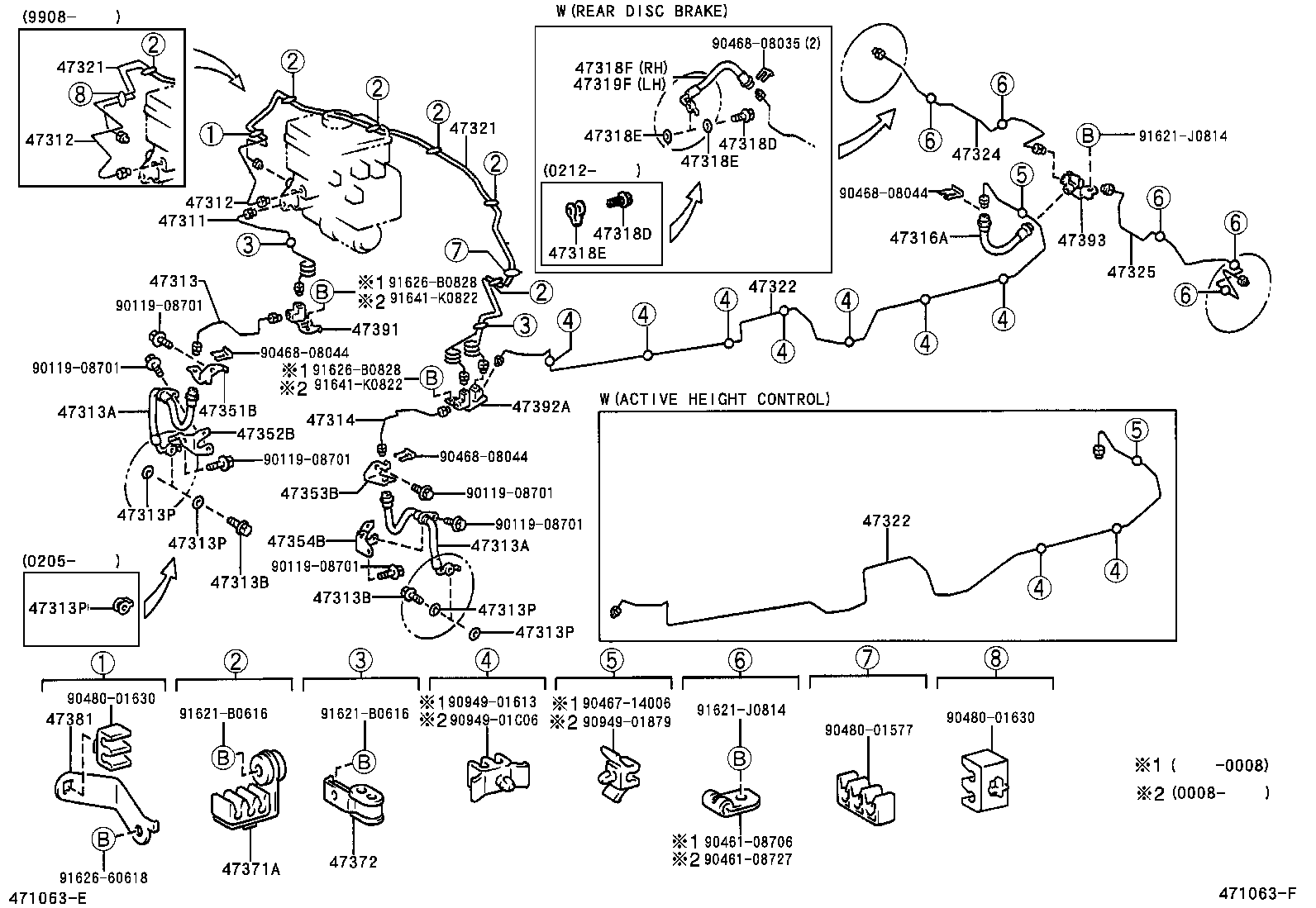

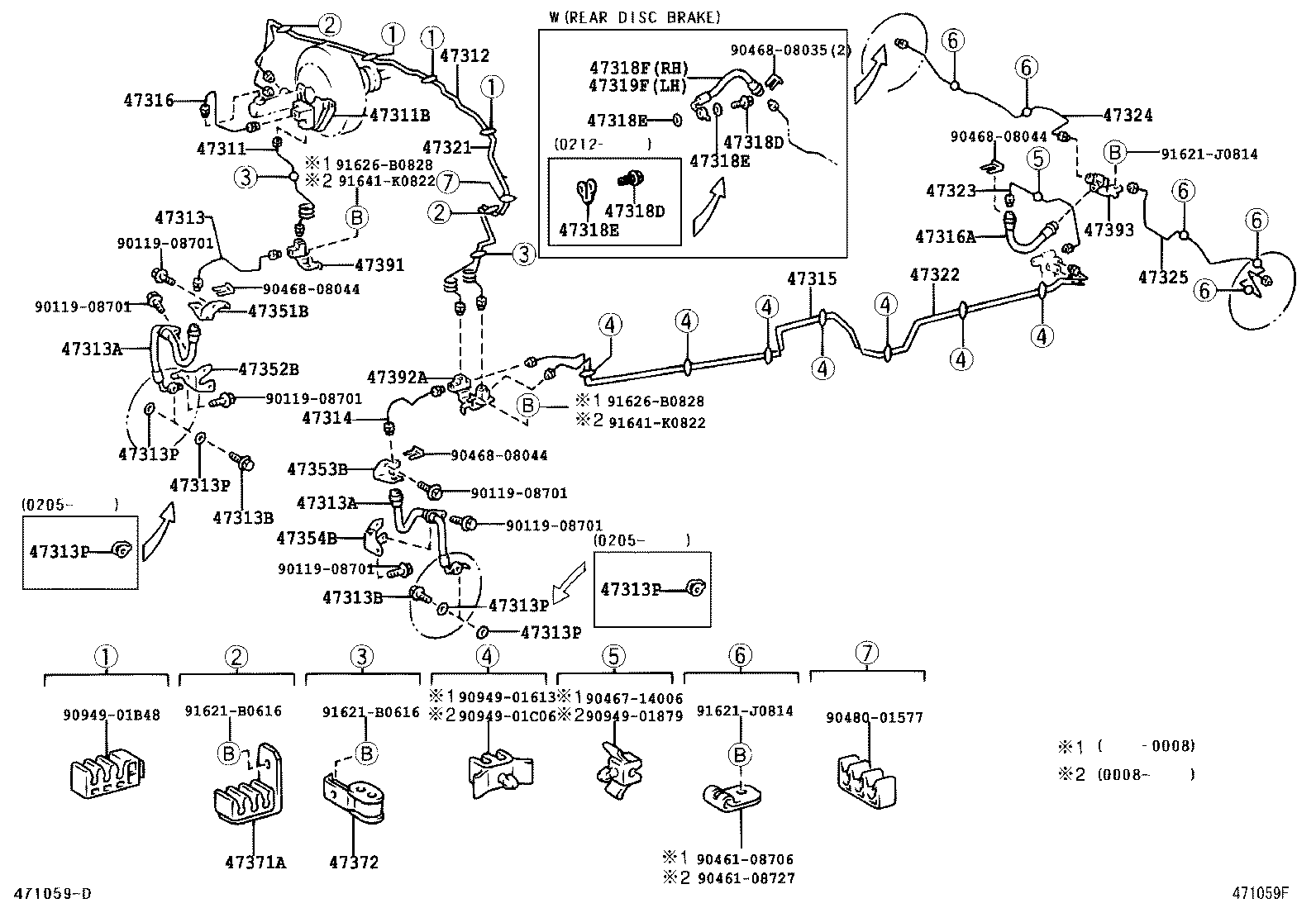

ILLUST NO. 1 OF 2(9801-9907)HDJ100,UZJ100..RHD ; (9907- )HDJ100..RHD..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-60550 |
HDJ100,UZJ100..RHD W(ABS) |
1 | ||
| 47311-60530 |
HDJ100,UZJ100..RHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-13046 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-60840 |
HDJ100,UZJ100..RHD |
1 | ||
| 47312-60860 |
HDJ100,UZJ100..RHD W(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-60240 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A20 |
FZJ100,HDJ100,UZJ100 RH |
1 | ||
| 90947-02A26 |
FZJ100,HDJ100,UZJ100 LH |
1 | ||
| 90947-02A21 |
FZJ100,HDJ100,UZJ100..EFI,TD2 W(ABS),RH |
1 | ||
| 90947-02A27 |
FZJ100,HDJ100,UZJ100..EFI,TD2 W(ABS),LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A20 |
FZJ100,HDJ100,UZJ100 RH |
1 | ||
| 90947-02A26 |
FZJ100,HDJ100,UZJ100 LH |
1 | ||
| 90947-02A21 |
FZJ100,HDJ100,UZJ100..EFI,TD2 W(ABS),RH |
1 | ||
| 90947-02A27 |
FZJ100,HDJ100,UZJ100..EFI,TD2 W(ABS),LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-60230 |
FZJ100,HDJ100,UZJ100 W(ABS) |
1 | ||
| 47314-60220 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-60380 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47311-60520 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02A11 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 90947-02A13 |
FZJ100,HDJ100,UZJ100 W(ABS) |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02A07 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90947-02A09 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..EFI,TD2 W(ABS) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02A10 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..EFI,TD2 W(ABS) |
1 | ||
| 90947-02A08 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-60150 |
HDJ100,UZJ100..RHD |
1 | ||
| 47321-60170 |
HDJ100,UZJ100..RHD W(ABS) |
1 | ||
| 47321-60271 |
UZJ100..ARL W(ABS & VSC) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-60720 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 47322-60740 |
UZJ100;HDJ100..LUB W(ABS & ACTIVE HEIGHT CONTROL) |
1 | ||
| 47322-60730 |
FZJ100,HDJ100,UZJ100 W(ABS) |
1 | ||
| 47322-60732 |
FZJ100,HDJ100,UZJ100 W(ABS & VSC) |
1 | ||
| 47322-60742 |
UZJ100;HDJ100..LUB W(ABS & ACTIVE HEIGHT CONTROL) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-60590 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-60240 |
FZJ100,HDJ100,UZJ100 W(REAR DISC BRAKE) & W/O(ABS & VSC) |
1 | ||
| 47324-60321 |
UZJ100..4FC W(ABS & VSC) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-60180 |
FZJ100,HDJ100,UZJ100 W(REAR DISC BRAKE) & W/O(ABS & VSC) |
1 | ||
| 47325-60251 |
UZJ100..4FC W(ABS & VSC) |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-60230 |
UZJ100..ARL |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47351-60240 |
UZJ100..ARL |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47352-60140 |
UZJ100..ARL |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47352-60150 |
UZJ100..ARL |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-60210 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
2 | ||
| 47371-60200 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) W(ABS) |
5 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-60220 |
UZJ100..ARL |
2 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-60060 |
UZJ100..ARL |
1 | ||
| 47391-60080 |
UZJ100..ARL W(ABS & VSC) |
1 | ||
| 47392A - WAY, BRAKE TUBE, NO.2 | ||||
| 47392-60030 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 47392-60040 |
FZJ100,HDJ100,UZJ100 W(ABS) |
1 | ||
| 47393 - INSULATOR, BRAKE TUBE HEAT | ||||
| 47393-60060 |
UZJ100..ARL |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90461-08706 | ||||
| 90461-08727 | ||||
| 90467-14006 | ||||
| 90468-08035 | ||||
| 90468-08044 | ||||
| 90480-01577 | ||||
| 90949-01613 | ||||
| 90949-01879 | ||||
| 90949-01B48 | ||||
| 90949-01C06 | ||||
| 91621-B0616 | ||||
| 91621-J0814 | ||||
| 91626-B0828 | ||||
| 91641-K0822 | ||||

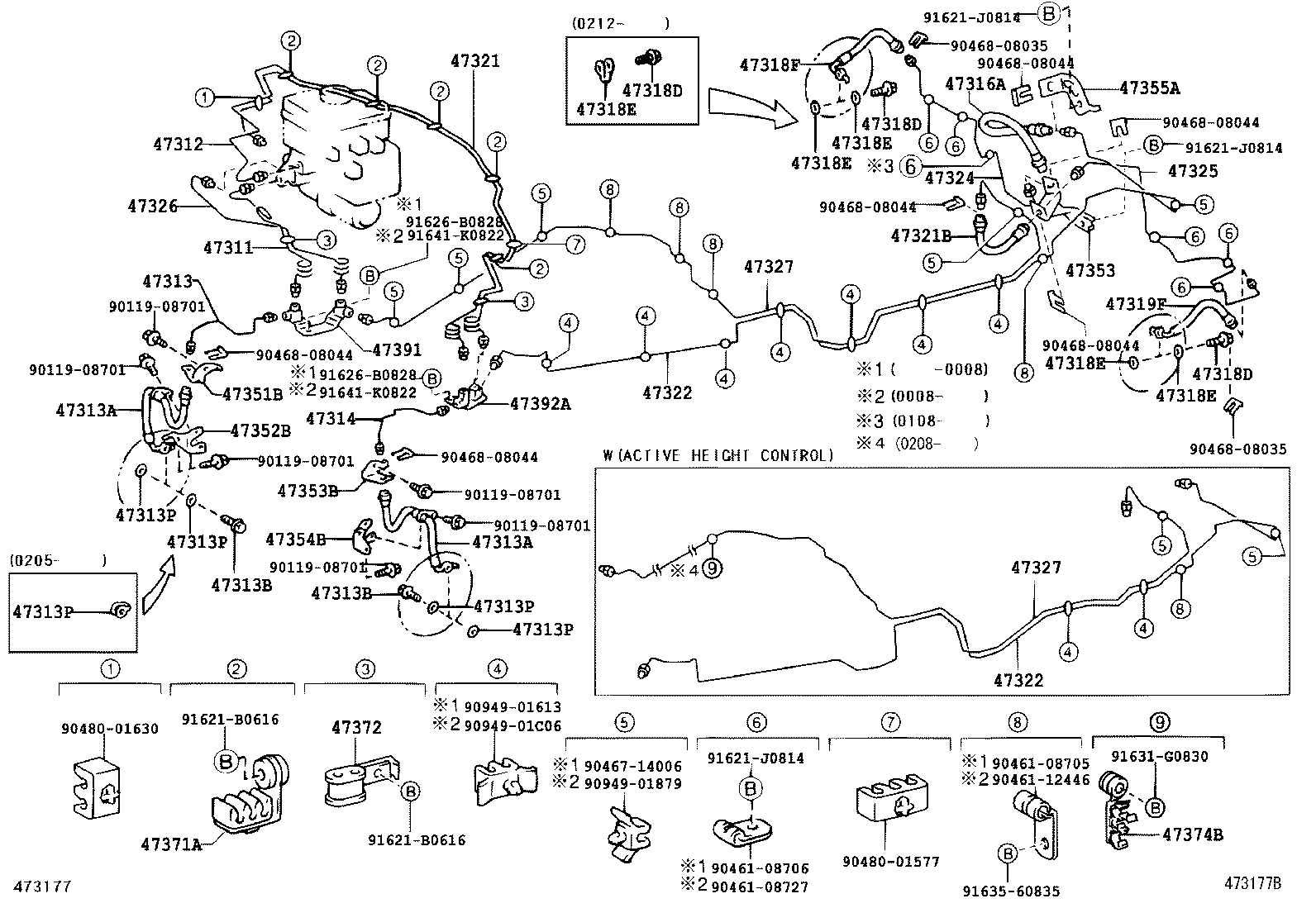

(9801- )HDJ100,UZJ100..RHD
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-60550 |
HDJ100,UZJ100..RHD W(ABS) |
1 | ||
| 47311-60530 |
HDJ100,UZJ100..RHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-60840 |
HDJ100,UZJ100..RHD |
1 | ||
| 47312-60860 |
HDJ100,UZJ100..RHD W(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-60840 |
HDJ100,UZJ100..RHD |
1 | ||
| 47312-60860 |
HDJ100,UZJ100..RHD W(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-60240 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A20 |
FZJ100,HDJ100,UZJ100 RH |
1 | ||
| 90947-02A26 |
FZJ100,HDJ100,UZJ100 LH |
1 | ||
| 90947-02A21 |
FZJ100,HDJ100,UZJ100..EFI,TD2 W(ABS),RH |
1 | ||
| 90947-02A27 |
FZJ100,HDJ100,UZJ100..EFI,TD2 W(ABS),LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A20 |
FZJ100,HDJ100,UZJ100 RH |
1 | ||
| 90947-02A26 |
FZJ100,HDJ100,UZJ100 LH |
1 | ||
| 90947-02A21 |
FZJ100,HDJ100,UZJ100..EFI,TD2 W(ABS),RH |
1 | ||
| 90947-02A27 |
FZJ100,HDJ100,UZJ100..EFI,TD2 W(ABS),LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-60230 |
FZJ100,HDJ100,UZJ100 W(ABS) |
1 | ||
| 47314-60220 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02A11 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 90947-02A13 |
FZJ100,HDJ100,UZJ100 W(ABS) |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02A07 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90947-02A09 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..EFI,TD2 W(ABS) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02A10 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..EFI,TD2 W(ABS) |
1 | ||
| 90947-02A08 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-60150 |
HDJ100,UZJ100..RHD |
1 | ||
| 47321-60170 |
HDJ100,UZJ100..RHD W(ABS) |
1 | ||
| 47321-60271 |
UZJ100..ARL W(ABS & VSC) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-60150 |
HDJ100,UZJ100..RHD |
1 | ||
| 47321-60170 |
HDJ100,UZJ100..RHD W(ABS) |
1 | ||
| 47321-60271 |
UZJ100..ARL W(ABS & VSC) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-60720 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 47322-60740 |
UZJ100;HDJ100..LUB W(ABS & ACTIVE HEIGHT CONTROL) |
1 | ||
| 47322-60730 |
FZJ100,HDJ100,UZJ100 W(ABS) |
1 | ||
| 47322-60732 |
FZJ100,HDJ100,UZJ100 W(ABS & VSC) |
1 | ||
| 47322-60742 |
UZJ100;HDJ100..LUB W(ABS & ACTIVE HEIGHT CONTROL) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-60720 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 47322-60740 |
UZJ100;HDJ100..LUB W(ABS & ACTIVE HEIGHT CONTROL) |
1 | ||
| 47322-60730 |
FZJ100,HDJ100,UZJ100 W(ABS) |
1 | ||
| 47322-60732 |
FZJ100,HDJ100,UZJ100 W(ABS & VSC) |
1 | ||
| 47322-60742 |
UZJ100;HDJ100..LUB W(ABS & ACTIVE HEIGHT CONTROL) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-60240 |
FZJ100,HDJ100,UZJ100 W(REAR DISC BRAKE) & W/O(ABS & VSC) |
1 | ||
| 47324-60321 |
UZJ100..4FC W(ABS & VSC) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-60180 |
FZJ100,HDJ100,UZJ100 W(REAR DISC BRAKE) & W/O(ABS & VSC) |
1 | ||
| 47325-60251 |
UZJ100..4FC W(ABS & VSC) |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-60230 |
UZJ100..ARL |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47351-60240 |
UZJ100..ARL |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47352-60140 |
UZJ100..ARL |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47352-60150 |
UZJ100..ARL |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-60210 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
2 | ||
| 47371-60200 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) W(ABS) |
5 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-60220 |
UZJ100..ARL |
2 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-60040 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-60060 |
UZJ100..ARL |
1 | ||
| 47391-60080 |
UZJ100..ARL W(ABS & VSC) |
1 | ||
| 47392A - WAY, BRAKE TUBE, NO.2 | ||||
| 47392-60030 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 47392-60040 |
FZJ100,HDJ100,UZJ100 W(ABS) |
1 | ||
| 47393 - INSULATOR, BRAKE TUBE HEAT | ||||
| 47393-60060 |
UZJ100..ARL |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90461-08706 | ||||
| 90461-08727 | ||||
| 90467-14006 | ||||
| 90468-08035 | ||||
| 90468-08044 | ||||
| 90480-01577 | ||||
| 90480-01630 | ||||
| 90949-01613 | ||||
| 90949-01879 | ||||
| 90949-01C06 | ||||
| 91621-B0616 | ||||
| 91621-J0814 | ||||
| 91626-60618 | ||||
| 91626-B0828 | ||||
| 91641-K0822 | ||||
ILLUST NO. 2 OF 2(9801-9907) ; (9907- )HDJ100,UZJ100..GCC,GEN; (9907- )FZJ10#,HZJ105..ARL,GCC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 31478D - CAP, BLEEDER PLUG(FOR LSPV) | ||||
| 31478-30010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-60120 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-60110 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-35010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-35010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-60090 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-60090 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-60110 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-60110 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35030 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-35030 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| Common parts | ||||
| 90119-08834 | ||||
| 90201-08062 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
(9907- )UZJ100..ARL ; (0308- )HDJ100..5FC..ARL
W(ABS & VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-60550 |
HDJ100,UZJ100..RHD W(ABS) |
1 | ||
| 47311-60530 |
HDJ100,UZJ100..RHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-60840 |
HDJ100,UZJ100..RHD |
1 | ||
| 47312-60860 |
HDJ100,UZJ100..RHD W(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-60240 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A20 |
FZJ100,HDJ100,UZJ100 RH |
1 | ||
| 90947-02A26 |
FZJ100,HDJ100,UZJ100 LH |
1 | ||
| 90947-02A21 |
FZJ100,HDJ100,UZJ100..EFI,TD2 W(ABS),RH |
1 | ||
| 90947-02A27 |
FZJ100,HDJ100,UZJ100..EFI,TD2 W(ABS),LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A20 |
FZJ100,HDJ100,UZJ100 RH |
1 | ||
| 90947-02A26 |
FZJ100,HDJ100,UZJ100 LH |
1 | ||
| 90947-02A21 |
FZJ100,HDJ100,UZJ100..EFI,TD2 W(ABS),RH |
1 | ||
| 90947-02A27 |
FZJ100,HDJ100,UZJ100..EFI,TD2 W(ABS),LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-60230 |
FZJ100,HDJ100,UZJ100 W(ABS) |
1 | ||
| 47314-60220 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02A11 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 90947-02A13 |
FZJ100,HDJ100,UZJ100 W(ABS) |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02A07 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90947-02A09 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..EFI,TD2 W(ABS) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02A10 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..EFI,TD2 W(ABS) |
1 | ||
| 90947-02A08 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-60150 |
HDJ100,UZJ100..RHD |
1 | ||
| 47321-60170 |
HDJ100,UZJ100..RHD W(ABS) |
1 | ||
| 47321-60271 |
UZJ100..ARL W(ABS & VSC) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-60720 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 47322-60740 |
UZJ100;HDJ100..LUB W(ABS & ACTIVE HEIGHT CONTROL) |
1 | ||
| 47322-60730 |
FZJ100,HDJ100,UZJ100 W(ABS) |
1 | ||
| 47322-60732 |
FZJ100,HDJ100,UZJ100 W(ABS & VSC) |
1 | ||
| 47322-60742 |
UZJ100;HDJ100..LUB W(ABS & ACTIVE HEIGHT CONTROL) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-60720 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 47322-60740 |
UZJ100;HDJ100..LUB W(ABS & ACTIVE HEIGHT CONTROL) |
1 | ||
| 47322-60730 |
FZJ100,HDJ100,UZJ100 W(ABS) |
1 | ||
| 47322-60732 |
FZJ100,HDJ100,UZJ100 W(ABS & VSC) |
1 | ||
| 47322-60742 |
UZJ100;HDJ100..LUB W(ABS & ACTIVE HEIGHT CONTROL) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-60240 |
FZJ100,HDJ100,UZJ100 W(REAR DISC BRAKE) & W/O(ABS & VSC) |
1 | ||
| 47324-60321 |
UZJ100..4FC W(ABS & VSC) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-60180 |
FZJ100,HDJ100,UZJ100 W(REAR DISC BRAKE) & W/O(ABS & VSC) |
1 | ||
| 47325-60251 |
UZJ100..4FC W(ABS & VSC) |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-60251 |
UZJ100..ARL |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-60101 |
UZJ100..ARL W(ABS & VSC & ACTIVE HEIGHT CONTROL) |
1 | ||
| 47327-60091 |
UZJ100..ARL W(ABS & VSC) |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-60101 |
UZJ100..ARL W(ABS & VSC & ACTIVE HEIGHT CONTROL) |
1 | ||
| 47327-60091 |
UZJ100..ARL W(ABS & VSC) |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-60230 |
UZJ100..ARL |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47351-60240 |
UZJ100..ARL |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47351-60270 |
UZJ100..ARL |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47352-60140 |
UZJ100..ARL |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47352-60150 |
UZJ100..ARL |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-60160 |
UZJ100..ARL |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-60210 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
2 | ||
| 47371-60200 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) W(ABS) |
5 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-60220 |
UZJ100..ARL |
2 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-60060 |
UZJ100..ARL |
1 | ||
| 47391-60080 |
UZJ100..ARL W(ABS & VSC) |
1 | ||
| 47392A - WAY, BRAKE TUBE, NO.2 | ||||
| 47392-60030 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 47392-60040 |
FZJ100,HDJ100,UZJ100 W(ABS) |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90461-08705 | ||||
| 90461-08706 | ||||
| 90461-08727 | ||||
| 90461-12446 | ||||
| 90467-14006 | ||||
| 90468-08035 | ||||
| 90468-08044 | ||||
| 90480-01577 | ||||
| 90480-01630 | ||||
| 90949-01613 | ||||
| 90949-01879 | ||||
| 90949-01C06 | ||||
| 91621-B0616 | ||||
| 91621-J0814 | ||||
| 91626-B0828 | ||||
| 91631-G0830 | ||||
| 91635-60835 | ||||
| 91641-K0822 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
