UZJ100R-GNMNKQ (2002)

Toyota Land Cruiser 100

Production Aug 2002 - May 2006
Engine 2UZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )2UZFE..ARL

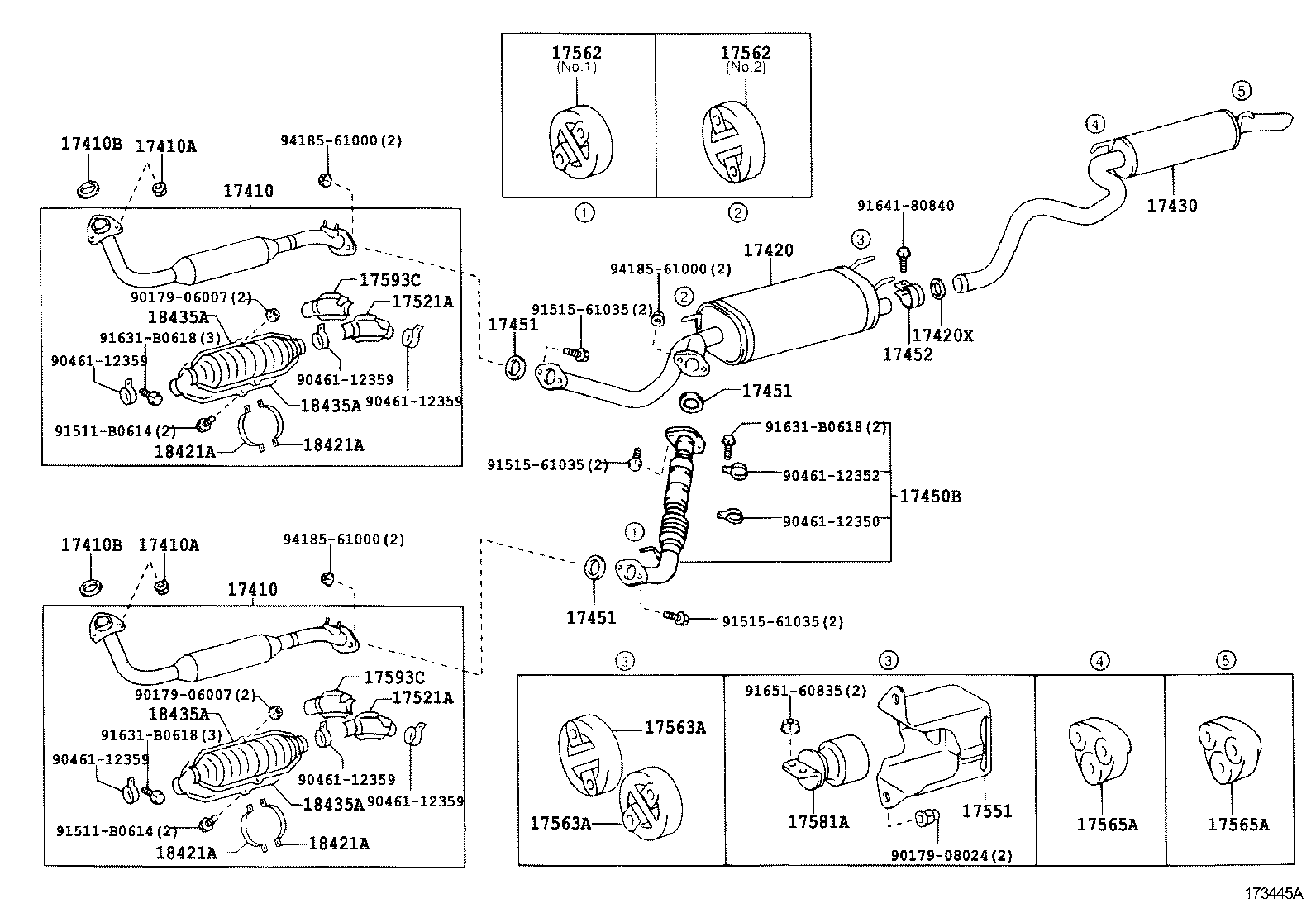

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17420 17420X 17430 17450B 17451 17451 17451 17452 17521A 17521A 17551 17562 17562 17563A 17563A 17565A 17565A 17581A 17593C 17593C 18421A 18421A 18421A 18421A 18435A 18435A 18435A 18435A 9017906007 9017906007 9017908024 9046112350 9046112352 9046112359 9046112359 9046112359 9046112359 9046112359 9046112359 91511B0614 91511B0614 9151561035 9151561035 9151561035 91631B0618 91631B0618 91631B0618 9164180840 9165160835 9418561000 9418561000 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-50190

2UZFE..UZJ100

 2
17410-50380

2UZFE..UZJ100..ARL

 2
17410-50380

2UZFE..UZJ100..ARL

 2
17410 - PIPE ASSY, EXHAUST, FRONT
17401-50190

2UZFE..UZJ100

 2
17410-50380

2UZFE..UZJ100..ARL

 2
17410-50380

2UZFE..UZJ100..ARL

 2
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2UZFE..UZJ100..ARL,GCC,GEN

 6
90179-10070

2UZFE..UZJ100..ARL,GCC,GEN

 6
90179-10070

2UZFE..UZJ100..ARL

 6
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2UZFE..UZJ100..ARL,GCC,GEN

 6
90179-10070

2UZFE..UZJ100..ARL,GCC,GEN

 6
90179-10070

2UZFE..UZJ100..ARL

 6
17410B - GASKET, EXHAUST PIPE
90917-06065

1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN

 2
90917-06065

1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN

 2
17410B - GASKET, EXHAUST PIPE
90917-06065

1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN

 2
90917-06065

1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17403-50150

2UZFE..UZJ100

 1
17420-50230

2UZFE..UZJ100..ARL

 1
17403-50120

2UZFE..UZJ100..ARL

 1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-50050

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 1
17451-50050

2UZFE..UZJ100..ARL

 1
17451-50050

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-50030

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 1
17405-50030

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 1
17405-50030

1FZFE,2UZFE..FZJ100,UZJ100

 1
17450B - PIPE ASSY, EXHAUST, FRONT NO.2
17450-50070

2UZFE..UZJ100

 1
17450-50100

2UZFE..UZJ100..ARL

 1
17450-50100

2UZFE..UZJ100..ARL

 1
17451 - GASKET, EXHAUST PIPE
90917-06045

2UZFE..UZJ100..ARL,GCC,GEN

 3
90917-06045

2UZFE..UZJ100..ARL,GCC,GEN

 3
90917-06045

2UZFE..UZJ100..ARL

 3
17451 - GASKET, EXHAUST PIPE
90917-06045

2UZFE..UZJ100..ARL,GCC,GEN

 3
90917-06045

2UZFE..UZJ100..ARL,GCC,GEN

 3
90917-06045

2UZFE..UZJ100..ARL

 3
17451 - GASKET, EXHAUST PIPE
90917-06045

2UZFE..UZJ100..ARL,GCC,GEN

 3
90917-06045

2UZFE..UZJ100..ARL,GCC,GEN

 3
90917-06045

2UZFE..UZJ100..ARL

 3
17452 - CLAMP, EXHAUST PIPE
17452-50050

2UZFE..UZJ100..ARL

 1
17452-50050

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 1
17452-50050

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 1
17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1
17521-50090

2UZFE..UZJ100..ARL

 2
17521-50090

2UZFE..UZJ100..ARL

 2
17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1
17521-50090

2UZFE..UZJ100..ARL

 2
17521-50090

2UZFE..UZJ100..ARL

 2
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-50090

2UZFE..UZJ100..ARL,GCC,GEN

 1
17551-50091

2UZFE..UZJ100..ARL,GCC,GEN

 1
17551-50091

2UZFE..UZJ100..ARL,GCC,GEN

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-74280

2UZFE..UZJ100..ARL

NO.2

 1
17565-46040

2UZFE..UZJ100..ARL

NO.1

 1
17565-46040

2UZFE..UZJ100..ARL

NO.1

 1
17565-74280

2UZFE..UZJ100

 2
17565-74280

2UZFE..UZJ100..ARL

NO.2

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-74280

2UZFE..UZJ100..ARL

NO.2

 1
17565-46040

2UZFE..UZJ100..ARL

NO.1

 1
17565-46040

2UZFE..UZJ100..ARL

NO.1

 1
17565-74280

2UZFE..UZJ100

 2
17565-74280

2UZFE..UZJ100..ARL

NO.2

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-74280

2UZFE..UZJ100..ARL

 2
17565-74280

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 2
17565-74280

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 2
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-74280

2UZFE..UZJ100..ARL

 2
17565-74280

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 2
17565-74280

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-13030

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 2
17565-13030

2UZFE..UZJ100..ARL

 2
17565-13030

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-13030

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 2
17565-13030

2UZFE..UZJ100..ARL

 2
17565-13030

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 2
17581A - DAMPER, EXHAUST PIPE
17581-50090

2UZFE..UZJ100..ARL

 1
17581-50090

2UZFE..UZJ100..ARL

 1
17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1
17593-50090

2UZFE..UZJ100..ARL

 2
17593-50090

2UZFE..UZJ100..ARL

 2
17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1
17593-50090

2UZFE..UZJ100..ARL

 2
17593-50090

2UZFE..UZJ100..ARL

 2
18421A - STAY, CONVERTER PROTECTOR, LH
18421-50010

2UZFE..UZJ100..ARL,GCC

 4
18421-50010

2UZFE..UZJ100..ARL,GCC

 4
18421A - STAY, CONVERTER PROTECTOR, LH
18421-50010

2UZFE..UZJ100..ARL,GCC

 4
18421-50010

2UZFE..UZJ100..ARL,GCC

 4
18421A - STAY, CONVERTER PROTECTOR, LH
18421-50010

2UZFE..UZJ100..ARL,GCC

 4
18421-50010

2UZFE..UZJ100..ARL,GCC

 4
18421A - STAY, CONVERTER PROTECTOR, LH
18421-50010

2UZFE..UZJ100..ARL,GCC

 4
18421-50010

2UZFE..UZJ100..ARL,GCC

 4
18435A - PROTECTOR, MONOLITHIC CONVERTER
18435-50120

2UZFE..UZJ100..ARL

 4
18435-50120

2UZFE..UZJ100..ARL

 4
18435A - PROTECTOR, MONOLITHIC CONVERTER
18435-50120

2UZFE..UZJ100..ARL

 4
18435-50120

2UZFE..UZJ100..ARL

 4
18435A - PROTECTOR, MONOLITHIC CONVERTER
18435-50120

2UZFE..UZJ100..ARL

 4
18435-50120

2UZFE..UZJ100..ARL

 4
18435A - PROTECTOR, MONOLITHIC CONVERTER
18435-50120

2UZFE..UZJ100..ARL

 4
18435-50120

2UZFE..UZJ100..ARL

 4
Common parts
90179-06007
90179-08024
90461-12350
90461-12352
90461-12359
91511-B0614
91515-61035
91631-B0618
91641-80840
91651-60835
94185-61000
