UZJ100L-GNPEK (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2002
Engine 2UZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9801-0208)UZJ100..4FC

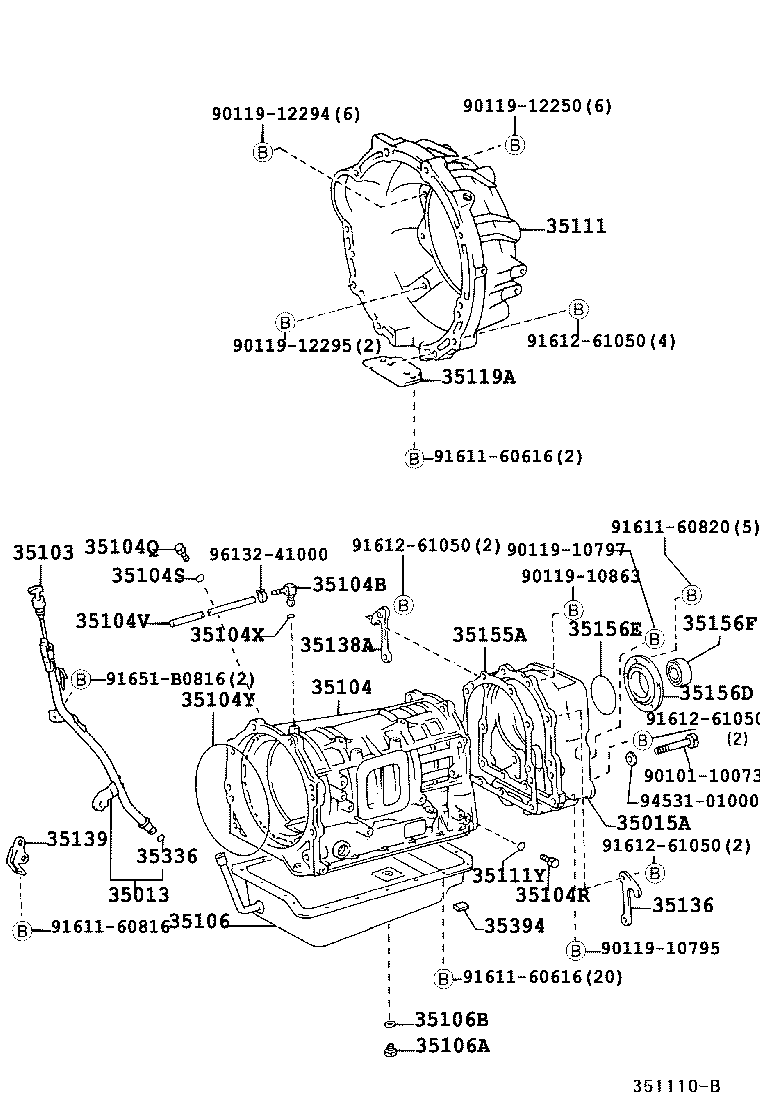

Click highlighted areas on diagram

A442F

diagram 35013 35015A 35103 35104 35104B 35104Q 35104R 35104S 35104V 35104X 35104Y 35106 35106A 35106B 35111 35111Y 35119A 35136 35138A 35139 35155A 35156D 35156E 35156F 35336 35394 9010110073 9011910795 9011910797 9011910863 9011912250 9011912294 9011912295 9161160616 9161160616 9161160816 9161160820 9161261050 9161261050 9161261050 9161261050 91651B0816 9453101000 9613241000
Part # Description Qty Price
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-60161

UZJ100..4FC

 1
35013-60160

UZJ100..4FC

 1
35015A - ADAPTER SUB-ASSY, TRANSMISSION CASE, REAR
35015-60110

UZJ100..4FC

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-60120

UZJ100..4FC

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-60130

UZJ100..4FC

 1
35104-60131

UZJ100..4FC

 1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03094

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-13001

UZJ100..4FC

 1
35104R - PLUG, NO.2 (FOR TRANSAXLE CASE)
90341-08001

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 7
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-10189

UZJ100..4FC

 1
35104V - HOSE (FOR BREATHER PLUG)
90445-11131

UZJ100..4FC

 1
35104X - RING, O (FOR BREATHER PLUG)
90301-06005

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35104Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-99067

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-60120

UZJ100..4FC

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-18057

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35106B - GASKET, DRAIN PLUG (ATM)
12157-10010

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-60110

UZJ100..4FC

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 7
35119A - COVER, TRANSMISSION HOUSING
35119-60010

UZJ100..4FC

 1
35136 - HANGER, TRANSMISSION,NO.1
35136-60020

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35138A - HANGER, TRANSMISSION, NO.2
35136-60020

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35139 - BRACKET, OIL FILLER TUBE
35139-60020

UZJ100..LHD..4FC

 1
35155A - GASKET, TRANSMISSION CASE ADAPTER
35182-60010

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35156D - COVER, TRANSMISSION CASE REAR ADAPTER
35156-60010

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35156E - RING, O(FOR TRANSMISSION CASE REAR ADAPTER COVER)
90301-81005

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35156F - SEAL, OIL(FOR TRANSMISSION CASE REAR ADAPTER COVER)
90311-48016

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

HDJ100,HZJ105,UZJ100..4FC..(DSL2,EFI,TD2)

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 4
Common parts
90101-10073
90119-10795
90119-10797
90119-10863
90119-12250
90119-12294
90119-12295
91611-60616
91611-60816
91611-60820
91612-61050
91651-B0816
94531-01000
96132-41000
