UZJ100L-GNMEKV (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2007
Engine 2UZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )2UZFE

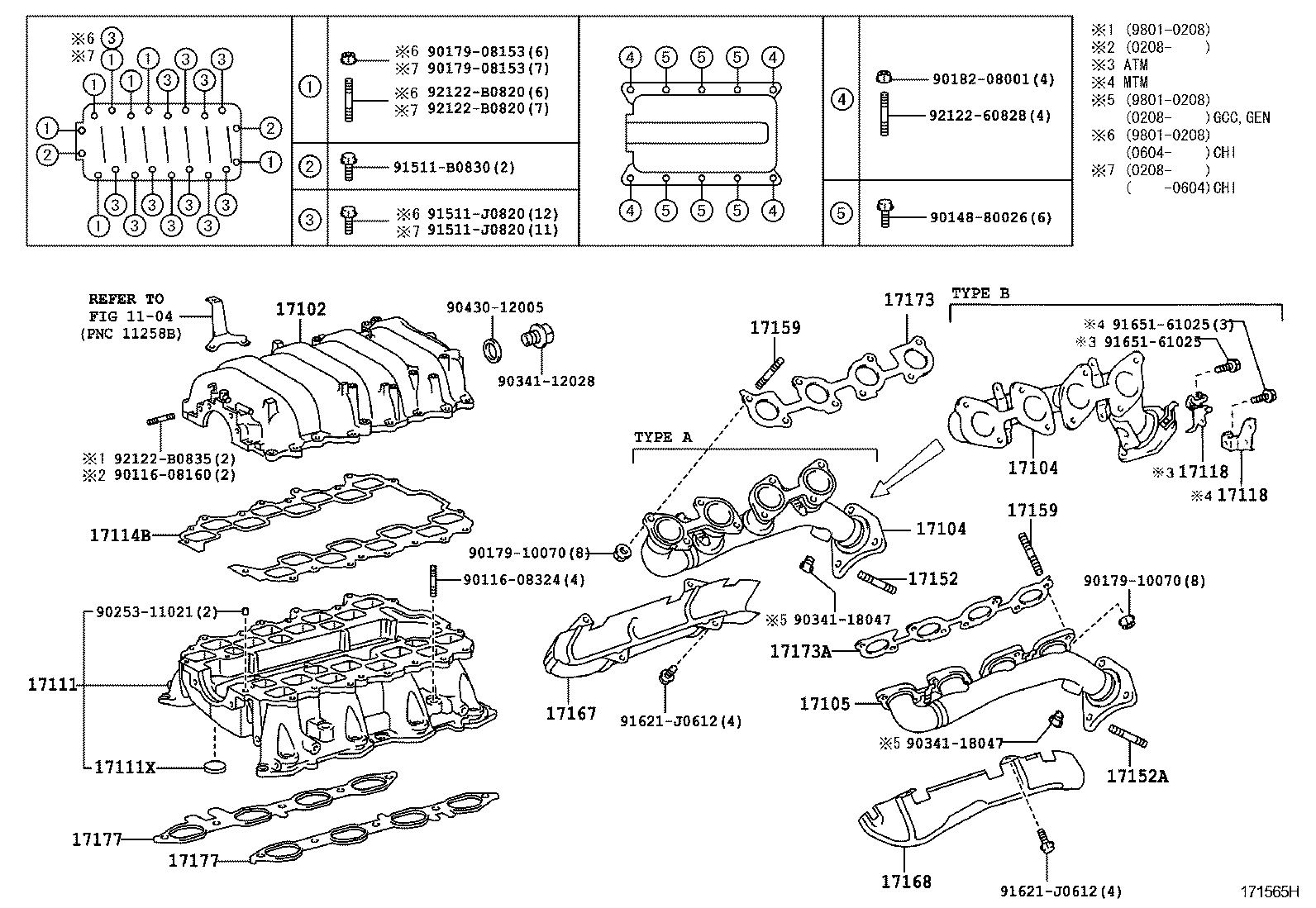

Click highlighted areas on diagram

diagram 1104 17102 17104 17104 17105 17111 17111X 17114B 17118 17118 17152 17152A 17159 17159 17167 17168 17173 17173A 17177 17177 9011608160 9011608324 9014880026 9017908153 9017908153 9017910070 9017910070 9018208001 9025311021 9034112028 9034118047 9034118047 9043012005 91511B0830 91511J0820 91511J0820 91621J0612 91621J0612 9165161025 9165161025 9212260828 92122B0820 92122B0820 92122B0835
Part # Description Qty Price
17102 - MANIFOLD SUB-ASSY, INTAKE, UPPER
17102-50021

2UZFE..UZJ100..ARL,GCC,GEN

 1
17102-50021

2UZFE..UZJ100..ARL,GCC,GEN

 1
17102-50020

2UZFE..UZJ100..ARL,GCC,GEN

 1
17102-50020

2UZFE..UZJ100..LHD

 1
17102-50041

2UZFE..UZJ100..ARL,GCC,GEN

 1
17104 - MANIFOLD SUB-ASSY, EXHAUST, RH
17104-50121

2UZFE..UZJ100

TYPE A:REFER TO ILLUSTRATION

 1
17104-50120

2UZFE..UZJ100

TYPE A:REFER TO ILLUSTRATION

 1
17104-50170

2UZFE..UZJ100..ARL,GCC

TYPE B:REFER TO ILLUSTRATION

 1
17104-50170

2UZFE..UZJ100..ARL,GCC

TYPE B:REFER TO ILLUSTRATION

 1
17104-50121

2UZFE..UZJ100..GCC,GEN

TYPE A:REFER TO ILLUSTRATION

 1
17104-50121

2UZFE..UZJ100..GCC,GEN

TYPE A:REFER TO ILLUSTRATION

 1
17104 - MANIFOLD SUB-ASSY, EXHAUST, RH
17104-50121

2UZFE..UZJ100

TYPE A:REFER TO ILLUSTRATION

 1
17104-50120

2UZFE..UZJ100

TYPE A:REFER TO ILLUSTRATION

 1
17104-50170

2UZFE..UZJ100..ARL,GCC

TYPE B:REFER TO ILLUSTRATION

 1
17104-50170

2UZFE..UZJ100..ARL,GCC

TYPE B:REFER TO ILLUSTRATION

 1
17104-50121

2UZFE..UZJ100..GCC,GEN

TYPE A:REFER TO ILLUSTRATION

 1
17104-50121

2UZFE..UZJ100..GCC,GEN

TYPE A:REFER TO ILLUSTRATION

 1
17105 - MANIFOLD SUB-ASSY, EXHAUST, LH
17105-50121

2UZFE..UZJ100

 1
17105-50121

2UZFE..UZJ100..ARL,GCC,GEN

 1
17105-50121

2UZFE..UZJ100..ARL,GCC,GEN

 1
17105-50120

2UZFE..UZJ100

 1
17111 - MANIFOLD, INTAKE
17101-50020

2UZFE..UZJ100..LHD

 1
17101-50020

2UZFE..UZJ100..ARL,GCC,GEN

 1
17101-50020

2UZFE..UZJ100..ARL,GCC,GEN

 1
17101-50040

2UZFE..UZJ100..ARL,GCC,GEN

 1
17111X - PLUG, TIGHT NO.1(FOR INTAKE MANIFOLD)
96411-42000

2UZFE..UZJ100..LHD

 1
96411-42000

2UZFE..UZJ100..ARL,GCC,GEN

 1
96411-42000

2UZFE..UZJ100..ARL,GCC,GEN

 1
17114B - GASKET, INTAKE FLANGE
17116-50010

2UZFE..UZJ100..LHD

 1
17116-50010

2UZFE..UZJ100..ARL,GCC,GEN

 1
17116-50010

2UZFE..UZJ100..ARL,GCC,GEN

 1
17118 - STAY, MANIFOLD
17118-50020

2UZFE..UZJ100..5F

 1
17118-50020

2UZFE..UZJ100..5F..(ARL,GCC)

 1
17118 - STAY, MANIFOLD
17118-50020

2UZFE..UZJ100..5F

 1
17118-50020

2UZFE..UZJ100..5F..(ARL,GCC)

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90126-10006

2UZFE..UZJ100..ARL,GCC,GEN

 3
90126-10006

2UZFE..UZJ100..LHD

 3
90126-10006

2UZFE..UZJ100..ARL,GCC,GEN

 3
17152A - BOLT,STUD(FOR MANIFOLD TO EXHAUST PIPE)
90126-10006

2UZFE..UZJ100..LHD

 3
90126-10006

2UZFE..UZJ100..ARL,GCC,GEN

 3
90126-10006

2UZFE..UZJ100..ARL,GCC,GEN

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-10015

2UZFE..UZJ100..ARL,GCC,GEN

 16
90126-10015

2UZFE..UZJ100..LHD

 16
90126-10015

2UZFE..UZJ100..ARL,GCC,GEN

 16
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-10015

2UZFE..UZJ100..ARL,GCC,GEN

 16
90126-10015

2UZFE..UZJ100..LHD

 16
90126-10015

2UZFE..UZJ100..ARL,GCC,GEN

 16
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-50100

2UZFE..UZJ100..LHD

 1
17167-50100

2UZFE..UZJ100..ARL,GCC,GEN

 1
17167-50100

2UZFE..UZJ100..ARL,GCC,GEN

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-50090

2UZFE..UZJ100..LHD

 1
17168-50090

2UZFE..UZJ100..ARL,GCC,GEN

 1
17168-50090

2UZFE..UZJ100..ARL,GCC,GEN

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-50021

2UZFE..UZJ100..LHD

 1
17173-50021

2UZFE..UZJ100..ARL,GCC,GEN

 1
17173-50021

2UZFE..UZJ100..ARL,GCC,GEN

 1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-50021

2UZFE..UZJ100..ARL,GCC,GEN

 1
17173-50021

2UZFE..UZJ100..LHD

 1
17173-50021

2UZFE..UZJ100..ARL,GCC,GEN

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-50020

2UZFE..UZJ100..ARL,GCC,GEN

 2
17171-50020

2UZFE..UZJ100..ARL,GCC,GEN

 2
17171-50020

2UZFE..UZJ100..LHD

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-50020

2UZFE..UZJ100..ARL,GCC,GEN

 2
17171-50020

2UZFE..UZJ100..ARL,GCC,GEN

 2
17171-50020

2UZFE..UZJ100..LHD

 2
Common parts
90116-08160
90116-08324
90148-80026
90179-08153
90179-10070
90182-08001
90253-11021
90341-12028
90341-18047
90430-12005
91511-B0830
91511-J0820
91621-J0612
91651-61025
92122-60828
92122-B0820
92122-B0835
Linked diagrams
1104
