UZJ100L-GNMEKV (1998)
Toyota Land Cruiser 100
Production
Jan 1998
-
Aug 2007
Engine
2UZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9801- )2UZFE

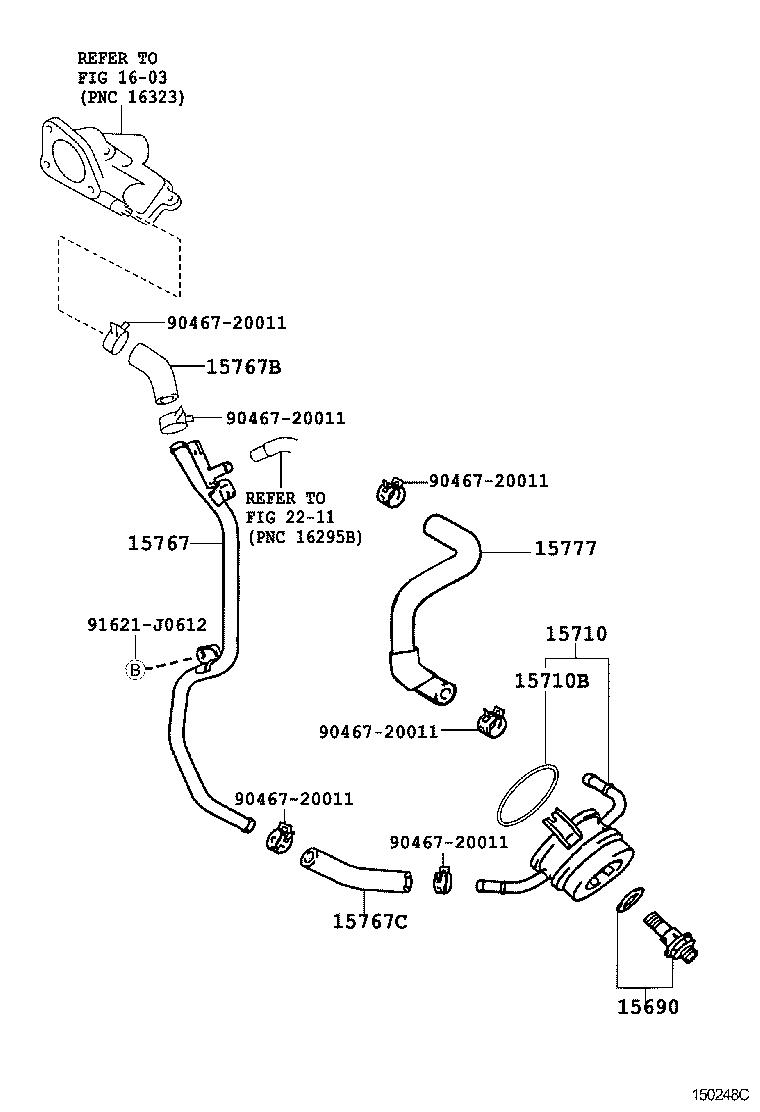

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15690 - VALVE ASSY, OIL COOLER RELIEF | ||||
| 15695-50010 |
2UZFE..UZJ100..LHD |
1 | ||
| 15695-50010 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 15695-50010 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| 15710-50020 |
2UZFE..UZJ100..LHD |
1 | ||
| 15710-50020 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 15710-50020 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 15710B - RING, O(FOR OIL COOLER) | ||||
| 90301-67004 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 90301-67004 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 90301-67004 |
2UZFE..UZJ100 |
1 | ||
| 15767 - PIPE, OIL COOLER | ||||
| 15767-50100 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 15767-50040 |
2UZFE..UZJ100 |
1 | ||
| 15767-50101 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 15767B - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-50030 |
2UZFE..UZJ100..LHD |
1 | ||
| 16281-50030 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16281-50030 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 15767C - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-50040 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16282-50040 |
2UZFE..UZJ100..LHD |
1 | ||
| 16282-50040 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 15777 - HOSE, OIL COOLER | ||||
| 15777-50030 |
2UZFE..UZJ100..LHD |
1 | ||
| 15777-50030 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 15777-50030 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90467-20011 | ||||
| 91621-J0612 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 2211 | ||||
