UZJ100L-GNMEK (1998)
Toyota Land Cruiser 100
(9801- )2UZFE

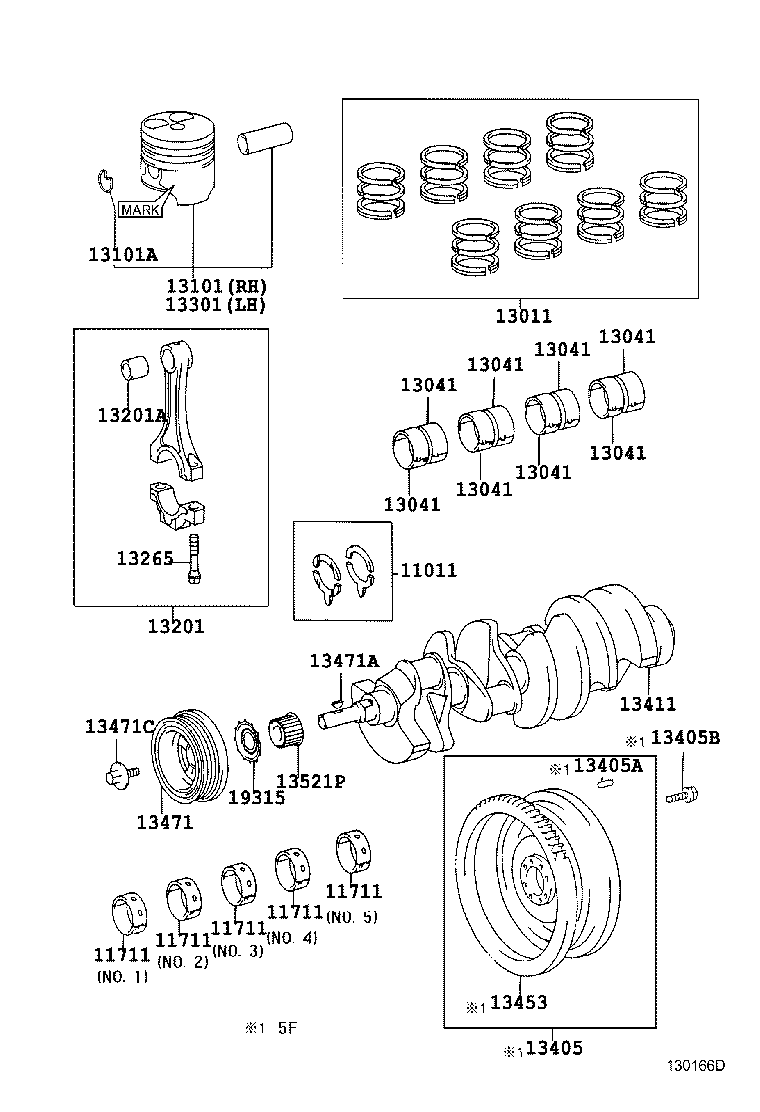

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11012-50010 |
2UZFE..UZJ100..LHD O/S 0.125 |
1 | ||
| 11011-50010 |
2UZFE..UZJ100..LHD STD |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5003005 |
2UZFE..UZJ100 MARK 5,NO.1,5:REFER TO REPAIR MANUAL,MARK 5 |
2 | ||
| 11701-5003006 |
2UZFE..UZJ100 MARK 6,NO.1,5:REFER TO REPAIR MANUAL,MARK 6 |
2 | ||
| 11701-5003004 |
2UZFE..UZJ100 MARK 4,NO.1,5:REFER TO REPAIR MANUAL,MARK 4 |
2 | ||
| 11701-5003007 |
2UZFE..UZJ100 MARK 7,NO.1,5:REFER TO REPAIR MANUAL,MARK 7 |
2 | ||
| 11701-5003003 |
2UZFE..UZJ100 MARK 3,NO.1,5:REFER TO REPAIR MANUAL,MARK 3 |
2 | ||
| 11071-5002003 |
2UZFE..UZJ100..LHD MARK 3,NO.2,3,4:REFER TO REPAIR MANUAL,MARK 3 |
3 | ||
| 11071-5002002 |
2UZFE..UZJ100..LHD MARK 2,NO.2,3,4:REFER TO REPAIR MANUAL,MARK 2 |
3 | ||
| 11071-5002005 |
2UZFE..UZJ100..LHD MARK 5,NO.2,3,4:REFER TO REPAIR MANUAL,MARK 5 |
3 | ||
| 11071-5002001 |
2UZFE..UZJ100..LHD MARK 1,NO.2,3,4:REFER TO REPAIR MANUAL,MARK 1 |
3 | ||
| 11071-5002004 |
2UZFE..UZJ100..LHD MARK 4,NO.2,3,4:REFER TO REPAIR MANUAL,MARK 4 |
3 | ||
| 11701-5003106 |
2UZFE..UZJ100..LHD MARK 6,NO.1,5:REFER TO REPAIR MANUAL,MARK 6 |
2 | ||
| 11701-5003104 |
2UZFE..UZJ100..LHD MARK 4,NO.1,5:REFER TO REPAIR MANUAL,MARK 4 |
2 | ||
| 11701-5003103 |
2UZFE..UZJ100..LHD MARK 3,NO.1,5:REFER TO REPAIR MANUAL,MARK 3 |
2 | ||
| 11701-5003107 |
2UZFE..UZJ100..LHD MARK 7,NO.1,5:REFER TO REPAIR MANUAL,MARK 7 |
2 | ||
| 11701-5003105 |
2UZFE..UZJ100..LHD MARK 5,NO.1,5:REFER TO REPAIR MANUAL,MARK 5 |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5003005 |
2UZFE..UZJ100 MARK 5,NO.1,5:REFER TO REPAIR MANUAL,MARK 5 |
2 | ||
| 11701-5003006 |
2UZFE..UZJ100 MARK 6,NO.1,5:REFER TO REPAIR MANUAL,MARK 6 |
2 | ||
| 11701-5003004 |
2UZFE..UZJ100 MARK 4,NO.1,5:REFER TO REPAIR MANUAL,MARK 4 |
2 | ||
| 11701-5003007 |
2UZFE..UZJ100 MARK 7,NO.1,5:REFER TO REPAIR MANUAL,MARK 7 |
2 | ||
| 11701-5003003 |
2UZFE..UZJ100 MARK 3,NO.1,5:REFER TO REPAIR MANUAL,MARK 3 |
2 | ||
| 11071-5002003 |
2UZFE..UZJ100..LHD MARK 3,NO.2,3,4:REFER TO REPAIR MANUAL,MARK 3 |
3 | ||
| 11071-5002002 |
2UZFE..UZJ100..LHD MARK 2,NO.2,3,4:REFER TO REPAIR MANUAL,MARK 2 |
3 | ||
| 11071-5002005 |
2UZFE..UZJ100..LHD MARK 5,NO.2,3,4:REFER TO REPAIR MANUAL,MARK 5 |
3 | ||
| 11071-5002001 |
2UZFE..UZJ100..LHD MARK 1,NO.2,3,4:REFER TO REPAIR MANUAL,MARK 1 |
3 | ||
| 11071-5002004 |
2UZFE..UZJ100..LHD MARK 4,NO.2,3,4:REFER TO REPAIR MANUAL,MARK 4 |
3 | ||
| 11701-5003106 |
2UZFE..UZJ100..LHD MARK 6,NO.1,5:REFER TO REPAIR MANUAL,MARK 6 |
2 | ||
| 11701-5003104 |
2UZFE..UZJ100..LHD MARK 4,NO.1,5:REFER TO REPAIR MANUAL,MARK 4 |
2 | ||
| 11701-5003103 |
2UZFE..UZJ100..LHD MARK 3,NO.1,5:REFER TO REPAIR MANUAL,MARK 3 |
2 | ||
| 11701-5003107 |
2UZFE..UZJ100..LHD MARK 7,NO.1,5:REFER TO REPAIR MANUAL,MARK 7 |
2 | ||
| 11701-5003105 |
2UZFE..UZJ100..LHD MARK 5,NO.1,5:REFER TO REPAIR MANUAL,MARK 5 |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5003005 |
2UZFE..UZJ100 MARK 5,NO.1,5:REFER TO REPAIR MANUAL,MARK 5 |
2 | ||
| 11701-5003006 |
2UZFE..UZJ100 MARK 6,NO.1,5:REFER TO REPAIR MANUAL,MARK 6 |
2 | ||
| 11701-5003004 |
2UZFE..UZJ100 MARK 4,NO.1,5:REFER TO REPAIR MANUAL,MARK 4 |
2 | ||
| 11701-5003007 |
2UZFE..UZJ100 MARK 7,NO.1,5:REFER TO REPAIR MANUAL,MARK 7 |
2 | ||
| 11701-5003003 |
2UZFE..UZJ100 MARK 3,NO.1,5:REFER TO REPAIR MANUAL,MARK 3 |
2 | ||
| 11071-5002003 |
2UZFE..UZJ100..LHD MARK 3,NO.2,3,4:REFER TO REPAIR MANUAL,MARK 3 |
3 | ||
| 11071-5002002 |
2UZFE..UZJ100..LHD MARK 2,NO.2,3,4:REFER TO REPAIR MANUAL,MARK 2 |
3 | ||
| 11071-5002005 |
2UZFE..UZJ100..LHD MARK 5,NO.2,3,4:REFER TO REPAIR MANUAL,MARK 5 |
3 | ||
| 11071-5002001 |
2UZFE..UZJ100..LHD MARK 1,NO.2,3,4:REFER TO REPAIR MANUAL,MARK 1 |
3 | ||
| 11071-5002004 |
2UZFE..UZJ100..LHD MARK 4,NO.2,3,4:REFER TO REPAIR MANUAL,MARK 4 |
3 | ||
| 11701-5003106 |
2UZFE..UZJ100..LHD MARK 6,NO.1,5:REFER TO REPAIR MANUAL,MARK 6 |
2 | ||
| 11701-5003104 |
2UZFE..UZJ100..LHD MARK 4,NO.1,5:REFER TO REPAIR MANUAL,MARK 4 |
2 | ||
| 11701-5003103 |
2UZFE..UZJ100..LHD MARK 3,NO.1,5:REFER TO REPAIR MANUAL,MARK 3 |
2 | ||
| 11701-5003107 |
2UZFE..UZJ100..LHD MARK 7,NO.1,5:REFER TO REPAIR MANUAL,MARK 7 |
2 | ||
| 11701-5003105 |
2UZFE..UZJ100..LHD MARK 5,NO.1,5:REFER TO REPAIR MANUAL,MARK 5 |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5003005 |
2UZFE..UZJ100 MARK 5,NO.1,5:REFER TO REPAIR MANUAL,MARK 5 |
2 | ||
| 11701-5003006 |
2UZFE..UZJ100 MARK 6,NO.1,5:REFER TO REPAIR MANUAL,MARK 6 |
2 | ||
| 11701-5003004 |
2UZFE..UZJ100 MARK 4,NO.1,5:REFER TO REPAIR MANUAL,MARK 4 |
2 | ||
| 11701-5003007 |
2UZFE..UZJ100 MARK 7,NO.1,5:REFER TO REPAIR MANUAL,MARK 7 |
2 | ||
| 11701-5003003 |
2UZFE..UZJ100 MARK 3,NO.1,5:REFER TO REPAIR MANUAL,MARK 3 |
2 | ||
| 11071-5002003 |
2UZFE..UZJ100..LHD MARK 3,NO.2,3,4:REFER TO REPAIR MANUAL,MARK 3 |
3 | ||
| 11071-5002002 |
2UZFE..UZJ100..LHD MARK 2,NO.2,3,4:REFER TO REPAIR MANUAL,MARK 2 |
3 | ||
| 11071-5002005 |
2UZFE..UZJ100..LHD MARK 5,NO.2,3,4:REFER TO REPAIR MANUAL,MARK 5 |
3 | ||
| 11071-5002001 |
2UZFE..UZJ100..LHD MARK 1,NO.2,3,4:REFER TO REPAIR MANUAL,MARK 1 |
3 | ||
| 11071-5002004 |
2UZFE..UZJ100..LHD MARK 4,NO.2,3,4:REFER TO REPAIR MANUAL,MARK 4 |
3 | ||
| 11701-5003106 |
2UZFE..UZJ100..LHD MARK 6,NO.1,5:REFER TO REPAIR MANUAL,MARK 6 |
2 | ||
| 11701-5003104 |
2UZFE..UZJ100..LHD MARK 4,NO.1,5:REFER TO REPAIR MANUAL,MARK 4 |
2 | ||
| 11701-5003103 |
2UZFE..UZJ100..LHD MARK 3,NO.1,5:REFER TO REPAIR MANUAL,MARK 3 |
2 | ||
| 11701-5003107 |
2UZFE..UZJ100..LHD MARK 7,NO.1,5:REFER TO REPAIR MANUAL,MARK 7 |
2 | ||
| 11701-5003105 |
2UZFE..UZJ100..LHD MARK 5,NO.1,5:REFER TO REPAIR MANUAL,MARK 5 |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5003005 |
2UZFE..UZJ100 MARK 5,NO.1,5:REFER TO REPAIR MANUAL,MARK 5 |
2 | ||
| 11701-5003006 |
2UZFE..UZJ100 MARK 6,NO.1,5:REFER TO REPAIR MANUAL,MARK 6 |
2 | ||
| 11701-5003004 |
2UZFE..UZJ100 MARK 4,NO.1,5:REFER TO REPAIR MANUAL,MARK 4 |
2 | ||
| 11701-5003007 |
2UZFE..UZJ100 MARK 7,NO.1,5:REFER TO REPAIR MANUAL,MARK 7 |
2 | ||
| 11701-5003003 |
2UZFE..UZJ100 MARK 3,NO.1,5:REFER TO REPAIR MANUAL,MARK 3 |
2 | ||
| 11071-5002003 |
2UZFE..UZJ100..LHD MARK 3,NO.2,3,4:REFER TO REPAIR MANUAL,MARK 3 |
3 | ||
| 11071-5002002 |
2UZFE..UZJ100..LHD MARK 2,NO.2,3,4:REFER TO REPAIR MANUAL,MARK 2 |
3 | ||
| 11071-5002005 |
2UZFE..UZJ100..LHD MARK 5,NO.2,3,4:REFER TO REPAIR MANUAL,MARK 5 |
3 | ||
| 11071-5002001 |
2UZFE..UZJ100..LHD MARK 1,NO.2,3,4:REFER TO REPAIR MANUAL,MARK 1 |
3 | ||
| 11071-5002004 |
2UZFE..UZJ100..LHD MARK 4,NO.2,3,4:REFER TO REPAIR MANUAL,MARK 4 |
3 | ||
| 11701-5003106 |
2UZFE..UZJ100..LHD MARK 6,NO.1,5:REFER TO REPAIR MANUAL,MARK 6 |
2 | ||
| 11701-5003104 |
2UZFE..UZJ100..LHD MARK 4,NO.1,5:REFER TO REPAIR MANUAL,MARK 4 |
2 | ||
| 11701-5003103 |
2UZFE..UZJ100..LHD MARK 3,NO.1,5:REFER TO REPAIR MANUAL,MARK 3 |
2 | ||
| 11701-5003107 |
2UZFE..UZJ100..LHD MARK 7,NO.1,5:REFER TO REPAIR MANUAL,MARK 7 |
2 | ||
| 11701-5003105 |
2UZFE..UZJ100..LHD MARK 5,NO.1,5:REFER TO REPAIR MANUAL,MARK 5 |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-50150 |
2UZFE..UZJ100..LHD STD |
1 | ||
| 13013-50150 |
2UZFE..UZJ100..LHD O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5003005 |
2UZFE..UZJ100..LHD MARK 5:REFER TO REPAIR MANUAL,MARK 5 |
8 | ||
| 13041-5003002 |
2UZFE..UZJ100..LHD MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
8 | ||
| 13041-5003003 |
2UZFE..UZJ100..LHD MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
8 | ||
| 13041-5003006 |
2UZFE..UZJ100..LHD MARK 6:REFER TO REPAIR MANUAL,MARK 6 |
8 | ||
| 13041-5003007 |
2UZFE..UZJ100..LHD MARK 7:REFER TO REPAIR MANUAL,MARK 7 |
8 | ||
| 13041-5003004 |
2UZFE..UZJ100..LHD MARK 4:REFER TO REPAIR MANUAL,MARK 4 |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5003005 |
2UZFE..UZJ100..LHD MARK 5:REFER TO REPAIR MANUAL,MARK 5 |
8 | ||
| 13041-5003002 |
2UZFE..UZJ100..LHD MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
8 | ||
| 13041-5003003 |
2UZFE..UZJ100..LHD MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
8 | ||
| 13041-5003006 |
2UZFE..UZJ100..LHD MARK 6:REFER TO REPAIR MANUAL,MARK 6 |
8 | ||
| 13041-5003007 |
2UZFE..UZJ100..LHD MARK 7:REFER TO REPAIR MANUAL,MARK 7 |
8 | ||
| 13041-5003004 |
2UZFE..UZJ100..LHD MARK 4:REFER TO REPAIR MANUAL,MARK 4 |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5003005 |
2UZFE..UZJ100..LHD MARK 5:REFER TO REPAIR MANUAL,MARK 5 |
8 | ||
| 13041-5003002 |
2UZFE..UZJ100..LHD MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
8 | ||
| 13041-5003003 |
2UZFE..UZJ100..LHD MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
8 | ||
| 13041-5003006 |
2UZFE..UZJ100..LHD MARK 6:REFER TO REPAIR MANUAL,MARK 6 |
8 | ||
| 13041-5003007 |
2UZFE..UZJ100..LHD MARK 7:REFER TO REPAIR MANUAL,MARK 7 |
8 | ||
| 13041-5003004 |
2UZFE..UZJ100..LHD MARK 4:REFER TO REPAIR MANUAL,MARK 4 |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5003005 |
2UZFE..UZJ100..LHD MARK 5:REFER TO REPAIR MANUAL,MARK 5 |
8 | ||
| 13041-5003002 |
2UZFE..UZJ100..LHD MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
8 | ||
| 13041-5003003 |
2UZFE..UZJ100..LHD MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
8 | ||
| 13041-5003006 |
2UZFE..UZJ100..LHD MARK 6:REFER TO REPAIR MANUAL,MARK 6 |
8 | ||
| 13041-5003007 |
2UZFE..UZJ100..LHD MARK 7:REFER TO REPAIR MANUAL,MARK 7 |
8 | ||
| 13041-5003004 |
2UZFE..UZJ100..LHD MARK 4:REFER TO REPAIR MANUAL,MARK 4 |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5003005 |
2UZFE..UZJ100..LHD MARK 5:REFER TO REPAIR MANUAL,MARK 5 |
8 | ||
| 13041-5003002 |
2UZFE..UZJ100..LHD MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
8 | ||
| 13041-5003003 |
2UZFE..UZJ100..LHD MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
8 | ||
| 13041-5003006 |
2UZFE..UZJ100..LHD MARK 6:REFER TO REPAIR MANUAL,MARK 6 |
8 | ||
| 13041-5003007 |
2UZFE..UZJ100..LHD MARK 7:REFER TO REPAIR MANUAL,MARK 7 |
8 | ||
| 13041-5003004 |
2UZFE..UZJ100..LHD MARK 4:REFER TO REPAIR MANUAL,MARK 4 |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5003005 |
2UZFE..UZJ100..LHD MARK 5:REFER TO REPAIR MANUAL,MARK 5 |
8 | ||
| 13041-5003002 |
2UZFE..UZJ100..LHD MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
8 | ||
| 13041-5003003 |
2UZFE..UZJ100..LHD MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
8 | ||
| 13041-5003006 |
2UZFE..UZJ100..LHD MARK 6:REFER TO REPAIR MANUAL,MARK 6 |
8 | ||
| 13041-5003007 |
2UZFE..UZJ100..LHD MARK 7:REFER TO REPAIR MANUAL,MARK 7 |
8 | ||
| 13041-5003004 |
2UZFE..UZJ100..LHD MARK 4:REFER TO REPAIR MANUAL,MARK 4 |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5003005 |
2UZFE..UZJ100..LHD MARK 5:REFER TO REPAIR MANUAL,MARK 5 |
8 | ||
| 13041-5003002 |
2UZFE..UZJ100..LHD MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
8 | ||
| 13041-5003003 |
2UZFE..UZJ100..LHD MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
8 | ||
| 13041-5003006 |
2UZFE..UZJ100..LHD MARK 6:REFER TO REPAIR MANUAL,MARK 6 |
8 | ||
| 13041-5003007 |
2UZFE..UZJ100..LHD MARK 7:REFER TO REPAIR MANUAL,MARK 7 |
8 | ||
| 13041-5003004 |
2UZFE..UZJ100..LHD MARK 4:REFER TO REPAIR MANUAL,MARK 4 |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5003005 |
2UZFE..UZJ100..LHD MARK 5:REFER TO REPAIR MANUAL,MARK 5 |
8 | ||
| 13041-5003002 |
2UZFE..UZJ100..LHD MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
8 | ||
| 13041-5003003 |
2UZFE..UZJ100..LHD MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
8 | ||
| 13041-5003006 |
2UZFE..UZJ100..LHD MARK 6:REFER TO REPAIR MANUAL,MARK 6 |
8 | ||
| 13041-5003007 |
2UZFE..UZJ100..LHD MARK 7:REFER TO REPAIR MANUAL,MARK 7 |
8 | ||
| 13041-5003004 |
2UZFE..UZJ100..LHD MARK 4:REFER TO REPAIR MANUAL,MARK 4 |
8 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-5005001 |
2UZFE..UZJ100 STD,REFER TO REPAIR MANUAL,MARK 1,MARK 50050 |
4 | ||
| 13101-5005002 |
2UZFE..UZJ100 STD,REFER TO REPAIR MANUAL,MARK 2,MARK 50050 |
4 | ||
| 13103-50050 |
2UZFE..UZJ100 O/S 0.50,MARK 50050 |
4 | ||
| 13103-50051 |
2UZFE..UZJ100 O/S 0.50,MARK 50051 |
4 | ||
| 13101-5005103 |
2UZFE..UZJ100 STD,REFER TO REPAIR MANUAL,MARK 3,MARK 50051 |
4 | ||
| 13101-5005102 |
2UZFE..UZJ100 STD,REFER TO REPAIR MANUAL,MARK 2,MARK 50051 |
4 | ||
| 13101-5005101 |
2UZFE..UZJ100 STD,REFER TO REPAIR MANUAL,MARK 1,MARK 50051 |
4 | ||
| 13101-5005003 |
2UZFE..UZJ100 STD,REFER TO REPAIR MANUAL,MARK 3,MARK 50050 |
4 | ||
| 13101-5006103 |
2UZFE..UZJ100 STD,REFER TO REPAIR MANUAL,MARK 3 |
4 | ||
| 13101-5006101 |
2UZFE..UZJ100 STD,REFER TO REPAIR MANUAL,MARK 1 |
4 | ||
| 13103-50061 |
2UZFE..UZJ100 O/S 0.50 |
4 | ||
| 13101-5006102 |
2UZFE..UZJ100 STD,REFER TO REPAIR MANUAL,MARK 2 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-25004 |
2UZFE..UZJ100..LHD |
16 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-50030 |
2UZFE..UZJ100 |
8 | ||
| 13201-50032 |
2UZFE..UZJ100..LHD |
8 | ||
| 13201-50031 |
2UZFE..UZJ100 |
8 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73119 |
2UZFE..UZJ100 |
8 | ||
| 90999-73144 |
2UZFE..UZJ100..LHD |
8 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-28010 |
2UZFE..UZJ100..LHD |
16 | ||
| 13265-50020 |
2UZFE..UZJ100 |
16 | ||
| 13301 - PISTON SUB-ASSY, W/PIN, LH | ||||
| 13301-5004003 |
2UZFE..UZJ100 STD,REFER TO REPAIR MANUAL,MARK 3,MARK 50040 |
4 | ||
| 13301-5004101 |
2UZFE..UZJ100 STD,REFER TO REPAIR MANUAL,MARK 1,MARK 50041 |
4 | ||
| 13301-5005101 |
2UZFE..UZJ100 STD,REFER TO REPAIR MANUAL,MARK 1 |
4 | ||
| 13301-5004102 |
2UZFE..UZJ100 STD,REFER TO REPAIR MANUAL,MARK 2,MARK 50041 |
4 | ||
| 13301-5004001 |
2UZFE..UZJ100 STD,REFER TO REPAIR MANUAL,MARK 1,MARK 50040 |
4 | ||
| 13303-50041 |
2UZFE..UZJ100 O/S 0.50,MARK 50041 |
4 | ||
| 13301-5004002 |
2UZFE..UZJ100 STD,REFER TO REPAIR MANUAL,MARK 2,MARK 50040 |
4 | ||
| 13301-5005102 |
2UZFE..UZJ100 STD,REFER TO REPAIR MANUAL,MARK 2 |
4 | ||
| 13303-50040 |
2UZFE..UZJ100 O/S 0.50,MARK 50040 |
4 | ||
| 13301-5005103 |
2UZFE..UZJ100 STD,REFER TO REPAIR MANUAL,MARK 3 |
4 | ||
| 13301-5004103 |
2UZFE..UZJ100 STD,REFER TO REPAIR MANUAL,MARK 3,MARK 50041 |
4 | ||
| 13303-50051 |
2UZFE..UZJ100 O/S 0.50 |
4 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-50020 |
2UZFE..UZJ100..5F |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-10192 |
2UZFE..UZJ100..5F L=22,OD=10 |
2 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90910-02127 |
2UZFE..UZJ100..5F |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-50050 |
2UZFE..UZJ100..LHD |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-65010 |
2UZFE..UZJ100..5F |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13407-50091 |
2UZFE..UZJ100 |
1 | ||
| 13407-50090 |
2UZFE..UZJ100 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05005 |
2UZFE..UZJ100..LHD |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90109-18003 |
2UZFE..UZJ100..LHD |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-50022 |
2UZFE..UZJ100..LHD |
1 | ||
| 19315 - PLATE, CRANK ANGLE SENSOR, NO.1 | ||||
| 19315-50020 |
2UZFE..UZJ100..LHD |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
