UZJ100L-GNAEKC (2003)
Toyota Land Cruiser 100
(9801- )FZJ100,HDJ100,UZJ100..ARL,GCC,GEN ; (0309-0506)CHI
W(ACTIVE HEIGHT CONTROL)

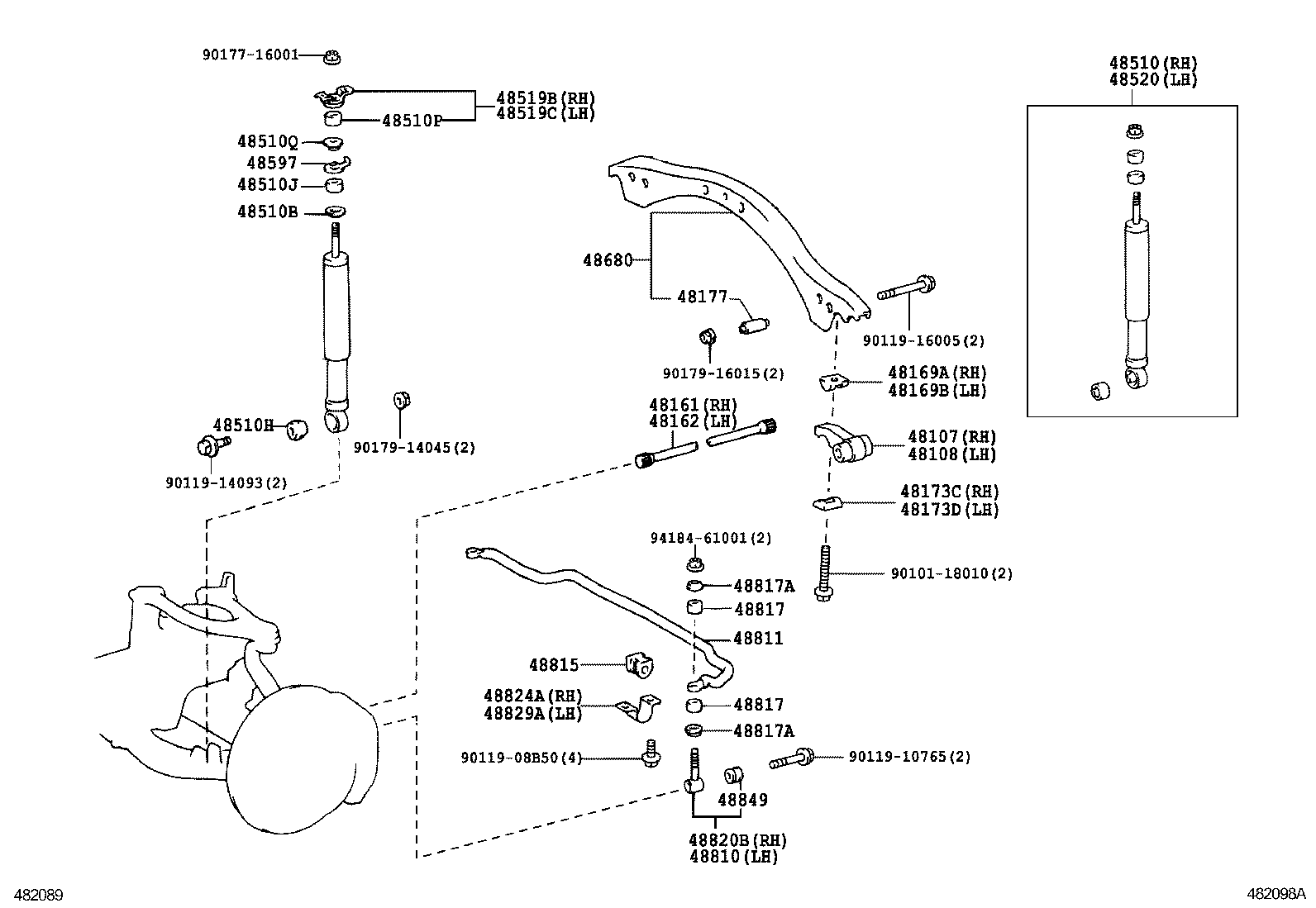

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48107 - ARM SUB-ASSY, ANCHOR, RH | ||||
| 48107-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 48107-60010 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48107-60010 |
FZJ100,UZJ100..CHI |
1 | ||
| 48108 - ARM SUB-ASSY, ANCHOR, LH | ||||
| 48108-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 48108-60010 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48108-60010 |
FZJ100,UZJ100..CHI |
1 | ||
| 48161 - SPRING, TORSION BAR, RH | ||||
| 48161-60040 |
UZJ100 W(ACTIVE HEIGHT CONTROL) |
1 | ||
| 48161-60060 |
UZJ100..LHD W(WINCH) |
1 | ||
| 48161-60030 |
UZJ100 |
1 | ||
| 48161-60040 |
UZJ100..VX..CHI |
1 | ||
| 48161-60040 |
UZJ100..VX..CHI |
1 | ||
| 48162 - SPRING, TORSION BAR, LH | ||||
| 48162-60030 |
UZJ100 |
1 | ||
| 48162-60040 |
UZJ100 W(ACTIVE HEIGHT CONTROL) |
1 | ||
| 48162-60060 |
UZJ100..LHD W(WINCH) |
1 | ||
| 48162-60040 |
UZJ100..VX..CHI |
1 | ||
| 48162-60040 |
UZJ100..VX..CHI |
1 | ||
| 48169A - SWIVEL, ANCHOR ARM, RH | ||||
| 48169-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 48169-60010 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48169-60010 |
FZJ100,UZJ100..CHI |
1 | ||
| 48169B - SWIVEL, ANCHOR ARM, LH | ||||
| 48169-60010 |
FZJ100,UZJ100..CHI |
1 | ||
| 48169-60010 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48169-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 48173C - SEAT, ANCHOR ARM ADJUSTER, RH | ||||
| 48173-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 48173-60010 |
FZJ100,UZJ100..CHI |
1 | ||
| 48173-60010 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48173D - SEAT, ANCHOR ARM ADJUSTER, LH | ||||
| 48173-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 48173-60010 |
FZJ100,UZJ100..CHI |
1 | ||
| 48173-60010 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48177 - BUSH, ANCHOR ARM BRACKET | ||||
| 48177-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 48177-60010 |
FZJ100..CHI;UZJ100..5FC..CHI |
2 | ||
| 48177-60010 |
FZJ100,UZJ100..CHI |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-69126 |
UZJ100;HDJ100..LUB MARK 48510-60080,W(ACTIVE HEIGHT CONTROL) |
1 | ||
| 48511-69476 |
FZJ100,HDJ100,UZJ100 MARK 48511-60510 |
1 | ||
| 48510-69127 |
UZJ100..VX..CHI MARK 48510-60081 |
1 | ||
| 48510-69127 |
UZJ100..VX..CHI MARK 48510-60081 |
1 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02174 |
UZJ100..LHD;FZJ100,HDJ100 |
4 | ||
| 90948-02171 |
UZJ100;HDJ100..LUB W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-02183 |
UZJ100..VX..CHI |
2 | ||
| 90948-02183 |
UZJ100..VX..CHI |
2 | ||
| 48510H - BUSH(FOR FRONT SHOCK ABSORBER) | ||||
| 90903-89016 |
FZJ100..CHI;UZJ100..5FC..CHI |
2 | ||
| 90903-89016 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 90903-89016 |
FZJ100,UZJ100..CHI |
2 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90540-17006 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 90540-17008 |
UZJ100;HDJ100..LUB W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-01075 |
UZJ100..VX..CHI W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-01075 |
UZJ100..VX..CHI |
2 | ||
| 48510P - CUSHION, FRONT SHOCK ABSORBER, NO.2 | ||||
| 90540-17007 |
UZJ100;HDJ100..LUB W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90540-17006 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 90948-01076 |
UZJ100..VX..CHI W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-01076 |
UZJ100..VX..CHI |
2 | ||
| 48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02175 |
FZJ100,HDJ100,UZJ100 UPPER |
2 | ||
| 90948-02176 |
UZJ100..LHD;FZJ100,HDJ100 LOWER |
2 | ||
| 90948-02175 |
UZJ100;HDJ100..LUB W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-02182 |
UZJ100..VX..CHI |
2 | ||
| 90948-02182 |
UZJ100..VX..CHI |
2 | ||
| 48519B - BRACKET, ACTUATOR SUPPORT, FRONT RH | ||||
| 48519-60020 |
UZJ100;HDJ100..LUB |
1 | ||
| 48519-60021 |
UZJ100..VX..CHI |
1 | ||
| 48519-60021 |
UZJ100..VX..CHI |
1 | ||
| 48519C - BRACKET, ACTUATOR SUPPORT, FRONT LH | ||||
| 48519-60030 |
UZJ100;HDJ100..LUB |
1 | ||
| 48519-60031 |
UZJ100..VX..CHI |
1 | ||
| 48519-60031 |
UZJ100..VX..CHI |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-69126 |
UZJ100;HDJ100..LUB MARK 48510-60080,W(ACTIVE HEIGHT CONTROL) |
1 | ||
| 48511-69476 |
FZJ100,HDJ100,UZJ100 MARK 48511-60510 |
1 | ||
| 48510-69127 |
UZJ100..VX..CHI MARK 48510-60081 |
1 | ||
| 48510-69127 |
UZJ100..VX..CHI MARK 48510-60081 |
1 | ||
| 48597 - RETAINER, SHOCK ABSORBER CUSHION | ||||
| 48597-60020 |
UZJ100;HDJ100..LUB |
2 | ||
| 48597-60021 |
UZJ100..VX..CHI |
2 | ||
| 48597-60021 |
UZJ100..VX..CHI |
2 | ||
| 48680 - SUPPORT ASSY, FRONT SUSPENSION | ||||
| 48680-60010 |
UZJ100..LHD |
1 | ||
| 48680-60010 |
UZJ100..5FC..CHI |
1 | ||
| 48680-60010 |
UZJ100..CHI |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-60031 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 48820-60032 |
FZJ100,UZJ100..CHI |
1 | ||
| 48820-60032 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-60180 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 48811-60180 |
FZJ100..CHI;UZJ100..5FC..CHI (J) |
1 | ||
| 48811-0G010 |
FZJ100..CHI;UZJ100..5FC..CHI (L) |
1 | ||
| 48811-0G010 |
FZJ100,UZJ100..CHI |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-60111 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 48815-60111 |
FZJ100,UZJ100..CHI |
2 | ||
| 48815-60111 |
FZJ100..CHI;UZJ100..5FC..CHI |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01003 |
UZJ100..LHD;FZJ100,HDJ100 |
4 | ||
| 90948-01003 |
FZJ100,UZJ100..CHI |
4 | ||
| 90948-01003 |
FZJ100..CHI;UZJ100..5FC..CHI |
4 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01003 |
UZJ100..LHD;FZJ100,HDJ100 |
4 | ||
| 90948-01003 |
FZJ100,UZJ100..CHI |
4 | ||
| 90948-01003 |
FZJ100..CHI;UZJ100..5FC..CHI |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02002 |
FZJ100,HDJ100,UZJ100 |
4 | ||
| 90948-02180 |
FZJ100,UZJ100..CHI |
4 | ||
| 90948-02180 |
FZJ100..CHI;UZJ100..5FC..CHI |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02002 |
FZJ100,HDJ100,UZJ100 |
4 | ||
| 90948-02180 |
FZJ100,UZJ100..CHI |
4 | ||
| 90948-02180 |
FZJ100..CHI;UZJ100..5FC..CHI |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-60031 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 48820-60032 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48820-60032 |
FZJ100,UZJ100..CHI |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-60100 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48824-60100 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 48824-60100 |
FZJ100,UZJ100..CHI |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-60110 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 48824-60110 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48824-60110 |
FZJ100,UZJ100..CHI |
1 | ||
| 48849 - BUSH, STABILIZER LINK | ||||
| 48849-60010 |
FZJ100,UZJ100..CHI |
2 | ||
| 48849-60010 |
FZJ100..CHI;UZJ100..5FC..CHI |
2 | ||
| 48849-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| Common parts | ||||
| 90101-18010 | ||||
| 90119-08B50 | ||||
| 90119-10765 | ||||
| 90119-14093 | ||||
| 90119-16005 | ||||
| 90177-14002 | ||||
| 90177-16001 | ||||
| 90179-14045 | ||||
| 90179-16015 | ||||
| 94184-61001 | ||||
(0506- )VX..CHI
W(ACTIVE HEIGHT CONTROL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48107 - ARM SUB-ASSY, ANCHOR, RH | ||||
| 48107-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 48107-60010 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48107-60010 |
FZJ100,UZJ100..CHI |
1 | ||
| 48108 - ARM SUB-ASSY, ANCHOR, LH | ||||
| 48108-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 48108-60010 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48108-60010 |
FZJ100,UZJ100..CHI |
1 | ||
| 48161 - SPRING, TORSION BAR, RH | ||||
| 48161-60040 |
UZJ100 W(ACTIVE HEIGHT CONTROL) |
1 | ||
| 48161-60060 |
UZJ100..LHD W(WINCH) |
1 | ||
| 48161-60030 |
UZJ100 |
1 | ||
| 48161-60040 |
UZJ100..VX..CHI |
1 | ||
| 48161-60040 |
UZJ100..VX..CHI |
1 | ||
| 48162 - SPRING, TORSION BAR, LH | ||||
| 48162-60030 |
UZJ100 |
1 | ||
| 48162-60040 |
UZJ100 W(ACTIVE HEIGHT CONTROL) |
1 | ||
| 48162-60060 |
UZJ100..LHD W(WINCH) |
1 | ||
| 48162-60040 |
UZJ100..VX..CHI |
1 | ||
| 48162-60040 |
UZJ100..VX..CHI |
1 | ||
| 48169A - SWIVEL, ANCHOR ARM, RH | ||||
| 48169-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 48169-60010 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48169-60010 |
FZJ100,UZJ100..CHI |
1 | ||
| 48169B - SWIVEL, ANCHOR ARM, LH | ||||
| 48169-60010 |
FZJ100,UZJ100..CHI |
1 | ||
| 48169-60010 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48169-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 48173C - SEAT, ANCHOR ARM ADJUSTER, RH | ||||
| 48173-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 48173-60010 |
FZJ100,UZJ100..CHI |
1 | ||
| 48173-60010 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48173D - SEAT, ANCHOR ARM ADJUSTER, LH | ||||
| 48173-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 48173-60010 |
FZJ100,UZJ100..CHI |
1 | ||
| 48173-60010 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48177 - BUSH, ANCHOR ARM BRACKET | ||||
| 48177-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 48177-60010 |
FZJ100..CHI;UZJ100..5FC..CHI |
2 | ||
| 48177-60010 |
FZJ100,UZJ100..CHI |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-69126 |
UZJ100;HDJ100..LUB MARK 48510-60080,W(ACTIVE HEIGHT CONTROL) |
1 | ||
| 48511-69476 |
FZJ100,HDJ100,UZJ100 MARK 48511-60510 |
1 | ||
| 48510-69127 |
UZJ100..VX..CHI MARK 48510-60081 |
1 | ||
| 48510-69127 |
UZJ100..VX..CHI MARK 48510-60081 |
1 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02174 |
UZJ100..LHD;FZJ100,HDJ100 |
4 | ||
| 90948-02171 |
UZJ100;HDJ100..LUB W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-02183 |
UZJ100..VX..CHI |
2 | ||
| 90948-02183 |
UZJ100..VX..CHI |
2 | ||
| 48510H - BUSH(FOR FRONT SHOCK ABSORBER) | ||||
| 90903-89016 |
FZJ100..CHI;UZJ100..5FC..CHI |
2 | ||
| 90903-89016 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 90903-89016 |
FZJ100,UZJ100..CHI |
2 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90540-17006 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 90540-17008 |
UZJ100;HDJ100..LUB W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-01075 |
UZJ100..VX..CHI W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-01075 |
UZJ100..VX..CHI |
2 | ||
| 48510P - CUSHION, FRONT SHOCK ABSORBER, NO.2 | ||||
| 90540-17007 |
UZJ100;HDJ100..LUB W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90540-17006 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 90948-01076 |
UZJ100..VX..CHI W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-01076 |
UZJ100..VX..CHI |
2 | ||
| 48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02175 |
FZJ100,HDJ100,UZJ100 UPPER |
2 | ||
| 90948-02176 |
UZJ100..LHD;FZJ100,HDJ100 LOWER |
2 | ||
| 90948-02175 |
UZJ100;HDJ100..LUB W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-02182 |
UZJ100..VX..CHI |
2 | ||
| 90948-02182 |
UZJ100..VX..CHI |
2 | ||
| 48519B - BRACKET, ACTUATOR SUPPORT, FRONT RH | ||||
| 48519-60020 |
UZJ100;HDJ100..LUB |
1 | ||
| 48519-60021 |
UZJ100..VX..CHI |
1 | ||
| 48519-60021 |
UZJ100..VX..CHI |
1 | ||
| 48519C - BRACKET, ACTUATOR SUPPORT, FRONT LH | ||||
| 48519-60030 |
UZJ100;HDJ100..LUB |
1 | ||
| 48519-60031 |
UZJ100..VX..CHI |
1 | ||
| 48519-60031 |
UZJ100..VX..CHI |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-69126 |
UZJ100;HDJ100..LUB MARK 48510-60080,W(ACTIVE HEIGHT CONTROL) |
1 | ||
| 48511-69476 |
FZJ100,HDJ100,UZJ100 MARK 48511-60510 |
1 | ||
| 48510-69127 |
UZJ100..VX..CHI MARK 48510-60081 |
1 | ||
| 48510-69127 |
UZJ100..VX..CHI MARK 48510-60081 |
1 | ||
| 48597 - RETAINER, SHOCK ABSORBER CUSHION | ||||
| 48597-60020 |
UZJ100;HDJ100..LUB |
2 | ||
| 48597-60021 |
UZJ100..VX..CHI |
2 | ||
| 48597-60021 |
UZJ100..VX..CHI |
2 | ||
| 48680 - SUPPORT ASSY, FRONT SUSPENSION | ||||
| 48680-60010 |
UZJ100..LHD |
1 | ||
| 48680-60010 |
UZJ100..5FC..CHI |
1 | ||
| 48680-60010 |
UZJ100..CHI |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-60031 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 48820-60032 |
FZJ100,UZJ100..CHI |
1 | ||
| 48820-60032 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-60180 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 48811-60180 |
FZJ100..CHI;UZJ100..5FC..CHI (J) |
1 | ||
| 48811-0G010 |
FZJ100..CHI;UZJ100..5FC..CHI (L) |
1 | ||
| 48811-0G010 |
FZJ100,UZJ100..CHI |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-60111 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 48815-60111 |
FZJ100,UZJ100..CHI |
2 | ||
| 48815-60111 |
FZJ100..CHI;UZJ100..5FC..CHI |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01003 |
UZJ100..LHD;FZJ100,HDJ100 |
4 | ||
| 90948-01003 |
FZJ100,UZJ100..CHI |
4 | ||
| 90948-01003 |
FZJ100..CHI;UZJ100..5FC..CHI |
4 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01003 |
UZJ100..LHD;FZJ100,HDJ100 |
4 | ||
| 90948-01003 |
FZJ100,UZJ100..CHI |
4 | ||
| 90948-01003 |
FZJ100..CHI;UZJ100..5FC..CHI |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02002 |
FZJ100,HDJ100,UZJ100 |
4 | ||
| 90948-02180 |
FZJ100,UZJ100..CHI |
4 | ||
| 90948-02180 |
FZJ100..CHI;UZJ100..5FC..CHI |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02002 |
FZJ100,HDJ100,UZJ100 |
4 | ||
| 90948-02180 |
FZJ100,UZJ100..CHI |
4 | ||
| 90948-02180 |
FZJ100..CHI;UZJ100..5FC..CHI |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-60031 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 48820-60032 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48820-60032 |
FZJ100,UZJ100..CHI |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-60100 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48824-60100 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 48824-60100 |
FZJ100,UZJ100..CHI |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-60110 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 48824-60110 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48824-60110 |
FZJ100,UZJ100..CHI |
1 | ||
| 48849 - BUSH, STABILIZER LINK | ||||
| 48849-60010 |
FZJ100,UZJ100..CHI |
2 | ||
| 48849-60010 |
FZJ100..CHI;UZJ100..5FC..CHI |
2 | ||
| 48849-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| Common parts | ||||
| 90101-18010 | ||||
| 90119-08B50 | ||||
| 90119-10765 | ||||
| 90119-14093 | ||||
| 90119-16005 | ||||
| 90177-16001 | ||||
| 90179-14045 | ||||
| 90179-16015 | ||||
| 94184-61001 | ||||
(9801- )FZJ100,HDJ100,UZJ100..ARL,GCC,GEN ; (0309-0506)CHI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48107 - ARM SUB-ASSY, ANCHOR, RH | ||||
| 48107-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 48107-60010 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48107-60010 |
FZJ100,UZJ100..CHI |
1 | ||
| 48108 - ARM SUB-ASSY, ANCHOR, LH | ||||
| 48108-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 48108-60010 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48108-60010 |
FZJ100,UZJ100..CHI |
1 | ||
| 48161 - SPRING, TORSION BAR, RH | ||||
| 48161-60040 |
UZJ100 W(ACTIVE HEIGHT CONTROL) |
1 | ||
| 48161-60060 |
UZJ100..LHD W(WINCH) |
1 | ||
| 48161-60030 |
UZJ100 |
1 | ||
| 48161-60040 |
UZJ100..VX..CHI |
1 | ||
| 48161-60040 |
UZJ100..VX..CHI |
1 | ||
| 48162 - SPRING, TORSION BAR, LH | ||||
| 48162-60030 |
UZJ100 |
1 | ||
| 48162-60040 |
UZJ100 W(ACTIVE HEIGHT CONTROL) |
1 | ||
| 48162-60060 |
UZJ100..LHD W(WINCH) |
1 | ||
| 48162-60040 |
UZJ100..VX..CHI |
1 | ||
| 48162-60040 |
UZJ100..VX..CHI |
1 | ||
| 48169A - SWIVEL, ANCHOR ARM, RH | ||||
| 48169-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 48169-60010 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48169-60010 |
FZJ100,UZJ100..CHI |
1 | ||
| 48169B - SWIVEL, ANCHOR ARM, LH | ||||
| 48169-60010 |
FZJ100,UZJ100..CHI |
1 | ||
| 48169-60010 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48169-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 48173C - SEAT, ANCHOR ARM ADJUSTER, RH | ||||
| 48173-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 48173-60010 |
FZJ100,UZJ100..CHI |
1 | ||
| 48173-60010 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48173D - SEAT, ANCHOR ARM ADJUSTER, LH | ||||
| 48173-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 48173-60010 |
FZJ100,UZJ100..CHI |
1 | ||
| 48173-60010 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48177 - BUSH, ANCHOR ARM BRACKET | ||||
| 48177-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 48177-60010 |
FZJ100..CHI;UZJ100..5FC..CHI |
2 | ||
| 48177-60010 |
FZJ100,UZJ100..CHI |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-69126 |
UZJ100;HDJ100..LUB MARK 48510-60080,W(ACTIVE HEIGHT CONTROL) |
1 | ||
| 48511-69476 |
FZJ100,HDJ100,UZJ100 MARK 48511-60510 |
1 | ||
| 48510-69127 |
UZJ100..VX..CHI MARK 48510-60081 |
1 | ||
| 48510-69127 |
UZJ100..VX..CHI MARK 48510-60081 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-69126 |
UZJ100;HDJ100..LUB MARK 48510-60080,W(ACTIVE HEIGHT CONTROL) |
1 | ||
| 48511-69476 |
FZJ100,HDJ100,UZJ100 MARK 48511-60510 |
1 | ||
| 48510-69127 |
UZJ100..VX..CHI MARK 48510-60081 |
1 | ||
| 48510-69127 |
UZJ100..VX..CHI MARK 48510-60081 |
1 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02174 |
UZJ100..LHD;FZJ100,HDJ100 |
4 | ||
| 90948-02171 |
UZJ100;HDJ100..LUB W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-02183 |
UZJ100..VX..CHI |
2 | ||
| 90948-02183 |
UZJ100..VX..CHI |
2 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02174 |
UZJ100..LHD;FZJ100,HDJ100 |
4 | ||
| 90948-02171 |
UZJ100;HDJ100..LUB W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-02183 |
UZJ100..VX..CHI |
2 | ||
| 90948-02183 |
UZJ100..VX..CHI |
2 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02174 |
UZJ100..LHD;FZJ100,HDJ100 |
4 | ||
| 90948-02171 |
UZJ100;HDJ100..LUB W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-02183 |
UZJ100..VX..CHI |
2 | ||
| 90948-02183 |
UZJ100..VX..CHI |
2 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02174 |
UZJ100..LHD;FZJ100,HDJ100 |
4 | ||
| 90948-02171 |
UZJ100;HDJ100..LUB W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-02183 |
UZJ100..VX..CHI |
2 | ||
| 90948-02183 |
UZJ100..VX..CHI |
2 | ||
| 48510H - BUSH(FOR FRONT SHOCK ABSORBER) | ||||
| 90903-89016 |
FZJ100..CHI;UZJ100..5FC..CHI |
2 | ||
| 90903-89016 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 90903-89016 |
FZJ100,UZJ100..CHI |
2 | ||
| 48510H - BUSH(FOR FRONT SHOCK ABSORBER) | ||||
| 90903-89016 |
FZJ100..CHI;UZJ100..5FC..CHI |
2 | ||
| 90903-89016 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 90903-89016 |
FZJ100,UZJ100..CHI |
2 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90540-17006 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 90540-17008 |
UZJ100;HDJ100..LUB W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-01075 |
UZJ100..VX..CHI W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-01075 |
UZJ100..VX..CHI |
2 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90540-17006 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 90540-17008 |
UZJ100;HDJ100..LUB W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-01075 |
UZJ100..VX..CHI W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-01075 |
UZJ100..VX..CHI |
2 | ||
| 48510P - CUSHION, FRONT SHOCK ABSORBER, NO.2 | ||||
| 90540-17007 |
UZJ100;HDJ100..LUB W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90540-17006 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 90948-01076 |
UZJ100..VX..CHI W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-01076 |
UZJ100..VX..CHI |
2 | ||
| 48510P - CUSHION, FRONT SHOCK ABSORBER, NO.2 | ||||
| 90540-17007 |
UZJ100;HDJ100..LUB W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90540-17006 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 90948-01076 |
UZJ100..VX..CHI W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-01076 |
UZJ100..VX..CHI |
2 | ||
| 48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02175 |
FZJ100,HDJ100,UZJ100 UPPER |
2 | ||
| 90948-02176 |
UZJ100..LHD;FZJ100,HDJ100 LOWER |
2 | ||
| 90948-02175 |
UZJ100;HDJ100..LUB W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-02182 |
UZJ100..VX..CHI |
2 | ||
| 90948-02182 |
UZJ100..VX..CHI |
2 | ||
| 48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02175 |
FZJ100,HDJ100,UZJ100 UPPER |
2 | ||
| 90948-02176 |
UZJ100..LHD;FZJ100,HDJ100 LOWER |
2 | ||
| 90948-02175 |
UZJ100;HDJ100..LUB W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-02182 |
UZJ100..VX..CHI |
2 | ||
| 90948-02182 |
UZJ100..VX..CHI |
2 | ||
| 48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02175 |
FZJ100,HDJ100,UZJ100 UPPER |
2 | ||
| 90948-02176 |
UZJ100..LHD;FZJ100,HDJ100 LOWER |
2 | ||
| 90948-02175 |
UZJ100;HDJ100..LUB W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-02182 |
UZJ100..VX..CHI |
2 | ||
| 90948-02182 |
UZJ100..VX..CHI |
2 | ||
| 48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02175 |
FZJ100,HDJ100,UZJ100 UPPER |
2 | ||
| 90948-02176 |
UZJ100..LHD;FZJ100,HDJ100 LOWER |
2 | ||
| 90948-02175 |
UZJ100;HDJ100..LUB W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-02182 |
UZJ100..VX..CHI |
2 | ||
| 90948-02182 |
UZJ100..VX..CHI |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-69126 |
UZJ100;HDJ100..LUB MARK 48510-60080,W(ACTIVE HEIGHT CONTROL) |
1 | ||
| 48511-69476 |
FZJ100,HDJ100,UZJ100 MARK 48511-60510 |
1 | ||
| 48510-69127 |
UZJ100..VX..CHI MARK 48510-60081 |
1 | ||
| 48510-69127 |
UZJ100..VX..CHI MARK 48510-60081 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-69126 |
UZJ100;HDJ100..LUB MARK 48510-60080,W(ACTIVE HEIGHT CONTROL) |
1 | ||
| 48511-69476 |
FZJ100,HDJ100,UZJ100 MARK 48511-60510 |
1 | ||
| 48510-69127 |
UZJ100..VX..CHI MARK 48510-60081 |
1 | ||
| 48510-69127 |
UZJ100..VX..CHI MARK 48510-60081 |
1 | ||
| 48680 - SUPPORT ASSY, FRONT SUSPENSION | ||||
| 48680-60010 |
UZJ100..LHD |
1 | ||
| 48680-60010 |
UZJ100..5FC..CHI |
1 | ||
| 48680-60010 |
UZJ100..CHI |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-60031 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 48820-60032 |
FZJ100,UZJ100..CHI |
1 | ||
| 48820-60032 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-60180 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 48811-60180 |
FZJ100..CHI;UZJ100..5FC..CHI (J) |
1 | ||
| 48811-0G010 |
FZJ100..CHI;UZJ100..5FC..CHI (L) |
1 | ||
| 48811-0G010 |
FZJ100,UZJ100..CHI |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-60111 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 48815-60111 |
FZJ100,UZJ100..CHI |
2 | ||
| 48815-60111 |
FZJ100..CHI;UZJ100..5FC..CHI |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01003 |
UZJ100..LHD;FZJ100,HDJ100 |
4 | ||
| 90948-01003 |
FZJ100,UZJ100..CHI |
4 | ||
| 90948-01003 |
FZJ100..CHI;UZJ100..5FC..CHI |
4 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01003 |
UZJ100..LHD;FZJ100,HDJ100 |
4 | ||
| 90948-01003 |
FZJ100,UZJ100..CHI |
4 | ||
| 90948-01003 |
FZJ100..CHI;UZJ100..5FC..CHI |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02002 |
FZJ100,HDJ100,UZJ100 |
4 | ||
| 90948-02180 |
FZJ100,UZJ100..CHI |
4 | ||
| 90948-02180 |
FZJ100..CHI;UZJ100..5FC..CHI |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02002 |
FZJ100,HDJ100,UZJ100 |
4 | ||
| 90948-02180 |
FZJ100,UZJ100..CHI |
4 | ||
| 90948-02180 |
FZJ100..CHI;UZJ100..5FC..CHI |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-60031 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 48820-60032 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48820-60032 |
FZJ100,UZJ100..CHI |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-60100 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48824-60100 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 48824-60100 |
FZJ100,UZJ100..CHI |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-60110 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 48824-60110 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 48824-60110 |
FZJ100,UZJ100..CHI |
1 | ||
| 48849 - BUSH, STABILIZER LINK | ||||
| 48849-60010 |
FZJ100,UZJ100..CHI |
2 | ||
| 48849-60010 |
FZJ100..CHI;UZJ100..5FC..CHI |
2 | ||
| 48849-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| Common parts | ||||
| 90101-18010 | ||||
| 90119-08B50 | ||||
| 90119-10765 | ||||
| 90119-14093 | ||||
| 90119-16005 | ||||
| 90177-14002 | ||||
| 90177-14003 | ||||
| 90179-14045 | ||||
| 90179-16015 | ||||
| 94184-61001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
