UZJ100L-GCMEKV (1998)
Toyota Land Cruiser 100
ILLUST NO. 1 OF 2(9801- )FZJ10#,UZJ100..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-60220 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..5F..(DSL2,EFI,TD2) |
1 | ||
| 31301-60220 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..5F..(GCC,GEN) |
1 | ||
| 31301-60220 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..5F..(GCC,GEN) |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90905-07024 |
FZJ10#,UZJ100..5F..(ARL,GCC,GEN) |
1 | ||
| 90905-07024 |
FZJ10#..5F;UZJ100..5F..VX |
1 | ||
| 90905-07024 |
FZJ10#,UZJ100..5F..(ARL,GCC,GEN) |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13020 |
FZJ10#,HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN) |
2 | ||
| 90386-13020 |
FZJ10#,HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN) |
2 | ||
| 90386-13020 |
HDJ100,UZJ100..5F..VX..(EFI,TD2);FZJ10#,HDJ100,HZJ105..5F..(GX,STD) |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13020 |
FZJ10#,HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN) |
2 | ||
| 90386-13020 |
FZJ10#,HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN) |
2 | ||
| 90386-13020 |
HDJ100,UZJ100..5F..VX..(EFI,TD2);FZJ10#,HDJ100,HZJ105..5F..(GX,STD) |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
FZJ10#,HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN) |
1 | ||
| 90101-10369 |
HDJ100,UZJ100..5F..VX..(EFI,TD2);FZJ10#,HDJ100,HZJ105..5F..(GX,STD) |
1 | ||
| 90101-10369 |
FZJ10#,HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN) |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94130-61000 |
FZJ10#,HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN) |
1 | ||
| 94130-61000 |
FZJ10#,HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN) |
1 | ||
| 94130-61000 |
HDJ100,UZJ100..5F..VX..(EFI,TD2);FZJ10#,HDJ100,HZJ105..5F..(GX,STD) |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
HDJ100,UZJ100..5F..VX..(EFI,TD2);FZJ10#,HDJ100,HZJ105..5F..(GX,STD) |
1 | ||
| 31321-14020 |
FZJ10#,HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN) |
1 | ||
| 31321-14020 |
FZJ10#,HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN) |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91121-51060 |
FZJ10#,HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN) |
1 | ||
| 91121-51060 |
FZJ10#,HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN) |
1 | ||
| 91121-51060 |
HDJ100,UZJ100..5F..VX..(EFI,TD2);FZJ10#,HDJ100,HZJ105..5F..(GX,STD) |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
HDJ100,UZJ100..5F..VX..(EFI,TD2);FZJ10#,HDJ100,HZJ105..5F..(GX,STD) |
1 | ||
| 90387-10003 |
FZJ10#,HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN) |
1 | ||
| 90387-10003 |
FZJ10#,HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN) |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90249-08018 |
FZJ10#,HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN) L=29.5 |
1 | ||
| 90249-08018 |
FZJ10#,HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN) L=29.5 |
1 | ||
| 90249-08018 |
HDJ100,UZJ100..5F..VX..(EFI,TD2);FZJ10#,HDJ100,HZJ105..5F..(GX,STD) L=29.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08033 |
FZJ10#,HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN) |
1 | ||
| 90386-08033 |
HDJ100,UZJ100..5F..VX..(EFI,TD2);FZJ10#,HDJ100,HZJ105..5F..(GX,STD) |
1 | ||
| 90386-08033 |
FZJ10#,HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN) |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-60160 |
FZJ10#,UZJ100..LHD..5F |
1 | ||
| 55107-60160 |
FZJ10#,UZJ100..LHD..5F..(GCC,GEN) |
1 | ||
| 55107-60160 |
FZJ10#,UZJ100..LHD..5F..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 90119-08856 | ||||
| 90468-16142 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||

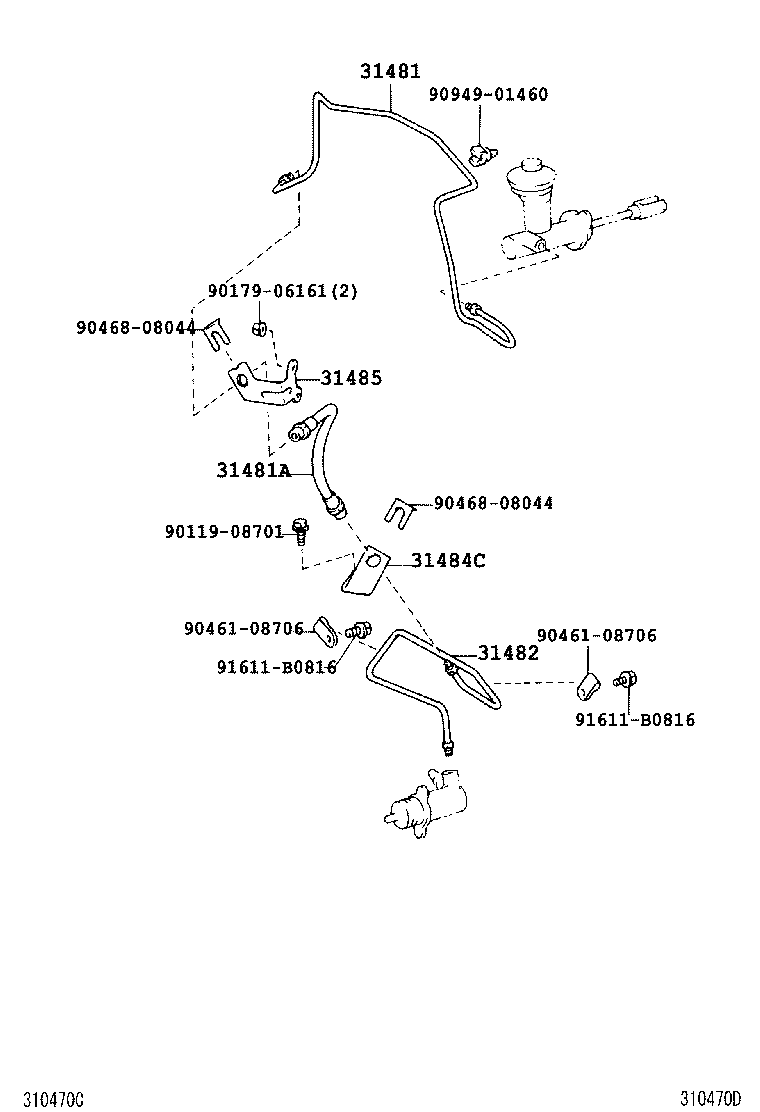

ILLUST NO. 2 OF 2(9801- )UZJ100..LHD..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-60800 |
UZJ100..5F..GCC |
1 | ||
| 31481-60800 |
UZJ100..5F |
1 | ||
| 31481-60800 |
UZJ100..5F..GCC |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90947-02A12 |
UZJ100..5F |
1 | ||
| 90947-02A12 |
UZJ100..5F..(ARL,GCC) |
1 | ||
| 90947-02A12 |
UZJ100..5F |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-60040 |
UZJ100..5F |
1 | ||
| 31482-60040 |
UZJ100..5F |
1 | ||
| 31482-60040 |
UZJ100..5F..(ARL,GCC) |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-60180 |
UZJ100..5F |
1 | ||
| 31484-60180 |
UZJ100..5F |
1 | ||
| 31484-60180 |
UZJ100..5F..(ARL,GCC) |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31485-60010 |
UZJ100..5F..GCC |
1 | ||
| 31485-60010 |
UZJ100..5F..GCC |
1 | ||
| 31485-60010 |
UZJ100..5F |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90179-06161 | ||||
| 90461-08706 | ||||
| 90468-08044 | ||||
| 90949-01460 | ||||
| 91611-B0816 | ||||
