Toyota Land cruiser 100 UZJ100 VACUUM PIPING

UZJ100L-GCMEKV (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2007

Engine 2UZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

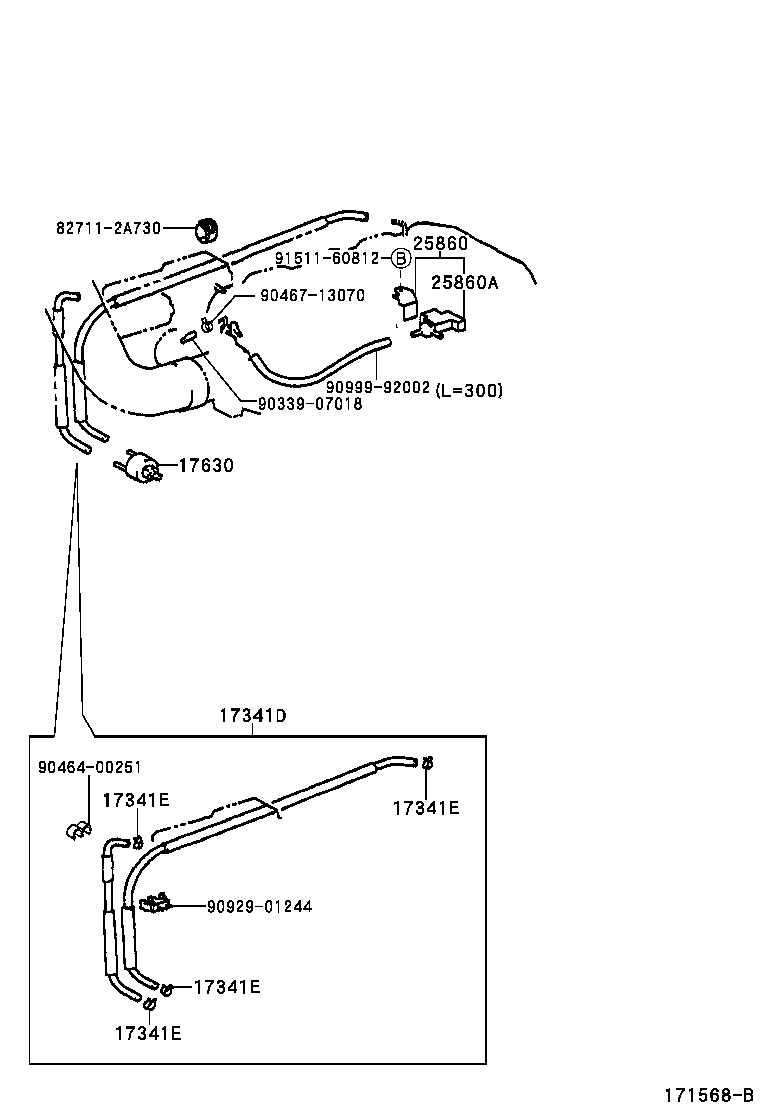

(9801-0208)2UZFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
17341D - HOSE, NO.1(FOR IDLE-UP)
17030-50070	2UZFE..UZJ100..LHD	01/1998 - 08/2002	1
17030-50070	2UZFE..UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
17030-50070	2UZFE..UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10099	2UZFE..UZJ100	01/1998 - 04/2002	4
96132-51000	2UZFE..UZJ100	04/2002 - 08/2002	4
96132-51000	2UZFE..UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	4
96132-51000	2UZFE..UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10099	2UZFE..UZJ100	01/1998 - 04/2002	4
96132-51000	2UZFE..UZJ100	04/2002 - 08/2002	4
96132-51000	2UZFE..UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	4
96132-51000	2UZFE..UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10099	2UZFE..UZJ100	01/1998 - 04/2002	4
96132-51000	2UZFE..UZJ100	04/2002 - 08/2002	4
96132-51000	2UZFE..UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	4
96132-51000	2UZFE..UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10099	2UZFE..UZJ100	01/1998 - 04/2002	4
96132-51000	2UZFE..UZJ100	04/2002 - 08/2002	4
96132-51000	2UZFE..UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	4
96132-51000	2UZFE..UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	4
17630 - VALVE ASSY, AIR CONTROL
17630-16040	2UZFE..UZJ100..ARL,GCC,GEN	05/2005 - 08/2007	1
17630-16040	2UZFE..UZJ100..LHD	01/1998 - 08/2002	1
17630-16040	2UZFE..UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-50110	2UZFE..UZJ100..5F;2UZFE..UZJ100..5FC..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION	01/2003 - 05/2005	1
25860-50110	2UZFE..UZJ100 TYPE A:REFER TO ILLUSTRATION	01/1998 - 08/2002	1
25860-50110	2UZFE..UZJ100..5F..(ARL,GCC);2UZFE..UZJ100..5FC..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION	05/2005 - 12/2999	1
25860A - VALVE, VACUUM SWITCHING, NO.1
90910-12183	2UZFE..UZJ100..5F;2UZFE..UZJ100..5FC..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION	01/2003 - 05/2005	1
90910-12183	2UZFE..UZJ100..5F..(ARL,GCC);2UZFE..UZJ100..5FC..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION	05/2005 - 12/2999	1
90910-12183	2UZFE..UZJ100 TYPE A:REFER TO ILLUSTRATION	01/1998 - 08/2002	1
Common parts
82711-2A730
90339-07018
90464-00251
90467-13070
90929-01244
90999-92002
91511-60812

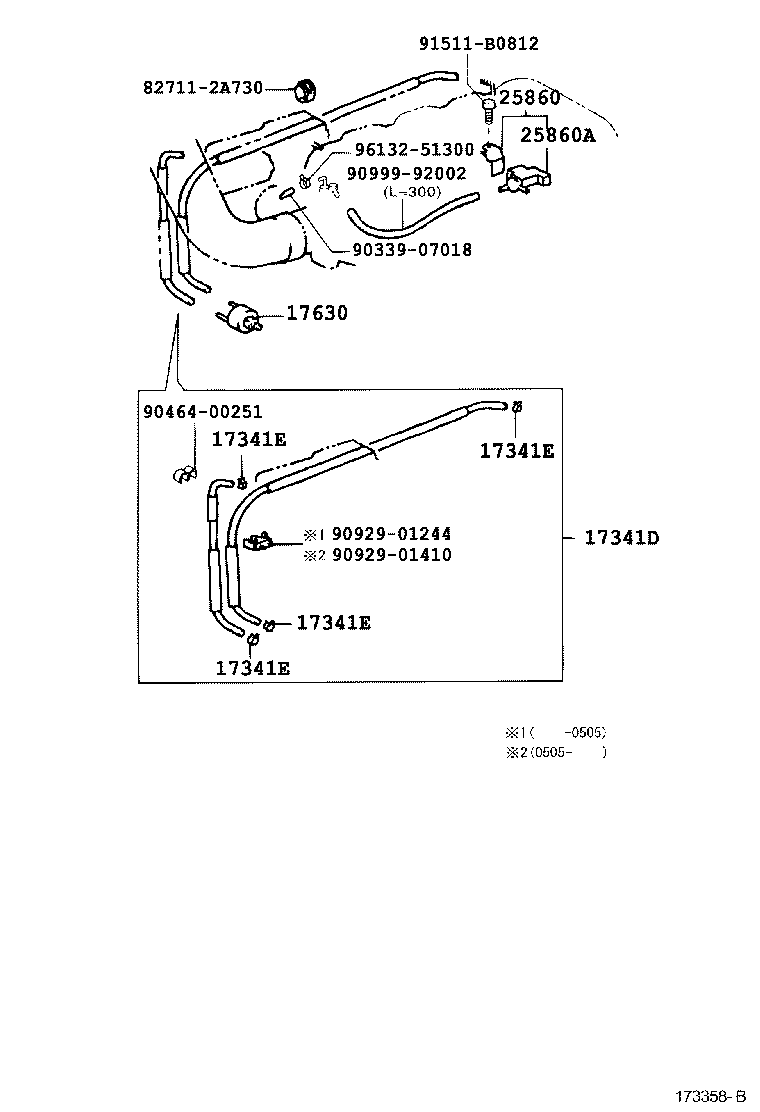

(0208- )2UZFE..5F ; (0208- )2UZFE..5FC..GCC,GEN

Click highlighted areas on diagram

TYPE A

Part #	Description	Period	Qty
17341D - HOSE, NO.1(FOR IDLE-UP)
17030-50070	2UZFE..UZJ100..LHD	01/1998 - 08/2002	1
17030-50070	2UZFE..UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
17030-50070	2UZFE..UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10099	2UZFE..UZJ100	01/1998 - 04/2002	4
96132-51000	2UZFE..UZJ100	04/2002 - 08/2002	4
96132-51000	2UZFE..UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	4
96132-51000	2UZFE..UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10099	2UZFE..UZJ100	01/1998 - 04/2002	4
96132-51000	2UZFE..UZJ100	04/2002 - 08/2002	4
96132-51000	2UZFE..UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	4
96132-51000	2UZFE..UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10099	2UZFE..UZJ100	01/1998 - 04/2002	4
96132-51000	2UZFE..UZJ100	04/2002 - 08/2002	4
96132-51000	2UZFE..UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	4
96132-51000	2UZFE..UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10099	2UZFE..UZJ100	01/1998 - 04/2002	4
96132-51000	2UZFE..UZJ100	04/2002 - 08/2002	4
96132-51000	2UZFE..UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	4
96132-51000	2UZFE..UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	4
17630 - VALVE ASSY, AIR CONTROL
17630-16040	2UZFE..UZJ100..ARL,GCC,GEN	05/2005 - 08/2007	1
17630-16040	2UZFE..UZJ100..LHD	01/1998 - 08/2002	1
17630-16040	2UZFE..UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-50110	2UZFE..UZJ100..5F;2UZFE..UZJ100..5FC..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION	01/2003 - 05/2005	1
25860-50110	2UZFE..UZJ100 TYPE A:REFER TO ILLUSTRATION	01/1998 - 08/2002	1
25860-50110	2UZFE..UZJ100..5F..(ARL,GCC);2UZFE..UZJ100..5FC..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION	05/2005 - 12/2999	1
25860A - VALVE, VACUUM SWITCHING, NO.1
90910-12183	2UZFE..UZJ100..5F;2UZFE..UZJ100..5FC..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION	01/2003 - 05/2005	1
90910-12183	2UZFE..UZJ100..5F..(ARL,GCC);2UZFE..UZJ100..5FC..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION	05/2005 - 12/2999	1
90910-12183	2UZFE..UZJ100 TYPE A:REFER TO ILLUSTRATION	01/1998 - 08/2002	1
Common parts
82711-2A730
90339-07018
90464-00251
90929-01244
90929-01410
90999-92002
91511-B0812
96132-51300

UZJ100L-GCMEKV (1998)

(9801-0208)2UZFE

(0208- )2UZFE..5F ; (0208- )2UZFE..5FC..GCC,GEN
