UZJ100L-GCMEKV (1998)
Toyota Land Cruiser 100

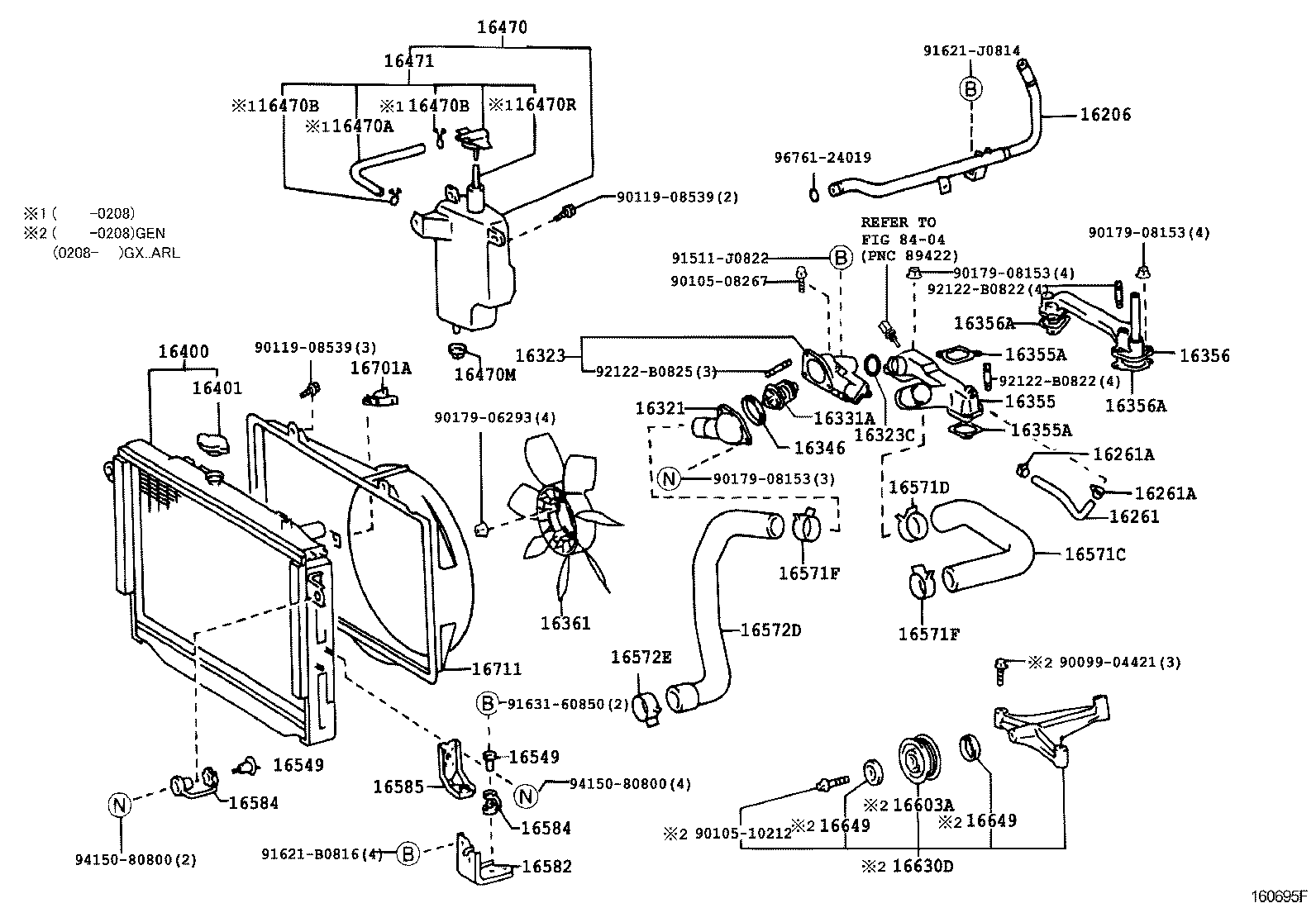

ILLUST NO. 1 OF 2(9801- )2UZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-50120 |
2UZFE..UZJ100..LHD |
1 | ||
| 16206-50120 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16206-50120 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-50090 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16261-50090 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16261-50090 |
2UZFE..UZJ100..LHD |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13054 |
2UZFE..UZJ100..ARL,GCC,GEN |
2 | ||
| 90467-13059 |
2UZFE..UZJ100 |
2 | ||
| 96137-41501 |
2UZFE..UZJ100..ARL,GCC,GEN |
2 | ||
| 96137-41501 |
2UZFE..UZJ100..ARL,GCC,GEN |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13054 |
2UZFE..UZJ100..ARL,GCC,GEN |
2 | ||
| 90467-13059 |
2UZFE..UZJ100 |
2 | ||
| 96137-41501 |
2UZFE..UZJ100..ARL,GCC,GEN |
2 | ||
| 96137-41501 |
2UZFE..UZJ100..ARL,GCC,GEN |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-50020 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16321-50020 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16321-50020 |
2UZFE..UZJ100..LHD |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16032-50110 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16032-50110 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16032-50110 |
2UZFE..UZJ100..LHD |
1 | ||
| 16032-50070 |
2UZFE..UZJ100 |
1 | ||
| 16323C - RING, O(FOR WATER INLET HOUSING) | ||||
| 96761-35035 |
2UZFE..UZJ100..LHD |
1 | ||
| 96761-35035 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 96761-35035 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03100 |
2UZFE..UZJ100..LHD *WAX 82-95 |
1 | ||
| 90916-03100 |
2UZFE..UZJ100..ARL,GCC,GEN *WAX 82-95 |
1 | ||
| 90916-03138 |
2UZFE..UZJ100..ARL,GCC,GEN *WAX 82-95 |
1 | ||
| 90916-03100 |
2UZFE..UZJ100..ARL,GCC,GEN *WAX 82-95 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-50010 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16346-50010 |
2UZFE..UZJ100..LHD |
1 | ||
| 16346-50010 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16355 - JOINT, WATER BY-PASS, FRONT | ||||
| 16355-50080 |
2UZFE..UZJ100..LHD |
1 | ||
| 16355-50080 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16355-50080 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16355A - GASKET(FOR WATER BY-PASS JOINT FRONT) | ||||
| 16341-50020 |
2UZFE..UZJ100..LHD |
2 | ||
| 16341-50020 |
2UZFE..UZJ100..ARL,GCC,GEN |
2 | ||
| 16341-50020 |
2UZFE..UZJ100..ARL,GCC,GEN |
2 | ||
| 16355A - GASKET(FOR WATER BY-PASS JOINT FRONT) | ||||
| 16341-50020 |
2UZFE..UZJ100..LHD |
2 | ||
| 16341-50020 |
2UZFE..UZJ100..ARL,GCC,GEN |
2 | ||
| 16341-50020 |
2UZFE..UZJ100..ARL,GCC,GEN |
2 | ||
| 16356 - JOINT, WATER BY-PASS, REAR | ||||
| 16356-50120 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16356-50120 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16356-50120 |
2UZFE..UZJ100..LHD |
1 | ||
| 16356A - GASKET(WATER BY-PASS JOINT, REAR) | ||||
| 16341-50020 |
2UZFE..UZJ100..ARL,GCC,GEN |
2 | ||
| 16341-50020 |
2UZFE..UZJ100..LHD |
2 | ||
| 16341-50020 |
2UZFE..UZJ100..ARL,GCC,GEN |
2 | ||
| 16356A - GASKET(WATER BY-PASS JOINT, REAR) | ||||
| 16341-50020 |
2UZFE..UZJ100..ARL,GCC,GEN |
2 | ||
| 16341-50020 |
2UZFE..UZJ100..LHD |
2 | ||
| 16341-50020 |
2UZFE..UZJ100..ARL,GCC,GEN |
2 | ||
| 16361 - FAN | ||||
| 16361-50040 |
2UZFE..UZJ100..LHD |
1 | ||
| 16361-50040 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16361-50040 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-50200 |
2UZFE..UZJ100..5F |
1 | ||
| 16400-50201 |
2UZFE..UZJ100..5F |
1 | ||
| 16400-50201 |
2UZFE..UZJ100..5F..(ARL,GCC) |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-67150 |
2UZFE..UZJ100..LHD |
1 | ||
| 16401-50210 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16401-50210 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16401-67150 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-50100 |
2UZFE..UZJ100..LHD |
1 | ||
| 16470-50100 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16470-50100 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2UZFE..UZJ100 *H,L=240 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2UZFE..UZJ100 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2UZFE..UZJ100 |
2 | ||
| 16470M - GROMMET | ||||
| 90480-25025 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 90480-25025 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 90480-25025 |
2UZFE..UZJ100..LHD |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 16472-50100 |
2UZFE..UZJ100 L=240 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-50020 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16405-50020 |
2UZFE..UZJ100..LHD |
1 | ||
| 16405-50020 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-50010 |
2UZFE..UZJ100..LHD UPPER BRACKET SIDE |
2 | ||
| 16549-61010 |
2UZFE..UZJ100..LHD LOWER |
2 | ||
| 16549-50010 |
2UZFE..UZJ100..ARL,GCC,GEN UPPER BRACKET SIDE |
2 | ||
| 16549-61010 |
2UZFE..UZJ100..ARL,GCC,GEN LOWER |
2 | ||
| 16549-50010 |
2UZFE..UZJ100..ARL,GCC,GEN UPPER BRACKET SIDE |
2 | ||
| 16549-61010 |
2UZFE..UZJ100..ARL,GCC,GEN LOWER |
2 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-50010 |
2UZFE..UZJ100..LHD UPPER BRACKET SIDE |
2 | ||
| 16549-61010 |
2UZFE..UZJ100..LHD LOWER |
2 | ||
| 16549-50010 |
2UZFE..UZJ100..ARL,GCC,GEN UPPER BRACKET SIDE |
2 | ||
| 16549-61010 |
2UZFE..UZJ100..ARL,GCC,GEN LOWER |
2 | ||
| 16549-50010 |
2UZFE..UZJ100..ARL,GCC,GEN UPPER BRACKET SIDE |
2 | ||
| 16549-61010 |
2UZFE..UZJ100..ARL,GCC,GEN LOWER |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-50150 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16571-50150 |
2UZFE..UZJ100..LHD |
1 | ||
| 16571-50150 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-41002 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 90467-41006 |
2UZFE..UZJ100 |
1 | ||
| 90467-41002 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 90467-42001 |
2UZFE..UZJ100 |
2 | ||
| 90467-41002 |
2UZFE..UZJ100..ARL,GCC,GEN |
2 | ||
| 90467-41002 |
2UZFE..UZJ100..ARL,GCC,GEN |
2 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 90467-42001 |
2UZFE..UZJ100 |
2 | ||
| 90467-41002 |
2UZFE..UZJ100..ARL,GCC,GEN |
2 | ||
| 90467-41002 |
2UZFE..UZJ100..ARL,GCC,GEN |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-50150 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16572-50150 |
2UZFE..UZJ100..LHD |
1 | ||
| 16572-50150 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-43002 |
2UZFE..UZJ100..LHD |
1 | ||
| 90467-43002 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 90467-43002 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-50010 |
2UZFE..UZJ100..ARL,GCC,GEN |
2 | ||
| 16582-50010 |
2UZFE..UZJ100..LHD |
2 | ||
| 16582-50010 |
2UZFE..UZJ100..ARL,GCC,GEN |
2 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-61020 |
2UZFE..UZJ100..LHD LOWER |
2 | ||
| 16584-61020 |
2UZFE..UZJ100..ARL,GCC,GEN LOWER |
2 | ||
| 16584-66010 |
2UZFE..UZJ100..ARL,GCC,GEN UPPER BRACKET SIDE |
2 | ||
| 16584-61020 |
2UZFE..UZJ100..ARL,GCC,GEN LOWER |
2 | ||
| 16584-66010 |
2UZFE..UZJ100..LHD UPPER BRACKET SIDE |
2 | ||
| 16584-66010 |
2UZFE..UZJ100..ARL,GCC,GEN UPPER BRACKET SIDE |
2 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-61020 |
2UZFE..UZJ100..LHD LOWER |
2 | ||
| 16584-61020 |
2UZFE..UZJ100..ARL,GCC,GEN LOWER |
2 | ||
| 16584-66010 |
2UZFE..UZJ100..ARL,GCC,GEN UPPER BRACKET SIDE |
2 | ||
| 16584-61020 |
2UZFE..UZJ100..ARL,GCC,GEN LOWER |
2 | ||
| 16584-66010 |
2UZFE..UZJ100..LHD UPPER BRACKET SIDE |
2 | ||
| 16584-66010 |
2UZFE..UZJ100..ARL,GCC,GEN UPPER BRACKET SIDE |
2 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-61020 |
2UZFE..UZJ100..LHD |
2 | ||
| 16585-61020 |
2UZFE..UZJ100..ARL,GCC,GEN |
2 | ||
| 16585-61020 |
2UZFE..UZJ100..ARL,GCC,GEN |
2 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90469-45001 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 90469-45001 |
2UZFE..UZJ100..LHD |
1 | ||
| 90469-45001 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-50090 |
2UZFE..UZJ100..LHD |
1 | ||
| 16711-50090 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16711-50090 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90099-04421 | ||||
| 90105-08267 | ||||
| 90105-10212 | ||||
| 90119-08539 | ||||
| 90179-06293 | ||||
| 90179-08153 | ||||
| 91511-J0822 | ||||
| 91621-B0816 | ||||
| 91621-J0814 | ||||
| 91631-60850 | ||||
| 92122-B0822 | ||||
| 92122-B0825 | ||||
| 94150-80800 | ||||
| 96761-24019 | ||||
| Linked diagrams | ||||
| 8404 | ||||

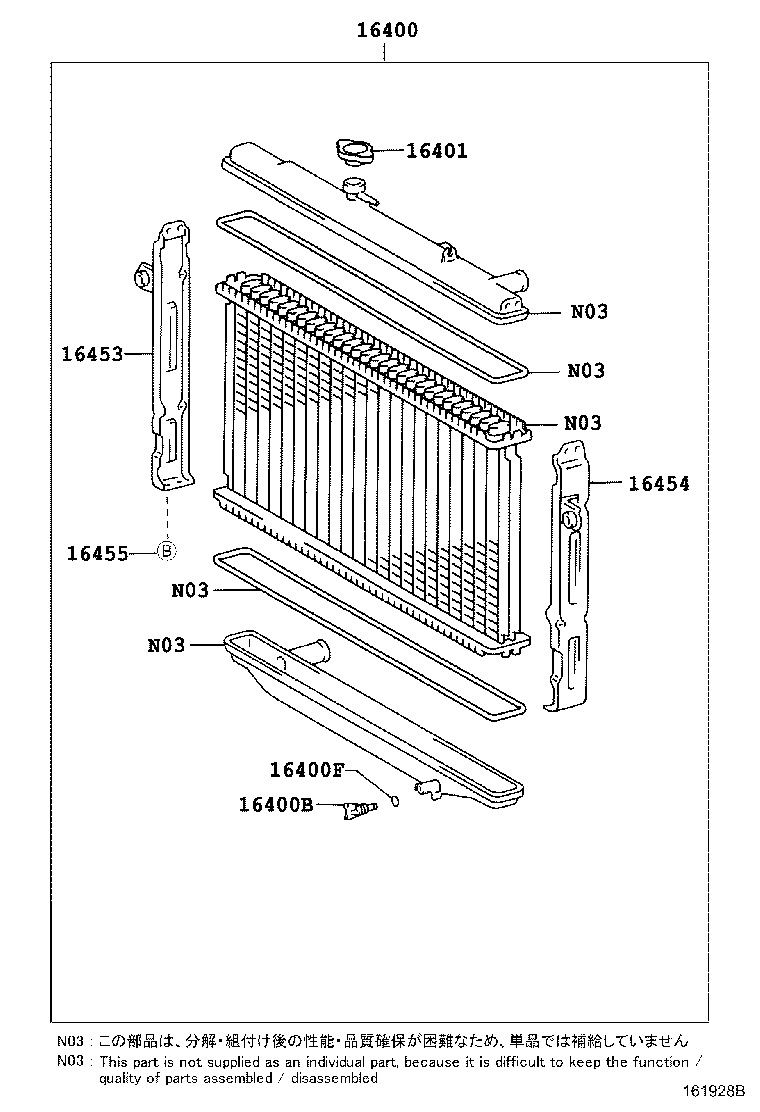

ILLUST NO. 2 OF 2(9801- )2UZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-50200 |
2UZFE..UZJ100..5F |
1 | ||
| 16400-50201 |
2UZFE..UZJ100..5F |
1 | ||
| 16400-50201 |
2UZFE..UZJ100..5F..(ARL,GCC) |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16417-15210 |
2UZFE..UZJ100..LHD |
1 | ||
| 16417-15210 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
2UZFE..UZJ100..LHD |
1 | ||
| 16418-15520 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16418-15520 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-67150 |
2UZFE..UZJ100..LHD |
1 | ||
| 16401-50210 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16401-50210 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16401-67150 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-50200 |
2UZFE..UZJ100..LHD |
1 | ||
| 16453-50200 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16453-50200 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-50200 |
2UZFE..UZJ100..LHD |
1 | ||
| 16454-50200 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16454-50200 |
2UZFE..UZJ100..ARL,GCC,GEN |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
2UZFE..UZJ100..LHD |
8 | ||
| 16455-67020 |
2UZFE..UZJ100..ARL,GCC,GEN |
8 | ||
| 16455-67020 |
2UZFE..UZJ100..ARL,GCC,GEN |
8 | ||
Part Price Details
Loading price information...
Part Number:
Price:
