HZJ105R-GNPNSQ (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2002
Engine 1HZ
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9801-9905)HDJ100,HZJ105..4FC

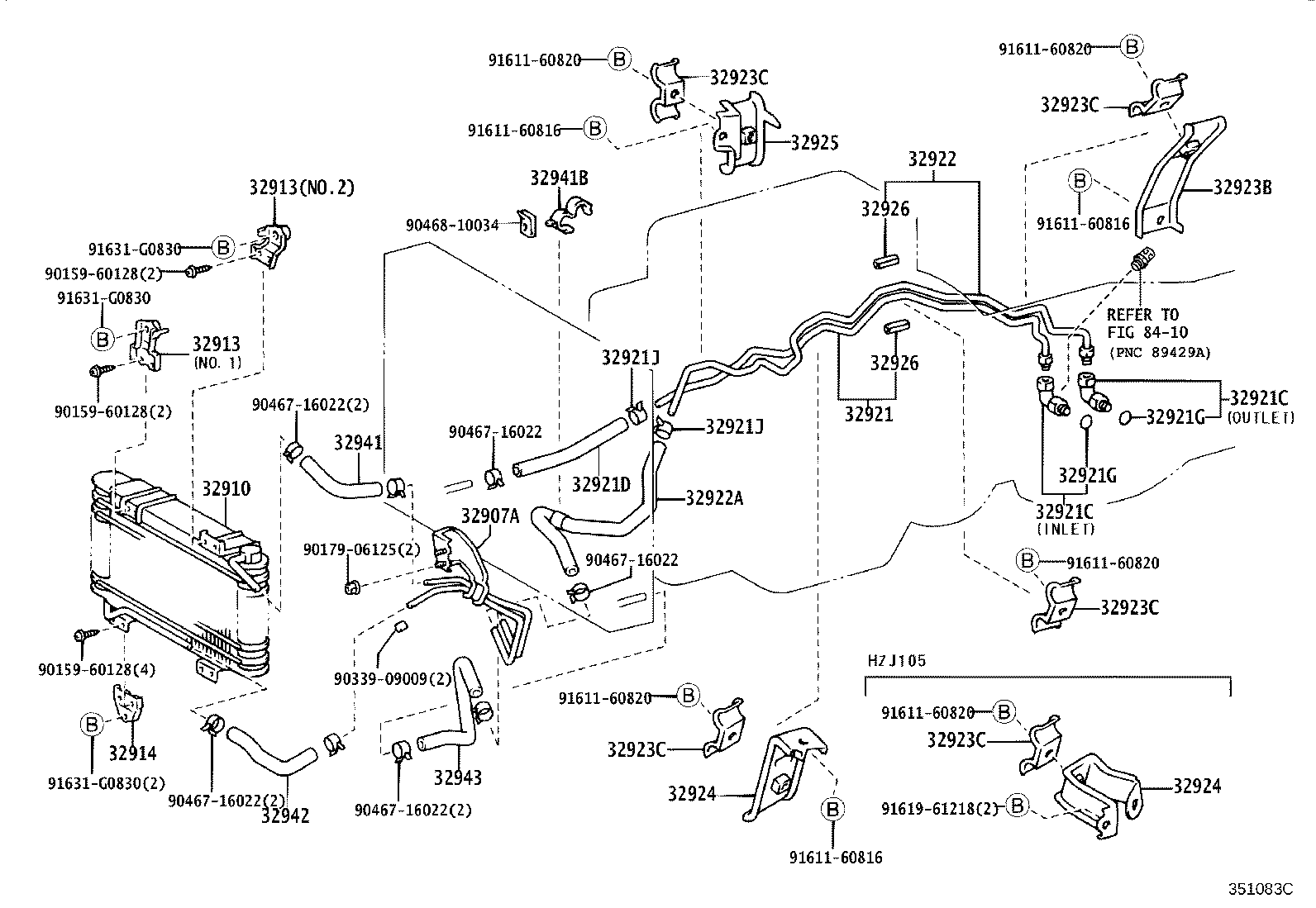

Click highlighted areas on diagram

A442F,AIR COOLING OIL COOLER

diagram 32907A 32910 32913 32913 32914 32921 32921C 32921C 32921D 32921G 32921G 32921J 32921J 32922 32922A 32923B 32923C 32923C 32923C 32923C 32923C 32924 32924 32925 32926 32926 32941 32941B 32942 32943 8410 9015960128 9015960128 9015960128 9017906125 9033909009 9046716022 9046716022 9046716022 9046716022 9046716022 9046810034 9161160816 9161160816 9161160816 9161160820 9161160820 9161160820 9161160820 9161160820 9161961218 91631G0830 91631G0830 91631G0830
Part # Description Qty Price
32907A - TUBE, OIL COOLER
32907-60040

FZJ105,HDJ100,HZJ105..4FC

 1
32910 - COOLER ASSY, OIL
32910-60140

FZJ105,HDJ100,HZJ105..4FC

 1
32913 - BRACKET, OIL COOLER
32913-60220

UZJ100..4FC..GEN;FZJ105,HDJ100,HZJ105..4FC

NO.1

 1
32913-60230

UZJ100..4FC..GEN;FZJ105,HDJ100,HZJ105..4FC

NO.2

 1
32913 - BRACKET, OIL COOLER
32913-60220

UZJ100..4FC..GEN;FZJ105,HDJ100,HZJ105..4FC

NO.1

 1
32913-60230

UZJ100..4FC..GEN;FZJ105,HDJ100,HZJ105..4FC

NO.2

 1
32914 - STAY, OIL COOLER
32914-60060

UZJ100..4FC..GEN;FZJ105,HDJ100,HZJ105..4FC

 2
32921 - TUBE, OIL COOLER INLET, NO.1
32921-60190

HZJ105..4FC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-20006

FZJ10#,HDJ100,HZJ105..4FC

INLET

 1
90407-20004

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

OUTLET

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-20006

FZJ10#,HDJ100,HZJ105..4FC

INLET

 1
90407-20004

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

OUTLET

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-17096

HDJ100,HZJ105..4FC

 1
32942-22280

HZJ105..4FC

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

FZJ10#,HDJ100,HZJ105,UZJ100..4FC

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

FZJ10#,HDJ100,HZJ105,UZJ100..4FC

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-60210

HZJ105..4FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32942-60320

HDJ100,HZJ105..4FC

AIR COOLING OIL COOLER

 1
32942-60340

HZJ105..4FC

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-60050

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
90462-12076

HDJ100,HZJ105..4FC

 4
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
90462-12076

HDJ100,HZJ105..4FC

 4
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
90462-12076

HDJ100,HZJ105..4FC

 4
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
90462-12076

HDJ100,HZJ105..4FC

 4
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
90462-12076

HDJ100,HZJ105..4FC

 4
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-60120

HZJ105..4FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-60120

HZJ105..4FC

 1
32925 - CLAMP, OIL COOLER TUBE, NO.3
32925-60130

HDJ100,HZJ105..4FC

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010

FZJ10#,HDJ100,HZJ105..4FC

L=45,ID=12

 8
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010

FZJ10#,HDJ100,HZJ105..4FC

L=45,ID=12

 8
32941 - HOSE, OIL COOLER INLET, NO.1
90445-17103

FZJ105,HDJ100,HZJ105..4FC

 1
32941B - CLAMP(FOR OIL COOLER TUBE)
90464-00166

FZJ105,HDJ100,HZJ105..4FC

 1
32942 - HOSE, OIL COOLER OUTLET, NO.1
90445-17103

UZJ100..4FC..GEN;FZJ105,HDJ100,HZJ105..4FC

 1
32943 - HOSE, TRANSMISSION OIL COOLER, NO.1
32943-60230

FZJ105,HZJ105..4FC

 1
Common parts
90159-60128
90179-06125
90339-09009
90467-16022
90468-10034
91611-60816
91611-60820
91619-61218
91631-G0830
Linked diagrams
8410

(9905-0208)HZJ105..4FC

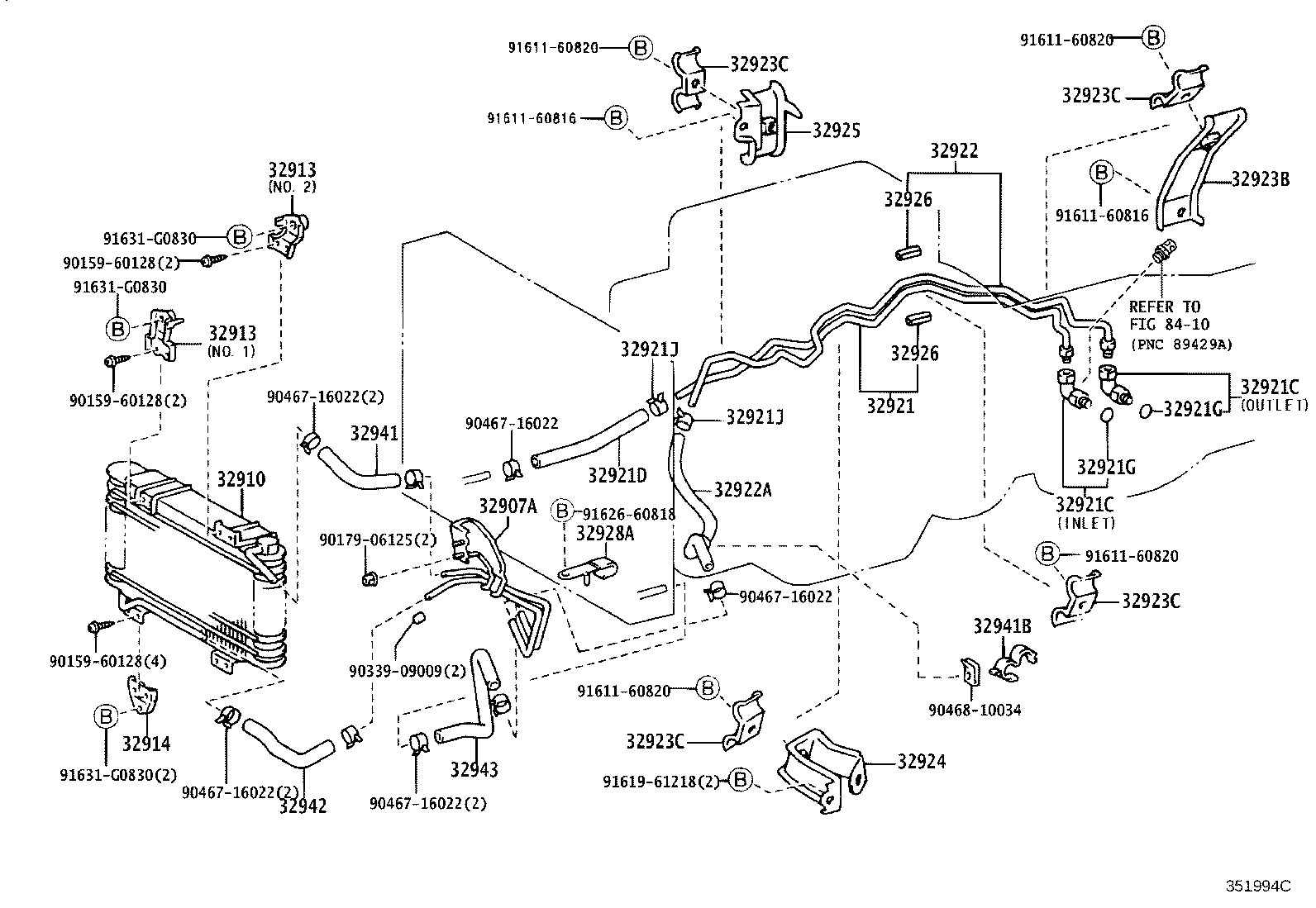

Click highlighted areas on diagram

A442F

diagram 32907A 32910 32913 32913 32914 32921 32921C 32921C 32921D 32921G 32921G 32921J 32921J 32922 32922A 32923B 32923C 32923C 32923C 32923C 32924 32925 32926 32926 32928A 32941 32941B 32942 32943 8410 9015960128 9015960128 9015960128 9017906125 9033909009 9046716022 9046716022 9046716022 9046716022 9046716022 9046810034 9161160816 9161160820 9161160820 9161160820 9161961218 9162660818 91631G0830 91631G0830 91631G0830
Part # Description Qty Price
32907A - TUBE, OIL COOLER
32907-60040

FZJ105,HDJ100,HZJ105..4FC

 1
32910 - COOLER ASSY, OIL
32910-60140

FZJ105,HDJ100,HZJ105..4FC

 1
32913 - BRACKET, OIL COOLER
32913-60220

UZJ100..4FC..GEN;FZJ105,HDJ100,HZJ105..4FC

NO.1

 1
32913-60230

UZJ100..4FC..GEN;FZJ105,HDJ100,HZJ105..4FC

NO.2

 1
32913 - BRACKET, OIL COOLER
32913-60220

UZJ100..4FC..GEN;FZJ105,HDJ100,HZJ105..4FC

NO.1

 1
32913-60230

UZJ100..4FC..GEN;FZJ105,HDJ100,HZJ105..4FC

NO.2

 1
32914 - STAY, OIL COOLER
32914-60060

UZJ100..4FC..GEN;FZJ105,HDJ100,HZJ105..4FC

 2
32921 - TUBE, OIL COOLER INLET, NO.1
32921-60190

HZJ105..4FC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-20006

FZJ10#,HDJ100,HZJ105..4FC

INLET

 1
90407-20004

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

OUTLET

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-20006

FZJ10#,HDJ100,HZJ105..4FC

INLET

 1
90407-20004

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

OUTLET

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-17096

HDJ100,HZJ105..4FC

 1
32942-22280

HZJ105..4FC

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

FZJ10#,HDJ100,HZJ105,UZJ100..4FC

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

FZJ10#,HDJ100,HZJ105,UZJ100..4FC

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-60210

HZJ105..4FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32942-60320

HDJ100,HZJ105..4FC

AIR COOLING OIL COOLER

 1
32942-60340

HZJ105..4FC

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-60050

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
90462-12076

HDJ100,HZJ105..4FC

 4
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
90462-12076

HDJ100,HZJ105..4FC

 4
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
90462-12076

HDJ100,HZJ105..4FC

 4
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
90462-12076

HDJ100,HZJ105..4FC

 4
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-60120

HZJ105..4FC

 1
32925 - CLAMP, OIL COOLER TUBE, NO.3
32925-60130

HDJ100,HZJ105..4FC

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010

FZJ10#,HDJ100,HZJ105..4FC

L=45,ID=12

 8
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010

FZJ10#,HDJ100,HZJ105..4FC

L=45,ID=12

 8
32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP)
32928-60090

HZJ105..4FC

 1
32928-60090

FZJ105,HZJ105..4FC

 1
32941 - HOSE, OIL COOLER INLET, NO.1
90445-17103

FZJ105,HDJ100,HZJ105..4FC

 1
32941B - CLAMP(FOR OIL COOLER TUBE)
90464-00166

FZJ105,HDJ100,HZJ105..4FC

 1
32942 - HOSE, OIL COOLER OUTLET, NO.1
90445-17103

UZJ100..4FC..GEN;FZJ105,HDJ100,HZJ105..4FC

 1
32943 - HOSE, TRANSMISSION OIL COOLER, NO.1
32943-60230

FZJ105,HZJ105..4FC

 1
Common parts
90159-60128
90179-06125
90339-09009
90467-16022
90468-10034
91611-60816
91611-60820
91619-61218
91626-60818
91631-G0830
Linked diagrams
8410
