HZJ105R-GNPNSQ (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2002
Engine 1HZ
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )1HZ

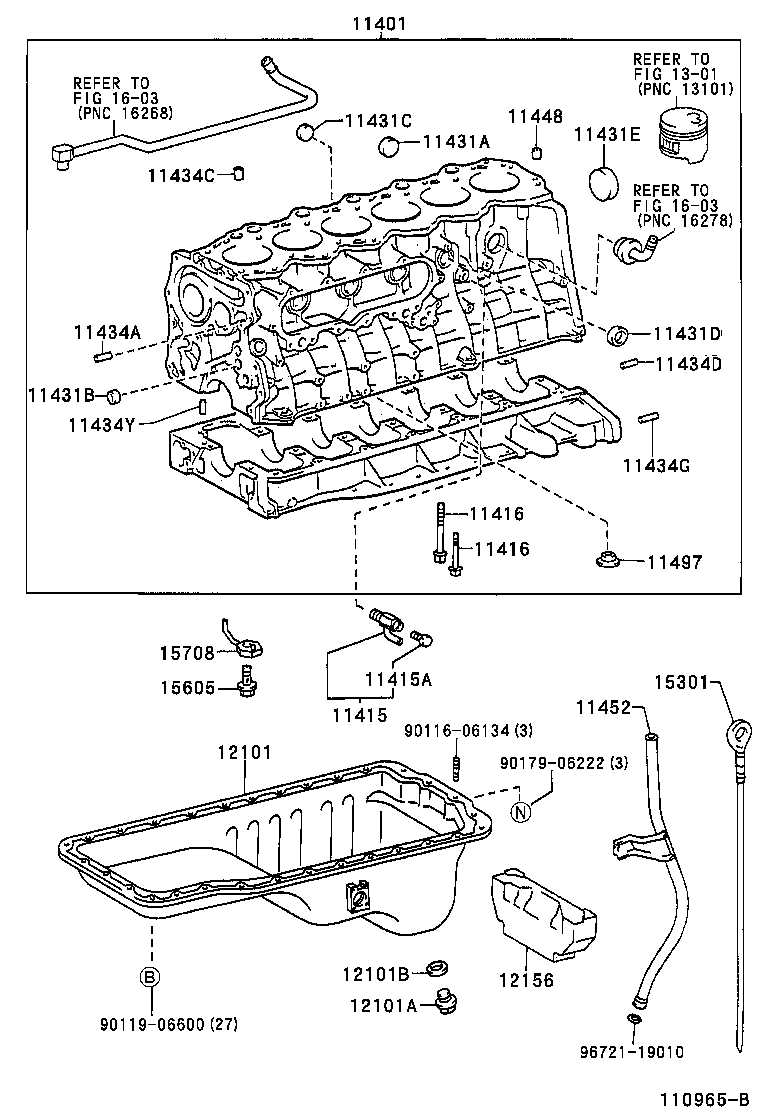

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11416 11431A 11431B 11431C 11431D 11431E 11434A 11434C 11434D 11434G 11434Y 11448 11452 11497 12101 12101A 12101B 12156 1301 15301 15605 15708 1603 1603 9011606134 9011906600 9017906222 9672119010
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-80010

1HZ..HZJ105

 1
11401-80041

1HZ..HZJ105

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09075

1HD#,1HZ..HDJ100,HZJ105

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

1HD#,1HZ..HDJ100,HZJ105

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90119-08182

1HD#,1HZ..HDJ100,HZJ105

L=75

 15
90910-02098

1HD#,1HZ..HDJ100,HZJ105

L=86.5

 14
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90119-08182

1HD#,1HZ..HDJ100,HZJ105

L=75

 15
90910-02098

1HD#,1HZ..HDJ100,HZJ105

L=86.5

 14
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
90331-35002

1HD#,1HZ..HDJ100,HZJ105

 3
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-41800

1HD#,1HZ..HDJ100,HZJ105

 4
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-42500

1HD#,1HZ..HDJ100,HZJ105

 1
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-43500

1HD#,1HZ..HDJ100,HZJ105

 6
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96411-45000

1HD#,1HZ..HDJ100,HZJ105

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

1HD#,1HZ..HDJ100,HZJ105

L=18,OD=8

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08074

1HD#,1HZ..HDJ100,HZJ105

L=15,OD=8

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06068

1HD#,1HZ..HDJ100,HZJ105

L=11,OD=6

 2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-08054

1HD#,1HZ..HDJ100,HZJ105

 2
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-12006

1HD#,1HZ..HDJ100,HZJ105

 2
11448 - ORIFICE, CYLINDER BLOCK OIL
11448-17010

1HDT,1HZ..HDJ100,HZJ105

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-17040

1HD#,1HZ..HDJ100,HZJ105

 1
11452-17041

1HD#,1HZ..HDJ100,HZJ105

 1
11497 - GASKET, CYLINDER BLOCK OIL HOLE
11497-17010

1HD#,1HZ..HDJ100,HZJ105

 1
12101 - PAN SUB-ASSY, OIL
12101-17170

1HZ..HZJ105..ARL

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12026

1HD#,1HZ..HDJ100,HZJ105

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1HD#,1HZ..HDJ100,HZJ105

 1
12156 - INSULATOR, OIL PAN
12156-17010

1HD#..HDJ100;1HZ..HZJ105..ARL;1HZ..HZJ105..LHD..SOB..GEN

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-17060

1HZ..HZJ105

 1
15605 - VALVE SUB-ASSY, OIL CHECK
15605-17030

1HD#,1HZ..HDJ100,HZJ105

 6
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-17010

1HDT,1HZ..HDJ100,HZJ105

 6
Common parts
90116-06134
90119-06600
90179-06222
96721-19010
Linked diagrams
1301
1603
